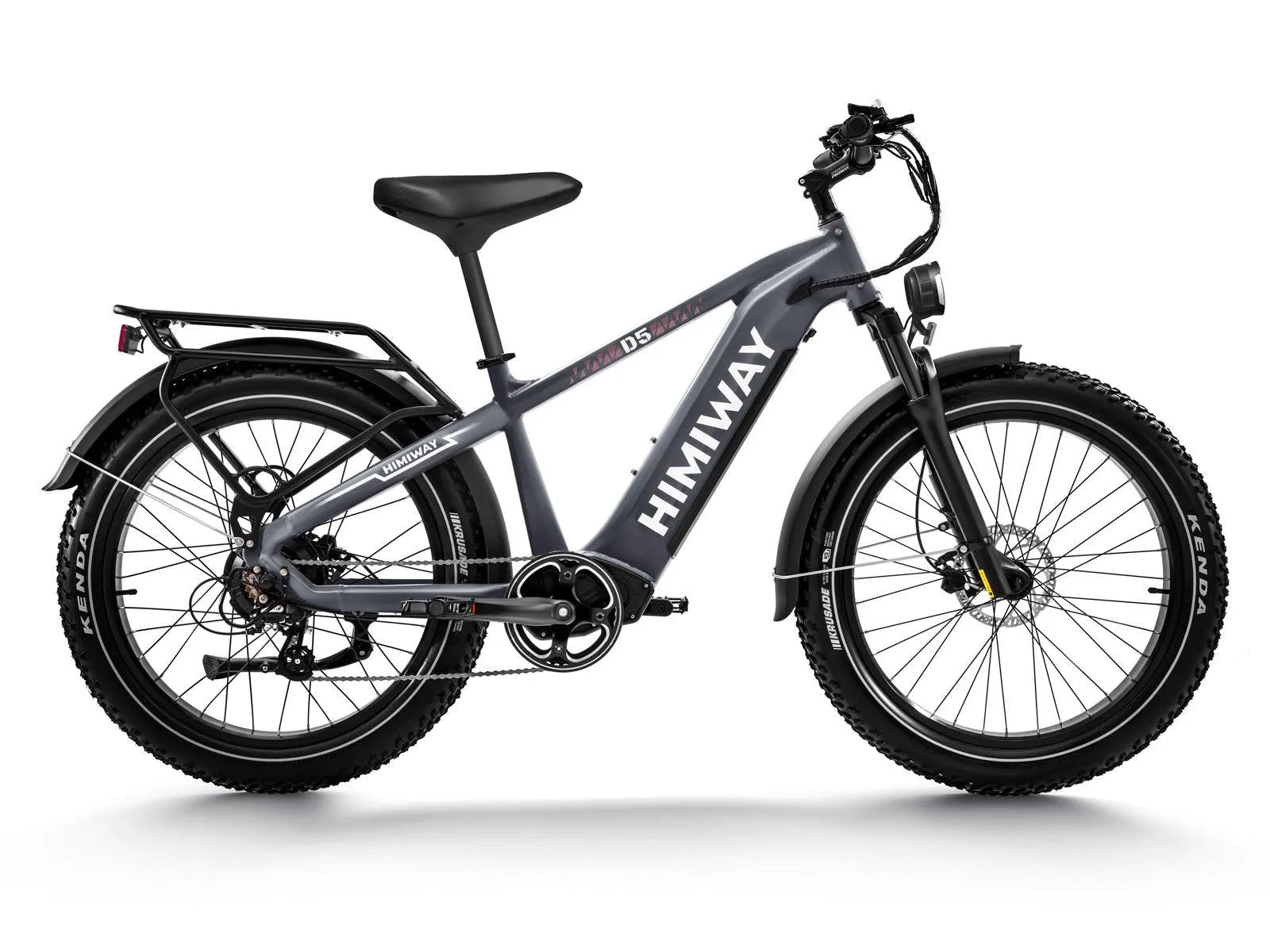

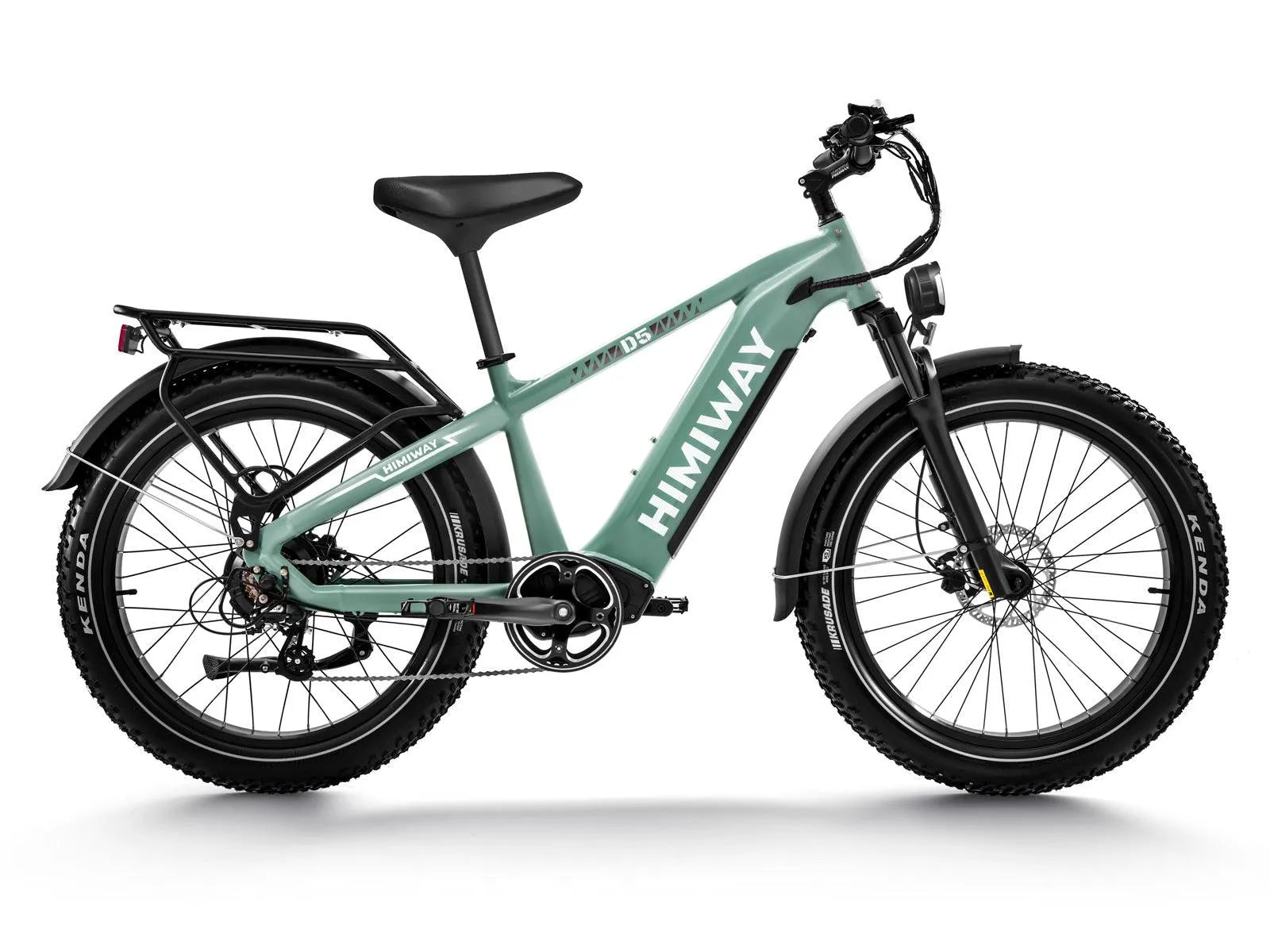

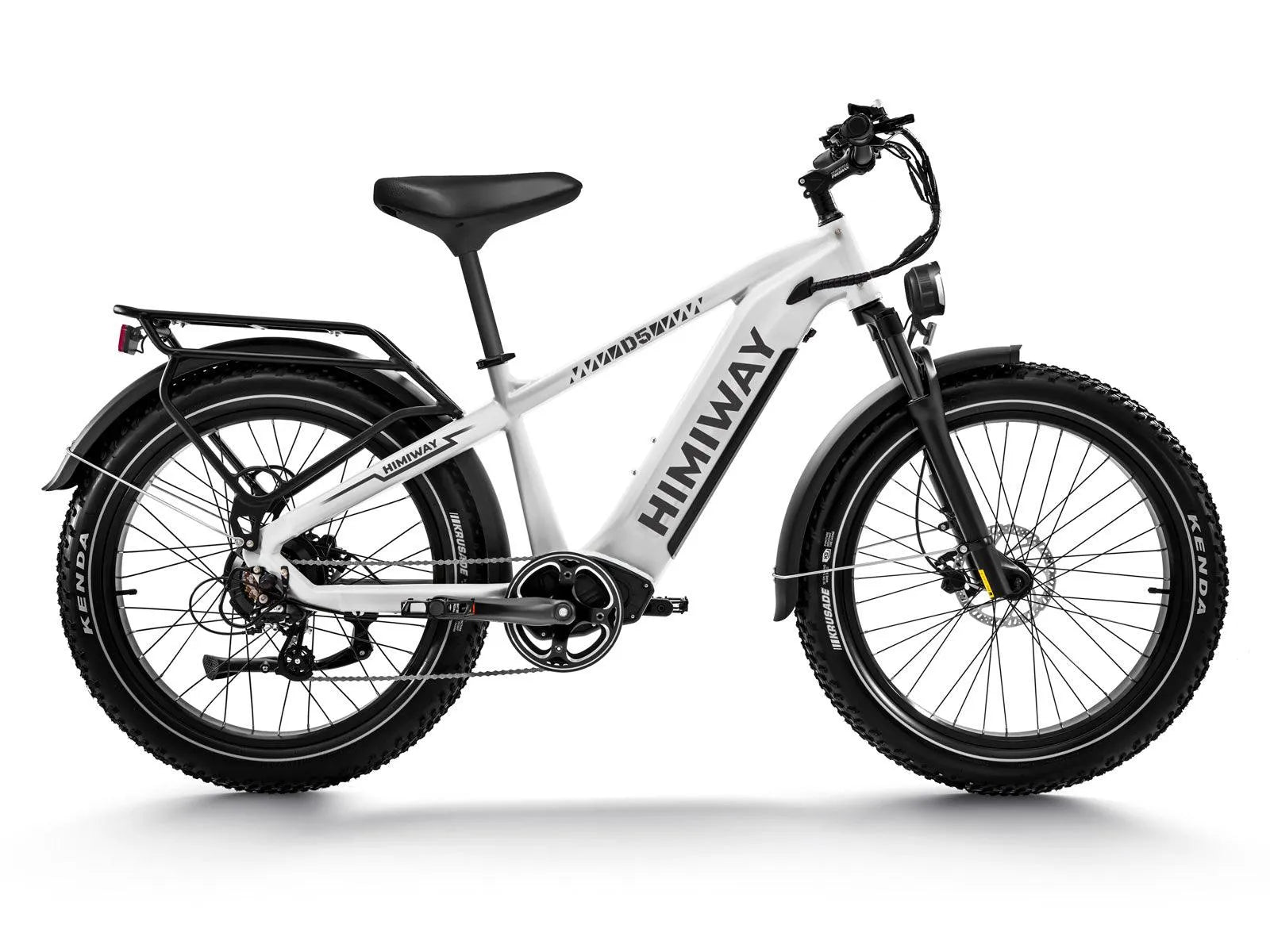

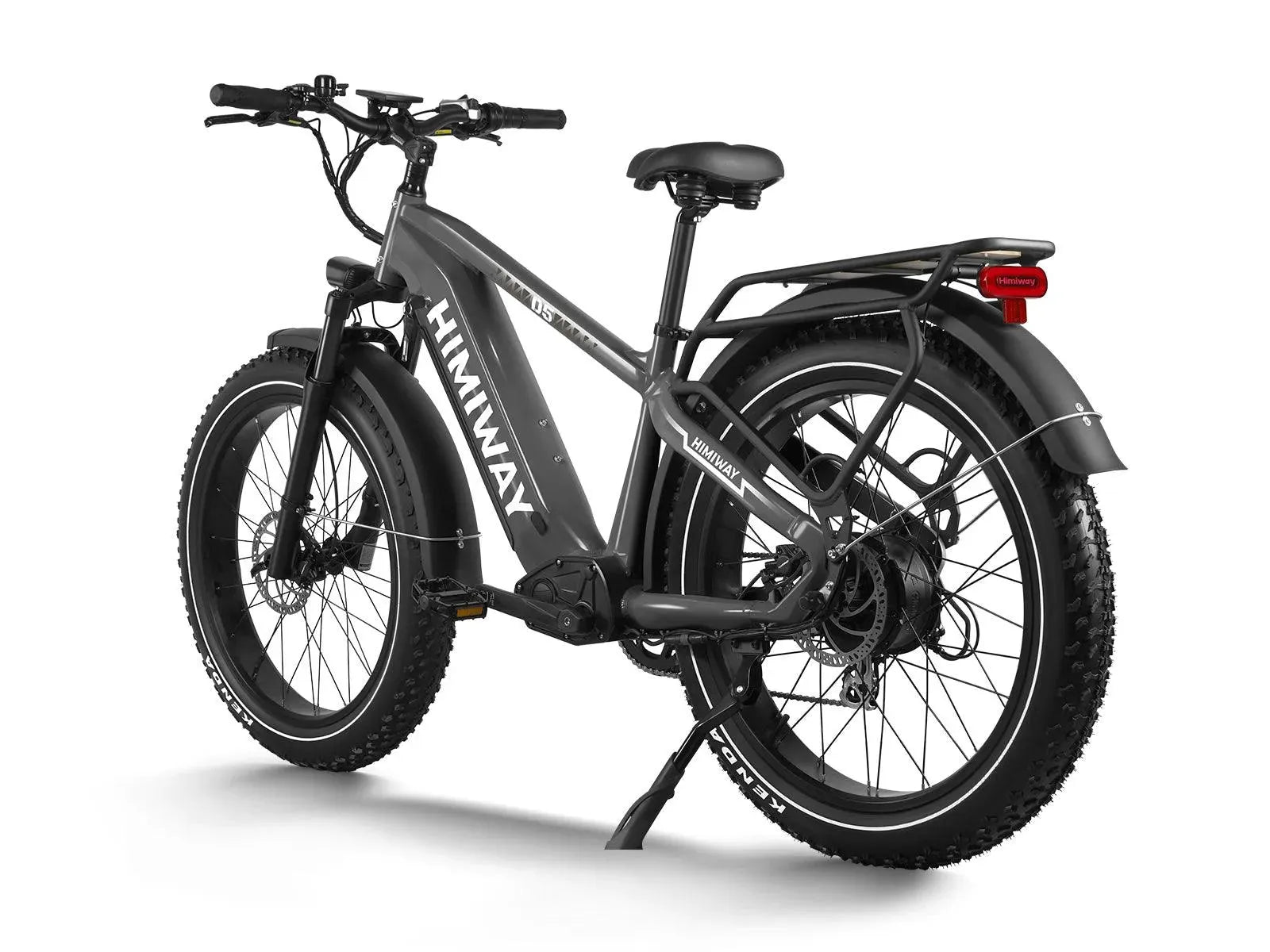

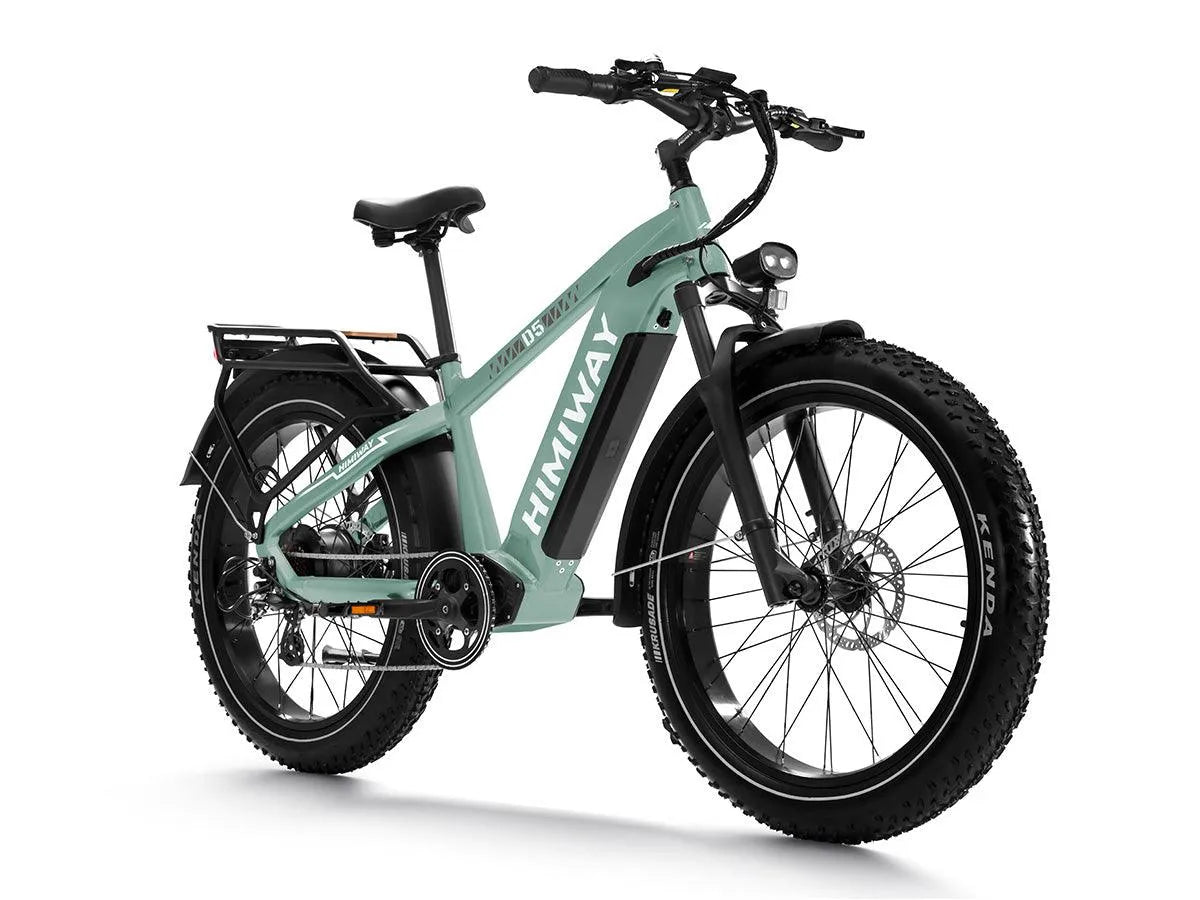

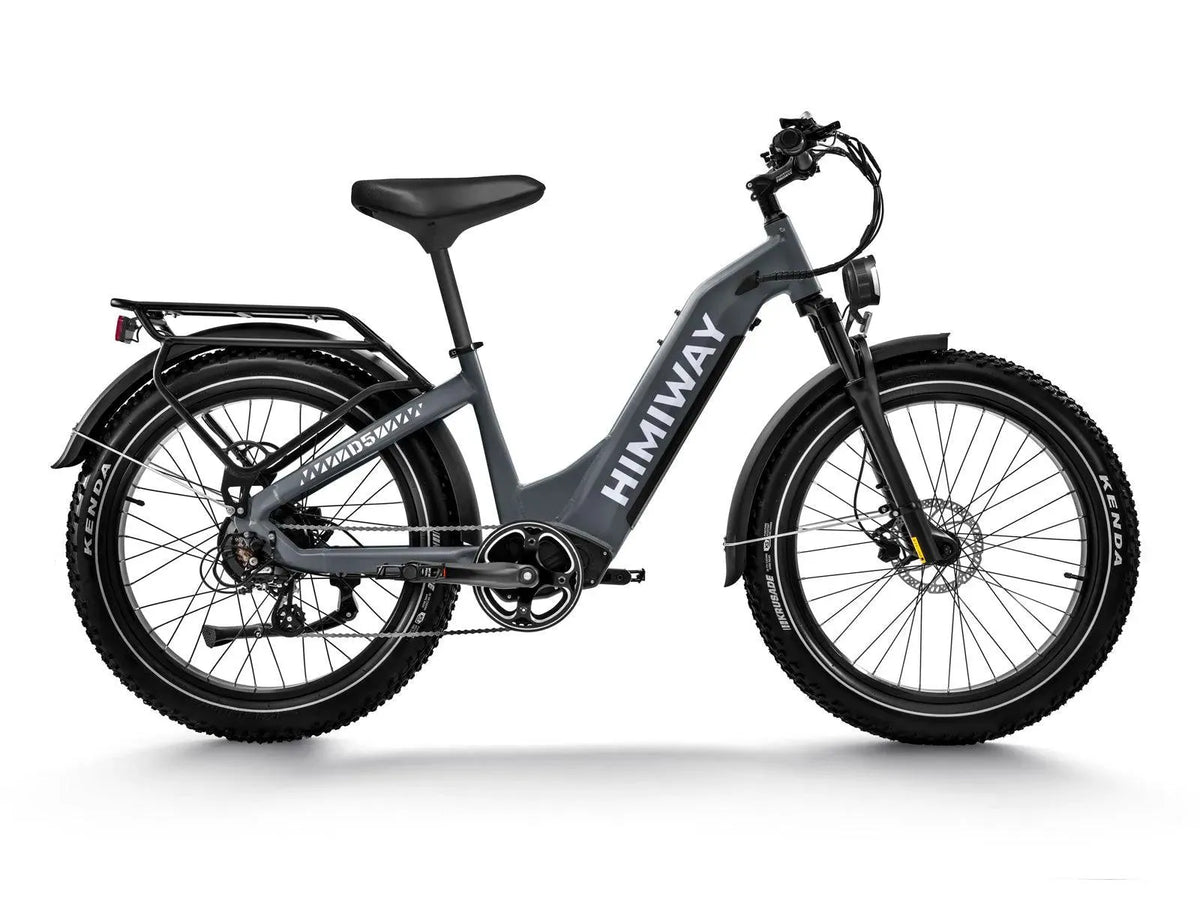

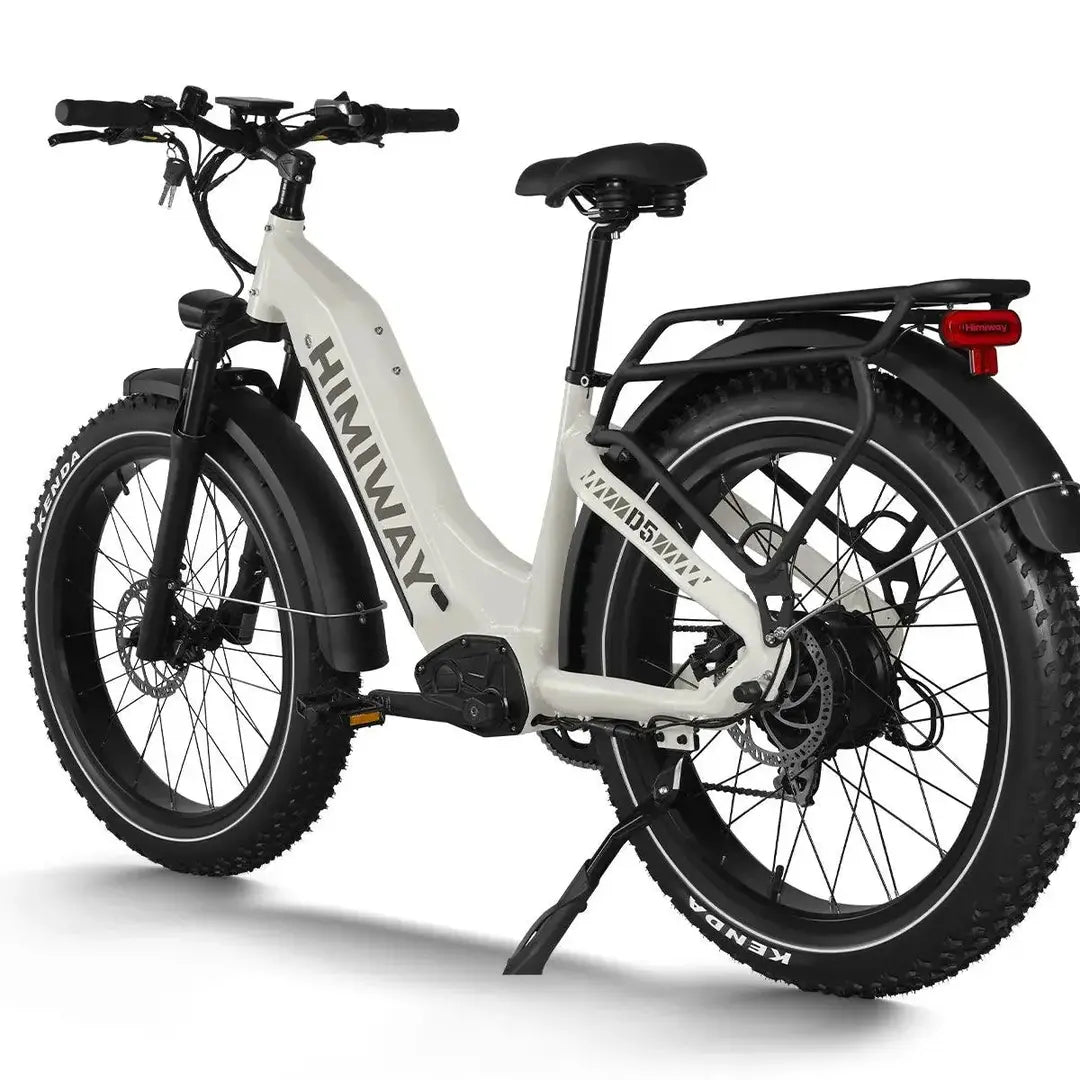

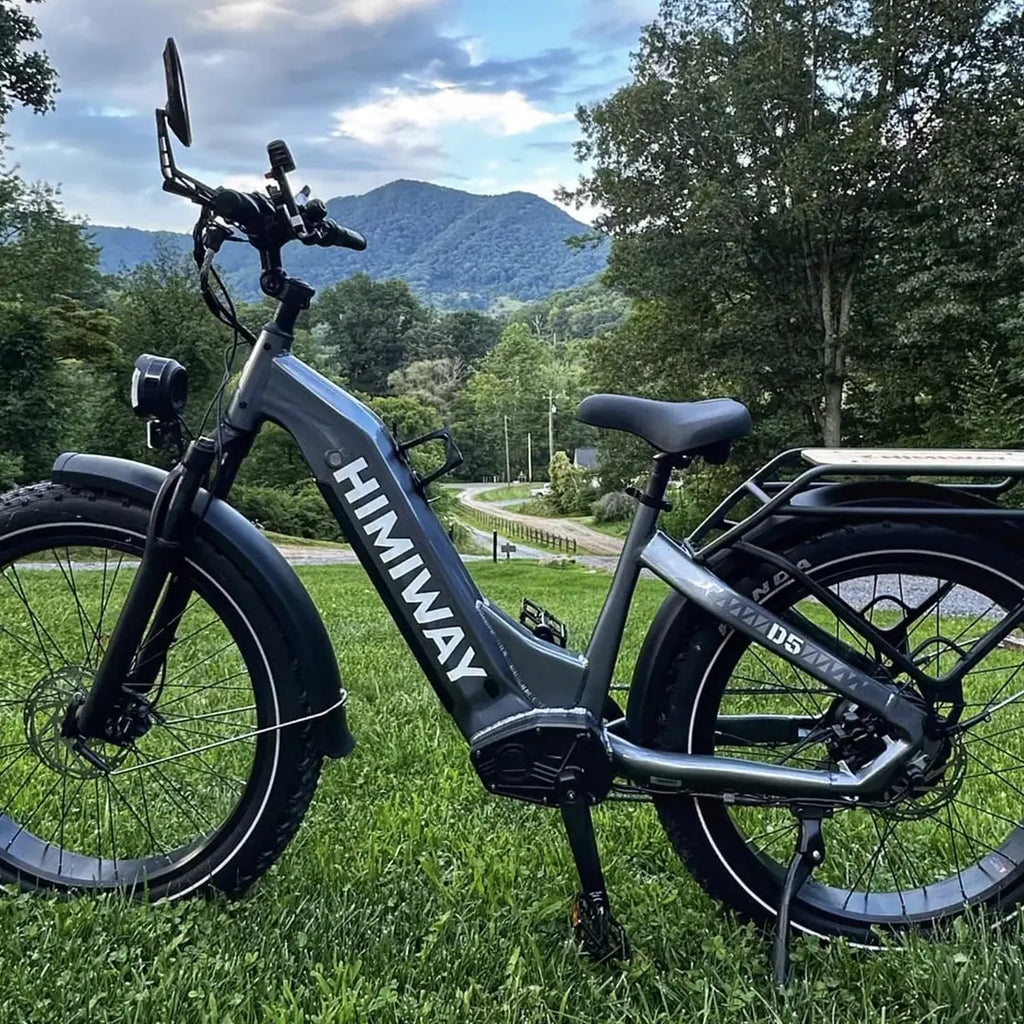

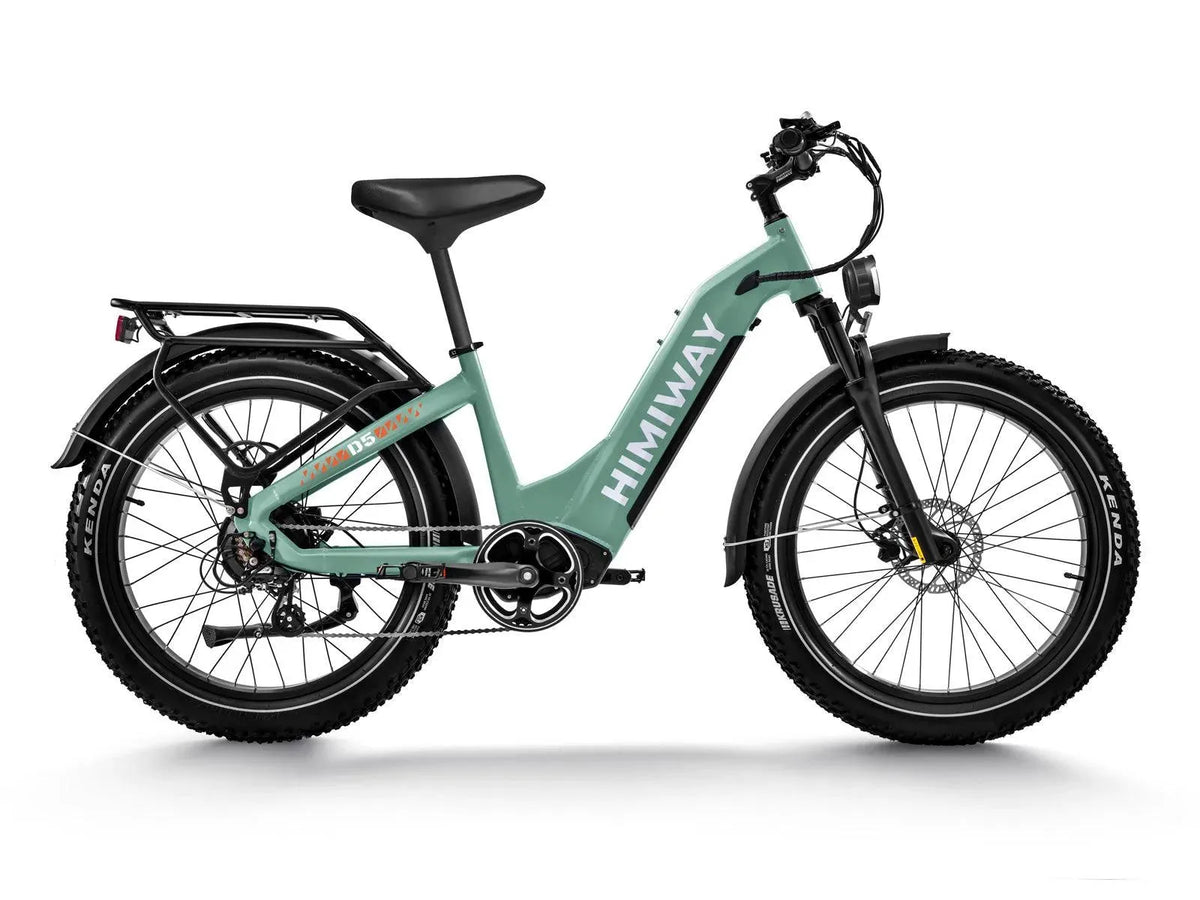

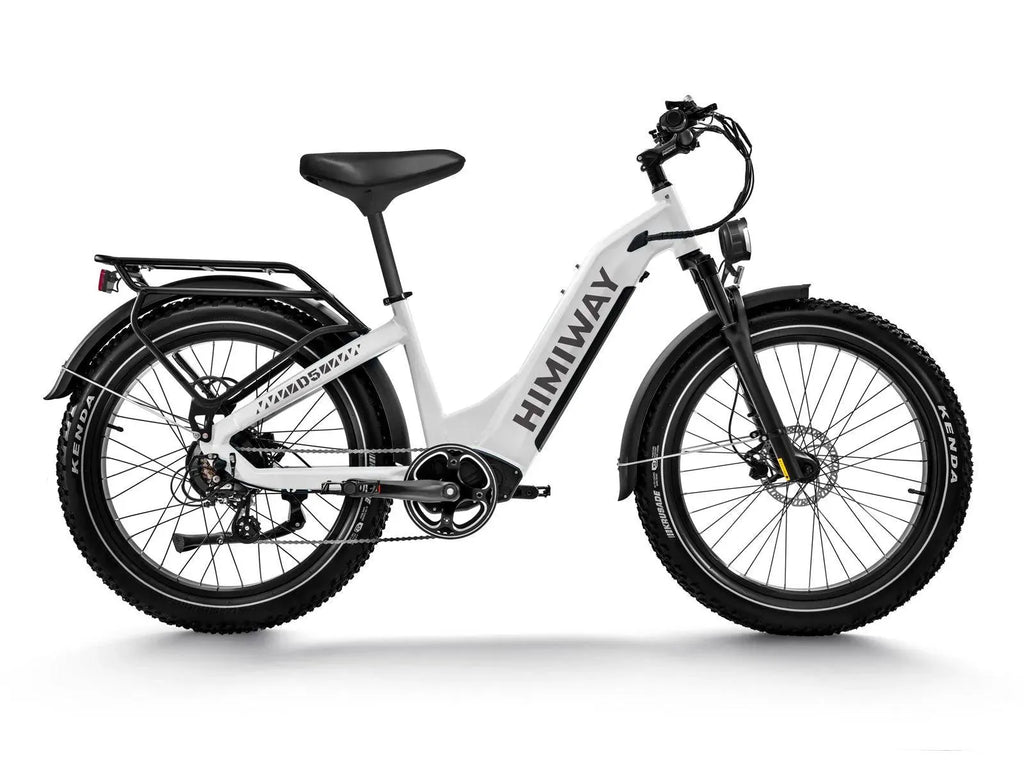

Himiway D5(Zebra) / All-terrain Electric Fat Bike

The D5(Zebra) / All-terrain Electric Fat Bike is an electric fat-tire bicycle designed for trail and all-terrain riding. It combines a 750W brushless geared hub motor with a Samsung/LG 48V 20Ah battery, 26" x 4.0" tires, front suspension, a 7-speed drivetrain, and hydraulic disc brakes.

The bike uses a 6061 aluminum frame, torque, speed, and brake sensors, a thumb throttle, and an LCD display with USB charging. The official specifications list a 60-80 mile range, a 400 lb. maximum payload capacity, and a recommended rider height of 5'3" ~ 6'5".

Key Features

• 750W Brushless Geared Motor: Uses a 750W brushless geared motor, with the detailed product description listing 86Nm maximum motor torque.
• 960Wh Battery: Uses a Samsung/LG 48V 20Ah battery. The product page describes the battery as removable and lists 960Wh capacity.
• All-Terrain Fat Tires: Equipped with Kenda 26" x 4.0" tires. The product page describes the tires as Kenda K-shield fat tires intended for traction on rugged roads and varied terrain.
• Front Suspension: Uses a TRAMA fat-bike suspension fork with 95mm travel and a 9*135mm quick release.
• Torque Sensor: Includes torque, speed, and brake sensors for the electric-assist system.
• 7-Speed Drivetrain: Uses a Shimano Altus M310 7-speed groupset with a Shimano MF-TZ500-7 14-28T freewheel.
• Hydraulic Brakes: Uses Tektro HD-E3520 hydraulic brakes with 180mm front and rear rotors.
• LCD Display: Includes an LCD display with USB charger.
• Thumb Throttle: Provides thumb-throttle control.
• Integrated Brake Light: The product page describes an automatic integrated brake light that activates when the brakes are used.
• 48V LED Lighting: Equipped with a 48V LED light according to the technical specifications.
• Heavy-Duty Kickstand: Uses a heavy-duty aluminum kickstand.
• High Payload Capacity: The listed maximum payload capacity is 400 lb.

960Wh Samsung/LG Lithium-ion Battery

It combines the new Samsung/LG battery technology with a 5000mAh single cell capacity in a smaller size but with larger diversity. Compared with 3500mAh cells made of nickel, cobalt, and manganese, this 960Wh battery efficiently improves the range, stability, and safety of Himiway bikes. A single charge can last up to 60 miles on pure electric power and 80+ miles with pedal assist. The battery will maintain 80% capacity after 1000 charges.

400 lb. Payload With 2X Thicker Frame

It boasts an upgraded 6061 Aluminum frame that is 2 times thicker than conventional bike frames, with an integrated battery design. This robust frame can support weights of up to 400lbs, while maintaining the stability of the motor and battery. Riding the D5 feels like being on a tank when going off-road, providing a solid, safe, and reliable riding experience.

Specifications

• Frame: 6061 Aluminum frame
• Headset: Neco H156EM 28.644-5630
• Fork: TRAMA 26""FAT34-26-HLO, 95mm travel, 9*135mm quick release
• Front Wheel: Rim: MD-147 264.0"36H12G A/V; Spoke: 12G 255/256L stainless (304M); Hub: MB015-92 M912G135145W
• Rear Wheel: Rim: MD-147 26*4.0""36H12G A/V; Spoke: 12G 214L stainless (304M); Hub: 48V 750W Himiway hub motor
• Tires: Kenda 26*4.0
• Battery: Samsung/LG 48V 20Ah
• Motor: 750W brushless gear motor
• Display: LCD display with USB charger
• Throttle: Thumb throttle
• Sensors: Torque sensor | speed sensor | brake sensor
• Crankset: Crankarm: Prowheel EB-01-242A-S1 170mm | Chain ring: 44T BCD104
• Freewheel: Shimano MF-TZ500-7 14-28T
• Chain: Anti-Rust KMC Z8.3 EPT 120L
• Groupset: Shimano Altus M310 7 speed
• Front Brake: Tektro HD-E3520 hydraulic brake
• Rear Brake: Tektro HD-E3520 hydraulic brake
• Rotors: Tektro TR180-52 F:180mm R:180mm
• Stem: Zoom TDS-C269-8FOV 31.8*90mm
• Handlebar: Promax HB-3188 22.231.8700mm
• Seatpost: Himiway Seatpost
• Saddle: Himiway Saddle
• Pedal: Aluminum pedal
• Lights: 48V LED light
• Kickstand: Heavy-duty aluminum kickstand
• Controller: 48V/22A
• Charger: U.S. standard 3.0 A fast charger
• Range: 60-80 miles
• Rider Height: 5′3″ ~ 6′5″
• Weight: 79 lb. (with battery)
• Max. Payload Capacity: 400 lb.

Size Guide

• Recommended Height: 5'3" ~ 6'5"
• Total Length: 78.7
• Handlebar Height: 47
• Handlebar Length: 28
• Wheelbase: 49.2
• Wheel Diameter: 28.7
• Minimum Seat Height: 20.9
• Maximum Seat Height: 31.4
• Chain Stay Length: 19
• Frame Stack: 24.6
• Frame Reach: 17.8
• Effective Top Tube Length: 24.4
• Head Tube Length: 5.5
• Head Angle: 65°
• Standover Height: ST 22.4/ SO 31.1
• Seat Height: 34~42 inch

Included

• E-bike
• Protection Fender Kit
• Rear Rack
• 16 in 1 Repair Tool
• Charger
• Manual

Warranty

• Warranty: 2-Year Warranty
