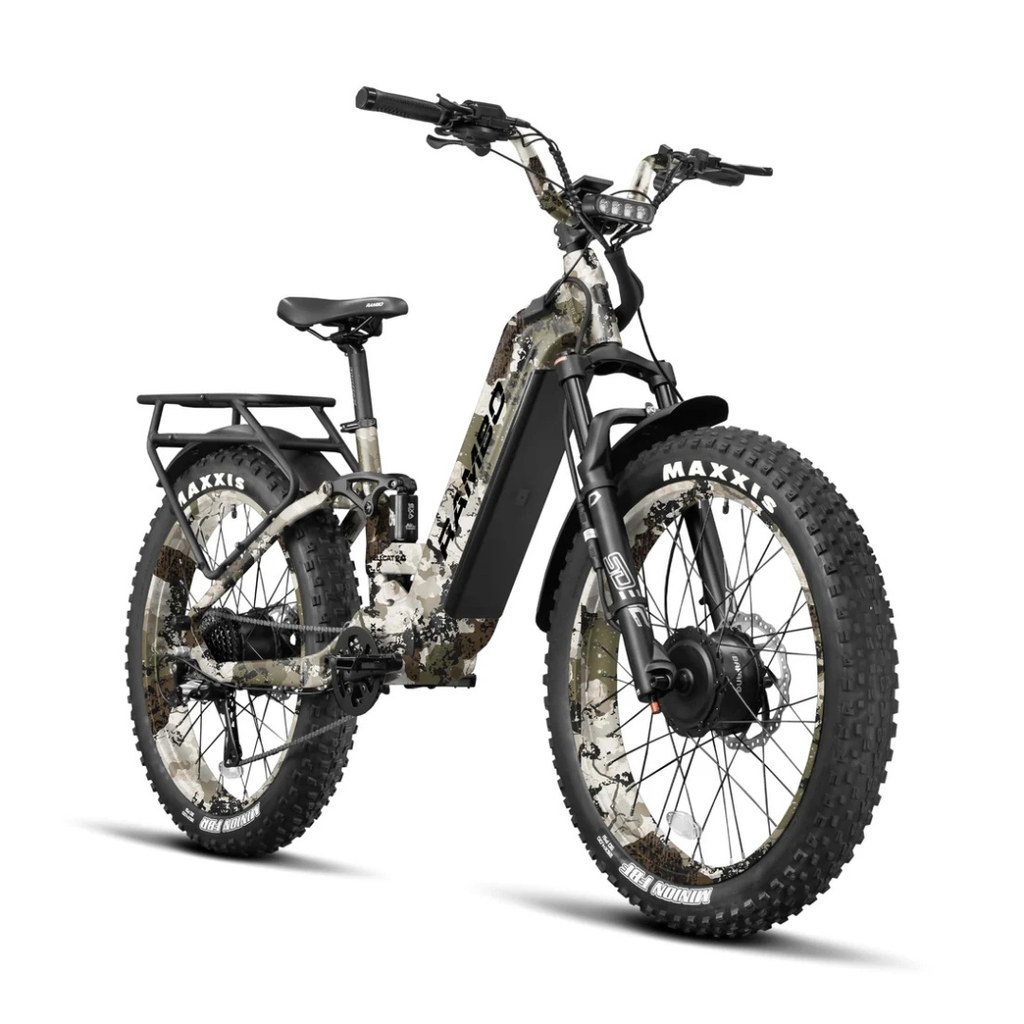

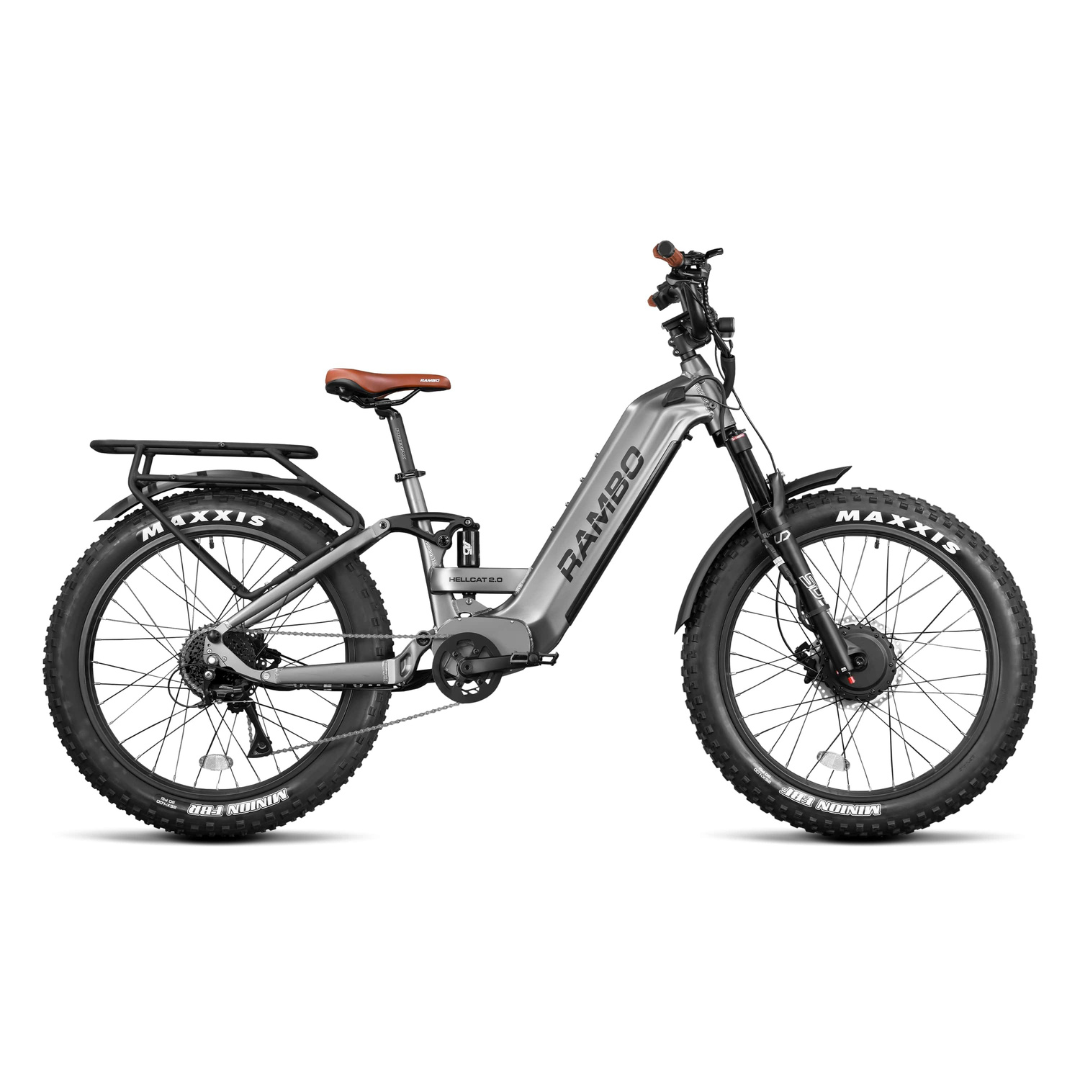

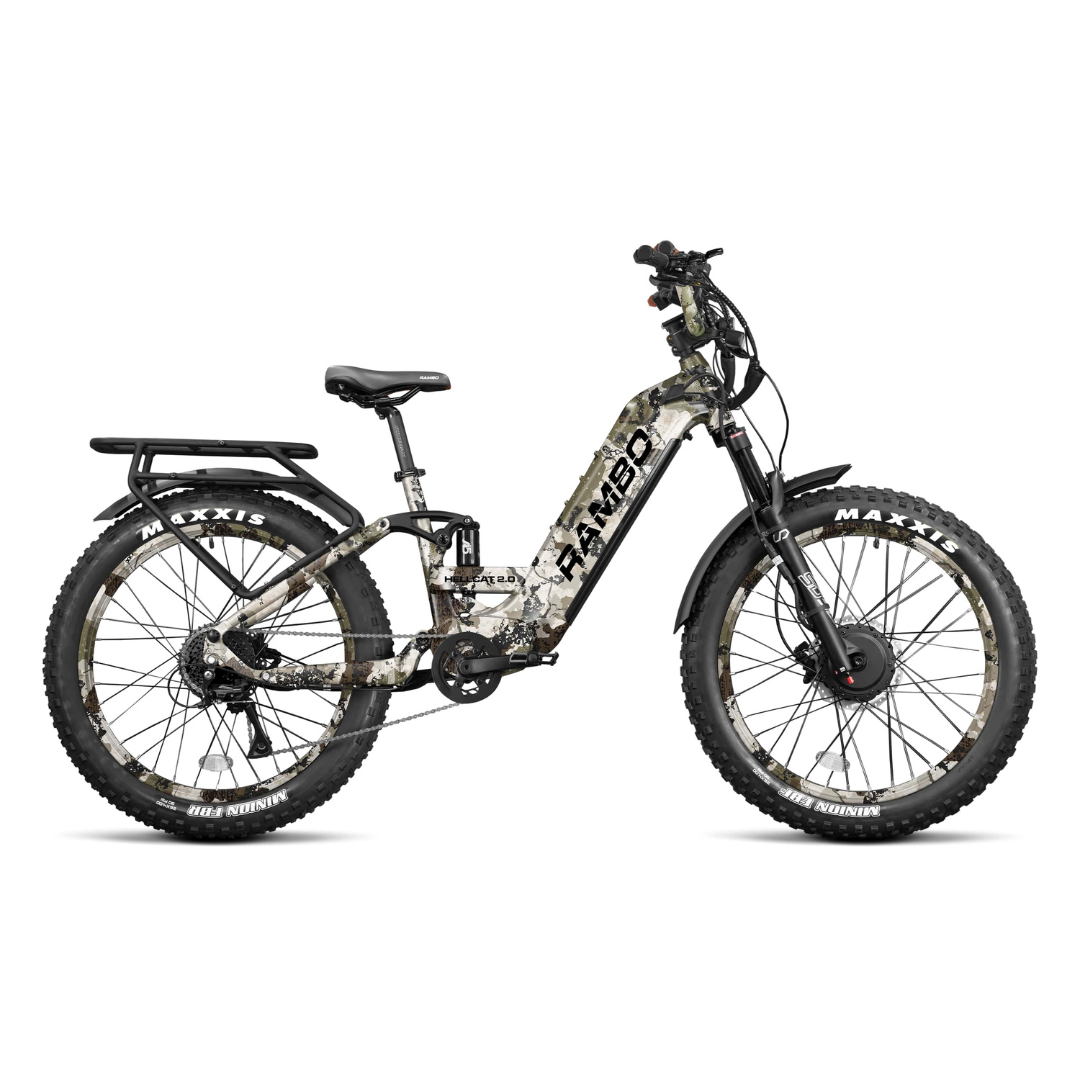

Rambo Bikes Hellcat 2.0 FS All-Wheel Drive – 20Ah

The Hellcat 2.0 FS All-Wheel Drive – 20Ah is a full-suspension electric bike built for hunting, trail riding, and demanding off-road terrain. Dual front and rear hub motors allow the rider to switch between front-wheel, rear-wheel, and all-wheel drive according to riding conditions.

A 48V 20Ah internal battery powers the bike, while the full-suspension step-through frame, 26 in. x 4.0 in. tires, adjustable class system, and integrated LED light bar support versatile outdoor riding.

Key Features

Selectable Drive Modes: Toggle between front-wheel drive, rear-wheel drive, and all-wheel drive to adjust power delivery for different terrain.

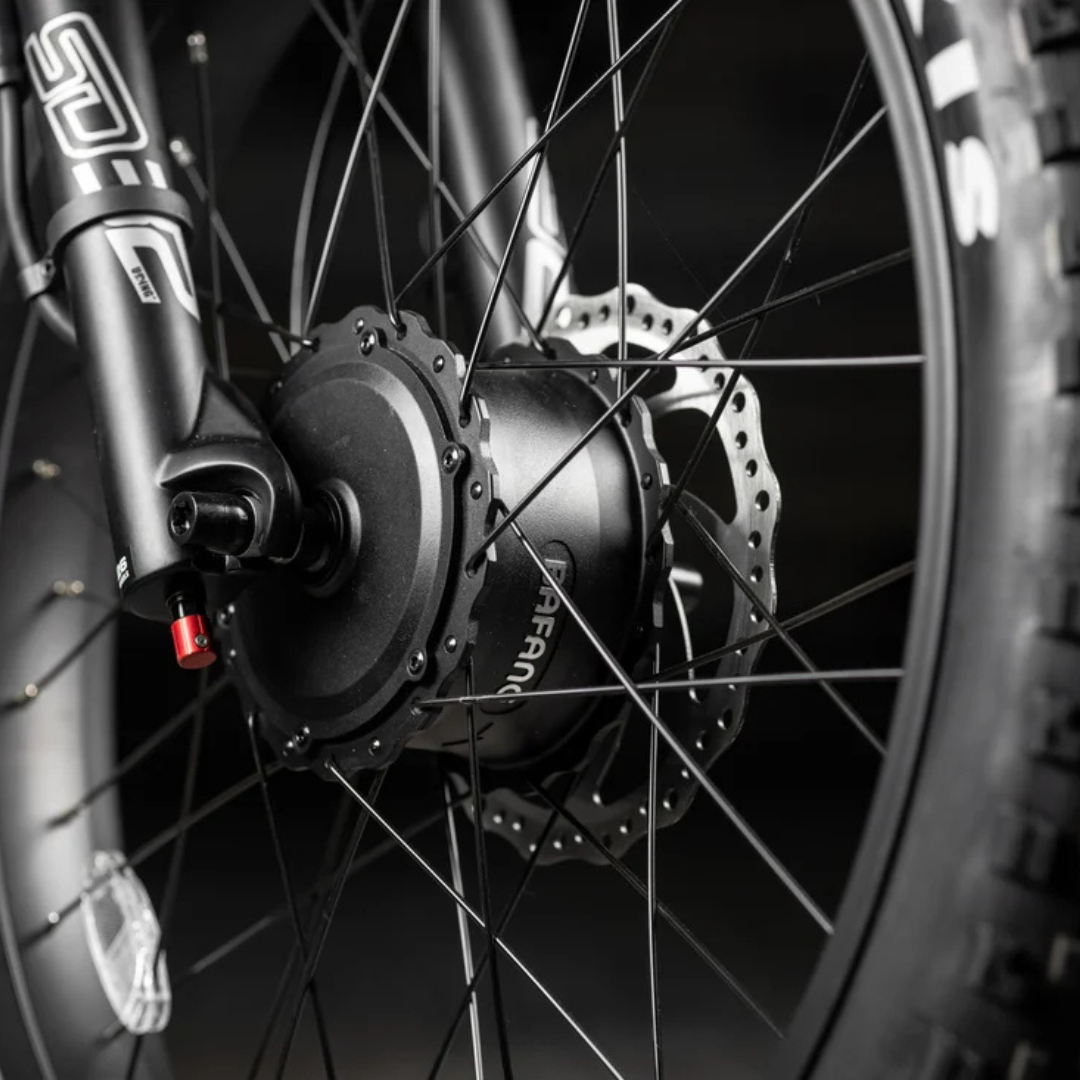

Dual-Motor System: Front and rear 1000W hub motors provide 2,000W nominal power, a 2,500W peak rating, and 180 Nm of torque.

Full Suspension: KS A5RE rear suspension and a Uding air fork with 120 mm of travel help absorb rough trail conditions.

Step-Through Frame: The full-suspension step-through design supports easier mounting and dismounting.

On The Fly AWD

Need more power? Simply toggle between front, rear or AWD depending upon your terrain!

Rambo Storm LED Light Bar

Light up the night with our custom LED light bar—toggle between white and green depending on your desired level of stealthiness. Wide beam patterns provide better peripheral visibility.

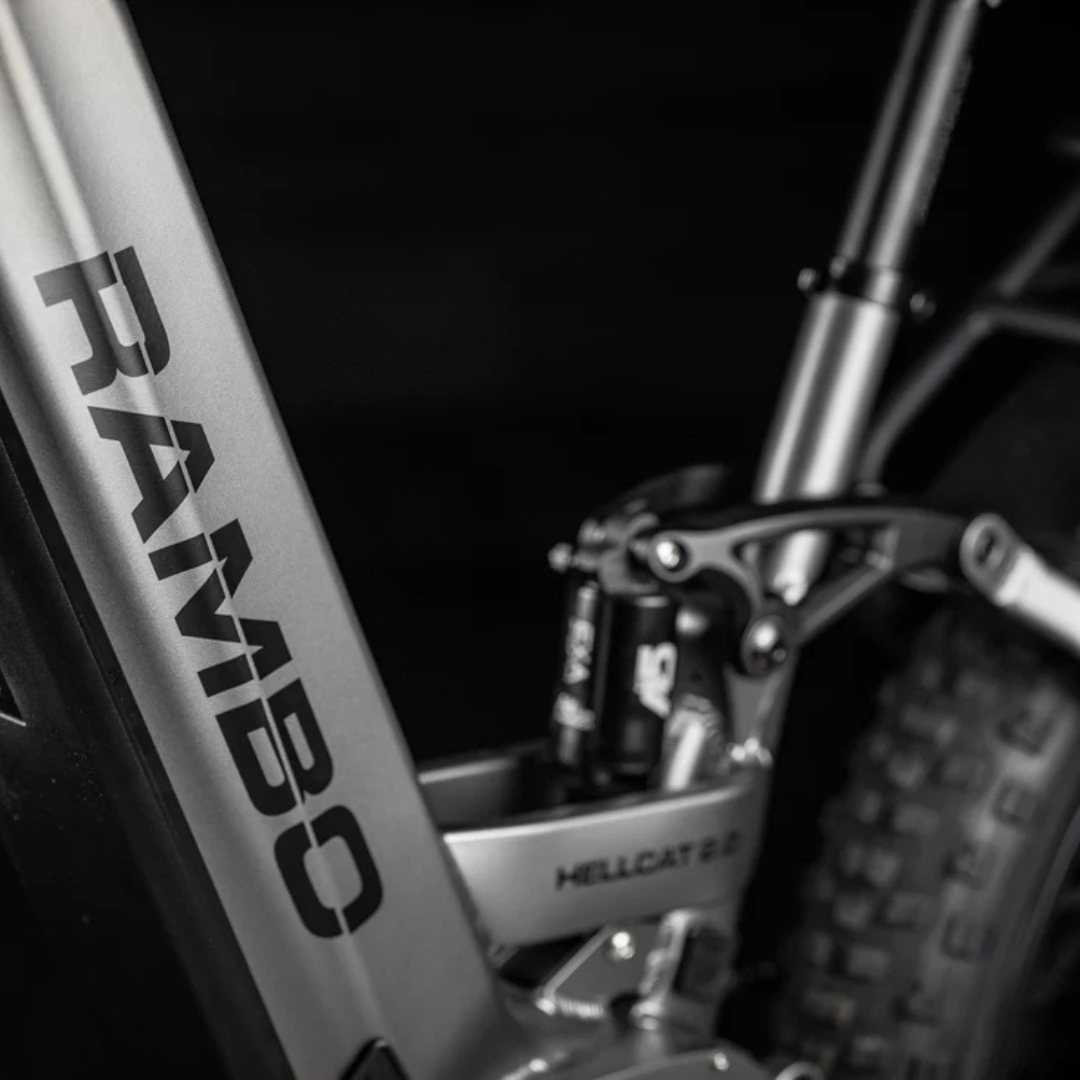

Step Thru Frame Full Suspension

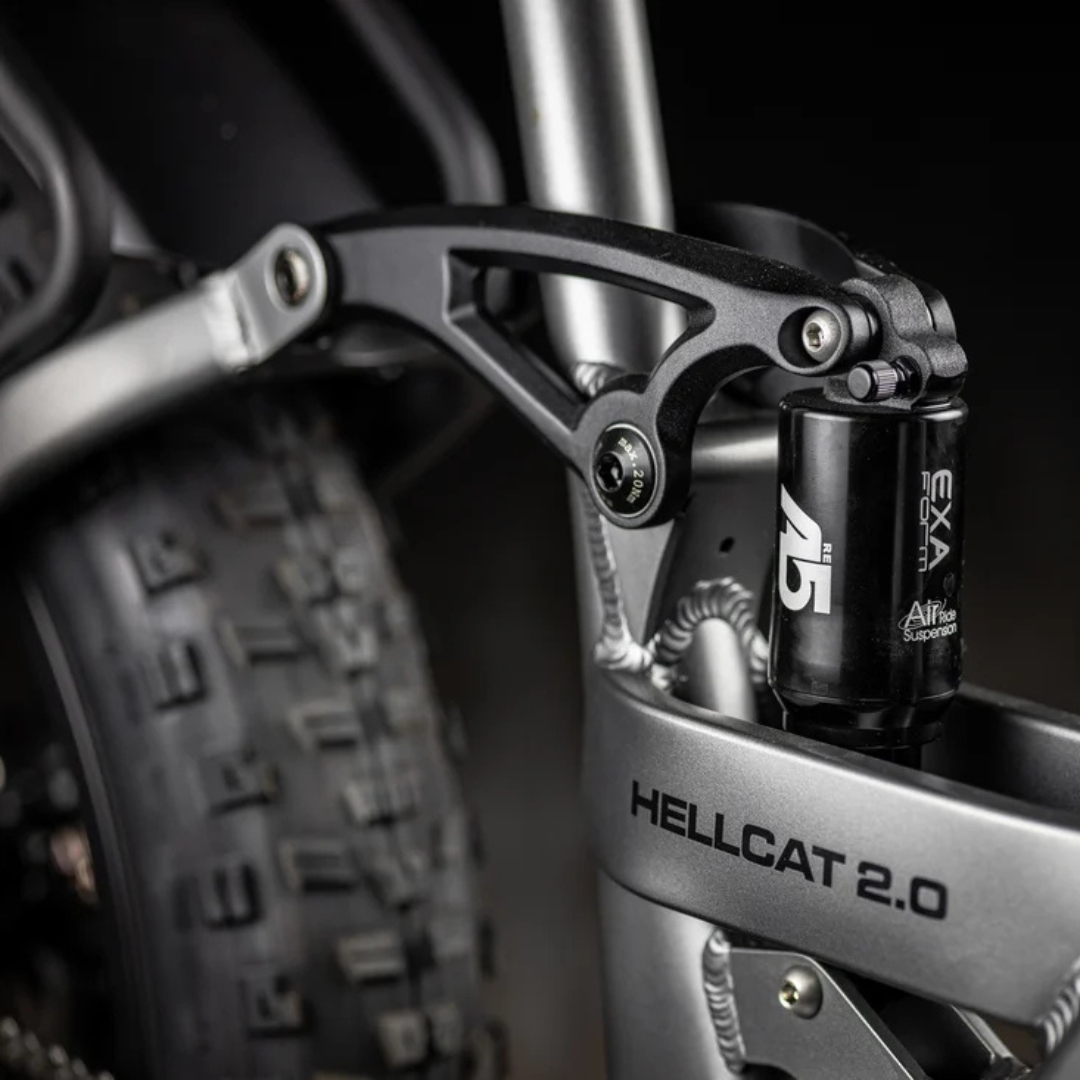

KS A5RE rear suspension and Uding Airfork with 120 mm travel suspension offer improved performance and comfort for a smooth ride!

Logan Piston Brakes

Logan 4-piston brakes offer a significant upgrade in braking power and provide more consistent stopping power, especially under high loads or steep descents. Ideal for riders tackling challenging terrain.

Gear System

Shimano 8-speed drivetrain with an 11–40T derailleur setup offers a range of gears suitable for various terrains, from steep climbs to fast descents, ensuring smooth and reliable performance.

Water-Resistant LCD Screen

The digital water-resistant LCD display is suitable for outdoor or rugged environments. It shows essential information such as power output, speed, battery level and miles traveled.

Specifications

• Motor: Bafang dual 1000W hub motors
• Nominal Power: 2,000W
• Peak Rating: 2,500W
• Torque: 180 Nm
• Drive Type: AWD with selectable front, rear, or all-wheel drive
• Battery: 48V 20Ah, 960Wh internal battery with LG-branded cells
• Dual-Battery Capability: Supported
• Range: Up to 65–110 miles using dual-battery technology
• Maximum Speed: Up to 32 mph
• Front Suspension: Uding air fork with 120 mm travel
• Rear Suspension: KS A5RE
• Front Brake: 180 mm Logan brake with dual-piston pads and integrated electric safety cutoff
• Rear Brake: 180 mm Logan brake with dual-piston pads and integrated electric safety cutoff
• Gear System: Shimano Wide Range 8-speed, 11–40T

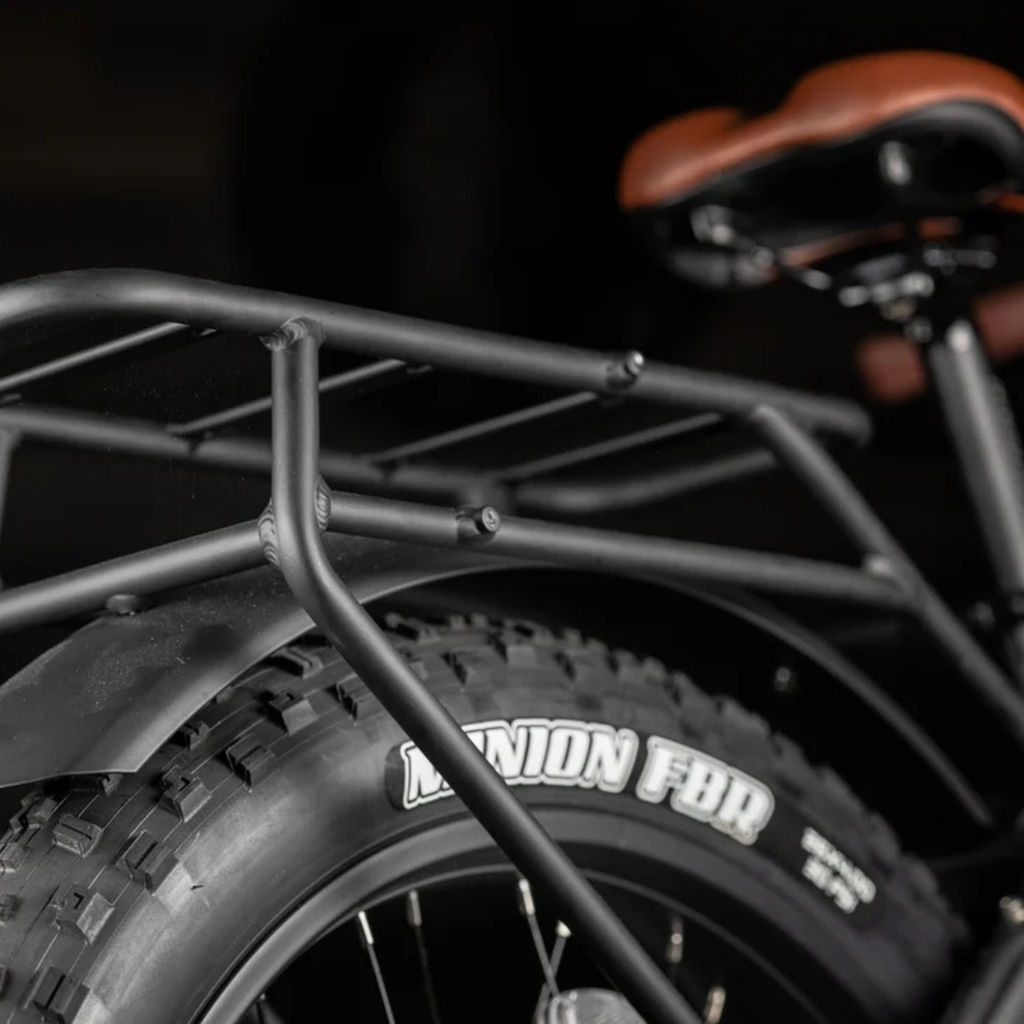

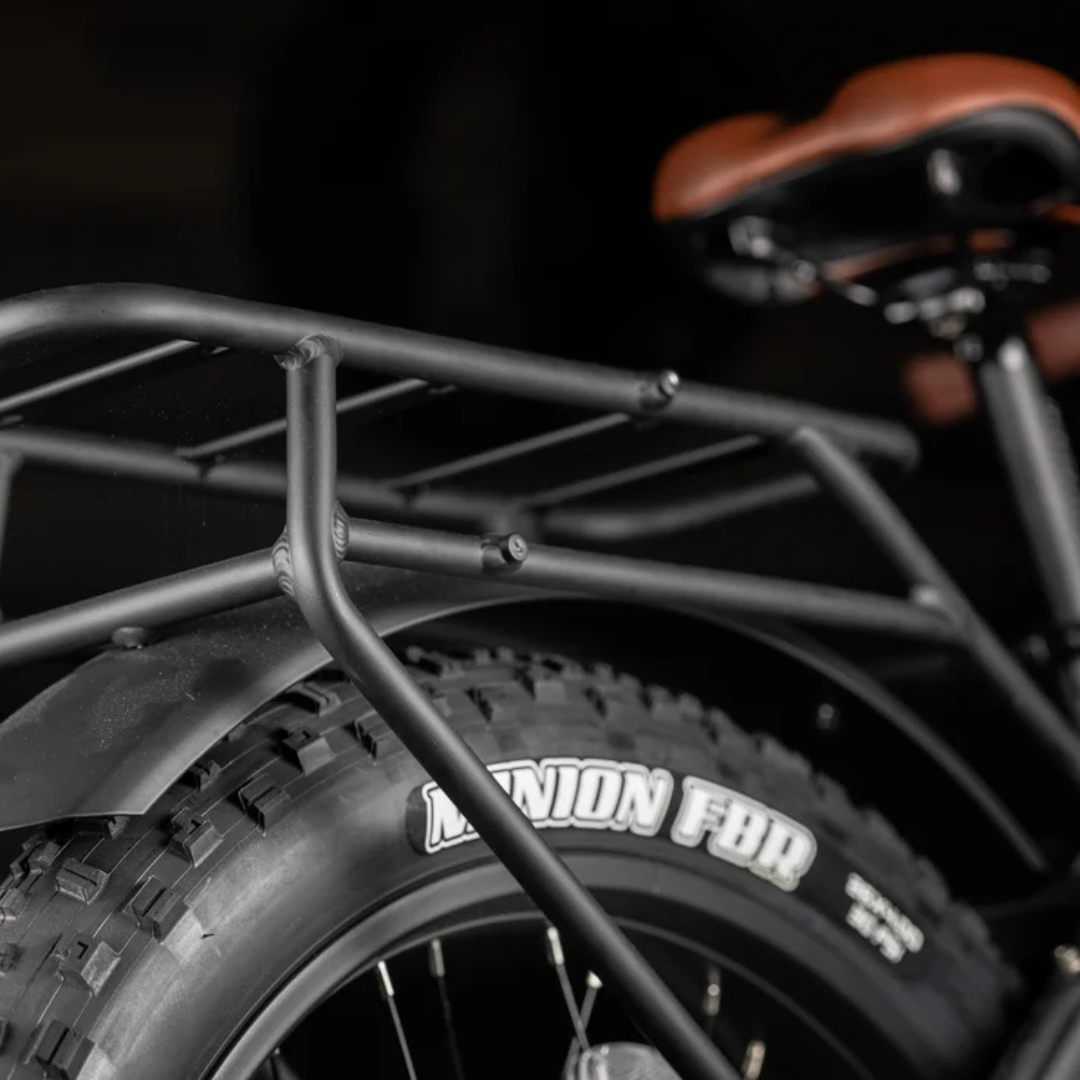

• Tires: Maxxis Minion 26 in. x 4.0 in. aggressive-tread tires
• Chain: KMC Z8
• Frame: Hydroformed 6061 T6 heat-treated aluminum alloy, TIG welded
• Pedals: Extra-wide Wellgo aluminum-alloy pedals
• Throttle: Adjustable left- or right-side thumb throttle
• Display: Fully integrated, water-resistant digital LCD display with Adjustable Class System
• Bike Weight: 79 lbs. with battery removed
• Battery Weight: 11 lbs.
• Load Capacity: 300 lbs.

Size Guide

• Tire Size: 26 in. x 4.0 in.
• Maximum Load Capacity: 300 lbs.

Included

• Hellcat 2.0 FS All-Wheel Drive electric bike
• 48V 20Ah battery with LG-branded cells
• Fully integrated, water-resistant digital LCD display with Adjustable Class System
• Upgraded smart charger
• Storm LED light bar

Warranty

Warranty: Lifetime frame warranty for the original purchaser while they remain the owner, plus a 1-year limited manufacturer warranty covering bikes, enclosed hardware, and accessories against defects in material or workmanship. Product registration using the bike’s serial number is required within 30 days of receipt.

Product Support

• Owner's Manual
