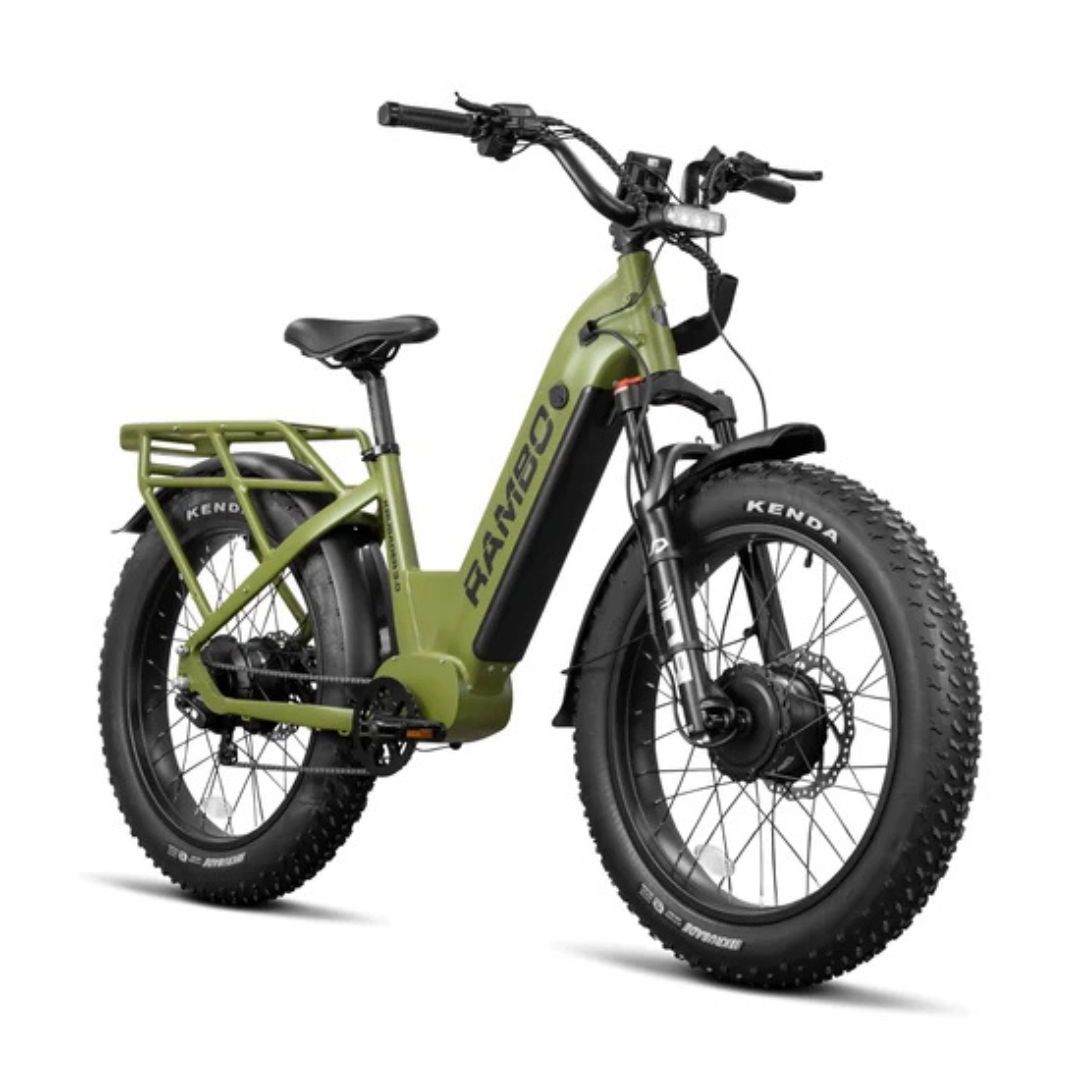

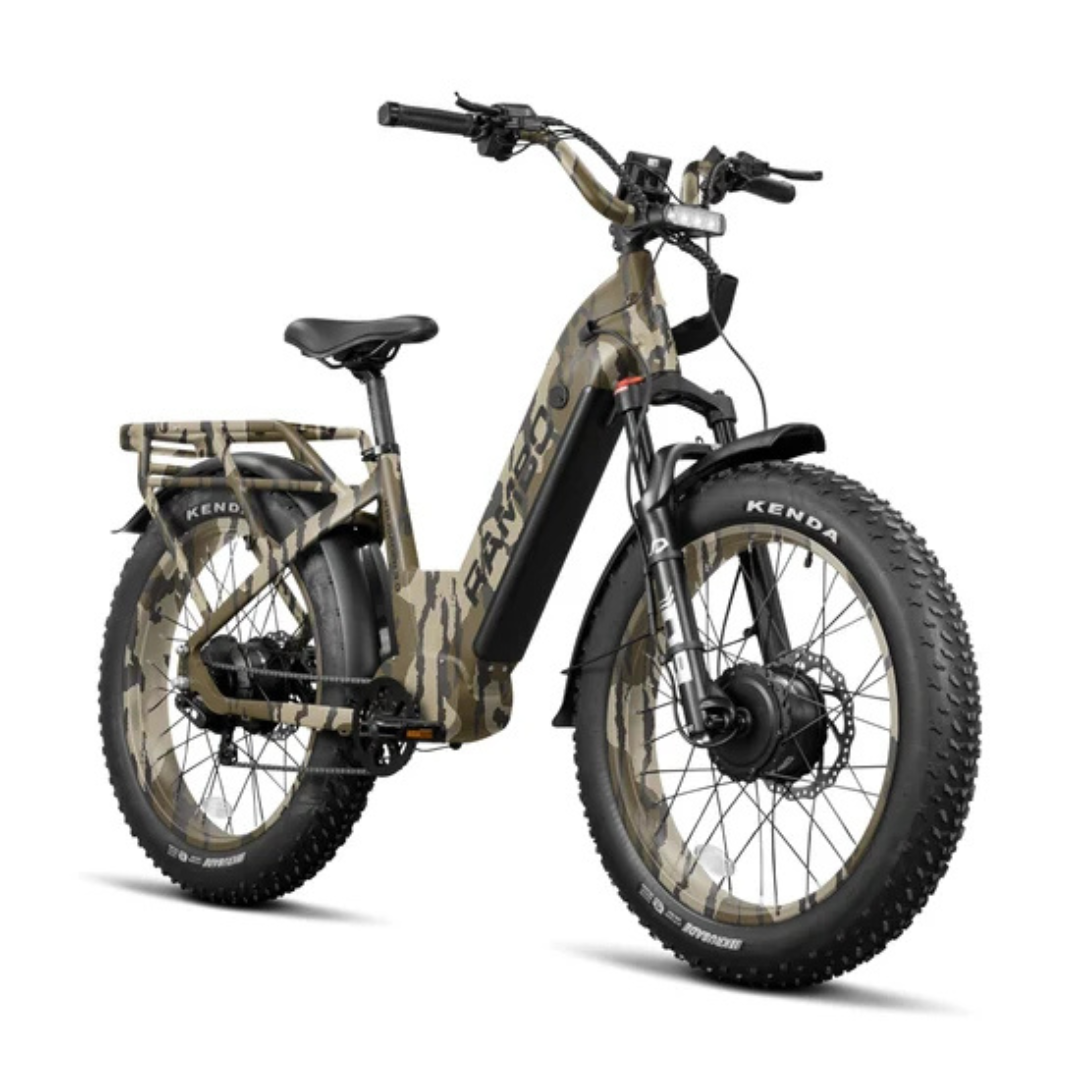

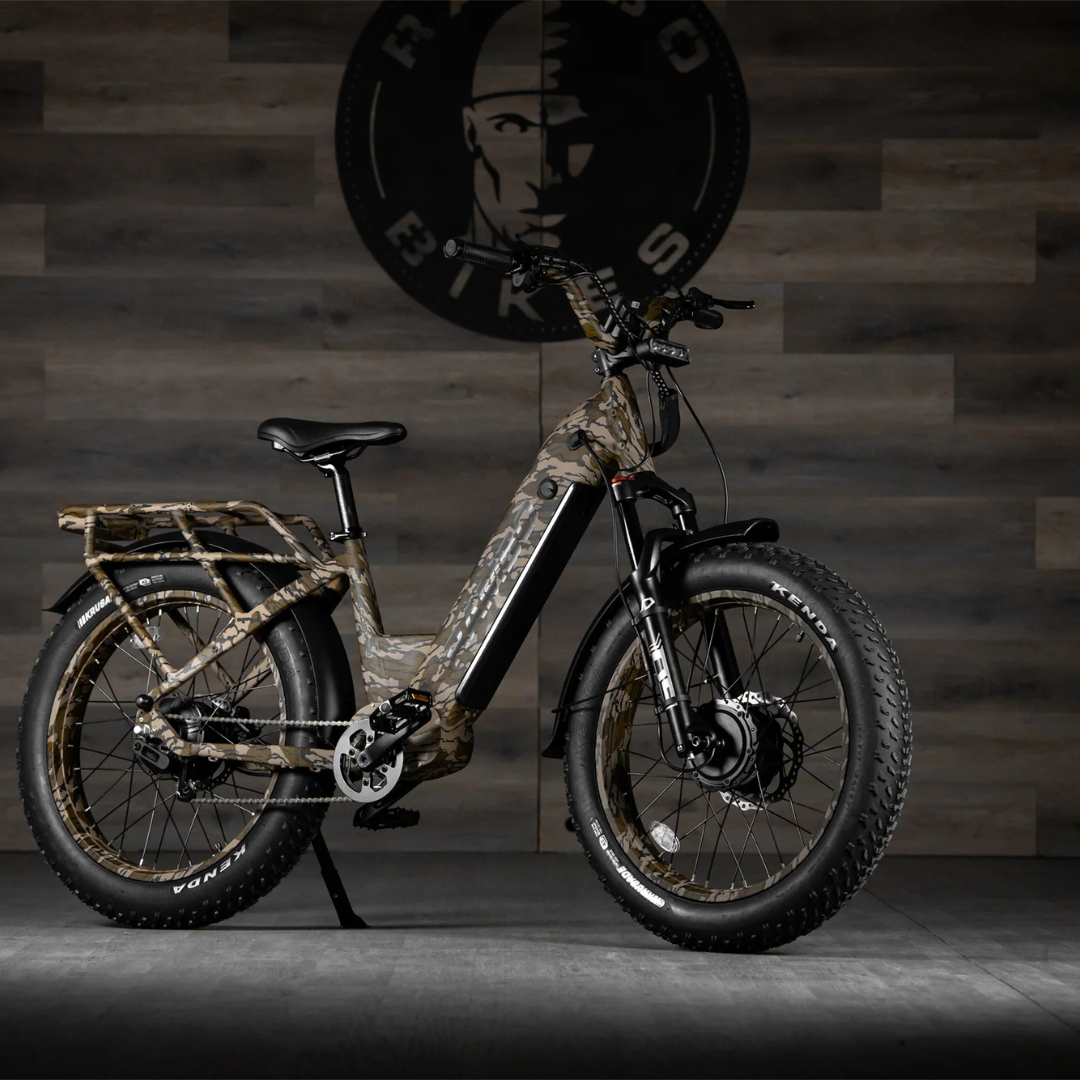

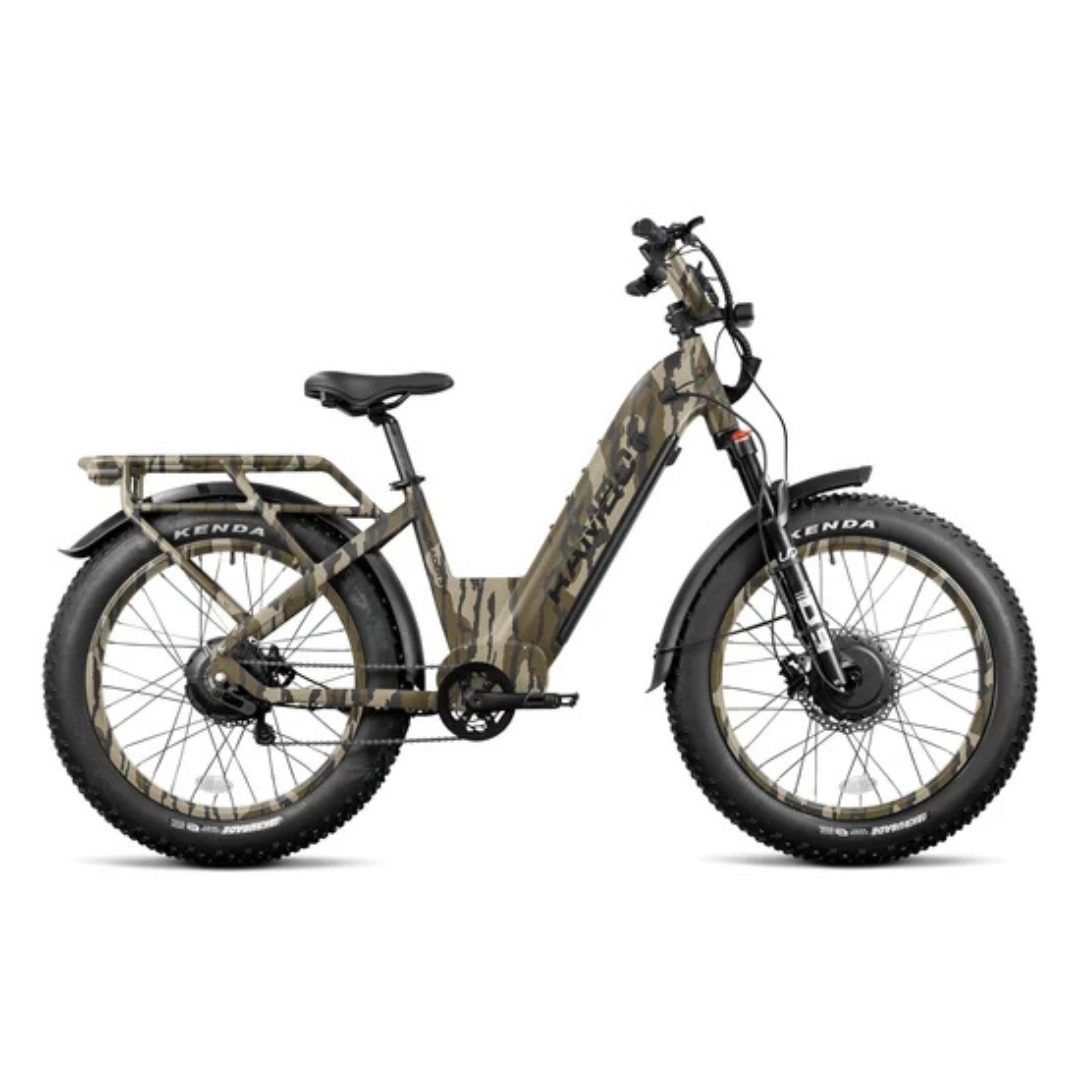

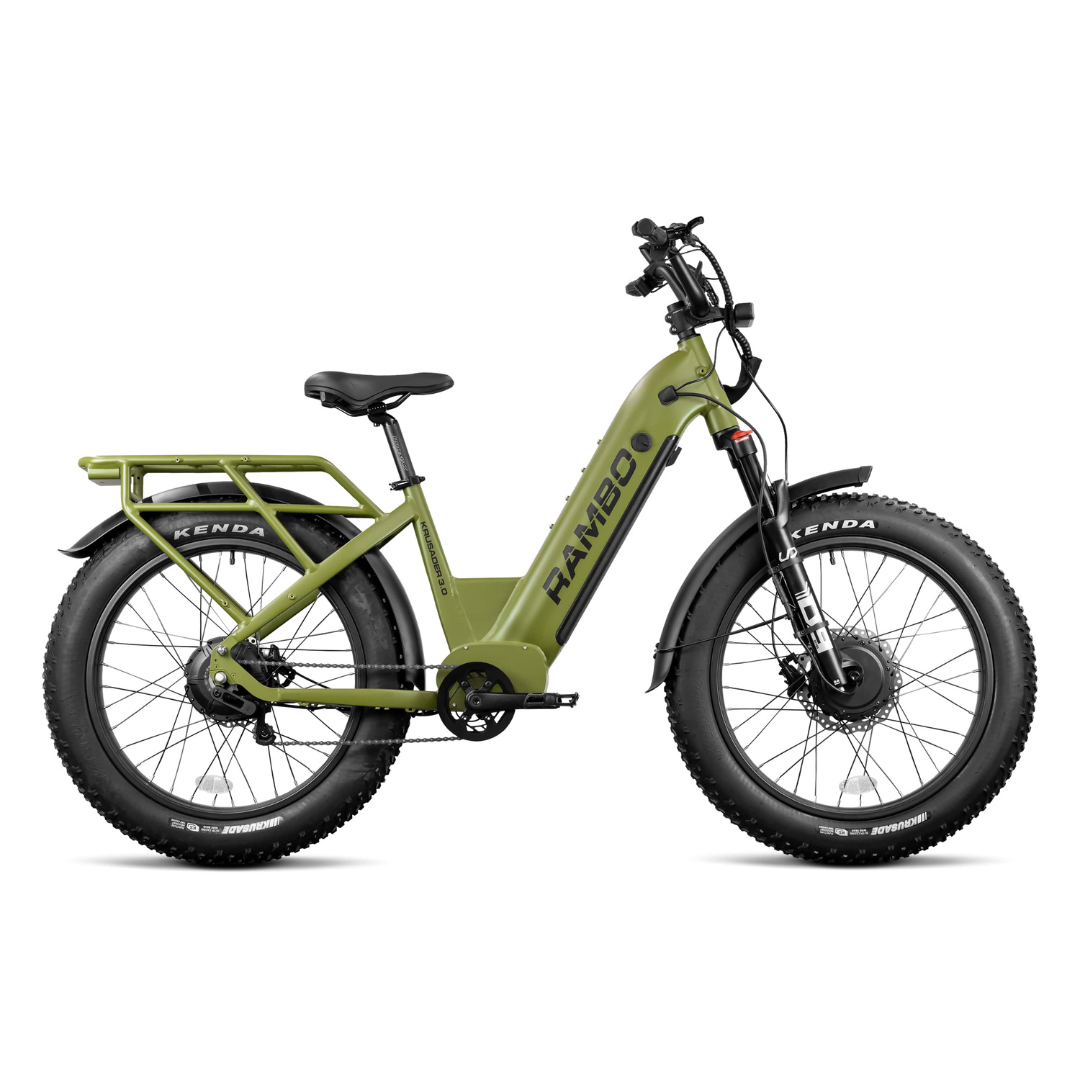

Rambo Bikes Krusader 3.0 All-Wheel Drive – 20Ah

The Krusader 3.0 All-Wheel Drive – 20Ah is a step-through electric hunting bike equipped with front and rear hub motors. Selectable front-wheel, rear-wheel, and all-wheel-drive modes let the rider adjust motor engagement for changing terrain.

Its 48V 20Ah internal battery provides an officially stated range of up to 65 miles. The bike also supports an additional 14Ah battery for up to 110 miles using dual-battery technology.

Performance Overview

• Range: Up to 65 miles with the 20Ah internal battery; up to 110 miles using dual-battery technology
• Speed: Up to 28 mph
• Battery: 48V 20Ah internal battery; supports an additional 14Ah battery
• Weight: 69 lbs. with the battery removed
• Motor: Dual 500W Bafang hub motors
• Drivetrain: Single-speed drivetrain with 5 power-assist levels; upgradeable to Shimano 8-speed

Key Features

• Selectable Drive Modes: Toggle between front-wheel drive, rear-wheel drive, and all-wheel drive according to the terrain.

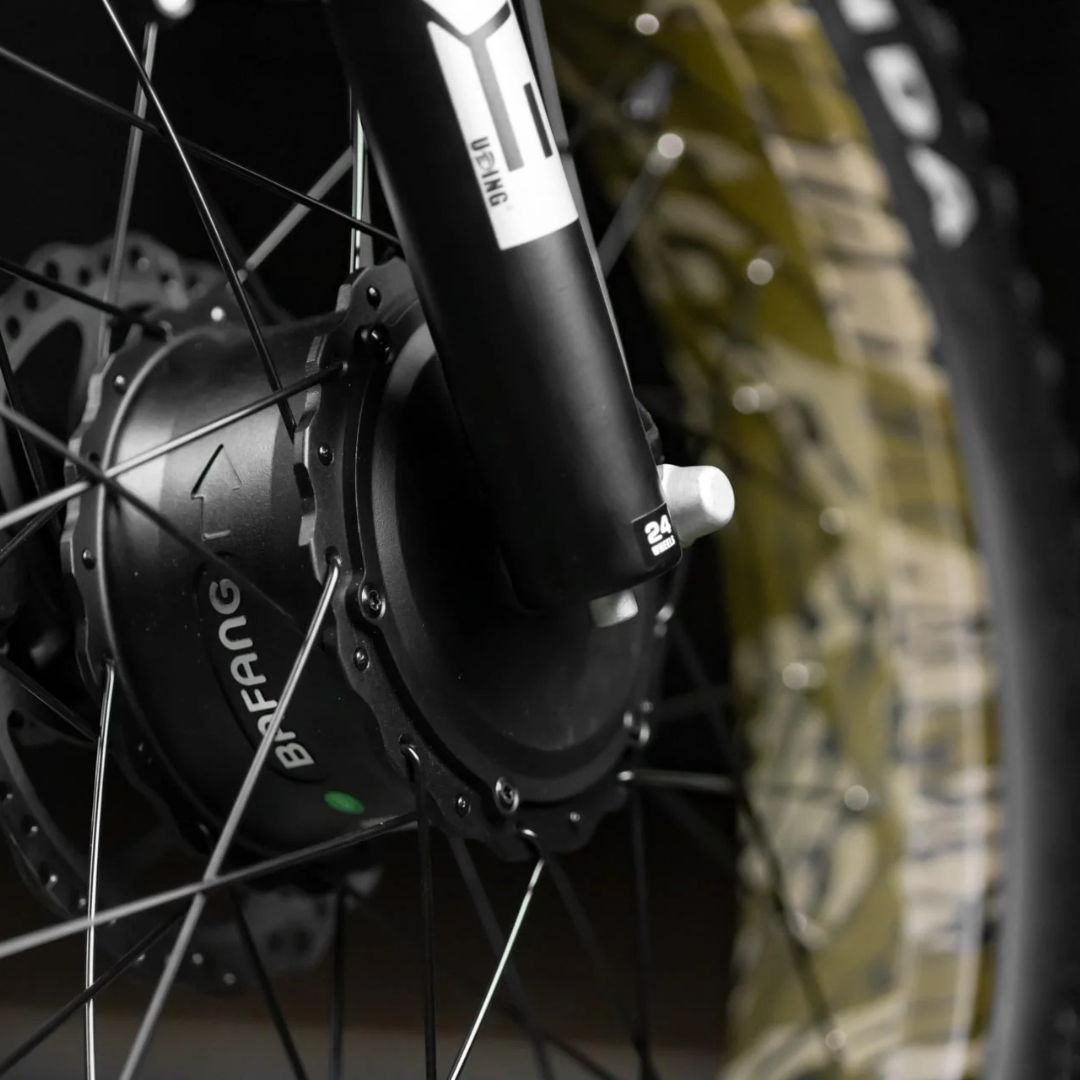

• Dual-Motor System: Front and rear 500W hub motors provide 1,000W nominal power, a 1,500W peak rating, and 140 Nm of torque.
• Step-Through Frame: The lowered top tube supports easier mounting and dismounting while providing a lower center of gravity.

Rambo Storm LED Headlight

Light up the night with our custom LED light bar—toggle between white and green depending on your desired level of stealthiness. Wide beam patterns provide better peripheral visibility.

On The Fly AWD Control

Need more power? Simply toggle between front, rear, or AWD depending upon your terrain!

20 AH Battery

Safety-certified battery with dual-battery capability, allowing you to travel up to 110 miles!

Suspension Forks

Front-fork suspension provides 120 mm of travel with adjustable rebound, compression, and lockout settings for a smooth ride on any terrain.

Rear Rack

The integrated rear rack provides stability and weight distribution while offering additional space for panniers, bags, and other accessories to be attached and carried.

Drivetrain

Maintenance-free single-speed drivetrain. Upgradeable to a Shimano 8-speed drivetrain.

Specifications

• Motor: Dual 500W Bafang hub motors
• Nominal Power: 1,000W
• Peak Rating: 1,500W
• Torque: 140 Nm
• Drive Type: AWD with selectable front-, rear-, or all-wheel drive
• Battery: 48V 20Ah internal battery
• Additional Battery Support: 14Ah dual battery
• Range: Up to 65 miles with the 20Ah internal battery and up to 110 miles using dual-battery technology
• Maximum Speed: Up to 28 mph
• Front Suspension: 120 mm travel with adjustable rebound, compression, and lockout
• Brakes: Logan 4-piston, 203 mm/180 mm
• Rims: Double-wall aluminum alloy
• Gear System: Single speed with 5 power-assist levels; upgradeable to Shimano 8-speed
• Tires: Kenda 24 in. x 4 in. all-terrain tires with anti-puncture technology
• Chain: KMC single-speed, 1/2 in. x 1/8 in.
• Frame: Hydroformed 6061 T6 heat-treated aluminum alloy, TIG welded
• Pedals: Extra-wide Wellgo aluminum-alloy pedals
• Throttle: Right-side thumb throttle
• Display: Fully integrated waterproof digital LCD display with Adjustable Class System
• Bike Weight: 69 lbs. with the battery removed
• Load Capacity: 300 lbs.

Size Guide

• Tire Size: 24 in. x 4 in.
• Maximum Load Capacity: 300 lbs.

Included

• Krusader 3.0 All-Wheel Drive electric bike
• 48V 20Ah internal battery
• Fully integrated waterproof digital LCD display with Adjustable Class System
• Upgraded smart charger
• Integrated rear rack
• Storm LED headlight

Warranty

Warranty: Lifetime frame warranty for the original purchaser while they remain the owner, plus a 1-year limited manufacturer warranty covering bikes, enclosed hardware, and accessories against defects in material or workmanship. Product registration using the bike’s serial number is required within 30 days of receipt.

Product Support

• Owner's Manual
