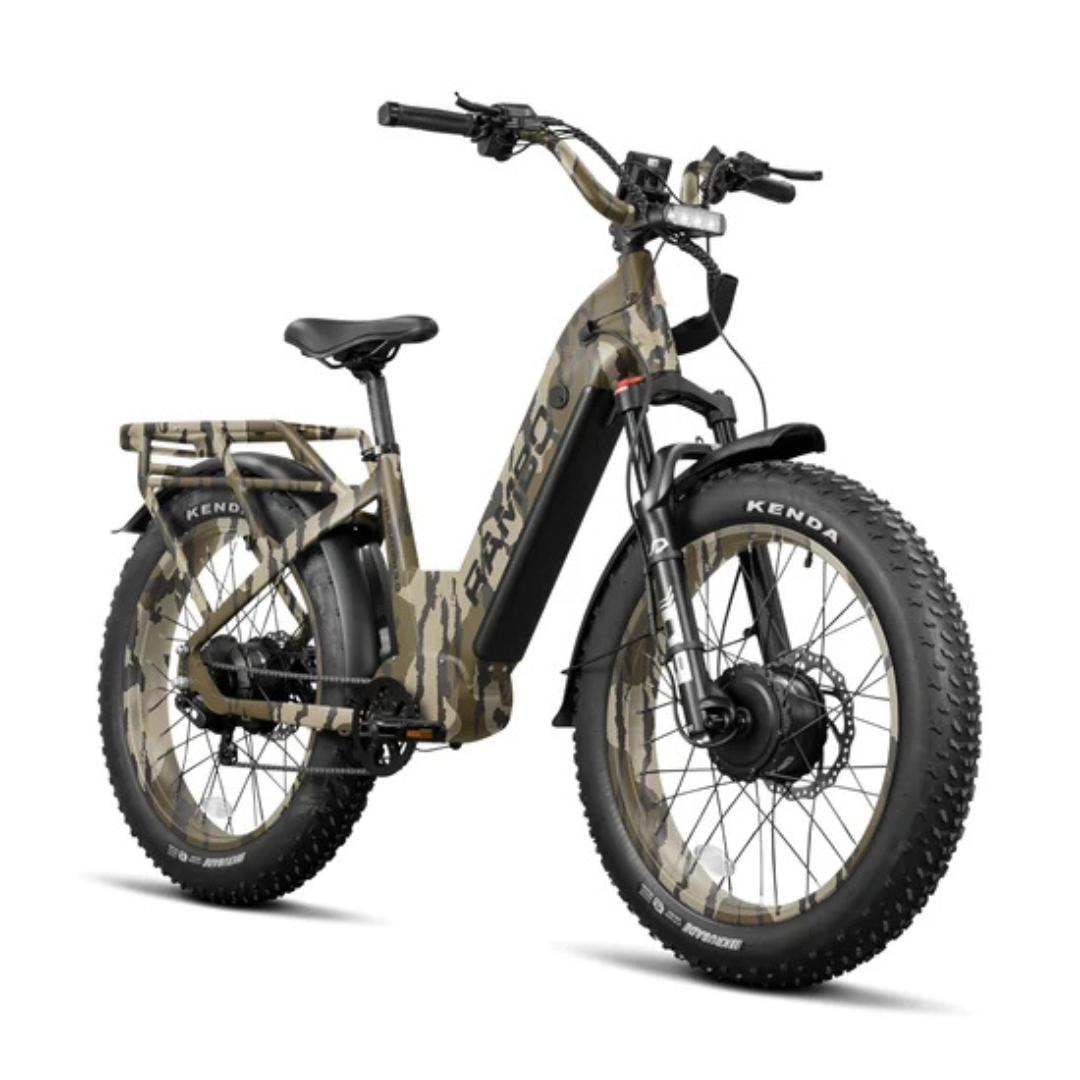

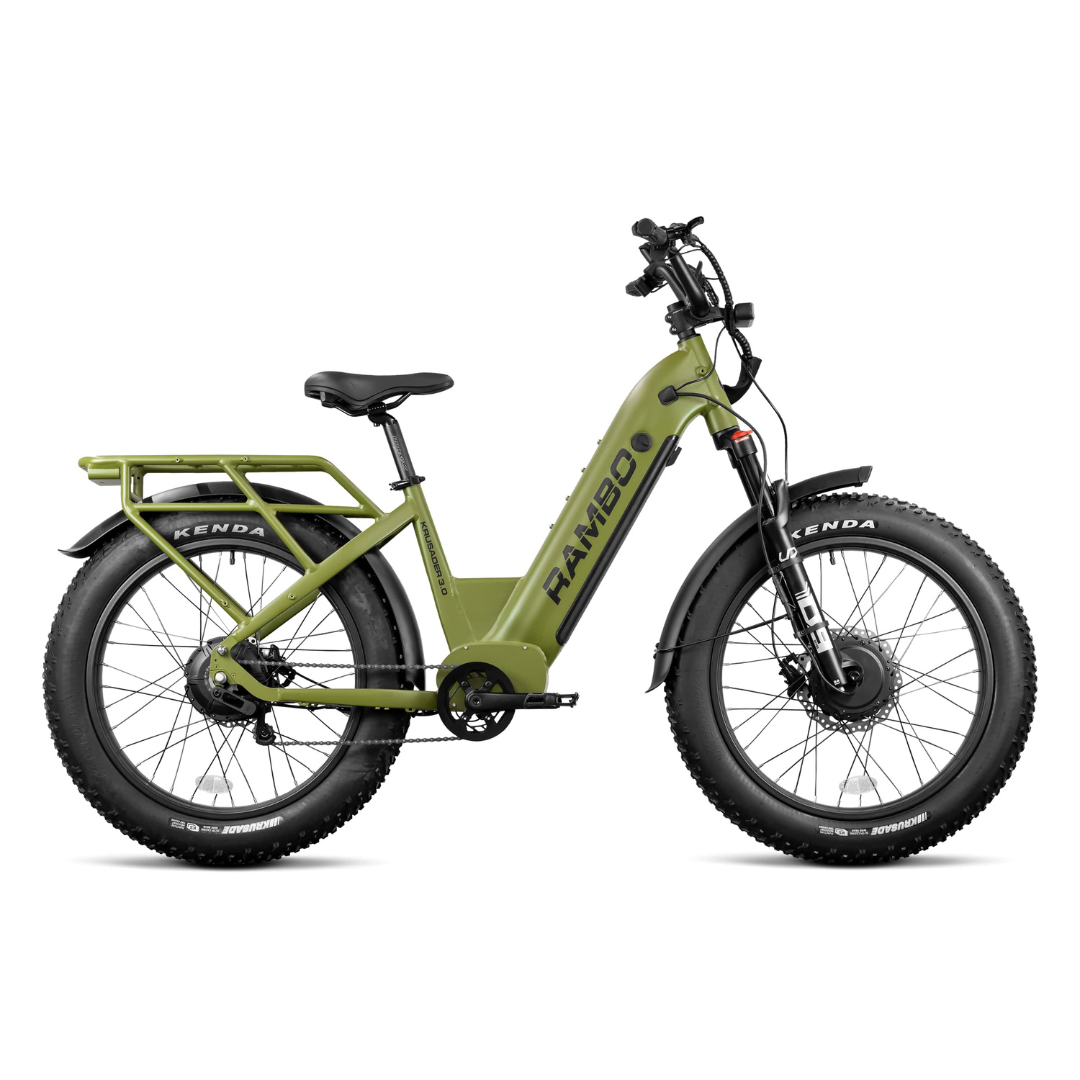

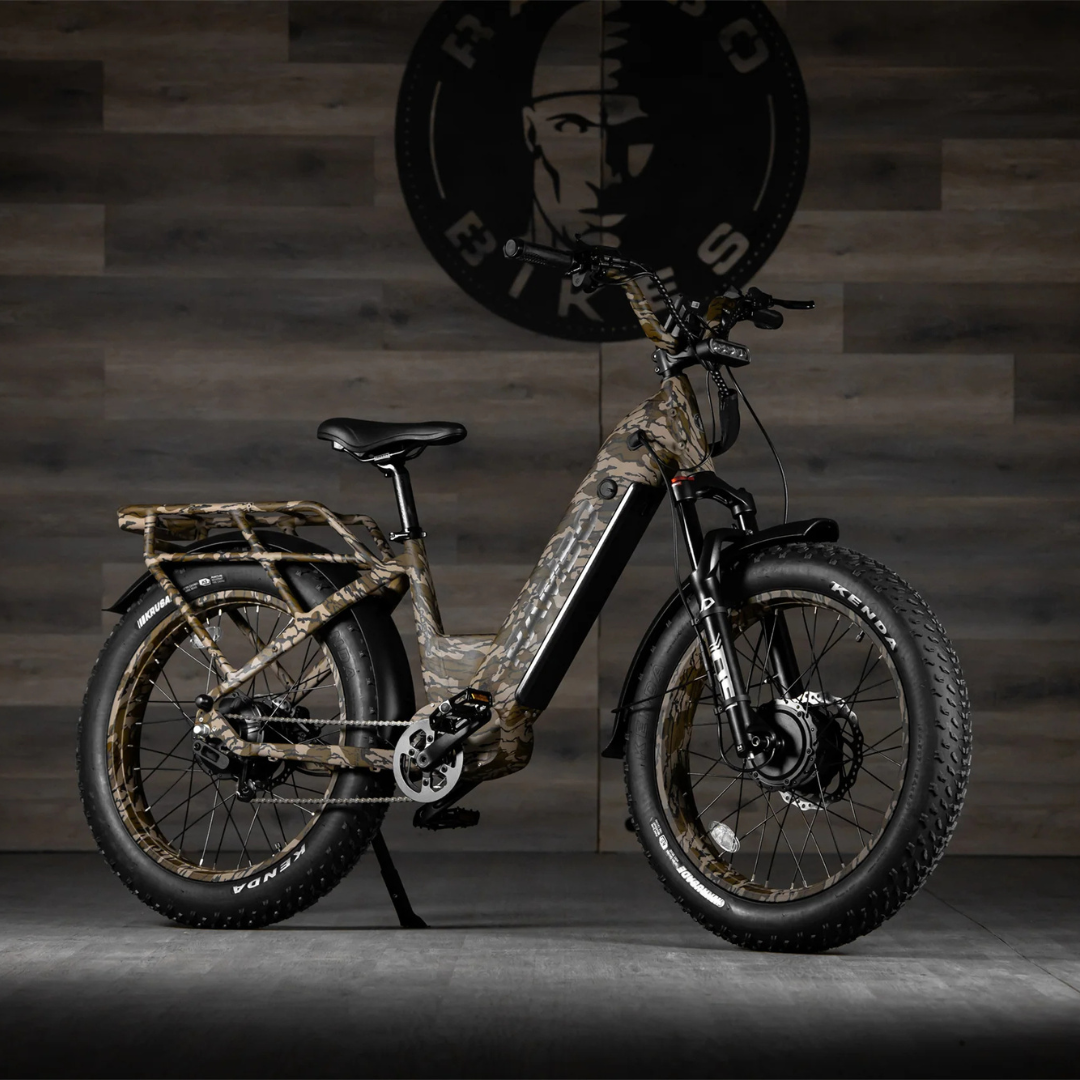

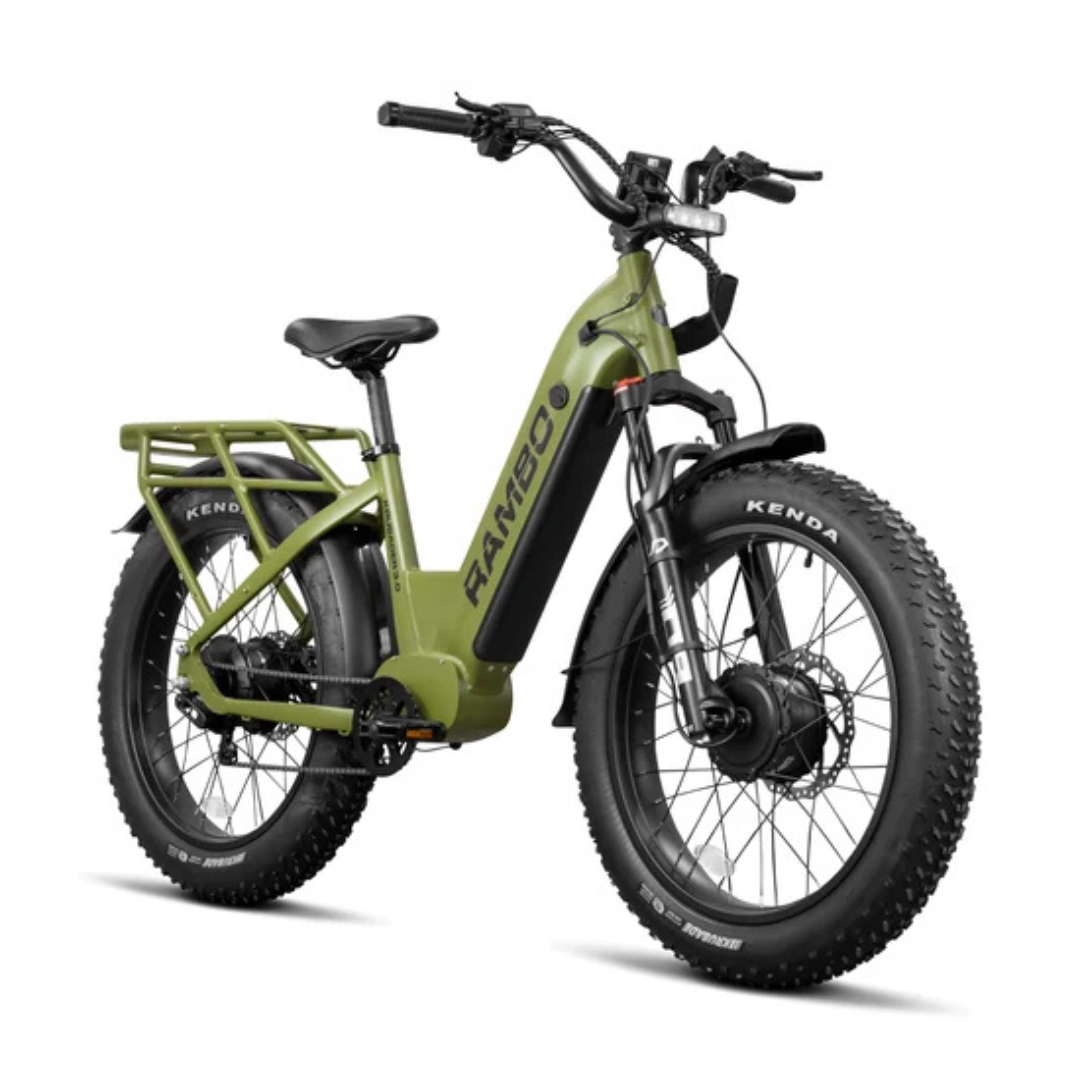

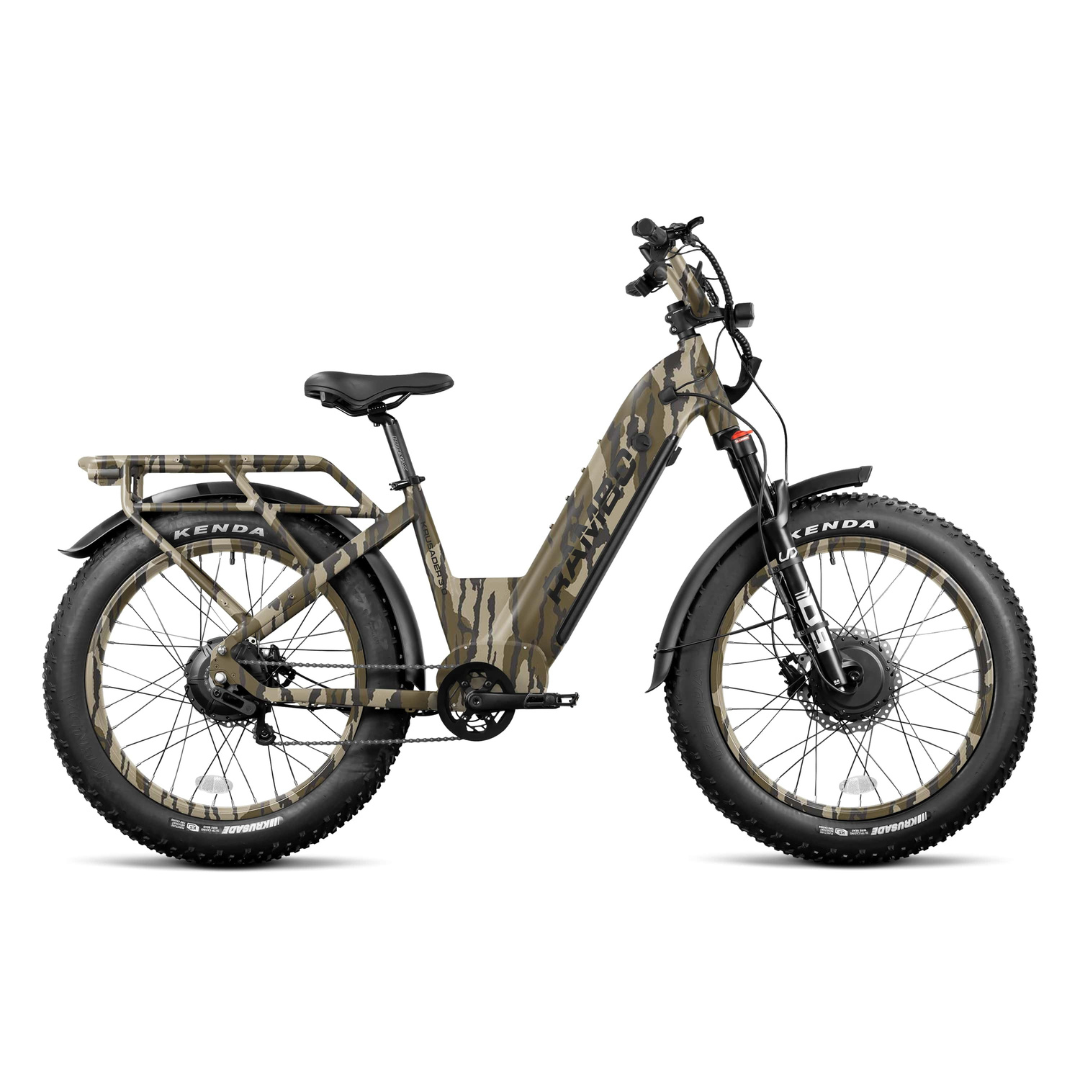

Rambo Bikes Krusader 3.0 All-Wheel Drive – 20Ah

This all-wheel-drive electric bike combines dual hub motors with a step-through frame for travel across muddy trails, snowy fields, loose surfaces, steep hillsides, and other challenging terrain. The lowered top tube also makes mounting and dismounting easier.

A 500W motor powers each wheel, providing up to 1000W of combined nominal power. The rider can switch between front-wheel drive, rear-wheel drive, and all-wheel drive to adjust traction and power delivery for changing terrain.

The 20Ah internal battery provides a verified range of up to 65 miles. A compatible 14Ah secondary battery can extend the total range up to 110 miles using dual-battery technology.

Performance Overview

• Range: Up to 48 miles – 110 miles using the dual battery technology
• Speed: Up to 28 mph
• Battery: 48V 15Ah, 720Wh, upgradeable to a 20Ah internal battery and 14Ah dual battery
• Weight: 69 lbs. with battery removed. Battery weight 9 lbs.
• Motor: Dual 500W hub motors powered by Bafang
• Drivetrain: Single-speed drivetrain with 5 levels of power assist

Key Features

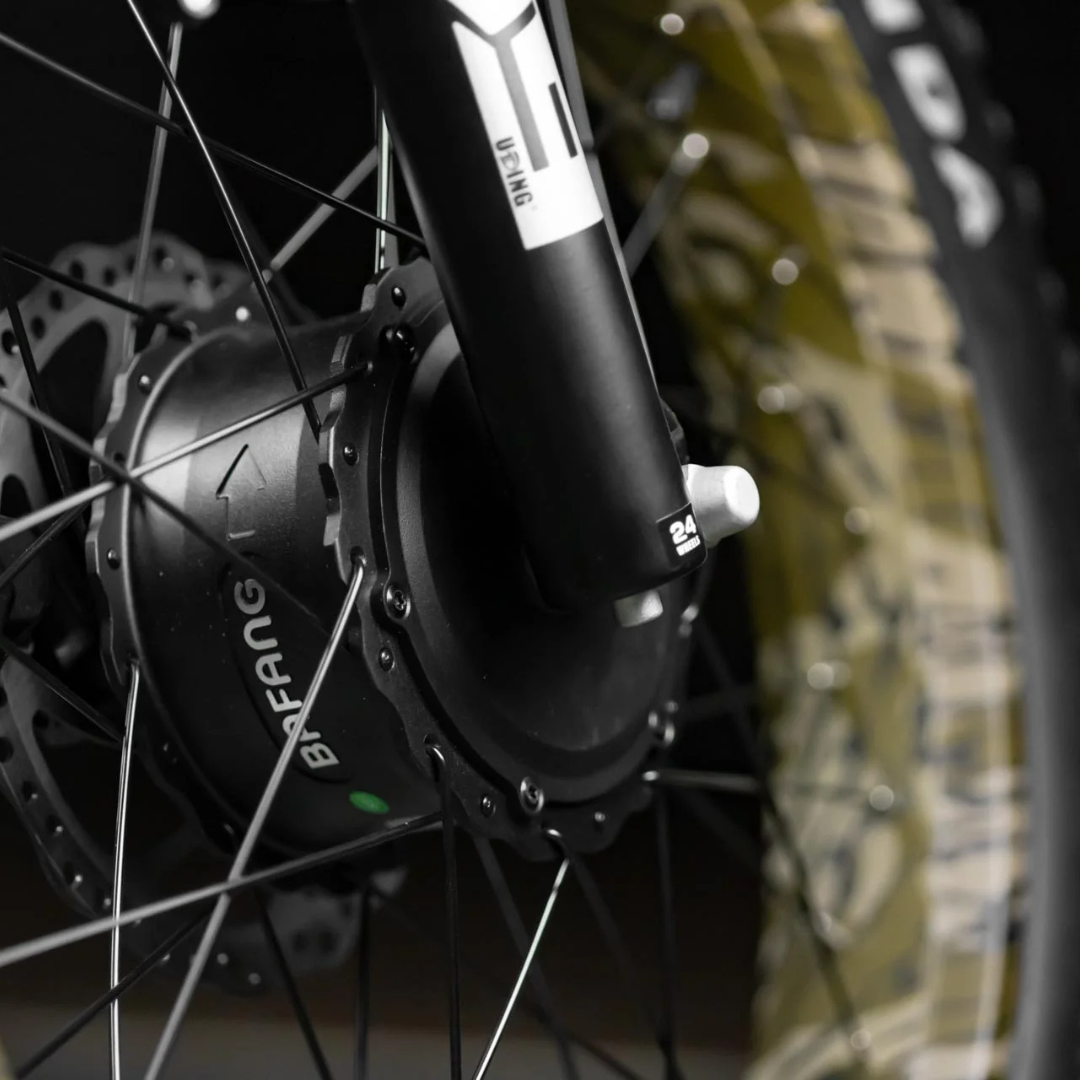

• Dual Hub Motors: Separate 500W motors power the front and rear wheels, providing up to 1000W of combined nominal output.
• On-the-Fly Drive Control: The rider can switch between front-wheel drive, rear-wheel drive, and all-wheel drive based on terrain and desired power delivery.
• All-Wheel-Drive Traction: Using both motors provides increased traction on rough, loose, wet, muddy, and snowy surfaces.
• Step-Through Frame: The lowered top tube makes mounting and dismounting easier and creates a lower center of gravity.
• Independent Hub-Motor Operation: Motor power is delivered directly through the front and rear wheels rather than through the chain or gearing system.
• Motor Temperature Protection: Built-in temperature sensors reduce motor power if operating temperatures become too high and restore maximum power after the motors cool.
• 20Ah Internal Battery: The upgraded internal battery provides a range of up to 65 miles.
• Dual-Battery Capability: A compatible 14Ah secondary battery can extend the total range up to 110 miles.
• Adjustable Class System: Display settings allow selection of Class 1, Class 2, Class 3, or unlimited-power operation where permitted.
• Five Pedal-Assist Levels: Pedal Assist levels 1 through 5 provide progressively increasing motor assistance, while level 0 disables motor assistance.
• Thumb Throttle: The right-side thumb throttle provides motor assistance based on the selected pedal-assist level.
• Walk-Assist Mode: Holding the minus button activates walk assist, allowing the bike to propel itself while the rider walks beside it.
• Single-Speed Drivetrain: The maintenance-free single-speed drivetrain is designed for simple operation and can be converted to an 8-speed system.
• Suspension Fork: The front suspension fork provides 120 mm of travel with adjustable rebound, compression, and lockout settings.
• Hydraulic Brakes: Logan 4-piston brakes use 203 mm and 180 mm brake components.
• All-Terrain Tires: Kenda 24-inch x 4-inch tires feature anti-puncture technology for off-road and rough-trail riding.
• Double-Wall Rims: Aluminum alloy double-wall rims help resist damage during off-road use.
• Selectable LED Headlight: The LED light bar switches between white and green lighting and provides a wide beam pattern for peripheral visibility.
• Digital Display: The integrated water-resistant LCD includes the Adjustable Class System.
• Integrated Rear Rack: The built-in rack provides space for compatible panniers, bags, and other cargo accessories.
• Electric-Bike Chain: The KMC single-speed chain is sized at 1/2 inch x 1/8 inch.
• Extra-Wide Pedals: Wellgo aluminum alloy pedals provide a wide platform for the rider’s feet.

Rambo Storm LED Headlight

Light up the night with our custom LED light bar—toggle between white and green depending on your desired level of stealthiness. Wide beam patterns provide better peripheral visibility.

On The Fly AWD Control

Need more power? Simply toggle between front, rear, or AWD depending upon your terrain!

20 AH Battery

Safety-certified battery with dual-battery capability, allowing you to travel up to 110 miles!

Suspension Forks

Front-fork suspension provides 120 mm of travel with adjustable rebound, compression, and lockout settings for a smooth ride on any terrain.

Rear Rack

The integrated rear rack provides stability and weight distribution while offering additional space for panniers, bags, and other accessories to be attached and carried.

Drivetrain

Maintenance-free single-speed drivetrain. Upgradeable to a Shimano 8-speed drivetrain.

Specifications

• Motor: Dual 500W Bafang hub motors
• Combined Nominal Power: 1000W
• Peak Power: 1500W
• Torque: 140Nm
• Drive Type: AWD
• Selectable Drive Modes: Front-wheel drive, rear-wheel drive, and all-wheel drive
• Battery Voltage: 48V
• Battery Capacity: 20Ah
• Standard Range: Up to 65 miles
• Dual-Battery Range: Up to 110 miles
• Maximum Speed: Up to 28 mph
• Gear System: Single-speed drivetrain
• Power-Assist Levels: 5
• Front Suspension Travel: 120 mm
• Suspension Adjustments: Rebound, compression, and lockout
• Brakes: Logan 4-piston, 203 mm/180 mm
• Tires: Kenda 24-inch x 4-inch all-terrain tires with anti-puncture technology
• Rims: Double-wall aluminum alloy
• Chain: KMC single-speed, 1/2 inch x 1/8 inch
• Frame: Hydroformed 6061 T6 heat-treated aluminum alloy
• Pedals: Extra-wide Wellgo aluminum alloy
• Throttle: Right-side thumb throttle
• Display: Integrated water-resistant digital LCD with Adjustable Class System
• Lighting: LED light bar with selectable white and green lighting
• Rear Rack: Integrated rear rack
• Bike Weight: 69 lbs. with battery removed
• Maximum Load Capacity: 300 lbs.

Size Guide

• Minimum Rider Age: 18 years
• Rider Fit Requirement: The rider must be able to reach the ground while seated.
• Maximum Weight Limit: 300 lbs.

Compatibility

• Compatible Secondary Battery: 48V 14Ah dual battery
• Drivetrain Upgrade: The single-speed system can be converted to an 8-speed drivetrain.
• Rear Rack Compatibility: The integrated rear rack accepts compatible panniers, bags, and other rack-mounted accessories.

Included

• Electric bike
• Fully integrated water-resistant digital LCD with Adjustable Class System
• 48V 20Ah battery
• Smart charger
• Official bike manual

The bike arrives almost fully assembled. Final assembly is required before riding.

Warranty

• Warranty: Limited lifetime frame warranty against factory defects for the original purchaser while they remain the owner of the bike. The frame warranty is non-transferable.
• Additional Coverage: Bikes, enclosed hardware where applicable, and accessories are warranted against defects in materials and workmanship for 12 months from the original purchase date, subject to the complete official warranty terms.
• Registration: Product registration is required to activate the warranty.

Product Support

• Owner's Manual
