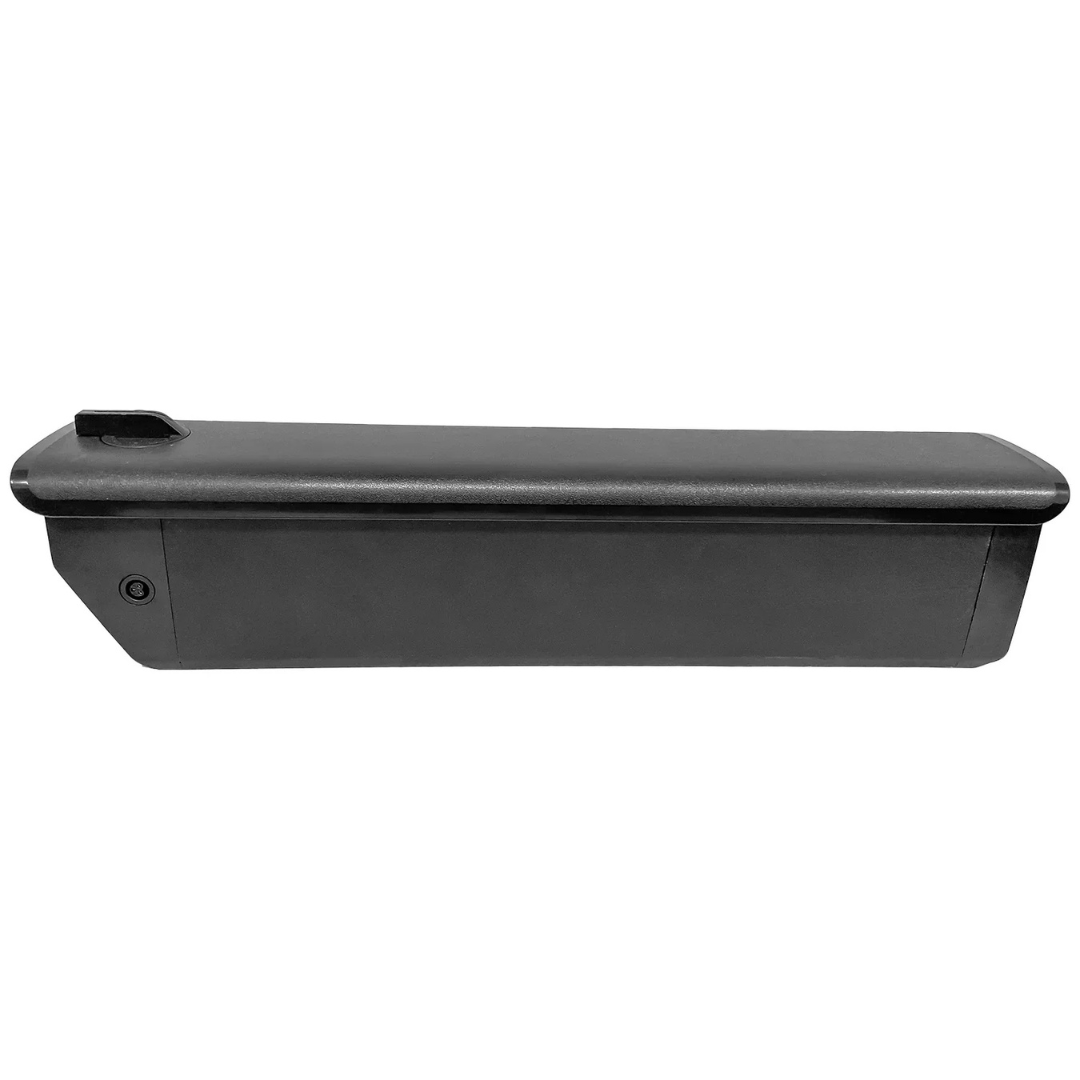

The 48V, 20 Ah battery delivers 960 Wh of energy for extended electric bike rides. It supports 65 miles of pedal-assist range or 42 miles with throttle-only operation.
Weighing 11 lbs., the battery uses an internally mounted design that maintains a clean frame profile. It serves as the default battery for the Hellcat FS and as an upgrade option for several additional electric bike models.
Performance Overview
- Provides 960 Wh of battery energy.
- Uses a 48V, 20 Ah configuration.
- Supports 65 miles of pedal-assist range.
- Supports 42 miles of throttle-only range.
- Weighs 11 lbs.
- Uses an internally mounted design.
Key Features
-
Extended Pedal-Assist Range: Supports 65 miles of riding with pedal assist.
-
Throttle-Only Range: Supports 42 miles using throttle-only operation.
-
High-Capacity Power: Combines a 48V system with 20 Ah of battery capacity.
-
Internal Mounting: Mounts internally to maintain a clean bicycle frame profile.
-
Extended Endurance: Delivers 960 Wh of energy for longer rides.
Specifications
-
Voltage: 48V
-
Battery Capacity: 20 Ah
-
Battery Energy: 960 Wh
-
Weight: 11 lbs.
-
Pedal-Assist Range: 65 miles
-
Throttle-Only Range: 42 miles
-
Battery Mounting: Internal
Compatibility
-
Default Battery For: Hellcat FS
-
Battery Upgrade For: Krusader 3.0, Nomad 2.0, Pursuit 3.0, Rebel 2.0, Savage 2.0, and Venom 2.0
Warranty
Warranty: 1-year limited manufacturer warranty against defects in material or workmanship, subject to the official warranty terms. Battery warranty excludes damage caused by improper storage, water damage, normal wear, or improper charging.
