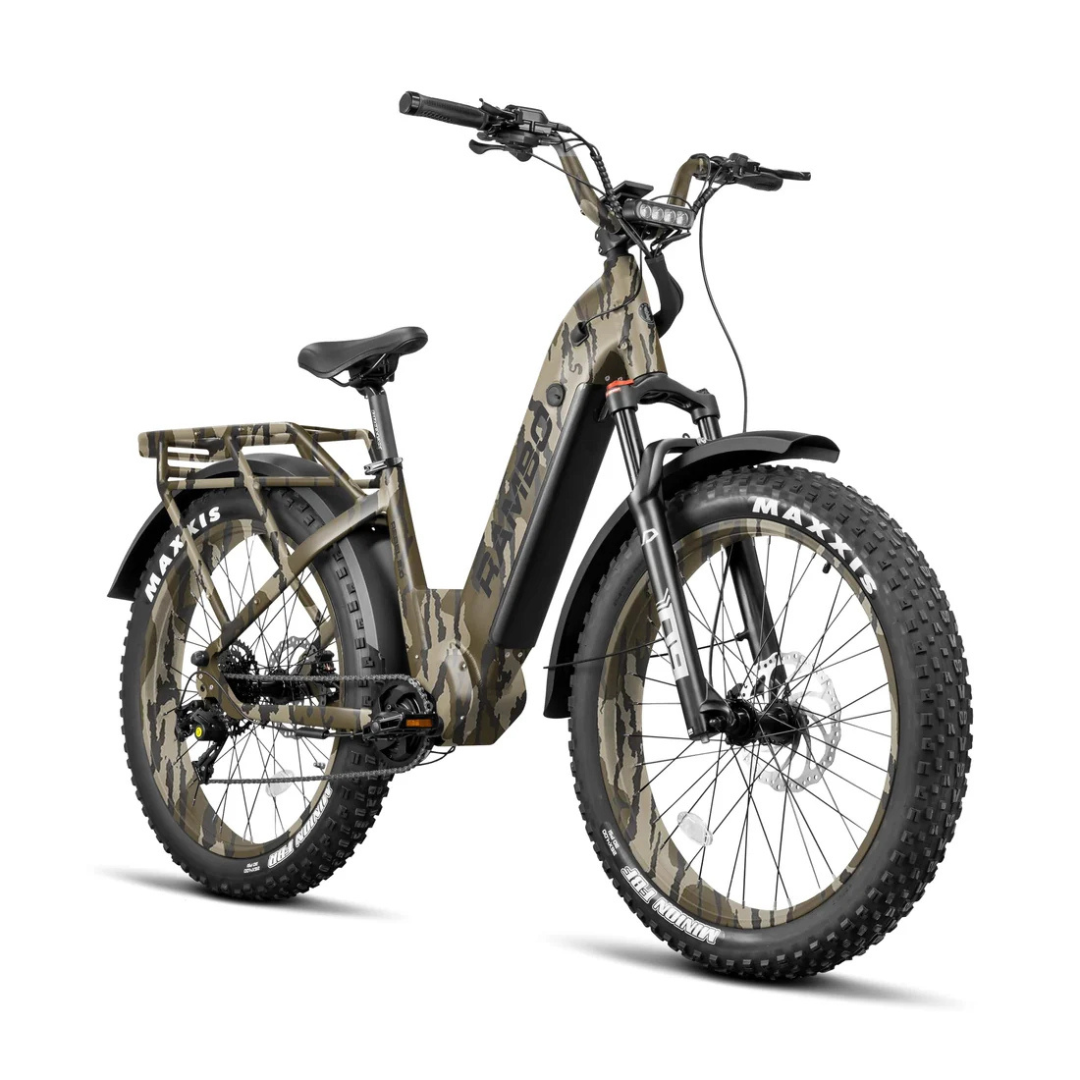

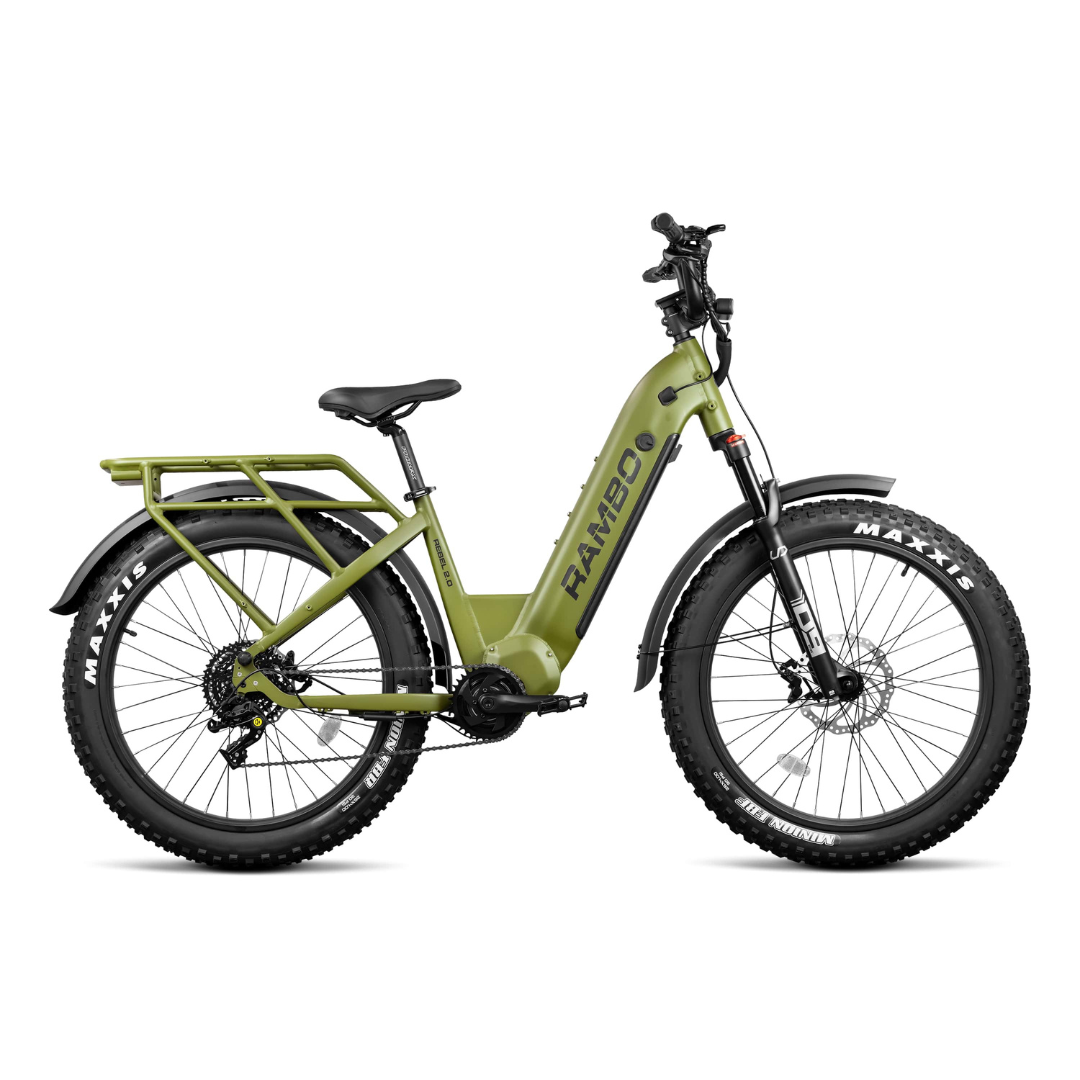

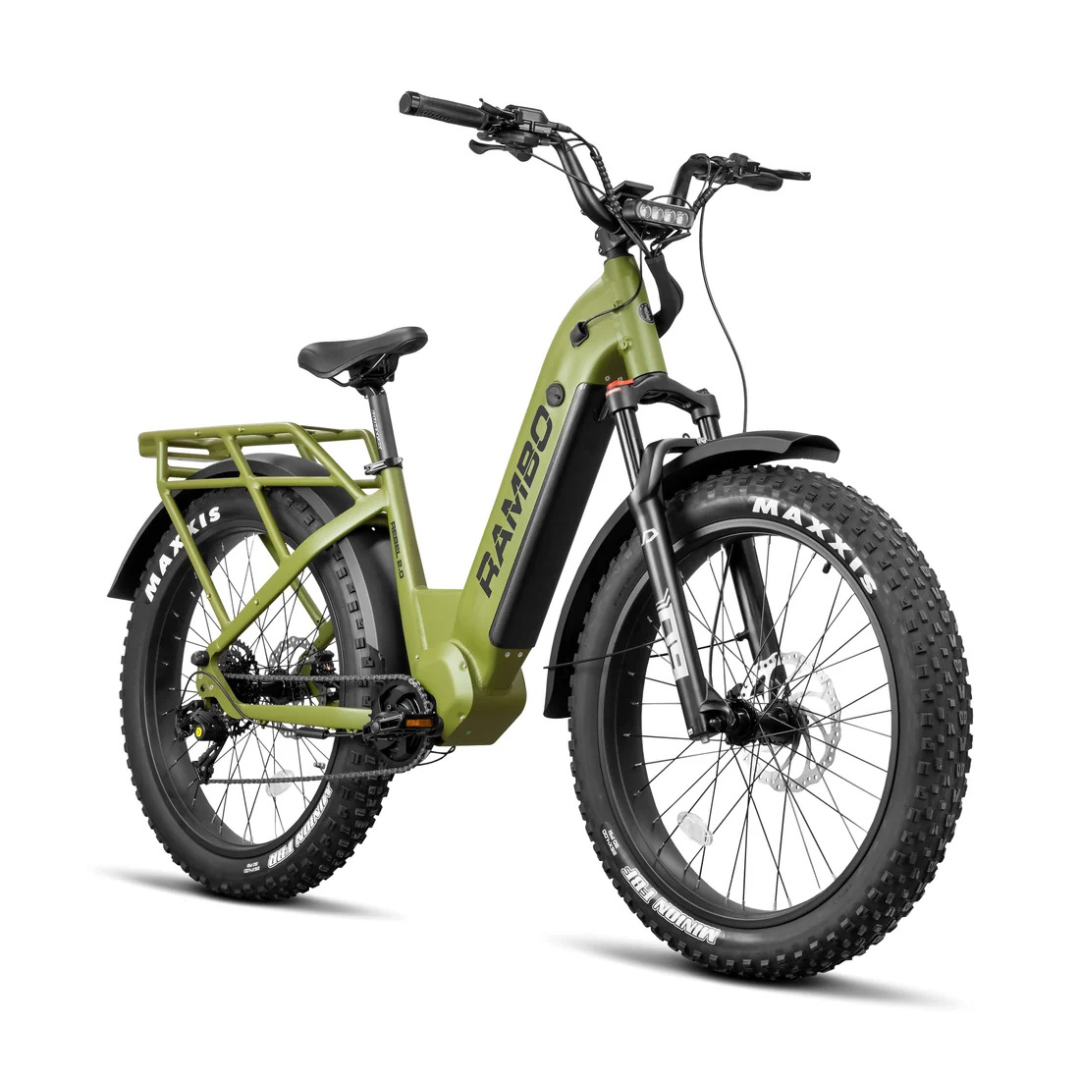

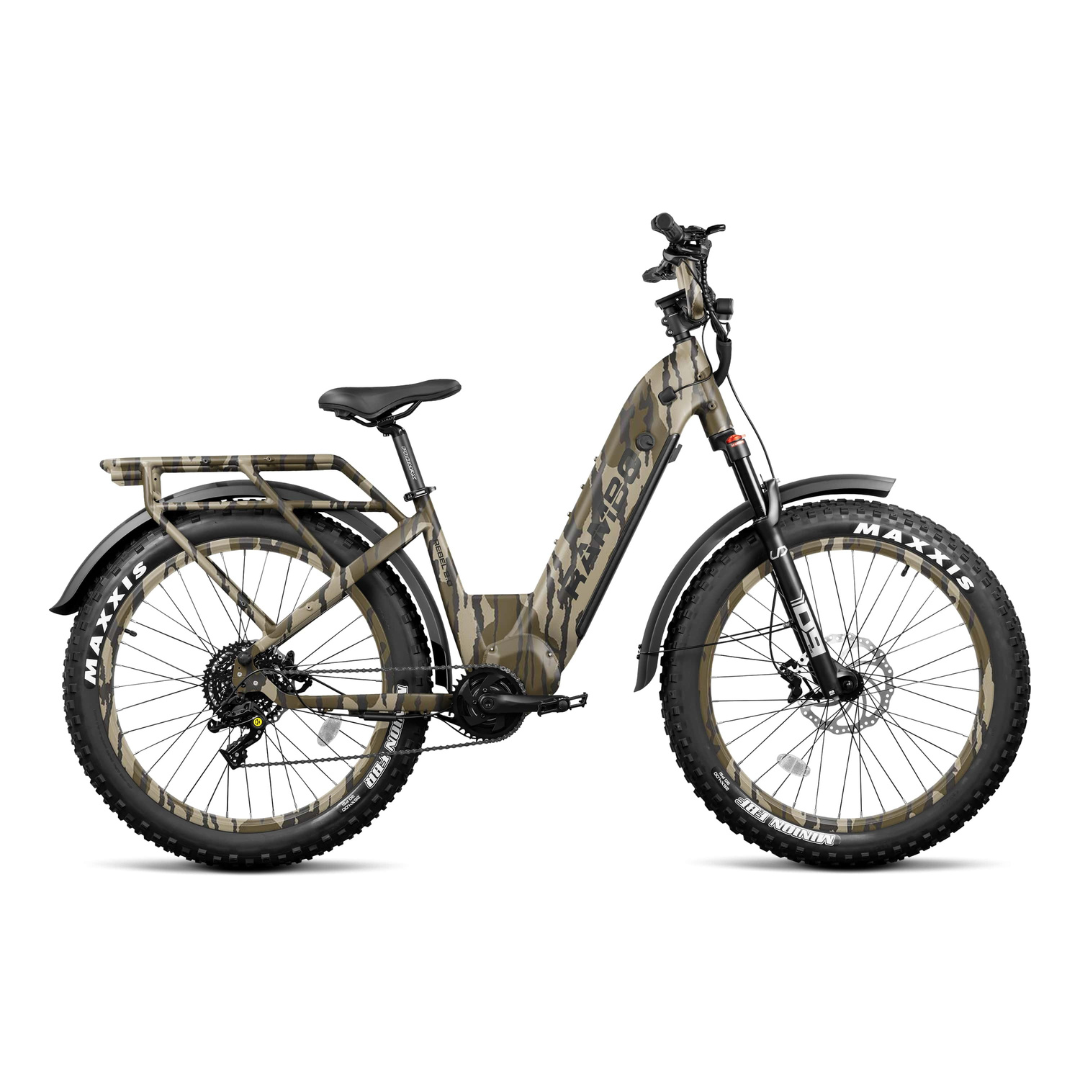

Rambo Bikes Rebel 2.0 – 15Ah

The Rebel 2.0 – 15Ah is a mid-drive electric bike built for demanding off-road riding, steep grades, muddy trails, creek crossings, hunting trips, and backcountry transportation. Its motor delivers power through the bike’s drivetrain to support controlled climbing and travel across varied terrain.

A 1000W Bafang BBSHD mid-drive motor provides 160Nm of torque, while the 48V 15Ah battery offers 720Wh of capacity using LG-branded cells. The bike also features fat all-terrain tires, hydraulic brakes, an adjustable class system, a water-resistant digital display, and an integrated rear rack.

Updated handlebars and comfort grips provide a more natural riding position, while selectable pedal-assist levels, a thumb throttle, and walk-assist mode give the rider multiple ways to manage motor assistance.

Performance Overview

• Range: Up to 32 miles
• Speed: Up to 32 mph
• Battery: 48V 15Ah, 720Wh with LG-branded cells
• Weight: 64 lbs. with the battery removed; battery weight is 9 lbs.
• Motor: 1000W Bafang BBSHD ultra-quiet mid-drive motor
• Drivetrain: Shimano 8-speed, 11–40T

Key Features

• Bafang BBSHD mid-drive motor with 1000W nominal power
• 1,632W peak rating and 160Nm of torque
• Cadence-sensor pedal-assist system
• Redesigned handlebars and comfort grips
• Logan hydraulic brakes with integrated electric safety cutoff
• Maxxis Minion 26 in. x 4.0 in. all-terrain fat tires
• Digital water-resistant LCD display
• Adjustable Class System
• Built-in USB port
• Rambo Storm LED lightbar with selectable white and green lighting
• Integrated rear rack for carrying compatible bags and accessories

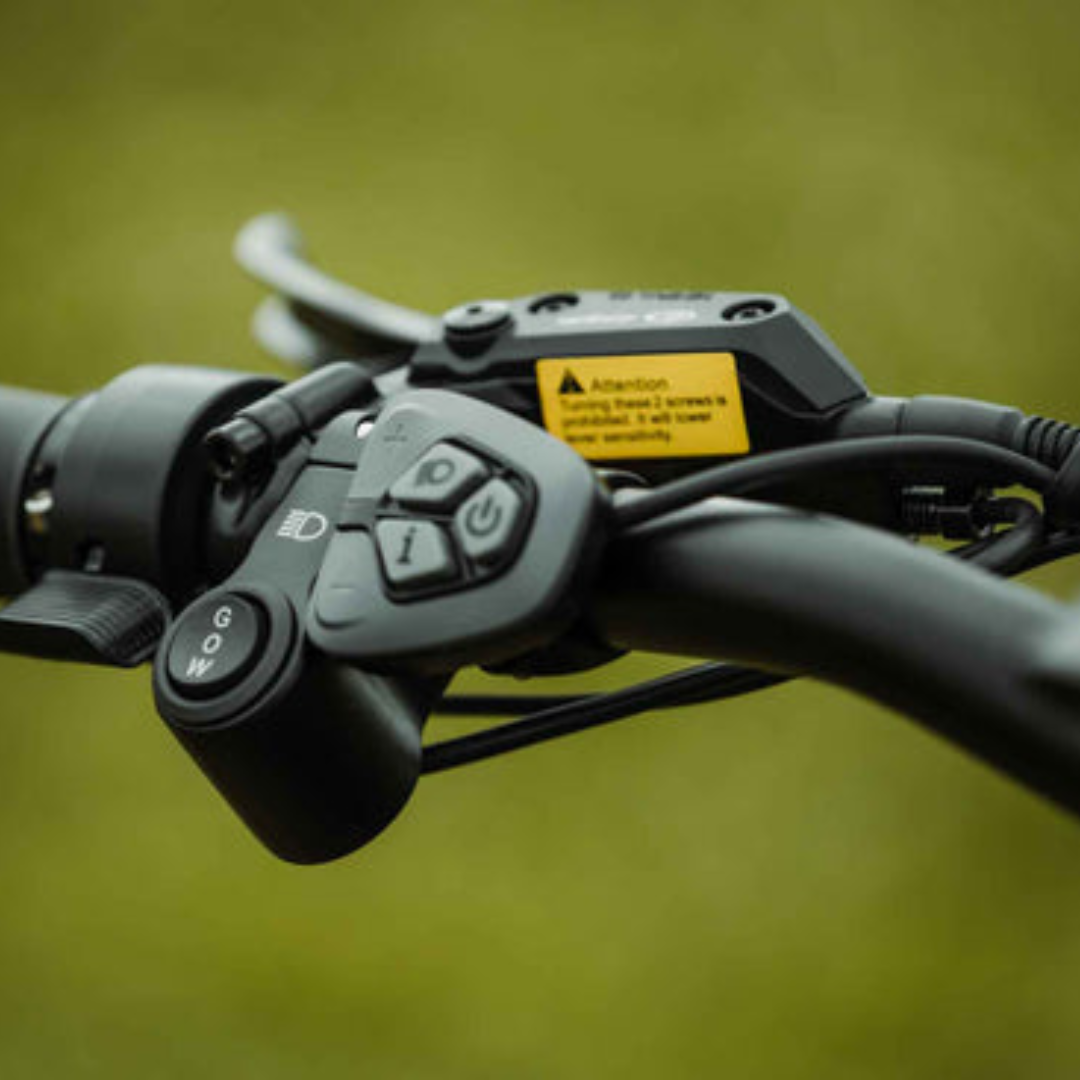

• Thumb throttle positioned on the left side of the handlebars
• Double-wall aluminum-alloy rims
• Extra-wide Wellgo aluminum-alloy pedals
• 300-lb. load capacity

Logan 4 Piston Hydraulic Brakes

Logan 4-piston brakes offer a significant upgrade in braking power and provide more consistent stopping power, especially under heavy loads or on steep descents. Ideal for riders tackling challenging terrain.

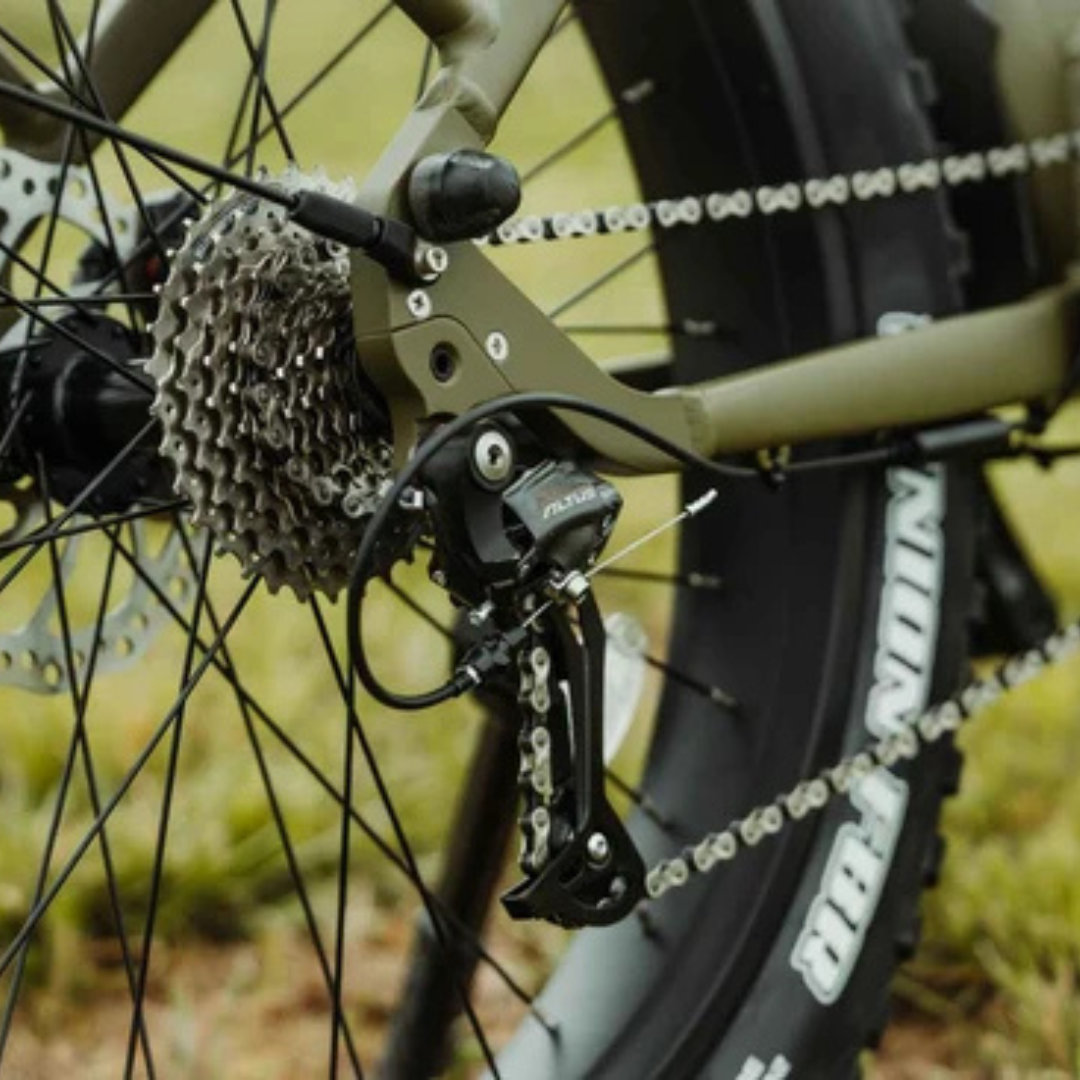

Shimano 8 Speed Drivetrain

The Shimano 8-speed drivetrain with an 11–40T derailleur setup provides a range of gears for various terrain, from steep climbs to fast descents, ensuring smooth and reliable performance.

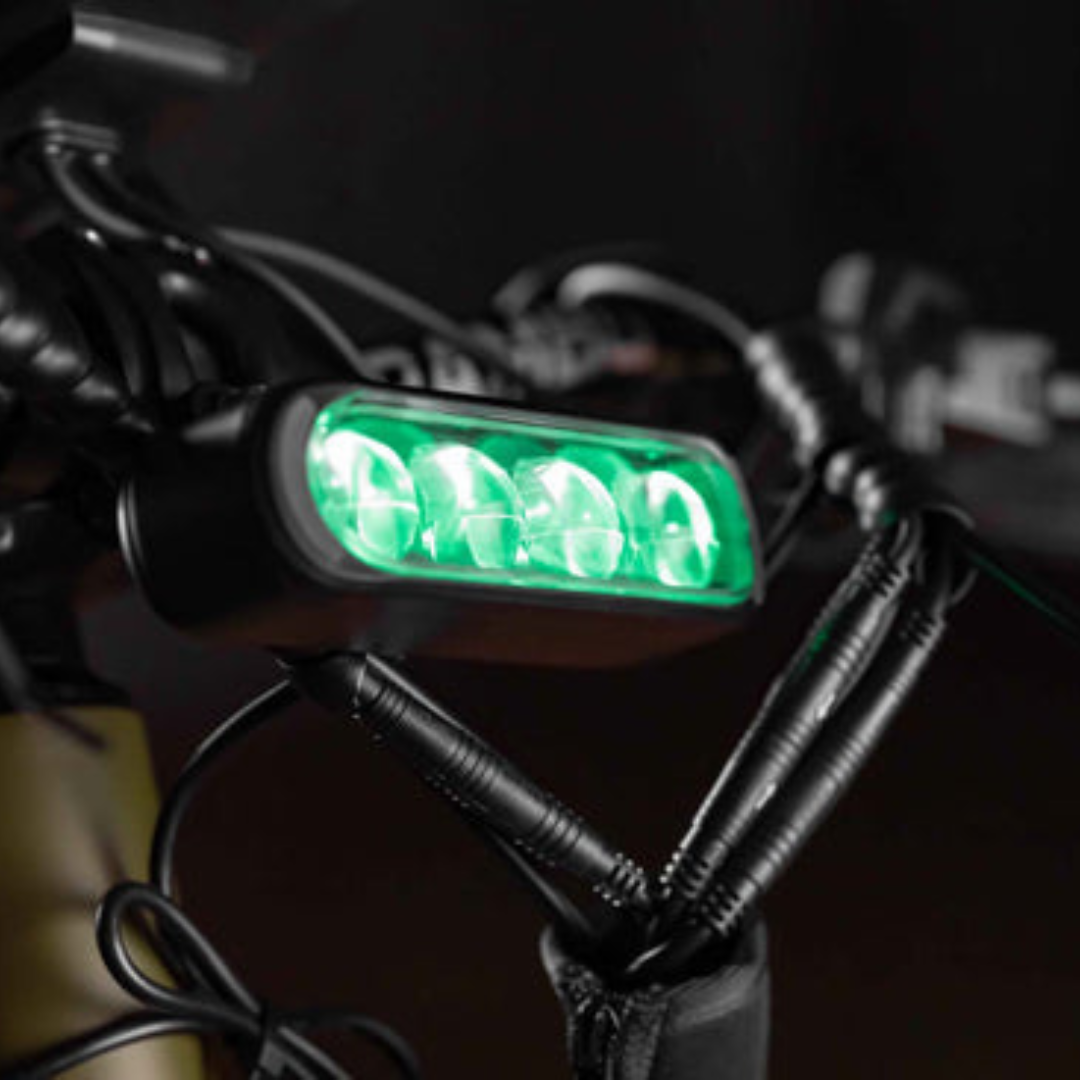

Rambo Storm LED Lightbar

Light up the night with our custom LED light bar—toggle between white and green depending on your desired level of stealthiness. Wide beam patterns provide better peripheral visibility.

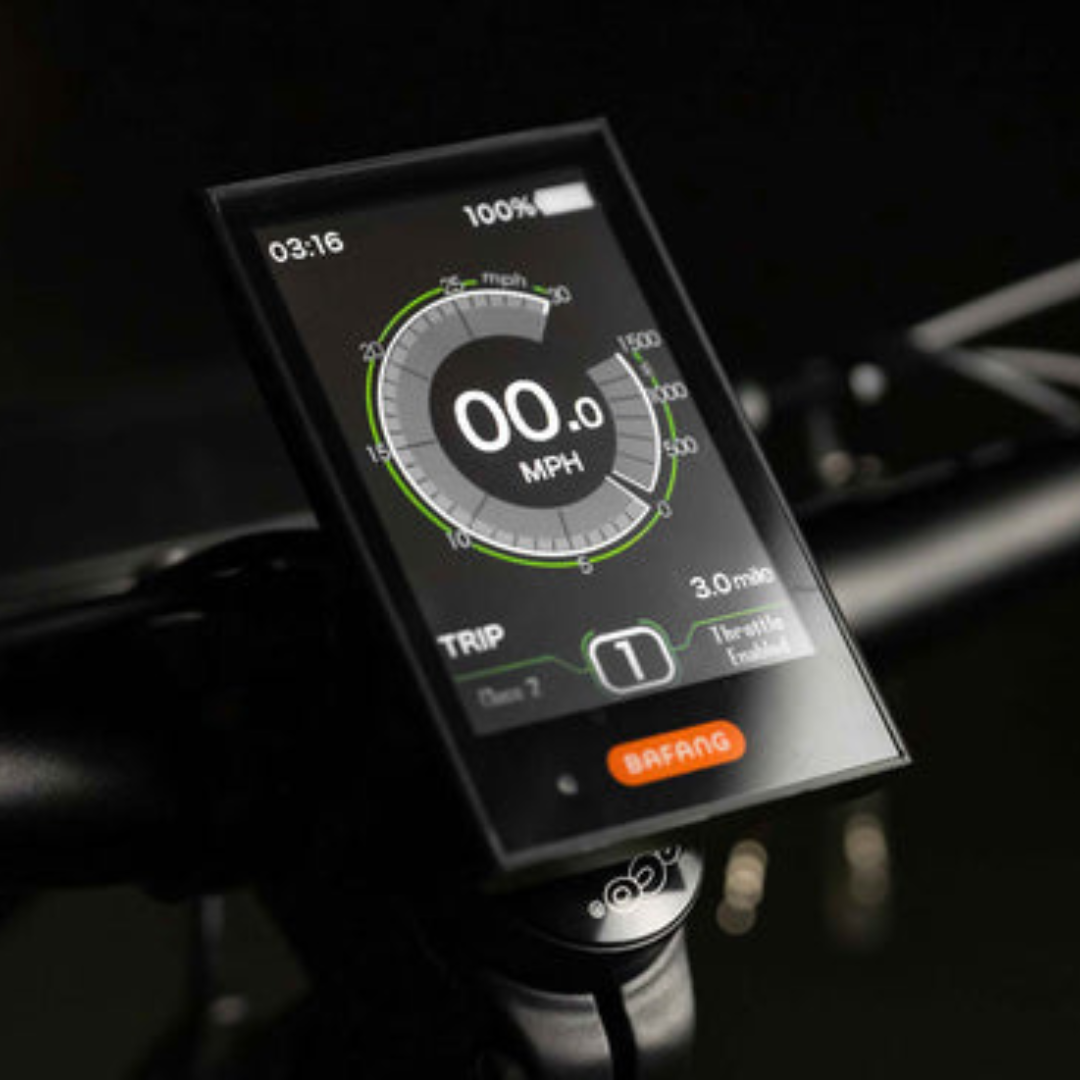

Digital LCD Screen

The digital water-resistant LCD is suitable for outdoor and rugged environments. It displays essential information including power output, speed, battery level, and miles traveled, and includes adjustable class settings.

Bafang BBSHD 1000W

The Bafang BBSHD 1000W motor is known for its power and efficiency, making it a popular choice for e-bike enthusiasts seeking high performance. It provides significant power and torque for steep climbs and difficult terrain.

Integrated Rear Rack

The integrated rear rack provides stability and weight distribution while offering additional space for panniers, bags, and other accessories to be attached and carried.

Specifications

• Motor: Bafang BBSHD ultra-quiet mid-drive motor
• Nominal Motor Power: 1000W
• Torque: 160Nm
• Sensor Type: Cadence sensor
• Drive Type: Mid-drive
• Battery Voltage: 48V
• Battery Capacity: 15Ah
• Battery Energy: 720Wh
• Battery Cells: LG-branded cells
• Maximum Speed: Up to 32 mph
• Range: Up to 32 miles
• Gear System: Shimano 8-speed, 11–40T
• Front Brake: 203 mm Logan hydraulic brake with integrated electric safety cutoff
• Rear Brake: 180 mm Logan hydraulic brake with integrated electric safety cutoff
• Tires: Maxxis Minion 26-inch x 4-inch all-terrain tires with aggressive tread and anti-puncture technology
• Rims: Double-wall aluminum alloy
• Chain: KMC X9e
• Frame: Hydroformed 6061 T6 heat-treated aluminum alloy
• Pedals: Extra-wide Wellgo aluminum alloy
• Throttle: Left-hand thumb throttle
• Pedal Assist: Levels 0–5
• Class Settings: Class 1, Class 2, Class 3, and unlimited power
• Display: Water-resistant digital LCD with Adjustable Class System and built-in USB port
• Lighting: LED light bar with selectable white and green lighting
• Rear Rack: Integrated rear rack
• Bike Weight: 64 lbs. with the battery removed
• Battery Weight: 9 lbs.
• Maximum Load Capacity: 300 lbs.

Size Guide

• Minimum Rider Age: Riders must be at least 18 years old.
• Rider Fit Requirement: The rider must be able to reach the ground while seated.
• Maximum Weight Limit: 300 lbs.

Compatibility

• Compatible With: An additional 48V 14Ah secondary battery installed on top of the bike frame
• Cargo Compatibility: The integrated rear rack allows compatible panniers, bags, and other rack-mounted accessories to be attached and carried.

Included

• Rebel 2.0 electric bike
• Fully integrated water-resistant digital LCD display with Adjustable Class System
• 48V 15Ah battery
• Smart charger
• Official bike manual

The bike arrives almost fully assembled. Final assembly is required before use.

Warranty

• Warranty: Limited lifetime frame warranty against factory defects for the original purchaser while they remain the owner of the bike. The frame warranty is non-transferable.
• Additional Coverage: Bikes, enclosed hardware where applicable, and accessories are warranted against defects in materials and workmanship for 12 months from the original purchase date, subject to the complete official warranty terms.
• Registration: Product registration is required to activate the warranty.
