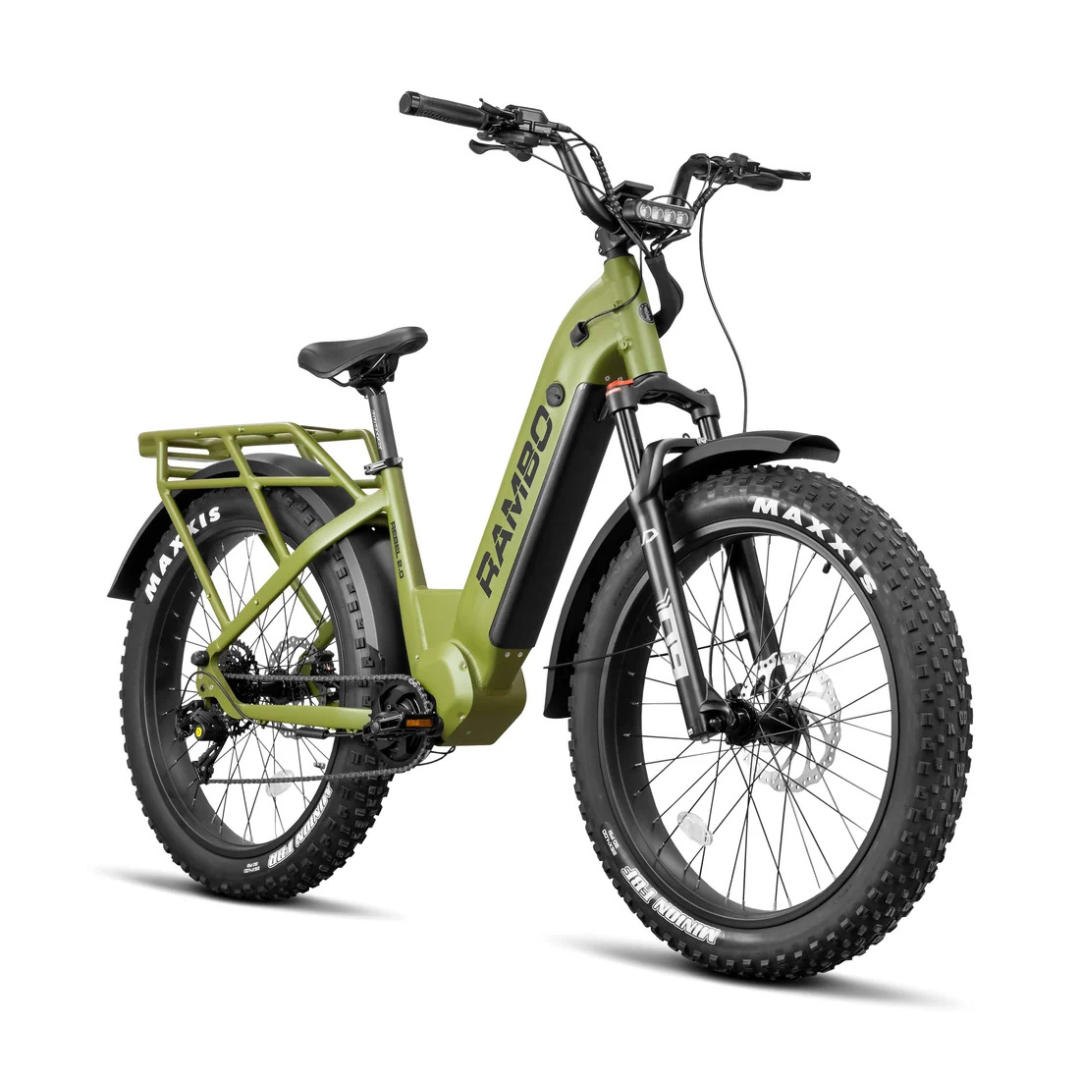

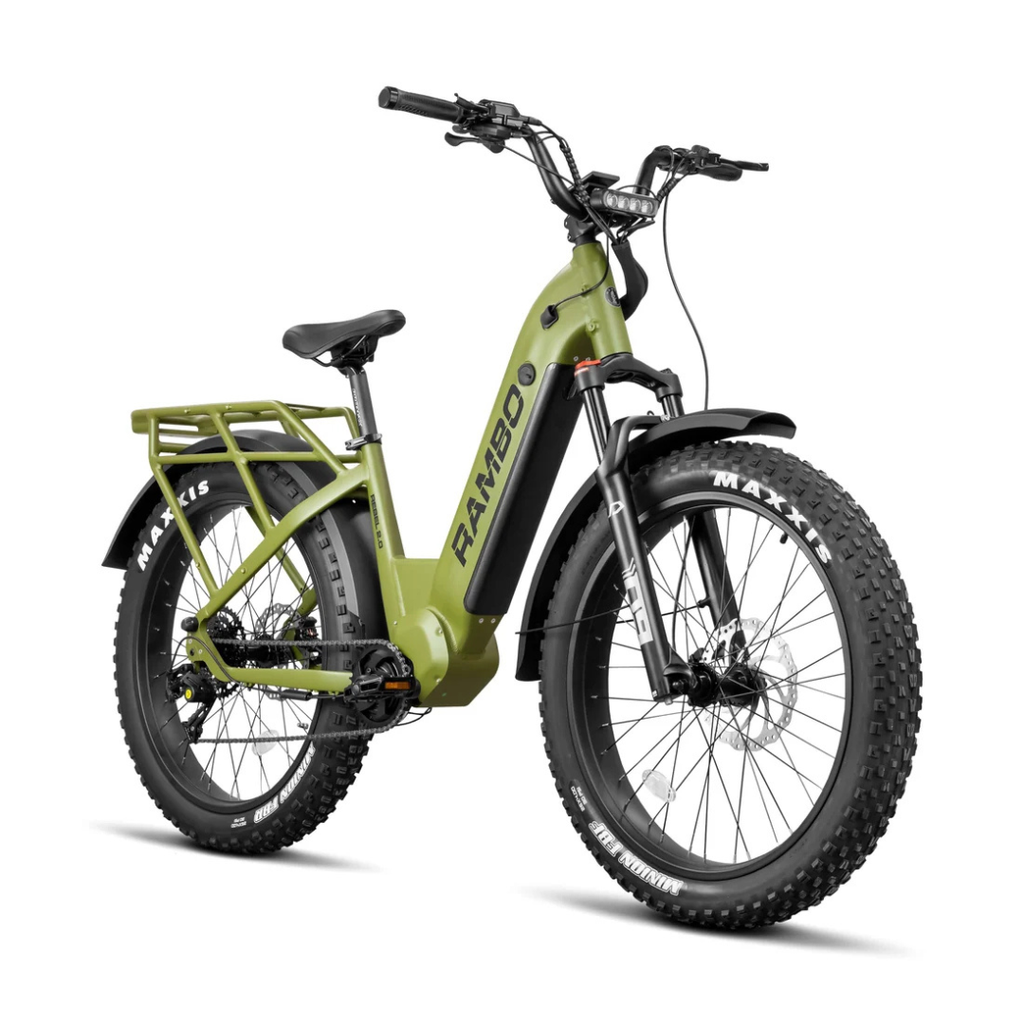

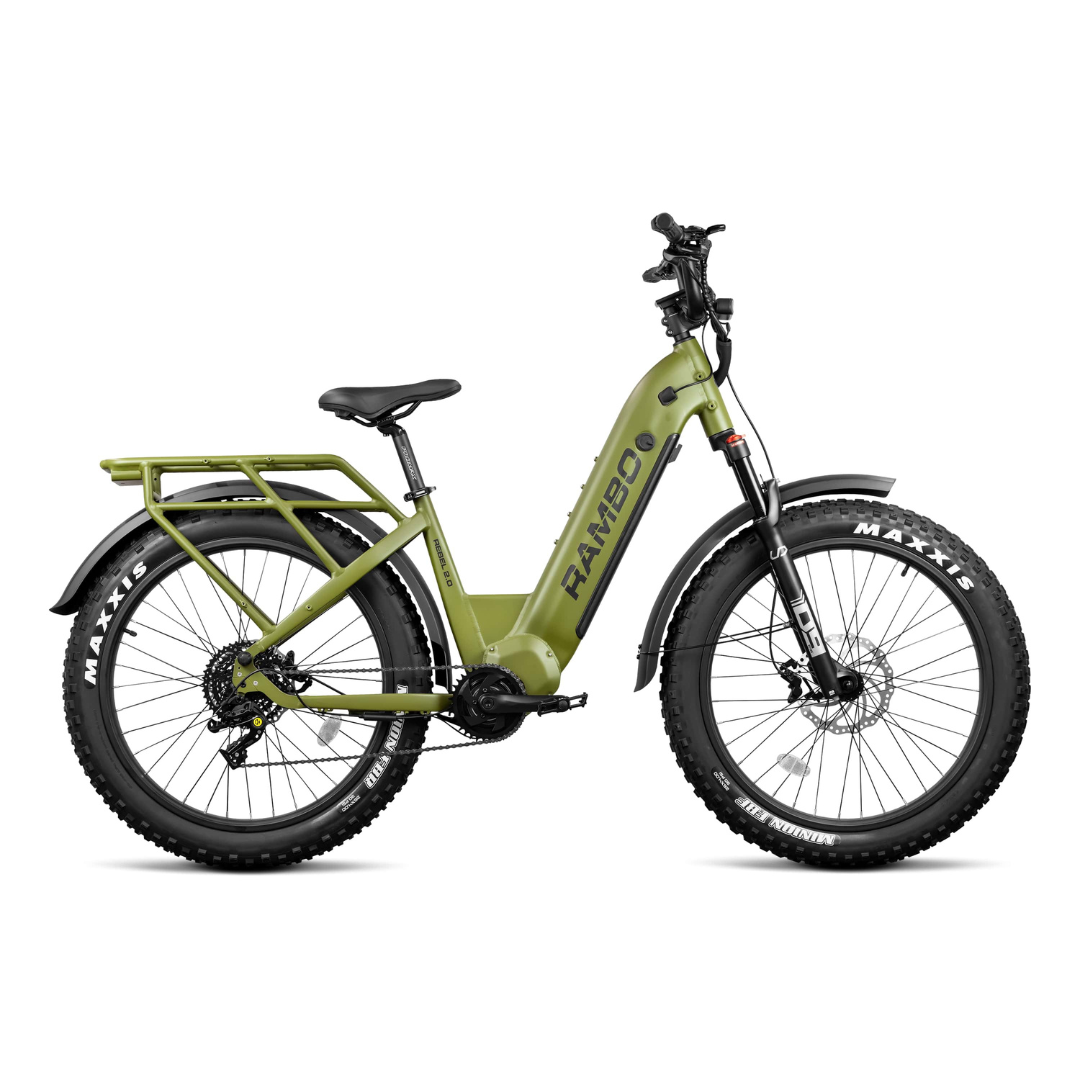

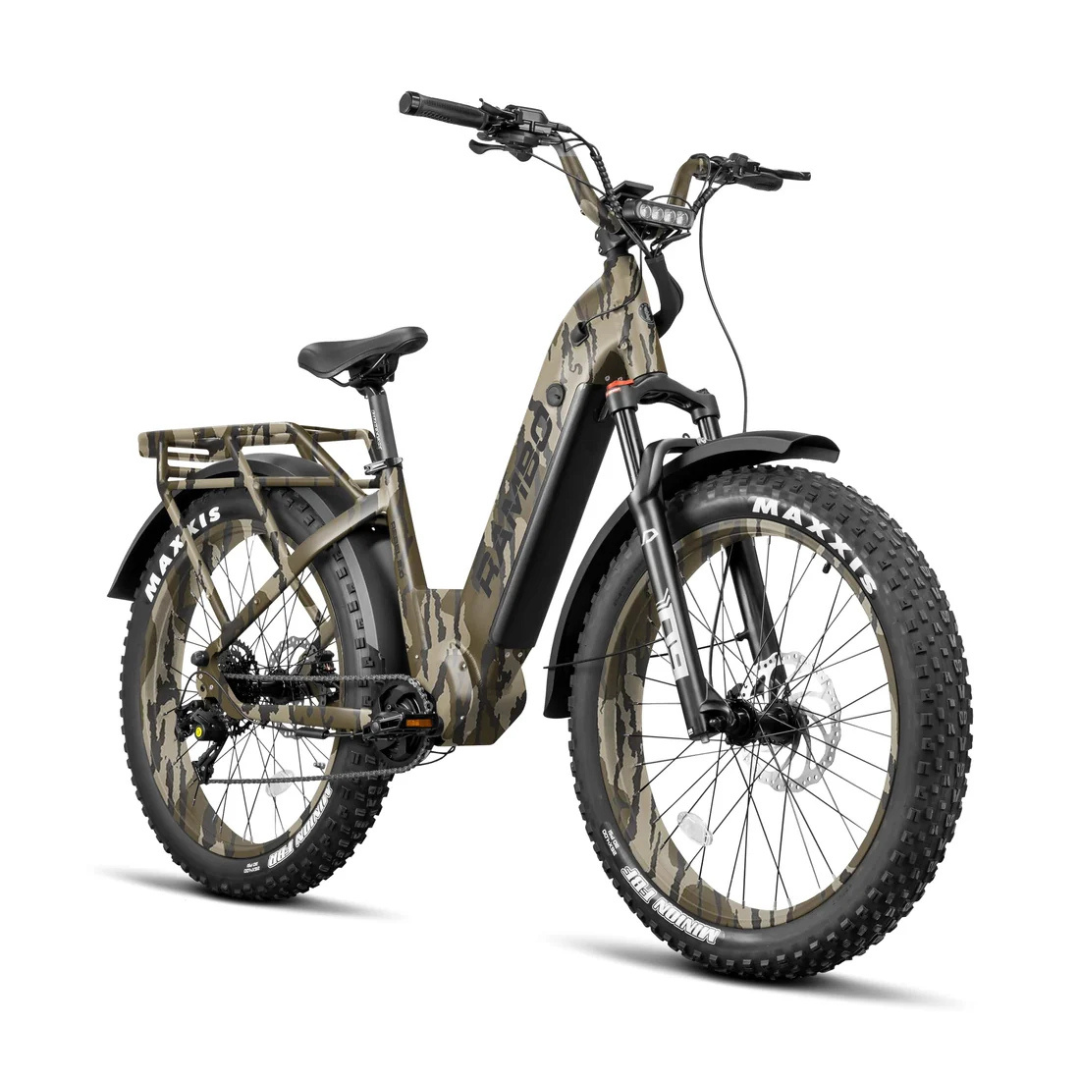

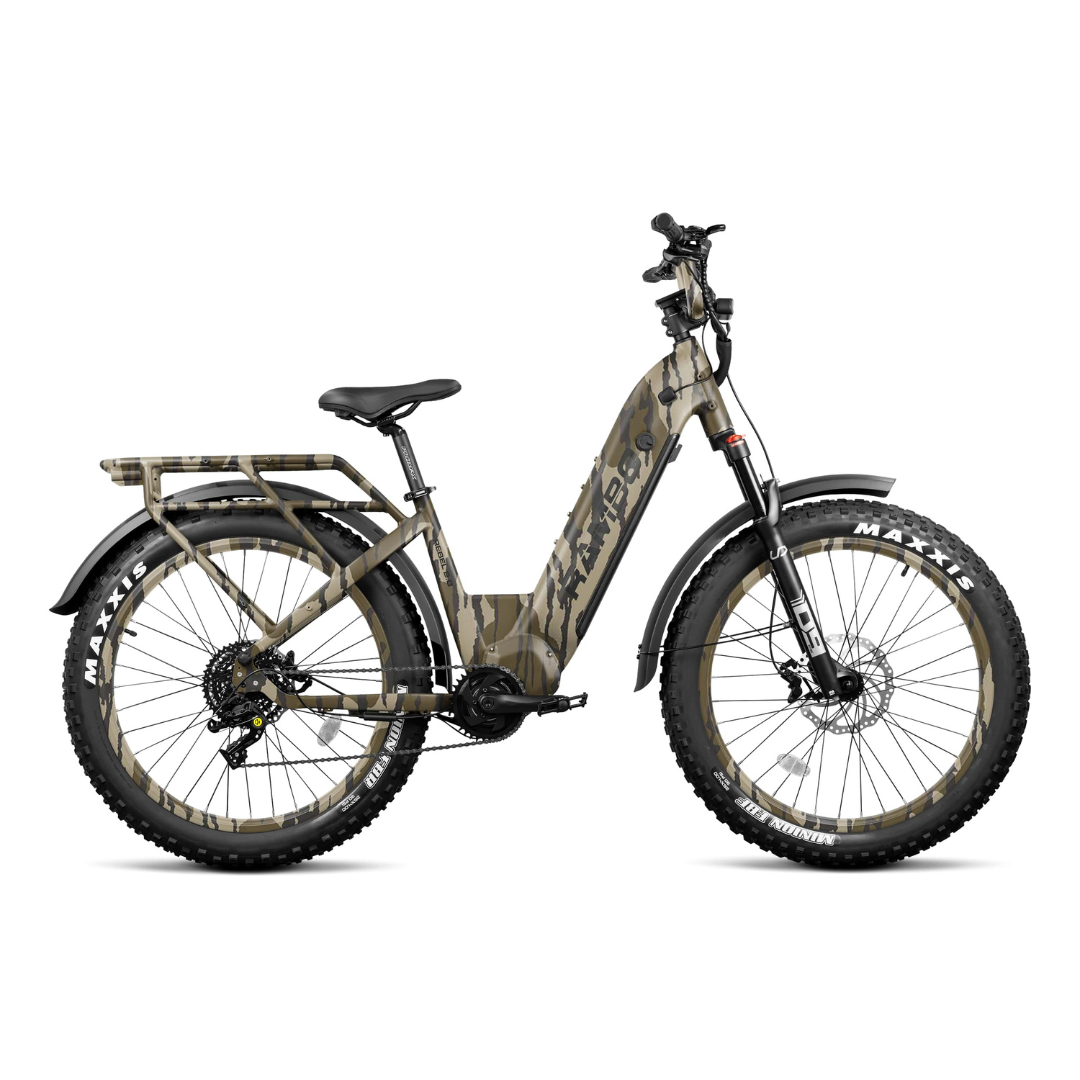

Rambo Bikes Rebel 2.0 – 20Ah

This mid-drive electric bike is designed for hunting, backcountry transportation, steep grades, muddy trails, creek crossings, and other demanding off-road conditions. Its mid-drive system transfers motor power through the bike’s gearing to provide controlled performance across varied terrain.

The 20Ah configuration combines a 1000W Bafang BBSHD mid-drive motor with a 48V 20Ah battery. The official product information states that the 20Ah battery can provide up to 65 miles of travel using pedal assist or up to 32 miles using throttle only.

Hydraulic brakes, fat all-terrain tires, a water-resistant digital display, an adjustable class system, redesigned handlebars, and an integrated rear rack provide the control and functionality needed for trail riding and gear transport.

Performance Overview

• Range: Up to 32 Miles
• Speed: Up to 32mph.
• Battery: 48v 15ah 720WH with LG branded cells
• Weight: 64lbs. with battery removed. Battery weight 9lbs.
• Motor: 1000W Bafang BBSHD mid drive ultra quiet drive.
• Drivetrain: Shimano wide range 9 speed 11-34T.

Key Features

• Mid-Drive Power: The 1000W mid-drive motor transfers power through the bike’s gearing and delivers 160Nm of torque.
• Cadence-Sensor Pedal Assist: The cadence sensor measures pedal rotation speed to provide motor assistance while the rider pedals.
• Five Pedal-Assist Levels: Pedal Assist levels 1 through 5 provide progressively increasing motor assistance. Pedal Assist level 0 disables motor assistance.
• Adjustable Class System: The display settings allow the rider to select Class 1, Class 2, Class 3, or unlimited-power operation where permitted.

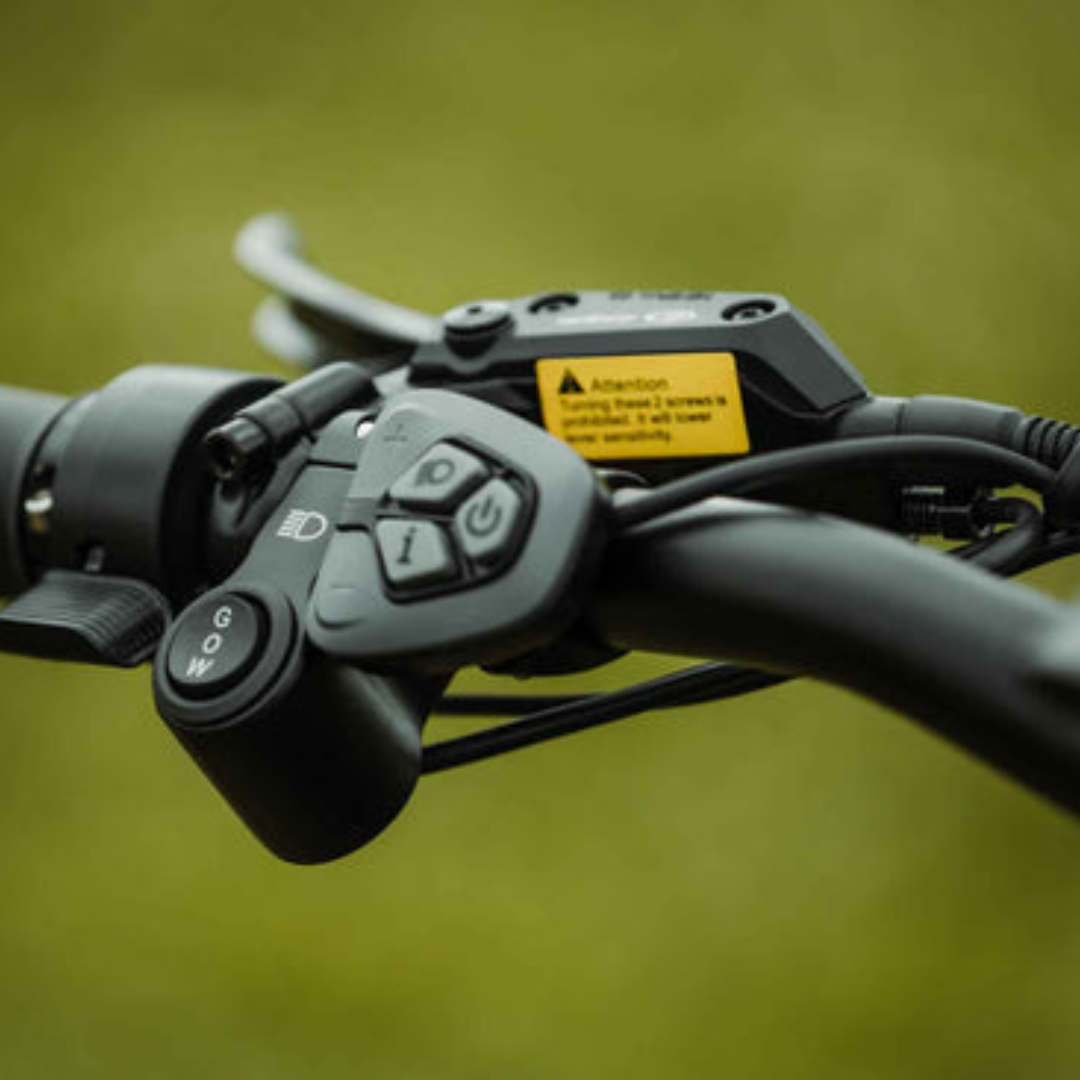

• Thumb Throttle: The left-hand thumb throttle provides motor power based on the selected pedal-assist level.
• Walk-Assist Mode: Holding the minus button activates walk assist, allowing the bike to propel itself while the rider walks beside it.
• 20Ah Battery Configuration: The 48V 20Ah battery provides up to 65 miles of travel using pedal assist or up to 32 miles using throttle only.
• Hydraulic Braking System: Logan hydraulic brakes include integrated electric safety cutoffs.
• All-Terrain Tires: Maxxis Minion 26-inch x 4-inch tires feature aggressive tread and anti-puncture technology for rough trails and off-road terrain.
• Double-Wall Rims: Aluminum alloy double-wall rims are designed to help prevent rim damage during off-road and rough-trail riding.
• Redesigned Handlebars: Updated handlebars provide a more natural riding position and improved control.
• Comfort Grips: The upgraded grips help reduce hand and wrist fatigue during longer rides.
• Digital LCD Display: The water-resistant display shows power output, speed, battery level, and miles traveled.
• USB Charging: The built-in USB port can charge compatible USB-powered devices while the bike is turned on.
• Selectable LED Light Bar: The light bar switches between white and green lighting and provides a wide beam pattern for peripheral visibility.
• Integrated Rear Rack: The built-in rear rack provides space for compatible panniers, bags, and other cargo accessories.
• Electric-Bike Chain: The KMC X9e chain is specifically designed for electric-bike power.
• Extra-Wide Pedals: Wellgo aluminum alloy pedals provide a wide platform for the rider’s feet.
• Dual-Battery Capability: The frame allows an additional 48V 14Ah secondary battery to be installed on top of the frame.

Logan 4 Piston Hydraulic Brakes

Logan 4-piston brakes offer a significant upgrade in braking power and provide more consistent stopping power, especially under heavy loads or on steep descents. Ideal for riders tackling challenging terrain.

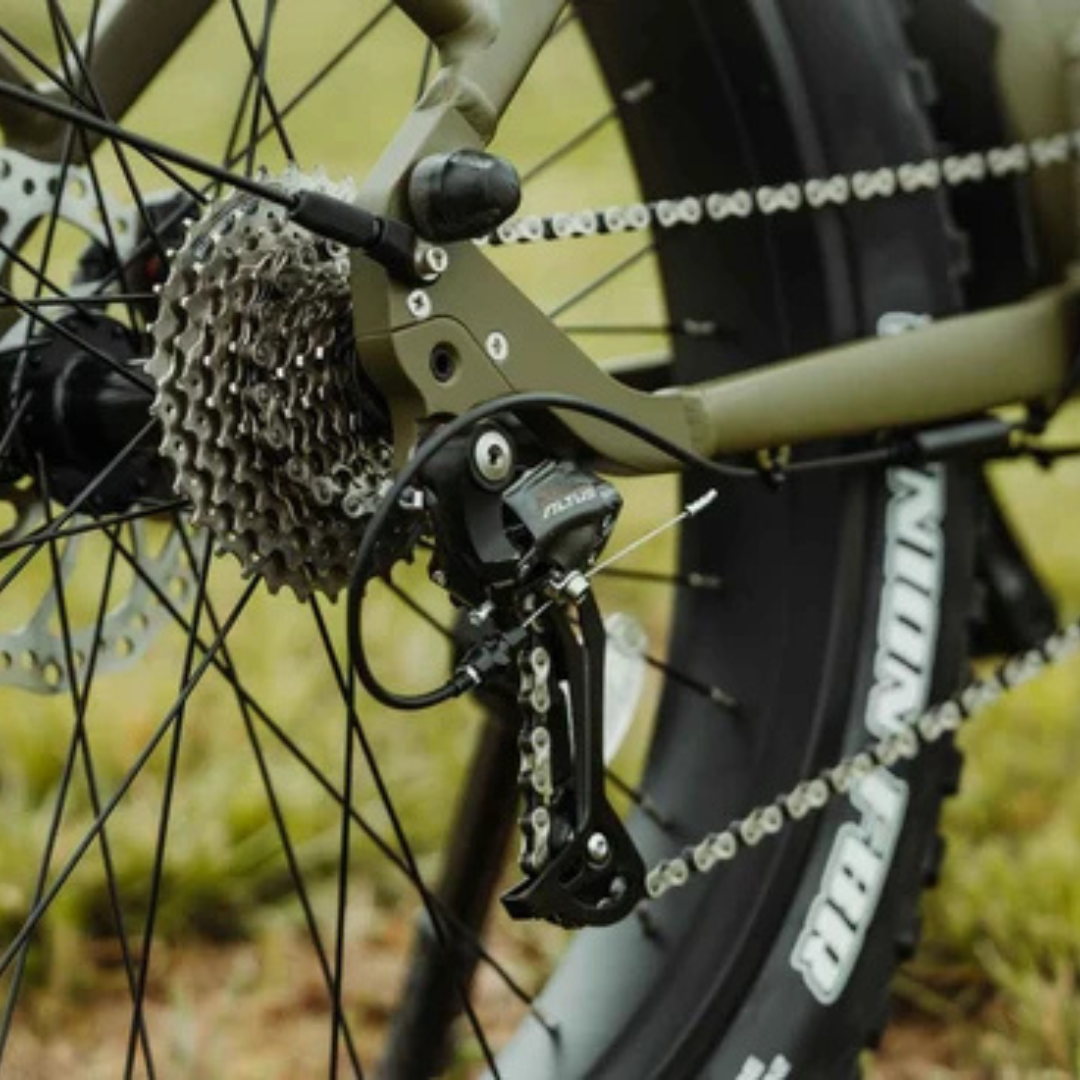

Shimano 8 Speed Drivetrain

The Shimano 8-speed drivetrain with an 11–40T derailleur setup provides a range of gears for various terrain, from steep climbs to fast descents, ensuring smooth and reliable performance.

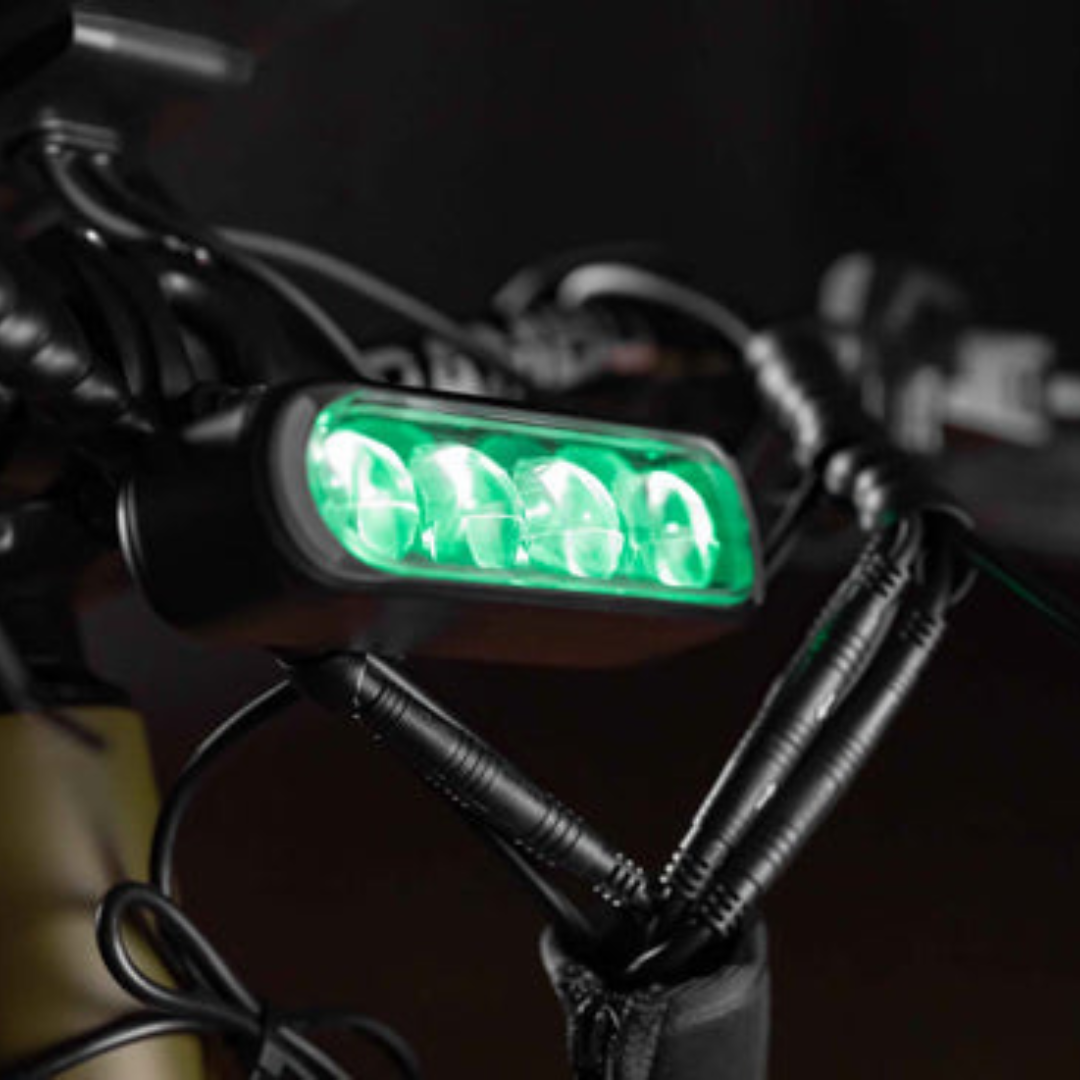

Rambo Storm LED Lightbar

Light up the night with our custom LED light bar—toggle between white and green depending on your desired level of stealthiness. Wide beam patterns provide better peripheral visibility.

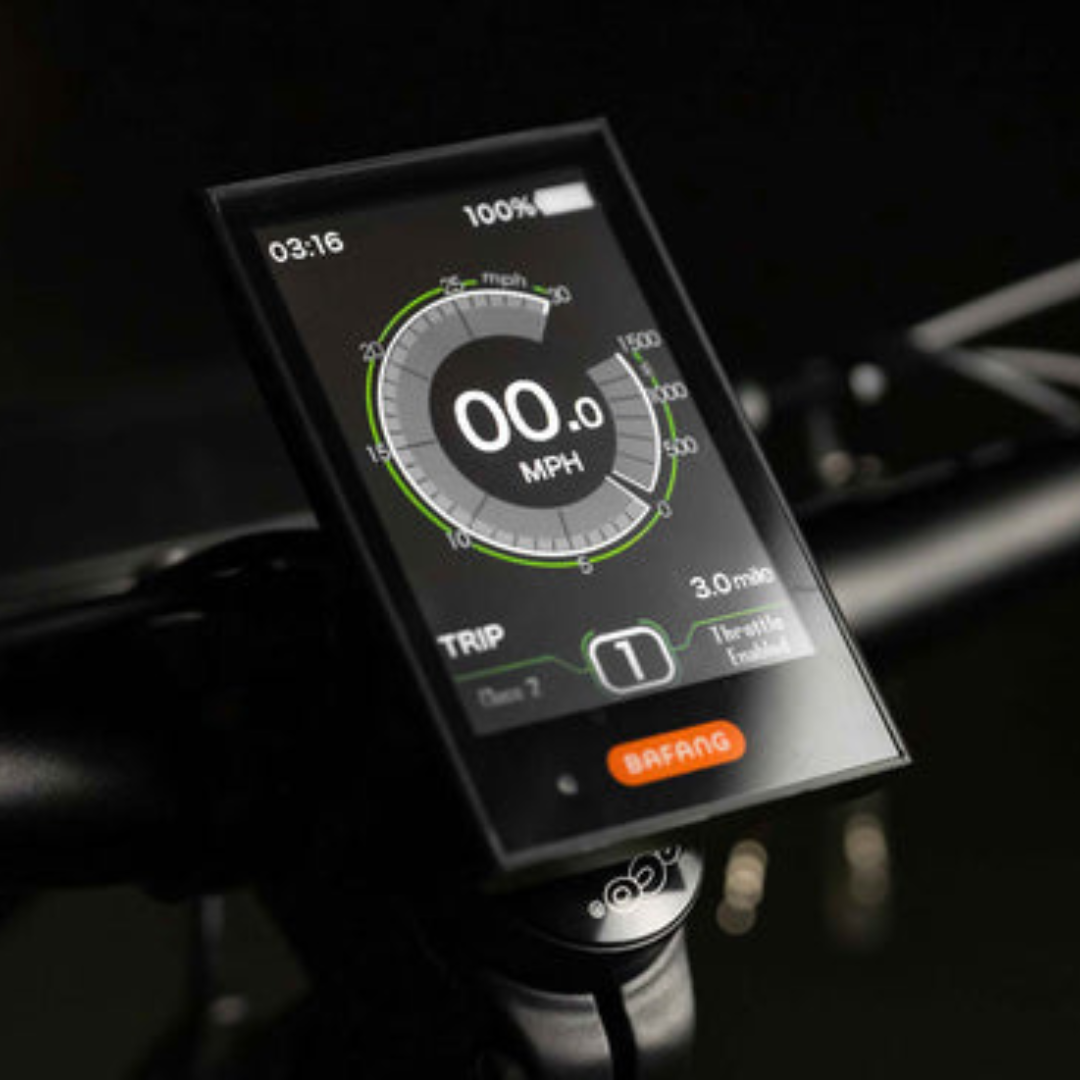

Digital LCD Screen

The digital water-resistant LCD is suitable for outdoor and rugged environments. It displays essential information including power output, speed, battery level, and miles traveled, and includes adjustable class settings.

Bafang BBSHD 1000W

The Bafang BBSHD 1000W motor is known for its power and efficiency, making it a popular choice for e-bike enthusiasts seeking high performance. It provides significant power and torque for steep climbs and difficult terrain.

Integrated Rear Rack

The integrated rear rack provides stability and weight distribution while offering additional space for panniers, bags, and other accessories to be attached and carried.

Specifications

• Motor: Bafang BBSHD ultra-quiet mid-drive motor
• Nominal Motor Power: 1000W
• Torque: 160Nm
• Sensor Type: Cadence sensor
• Drive Type: Mid-drive
• Battery Voltage: 48V
• Battery Capacity: 20Ah
• Pedal-Assist Range: Up to 65 miles
• Throttle-Only Range: Up to 32 miles
• Maximum Speed: Up to 32 mph
• Gear System: Shimano 8-speed, 11–40T
• Front Brake: 203 mm Logan hydraulic brake with integrated electric safety cutoff
• Rear Brake: 180 mm Logan hydraulic brake with integrated electric safety cutoff
• Tires: Maxxis Minion 26-inch x 4-inch all-terrain tires with aggressive tread and anti-puncture technology
• Rims: Double-wall aluminum alloy
• Chain: KMC X9e
• Frame: Hydroformed 6061 T6 heat-treated aluminum alloy
• Pedals: Extra-wide Wellgo aluminum alloy
• Throttle: Left-hand thumb throttle
• Pedal Assist: Levels 0–5
• Class Settings: Class 1, Class 2, Class 3, and unlimited power
• Display: Water-resistant digital LCD with Adjustable Class System and built-in USB port
• Lighting: LED light bar with selectable white and green lighting
• Rear Rack: Integrated rear rack
• Bike Weight: 64 lbs. with the battery removed
• Maximum Load Capacity: 300 lbs.

Size Guide

• Minimum Rider Age: 18 years
• Rider Fit Requirement: The rider must be able to reach the ground while seated.
• Maximum Weight Limit: 300 lbs.

Compatibility

• Compatible With: An additional 48V 14Ah secondary battery installed on top of the bike frame
• Integrated Rear Rack: Accepts compatible panniers, bags, and other rack-mounted accessories.

Included

• Electric bike
• Fully integrated water-resistant digital LCD display with Adjustable Class System
• 48V 20Ah battery
• Smart charger
• Official bike manual

The bike arrives almost fully assembled. Final assembly is required before riding.

Warranty

• Warranty: Limited lifetime frame warranty against factory defects for the original purchaser while they remain the owner of the bike. The frame warranty is non-transferable.
• Additional Coverage: Bikes, enclosed hardware where applicable, and accessories are warranted against defects in materials and workmanship for 12 months from the original purchase date, subject to the complete official warranty terms.
• Registration: Product registration is required to activate the warranty.
