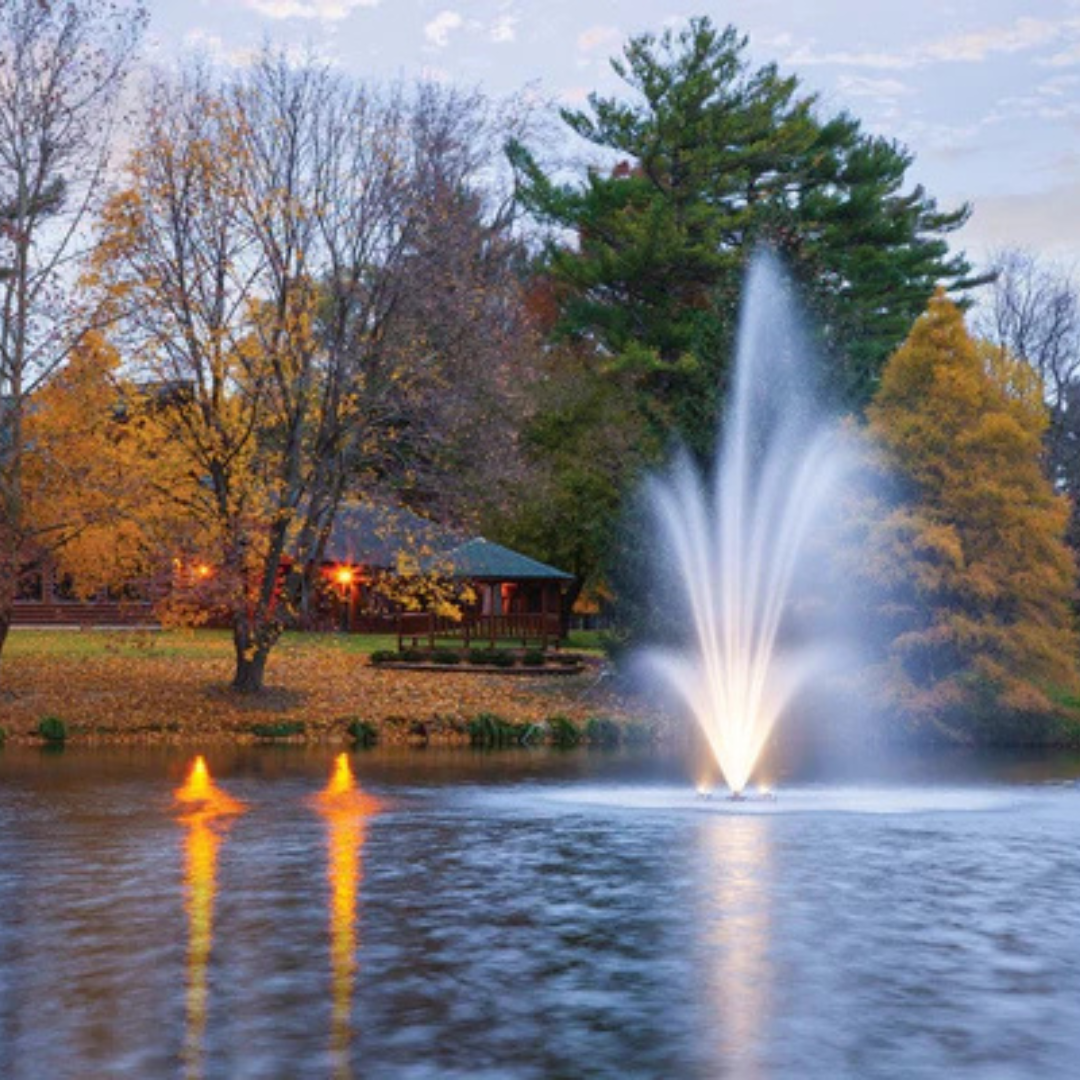

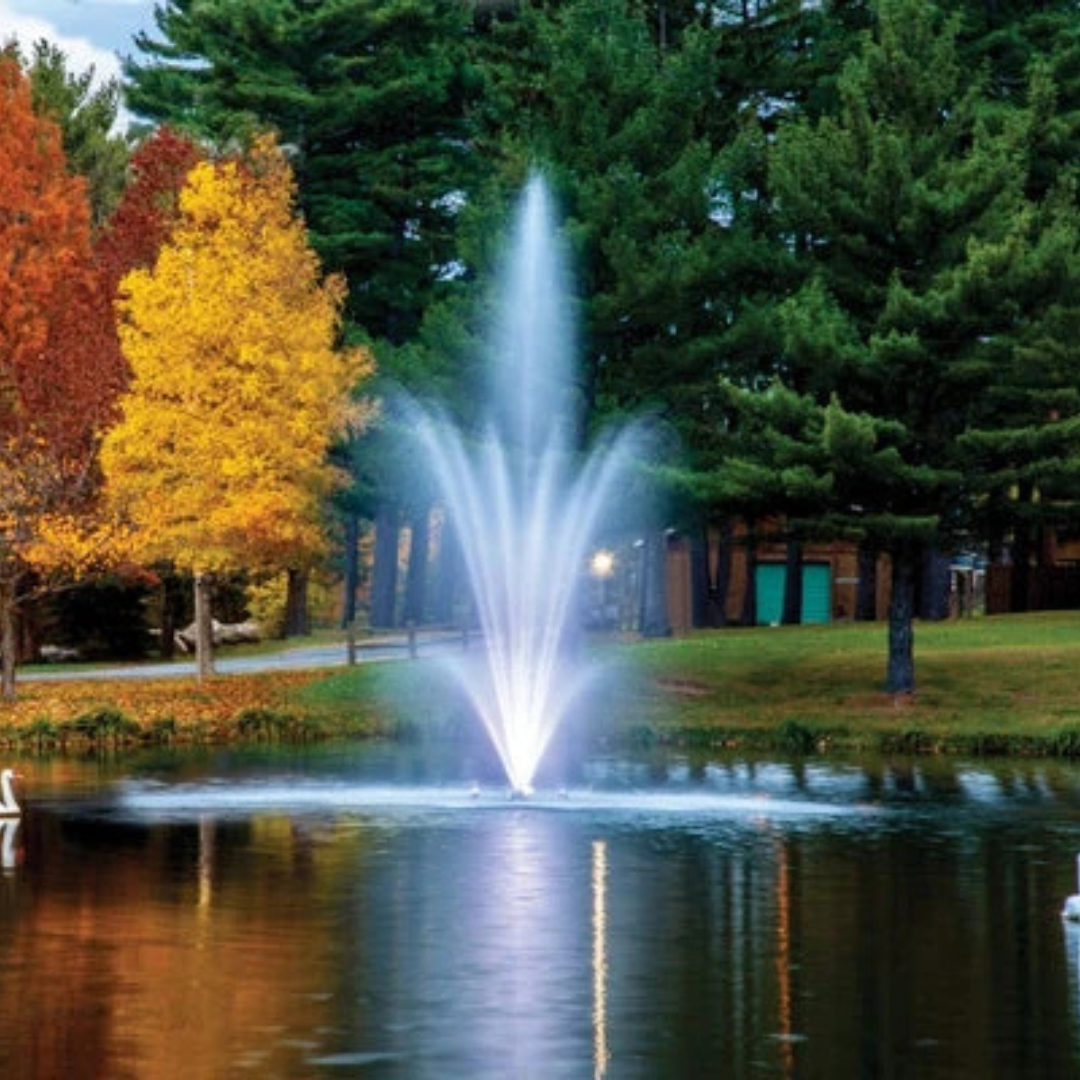

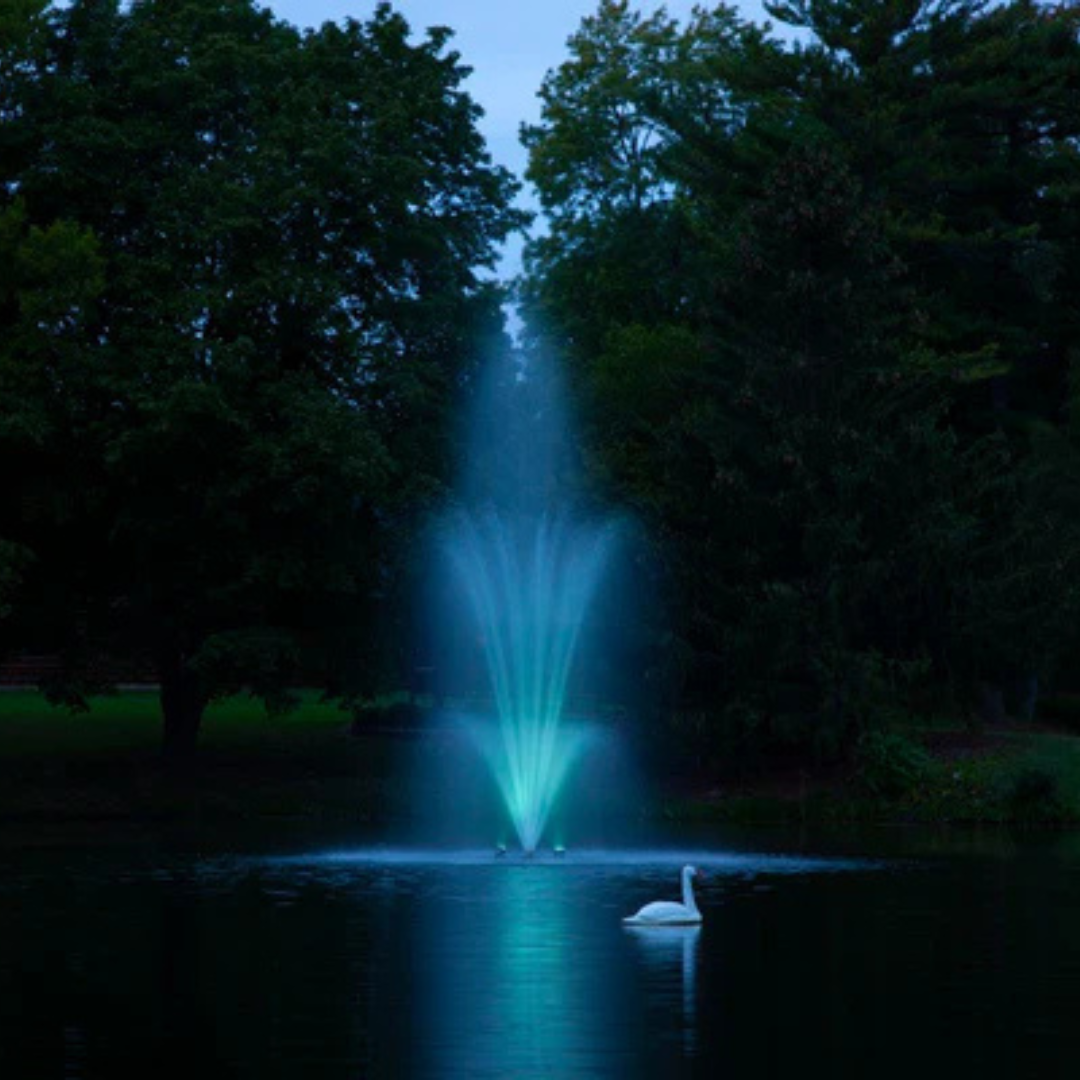

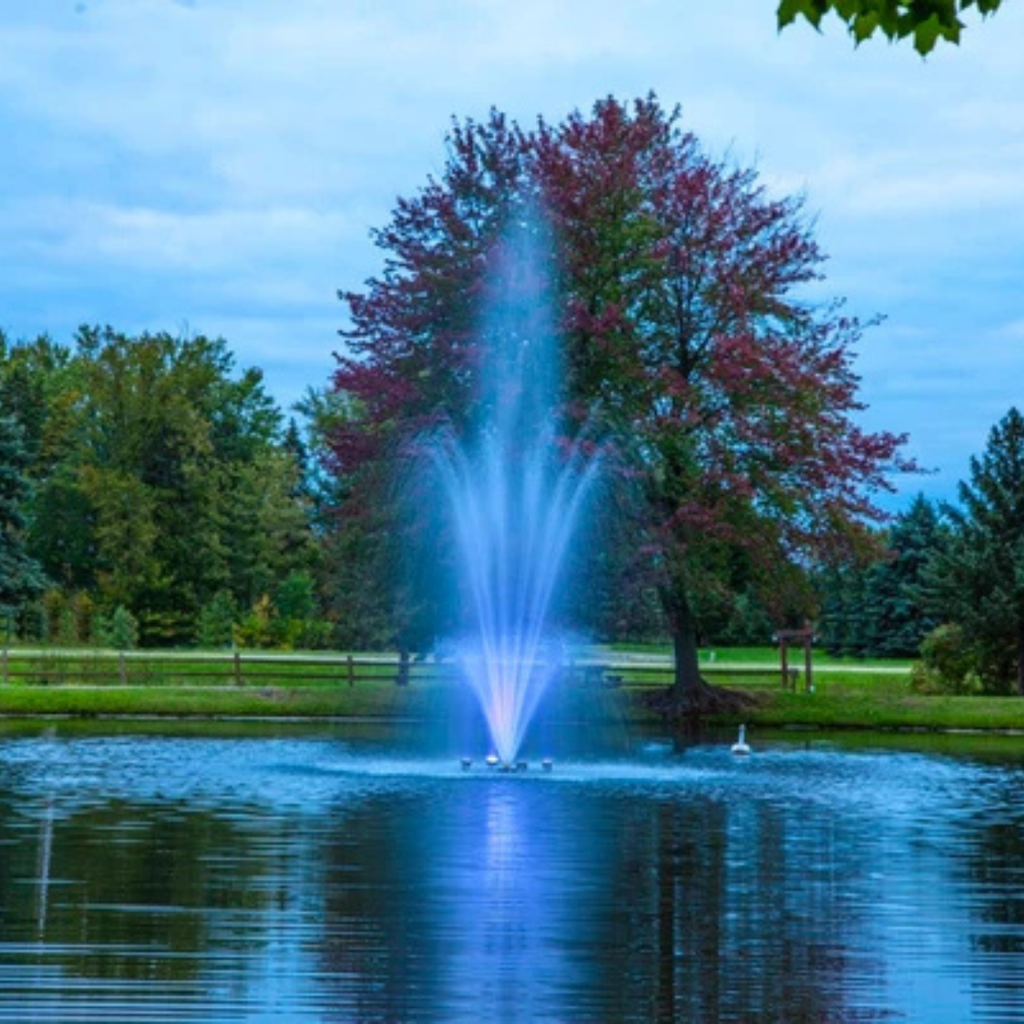

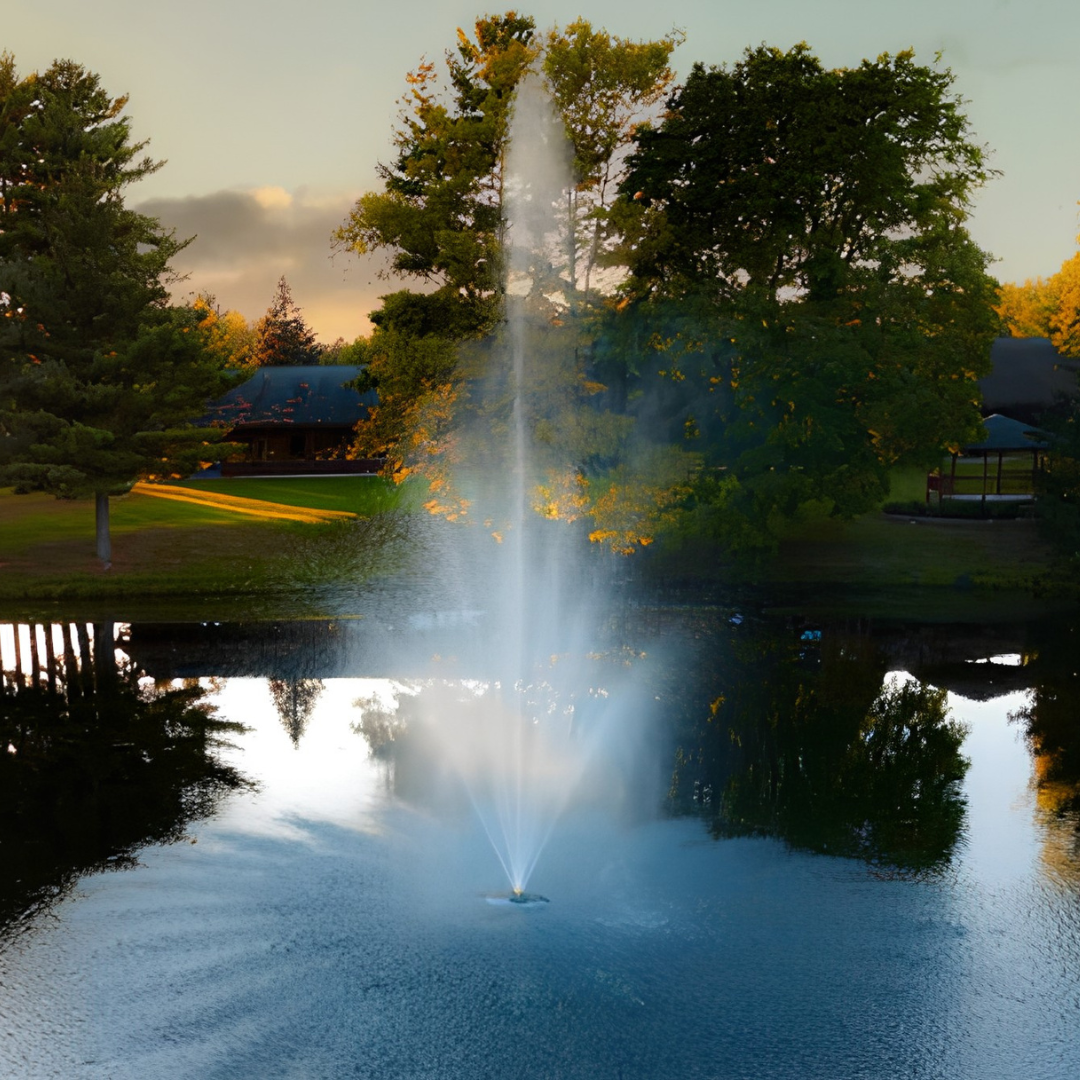

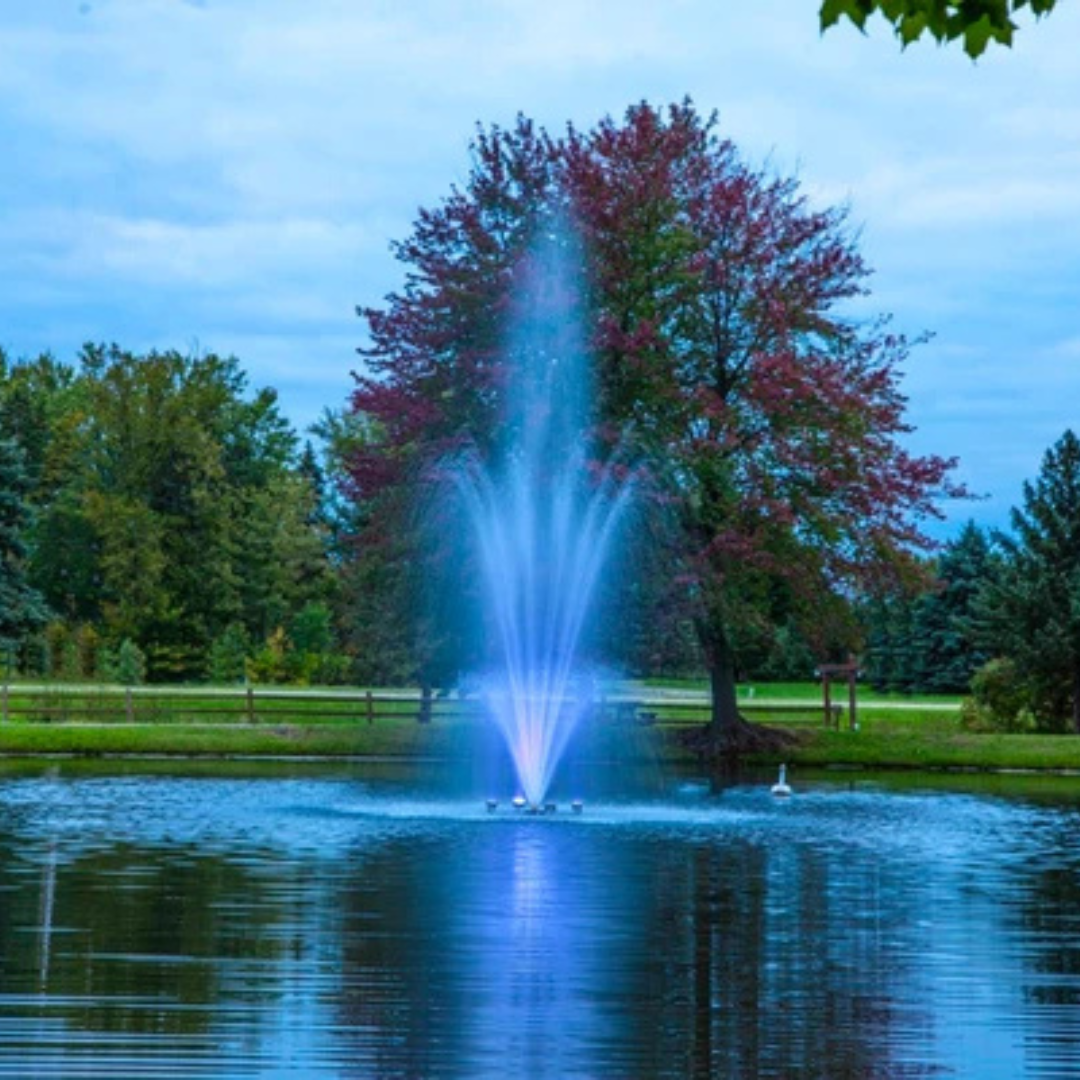

This commercial pond fountain creates a classic three-tier water display while supporting oxygen transfer and water circulation. Its cascading pattern produces a visible ripple effect across the water’s surface and is offered with two motor configurations for large ponds and commercial water features.
The 2-hp configuration moves 135 gallons per minute and produces an 18-foot-high by 35-foot-wide spray pattern. The 3-hp configuration moves 170 gallons per minute and produces a 20-foot-high by 40-foot-wide spray pattern.

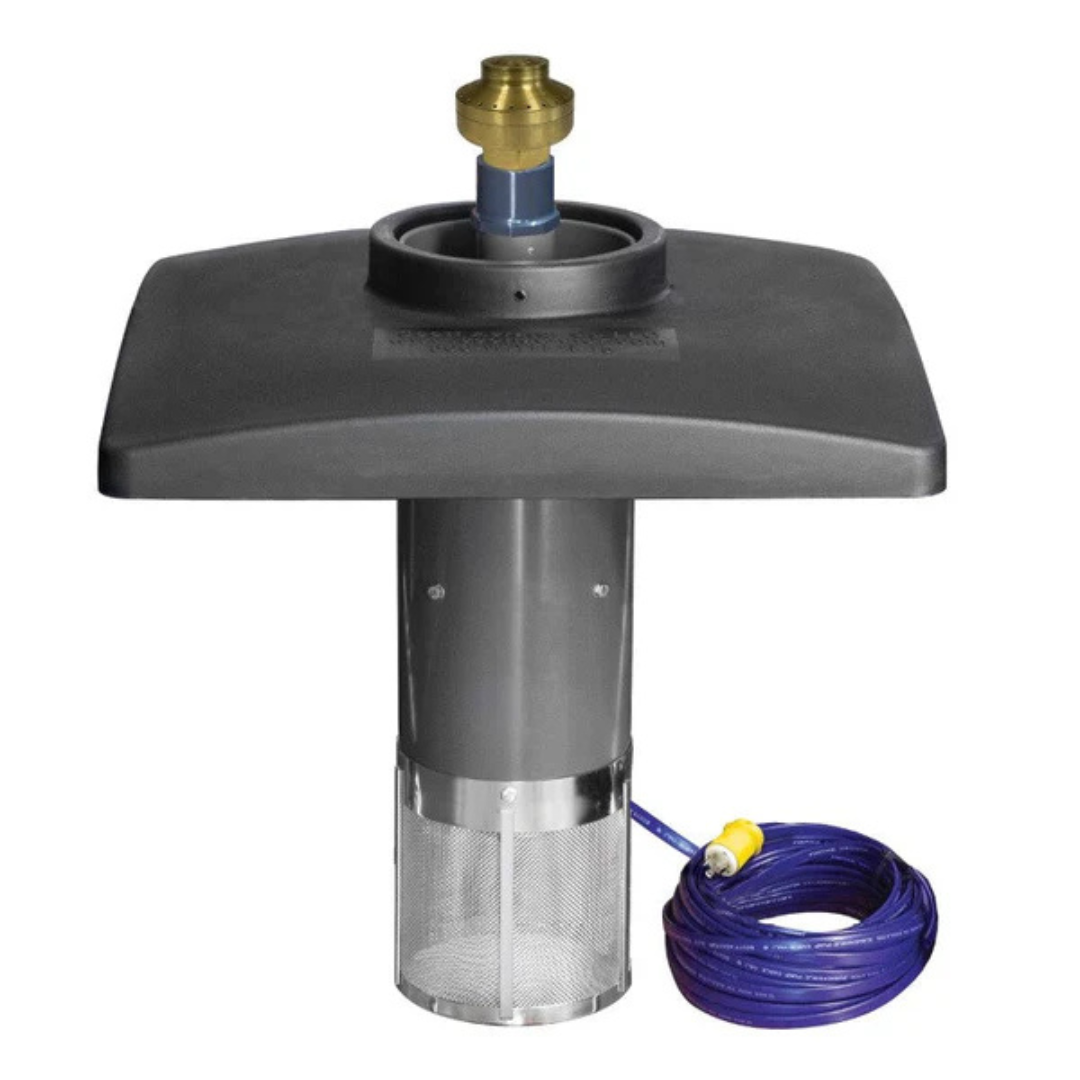

Both configurations use stainless-steel, oil-free, submersible motors designed for fresh or salt water. They require no oil changes or control box and are designed for continuous operation.
Key Features
Three-Tier Water Pattern: Creates three clearly separated tiers capped by a prominent center column.
Water Circulation: Supports pond circulation and oxygen transfer while creating a ripple effect across the water’s surface.
Two Motor Configurations: Available with 2-hp and 3-hp, 230-volt motor options.
Oil-Free Motor: Uses a stainless-steel, oil-free, submersible motor with no oil changes required.
Continuous Operation: Designed for operation 24 hours per day.
Fresh and Salt Water Use: Approved for use in both fresh and salt water.
Low-Maintenance Design: No routine maintenance or control box is required.
Winter-Ready Construction: The fountain may remain in the water during freezing conditions after the power is switched off. Power can be restored after the water thaws.

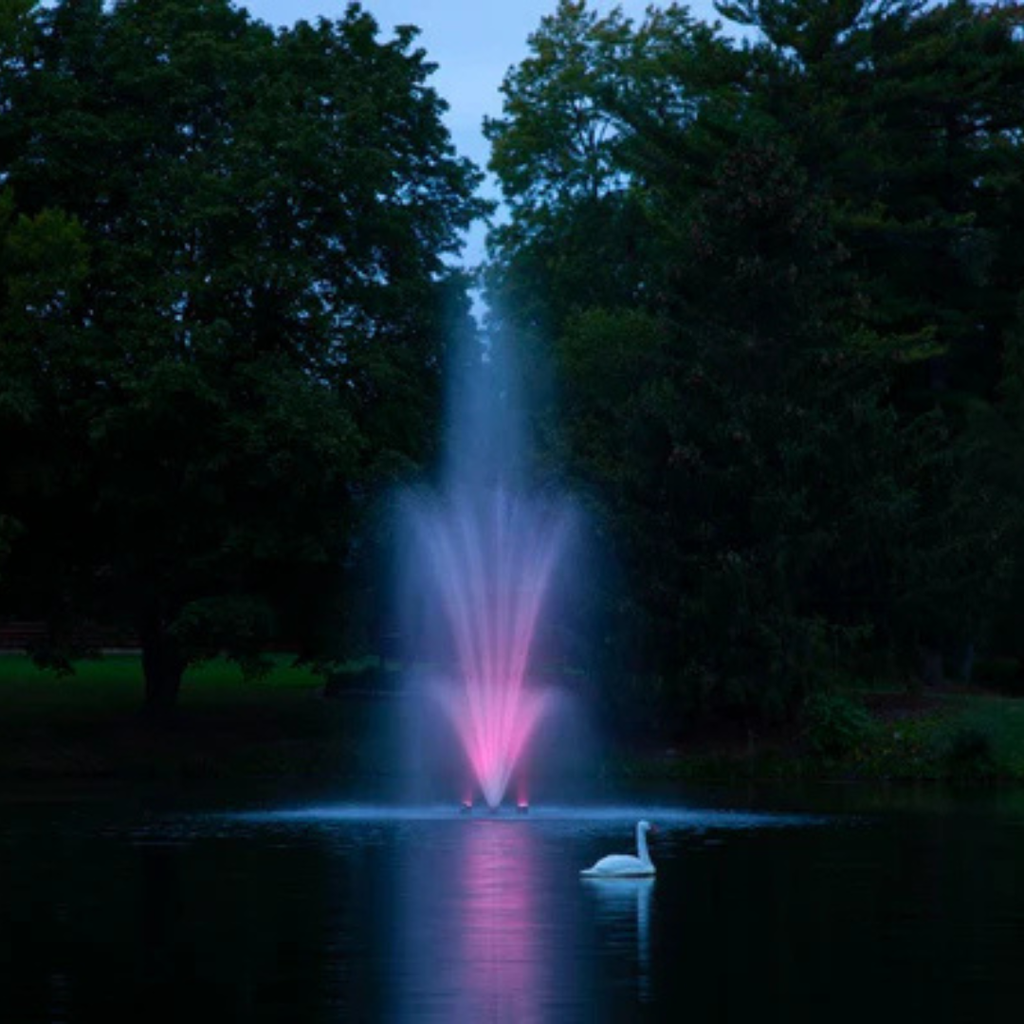

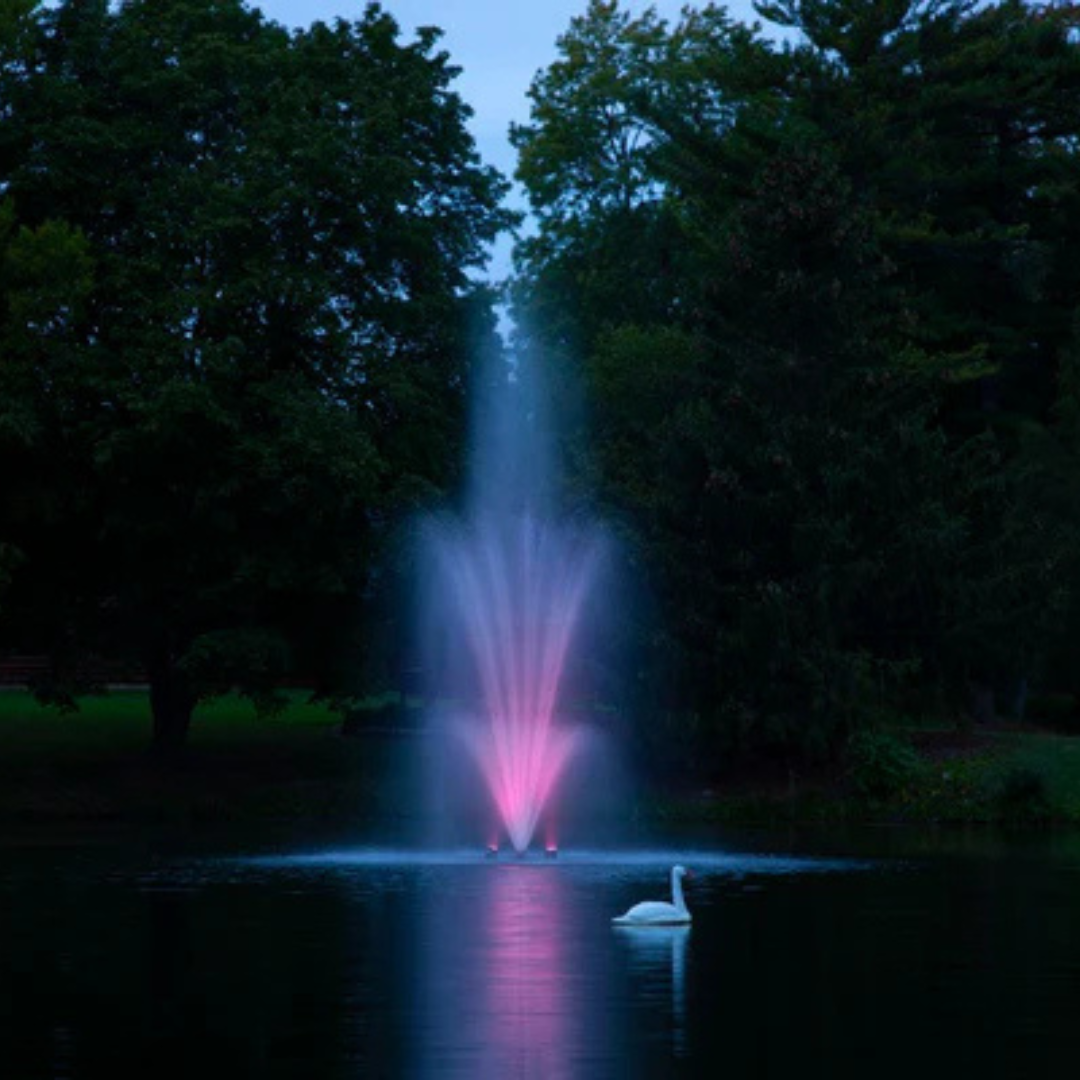

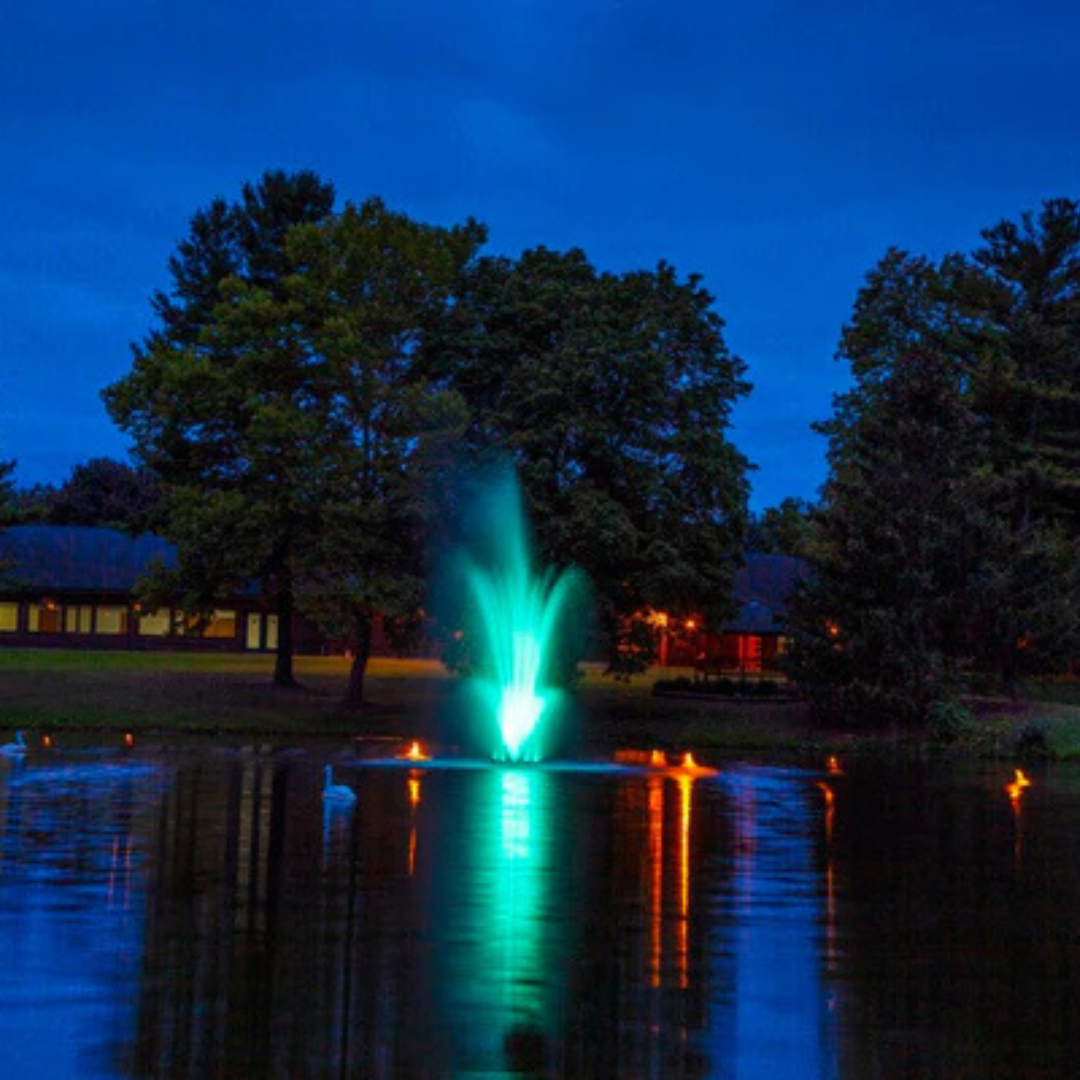

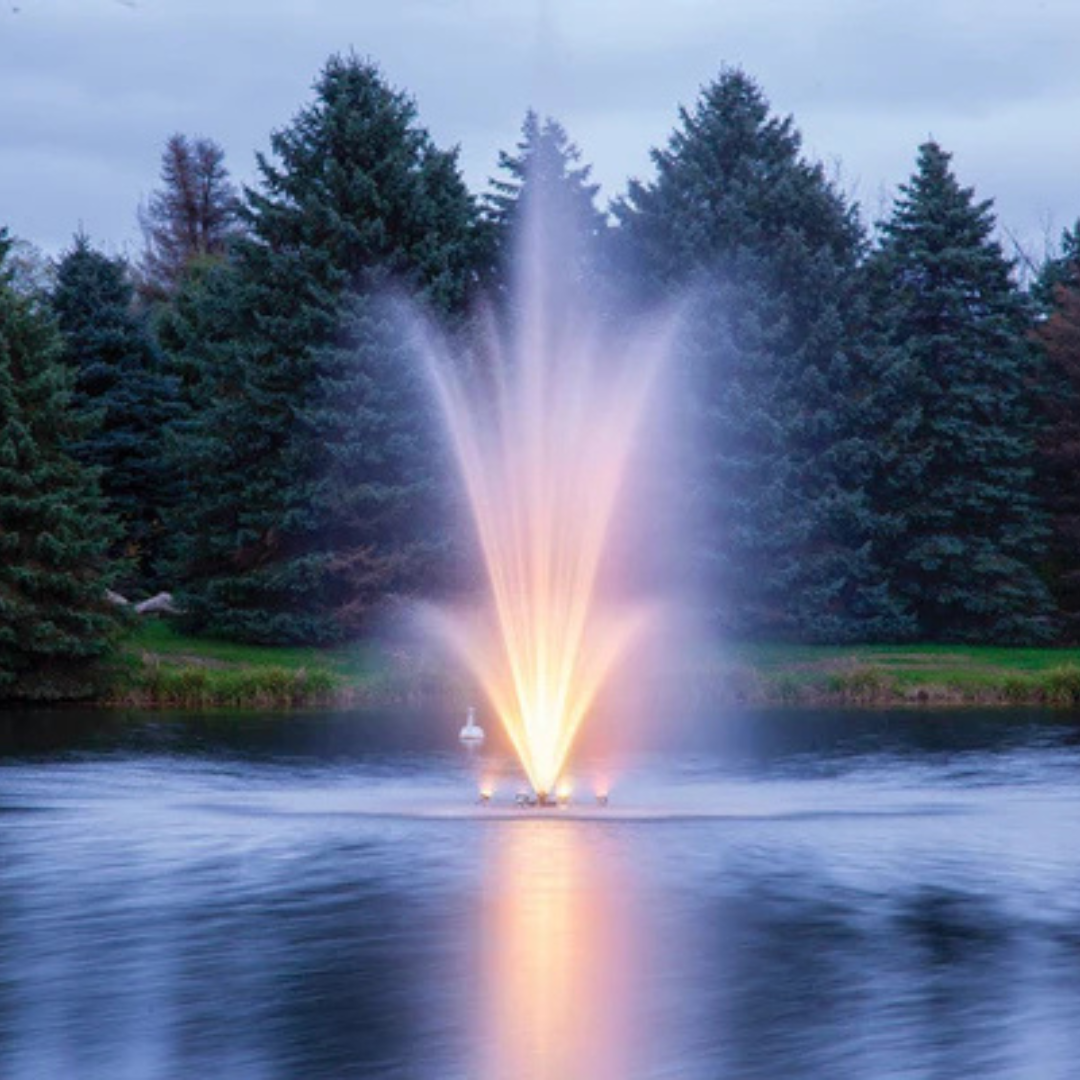

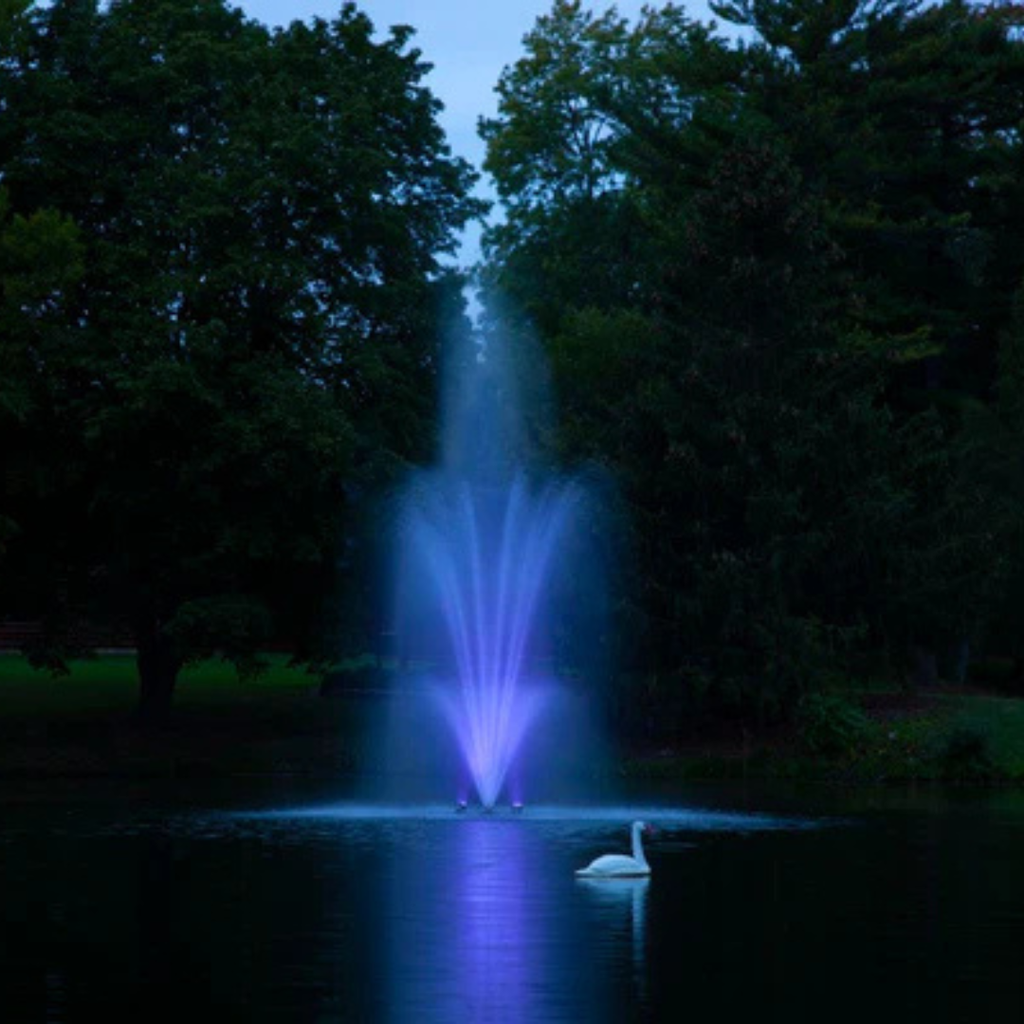

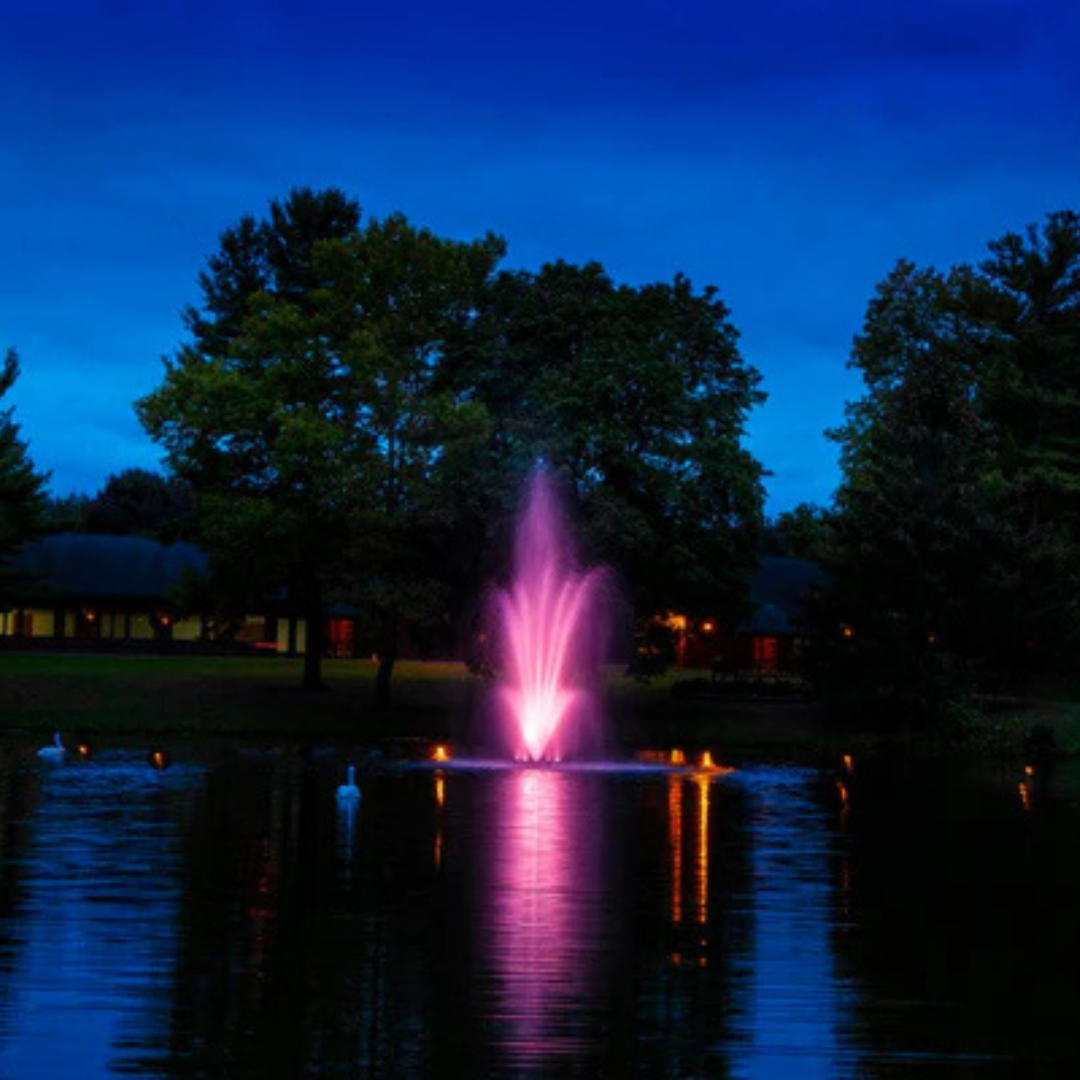

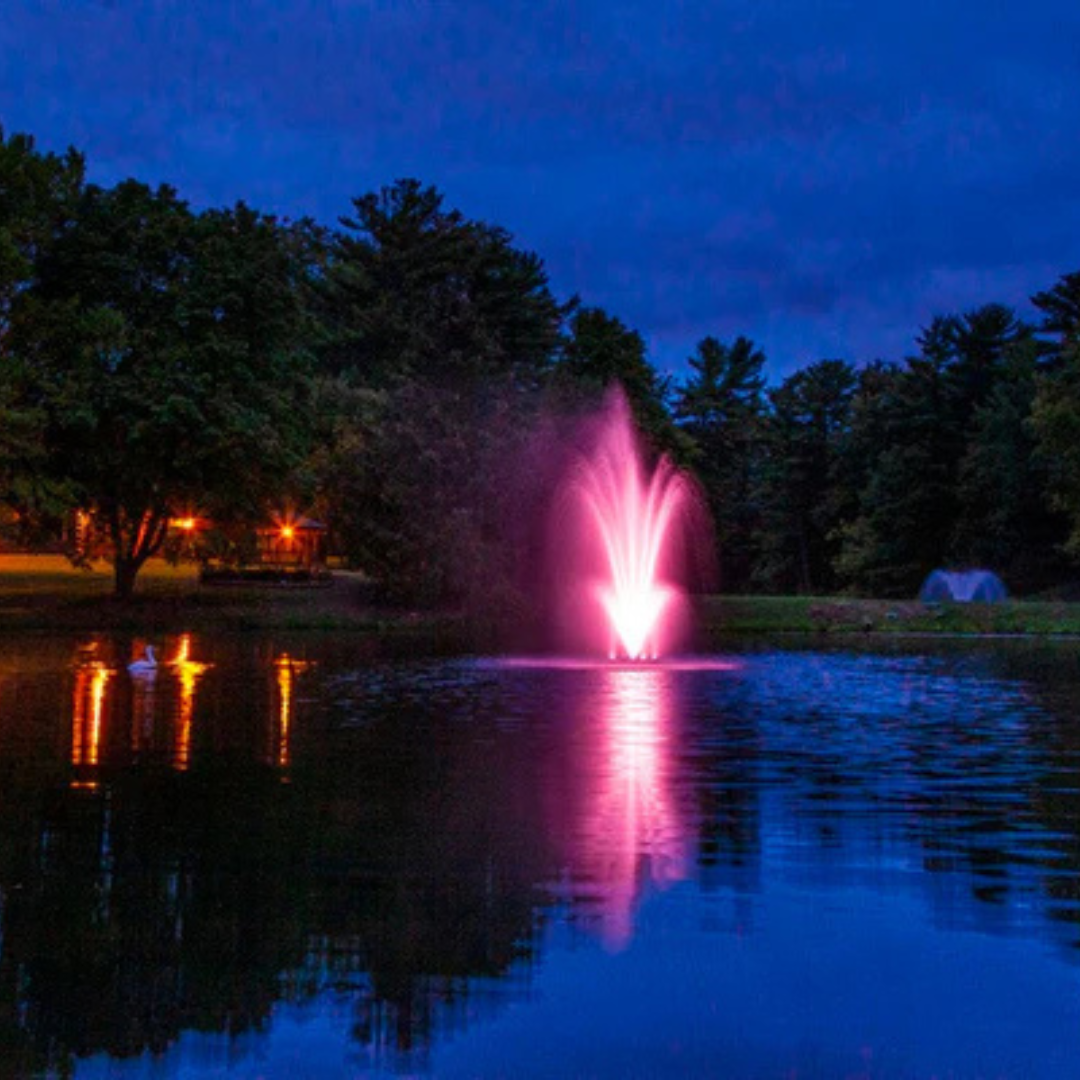

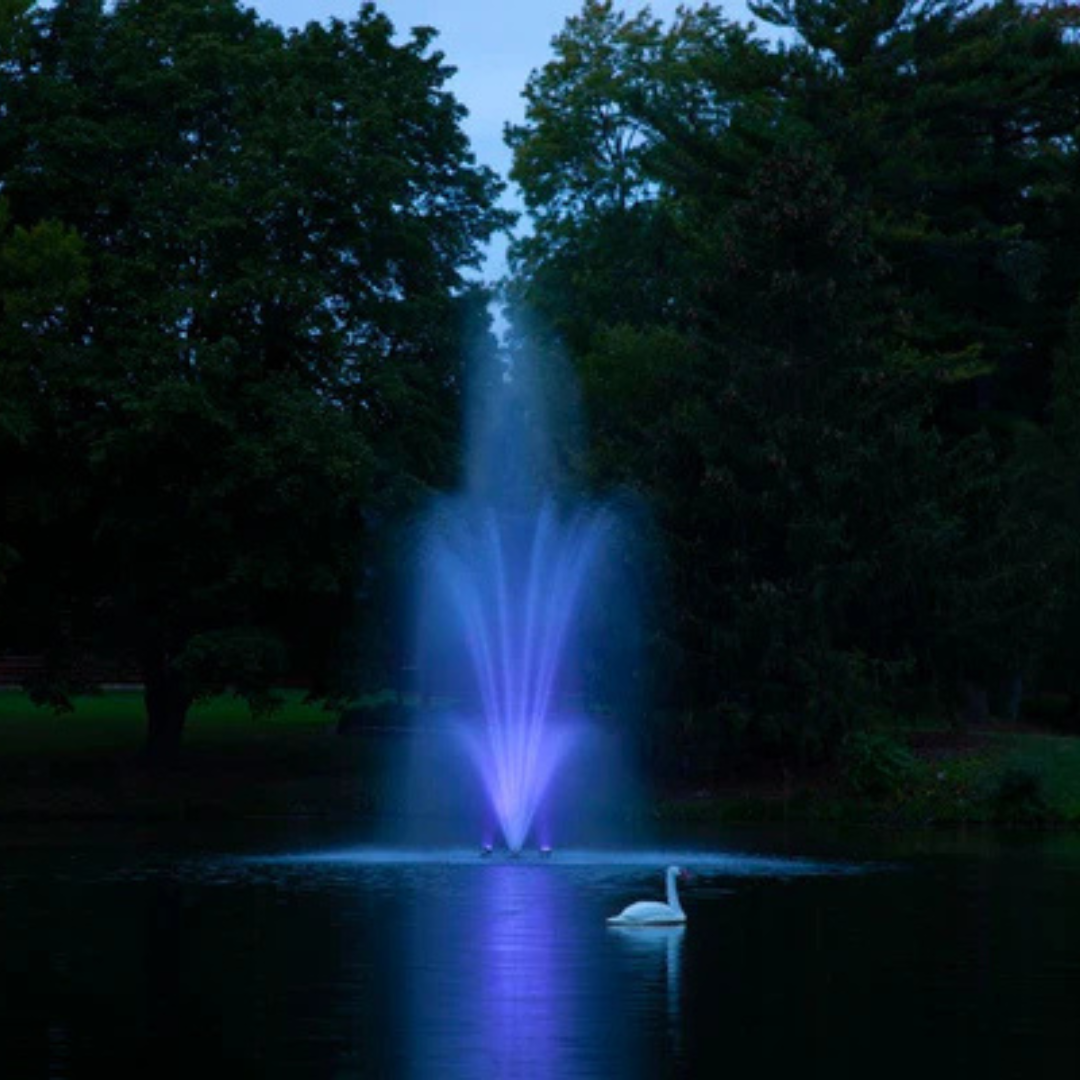

Optional Lighting: Compatible light kits may be selected when purchasing the fountain or added later.
Made in the USA: Manufactured in Holland, Michigan.
Specifications
2 HP Motor Power: 2 hp
2 HP Voltage: 230 V
2 HP Frequency: 60 Hz
2 HP Phase: Single-phase
2 HP Motor Speed: 3,450 rpm
2 HP Current Draw: 10 amps
2 HP Flow Rate: 135 gallons per minute
2 HP Supplied Power Cord: 100 feet long, 10-gauge and submersible
2 HP Required Anchoring Weight: Two 45-pound weights or concrete blocks
2 HP Operating Capability: Designed for 24-hour-per-day operation
3 HP Motor Power: 3 hp
3 HP Voltage: 230 V
3 HP Frequency: 60 Hz
3 HP Phase: Single-phase
3 HP Motor Speed: 3,450 rpm
3 HP Current Draw: 13.3 amps
3 HP Flow Rate: 170 gallons per minute
3 HP Supplied Power Cord: 100 feet long, 10-gauge and submersible
3 HP Required Anchoring Weight: Two 55-pound weights or concrete blocks
3 HP Operating Capability: Designed for 24-hour-per-day operation
Motor Construction: Stainless-steel, oil-free and submersible
Alternate Electrical Configurations: Also available in three-phase and/or 50 Hz versions
Longer Power Cord Availability: Electric power cords may be ordered in greater lengths
Extension Cord Use: Do not use an extension cord to supply power to the motor.
2 HP Maximum Cable Length with 12 AWG Cable: 250 feet
2 HP Maximum Cable Length with 10 AWG Cable: 390 feet
2 HP Maximum Cable Length with 8 AWG Cable: 620 feet
2 HP Maximum Cable Length with 6 AWG Cable: 970 feet
2 HP Maximum Cable Length with 4 AWG Cable: 1,530 feet
2 HP Maximum Cable Length with 2 AWG Cable: 2,360 feet
3 HP Maximum Cable Length with 12 AWG Cable: 190 feet
3 HP Maximum Cable Length with 10 AWG Cable: 300 feet
3 HP Maximum Cable Length with 8 AWG Cable: 470 feet
3 HP Maximum Cable Length with 6 AWG Cable: 750 feet
3 HP Maximum Cable Length with 4 AWG Cable: 1,190 feet
3 HP Maximum Cable Length with 2 AWG Cable: 1,850 feet
Required Electrical Protection: A Ground Fault Circuit Interrupter is required.
Swimmer Safety: Always disconnect power when swimmers are present.
Compliance: ARL-tested and compliant with UL standards and the National Electrical Code when installed as a complete package.
Size Guide
2 HP Spray Dimensions: 18 feet high × 35 feet wide
2 HP Minimum Pond Depth: 56 inches
3 HP Spray Dimensions: 20 feet high × 40 feet wide
3 HP Minimum Pond Depth: 60 inches
Compatibility
Compatible With: Large freshwater and saltwater ponds and commercial water features.
Compatible Lighting: Optional fountain light kits offered for the product may be selected during purchase or added later.
Included
100-foot, 10-gauge submersible electric power cord with the standard 2-hp, 230-volt configuration
100-foot, 10-gauge submersible electric power cord with the standard 3-hp, 230-volt configuration
Not Included
Two 45-pound anchoring weights or concrete blocks for the 2-hp configuration
Two 55-pound anchoring weights or concrete blocks for the 3-hp configuration
