This pond fountain produces a classic three-tiered water pattern capped by a prominent center column. It is designed for medium-sized residential ponds and properties, where the clearly separated tiers provide a decorative focal point and create a visible ripple effect across the water.
The 1 hp configuration circulates 75 gallons of water per minute and produces an approximately 15-foot-high by 25-foot-wide spray pattern. It requires a minimum water depth of 44 inches.
Its stainless-steel, oil-free submersible motor is designed for continuous operation in fresh water and salt water. No oil changes, routine motor maintenance, or separate control box are required.
Key Features
Classic Three-Tier Display: Produces a stately water pattern with distinct separation between all three tiers and a prominent center column.
Decorative and Functional Design: Adds a visual focal point while contributing to oxygen transfer and water circulation.
High-Volume Water Flow: Circulates 75 gallons of water per minute.
Oil-Free Motor: Uses an oil-free submersible motor that does not require oil changes.
Stainless-Steel Motor: The submersible motor is manufactured using stainless steel.
Continuous Operation: Designed for 24-hour-per-day operation.
Freshwater and Saltwater Use: Approved for operation in both fresh water and salt water.
Low-Maintenance Design: No routine motor maintenance is required.
No Control Box Required: Operates without a separate control box.
Winter-Ready Installation: Can remain installed during winter with the power turned off and be restarted after the water thaws.
Subzero-Condition Durability: Components are engineered to withstand subzero temperatures without damage.
Optional Lighting: Compatible fountain light kits can be added during the original purchase or installed later.
Extended Cord Availability: The electric power cord can be ordered in lengths greater than the supplied 100-foot cord.
Made in the USA: Manufactured in Holland, Michigan.
Safety Compliance: ARL-tested and compliant with UL standards and the National Electric Code when installed as a complete package.
Specifications
Motor Rating: 1 hp
Voltage: 115 volts
Motor Type: Oil-free, submersible motor
Motor Material: Stainless steel
Frequency: 60 Hz
Phase: Single-phase
Motor Speed: 3,450 rpm
Current Draw: 11.5 amps
Flow Rate: 75 gallons per minute
Spray Pattern: Approximately 15 feet high by 25 feet wide
Minimum Pond Depth: 44 inches
Selected Power Cord Length: 100 feet
Supplied Power Cord Gauge: 10-gauge
Power Cord Type: Submersible electric power cord with plug

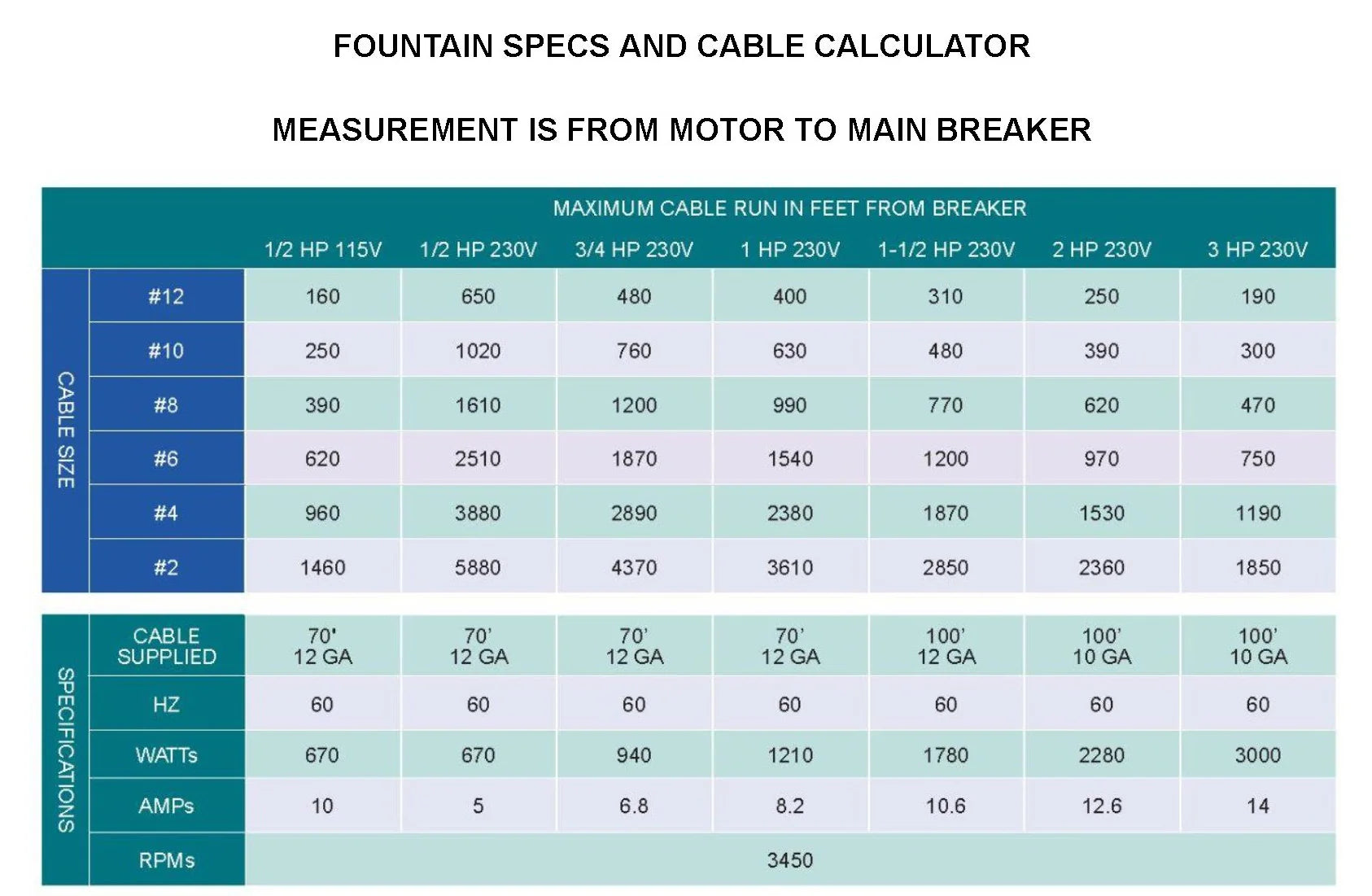

Maximum Cable Length With 12-Gauge Cable: 75 feet from the motor to the main power source
Maximum Cable Length With 10-Gauge Cable: 100 feet from the motor to the main power source
Maximum Cable Length With 8-Gauge Cable: 150 feet from the motor to the main power source
Maximum Cable Length With 6-Gauge Cable: 300 feet from the motor to the main power source
Maximum Cable Length With 4-Gauge Cable: 650 feet from the motor to the main power source
Maximum Cable Length With 2-Gauge Cable: 1,050 feet from the motor to the main power source
Extended Cord Availability: Longer electric power cords are available.
Extension Cord Restriction: Do not use an extension cord to supply power to the motor.
Required Anchor Weight: Two 35-pound weights or concrete blocks
Required Anchoring Ropes: Two nylon ropes
Operating Schedule: Designed for 24-hour-per-day operation
Alternative Electrical Configurations: Three-phase and/or 50 Hz configurations are also available.
GFCI Requirement: A Ground Fault Circuit Interrupter is required.
Swimmer Safety: Always disconnect power when swimmers are present.
Maintenance Requirement: No maintenance required
Control Box Requirement: No separate control box required
Size Guide
Minimum Pond Depth: 44 inches
Spray Height: Approximately 15 feet
Spray Width: Approximately 25 feet
Compatibility
Compatible With: Freshwater and saltwater ponds with a minimum water depth of 44 inches.
Electrical Compatibility: 115-volt, 60 Hz, single-phase electrical service.
Maximum Installation Distance: The selected 100-foot, 10-gauge cord configuration supports a maximum distance of 100 feet from the motor to the main power source.
Application Compatibility: Designed for medium-sized residential ponds and properties.
Optional Lighting Compatibility: Compatible fountain light kits can be added during the original purchase or installed later.
Included

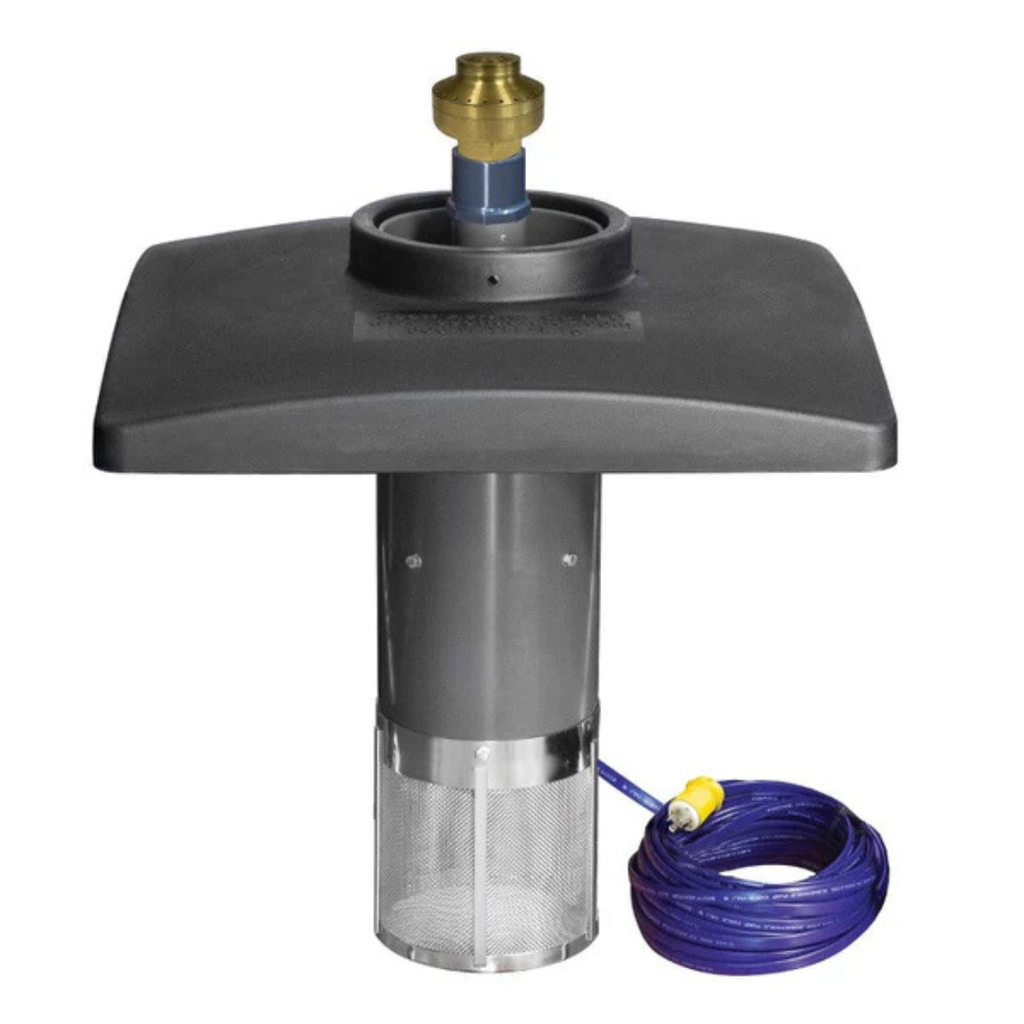

1 hp, 115-volt pond fountain
100-foot, 10-gauge submersible electric power cord with plug
Not Included
Two 35-pound anchoring weights or concrete blocks
Two nylon anchoring ropes
Light set Not Included
