Key Features

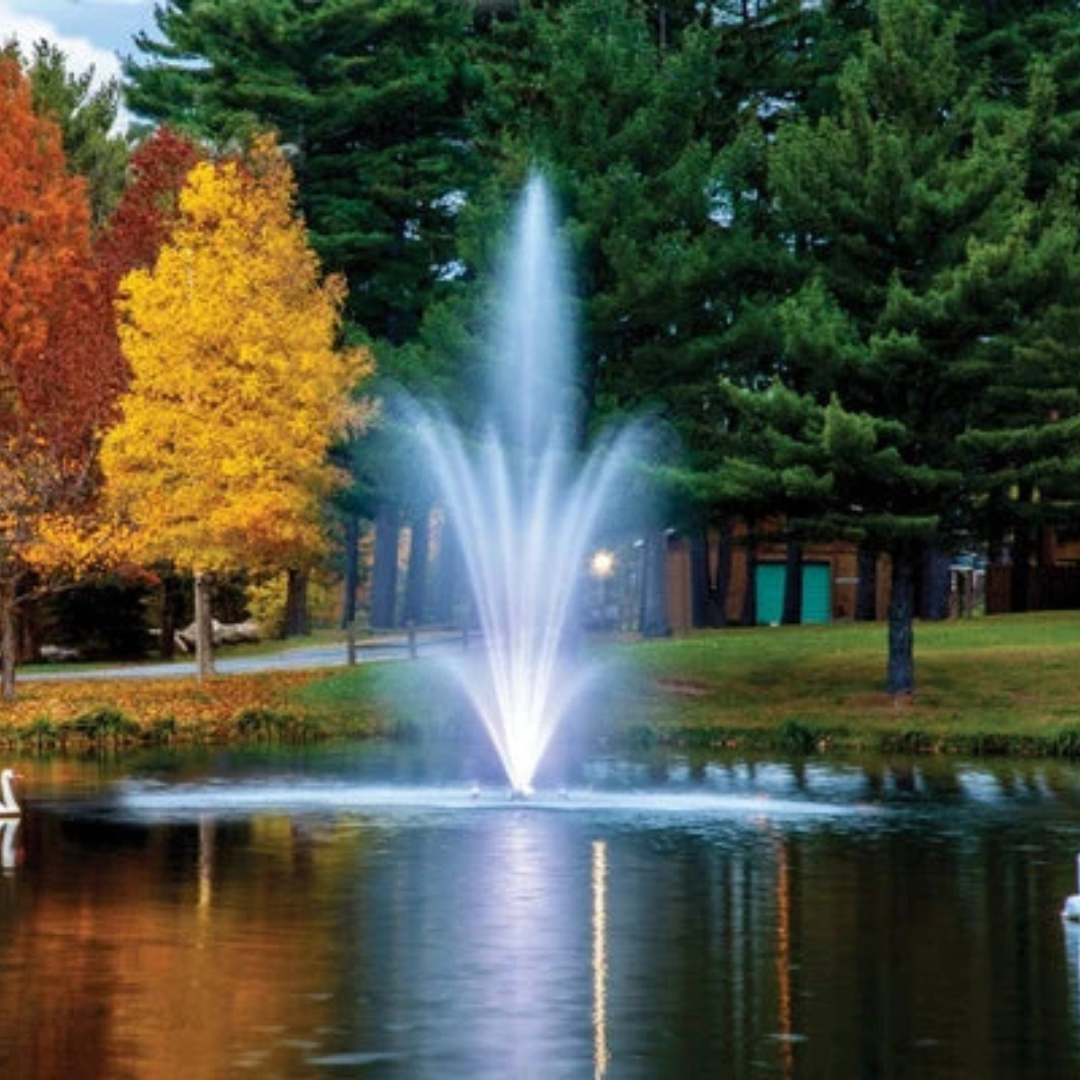

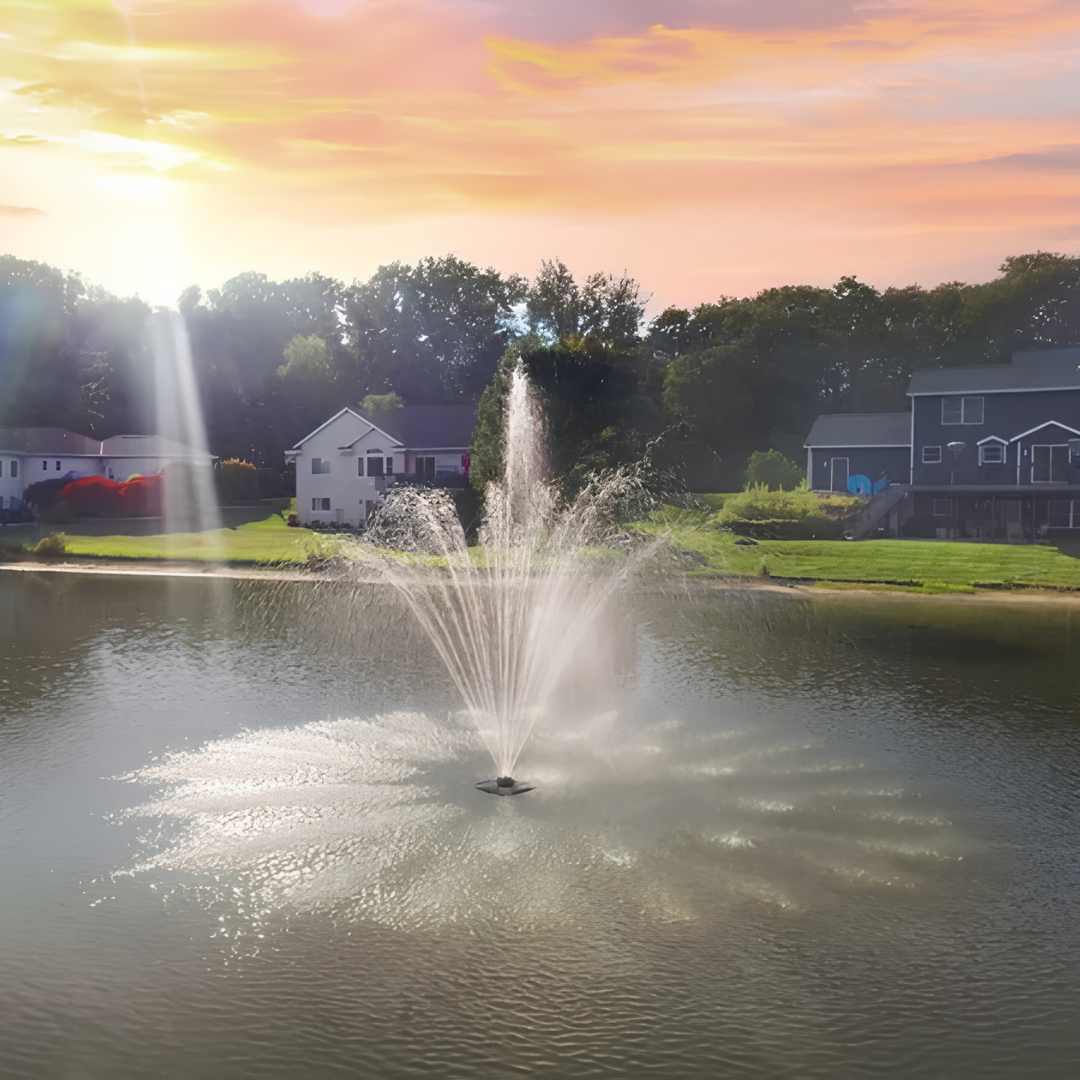

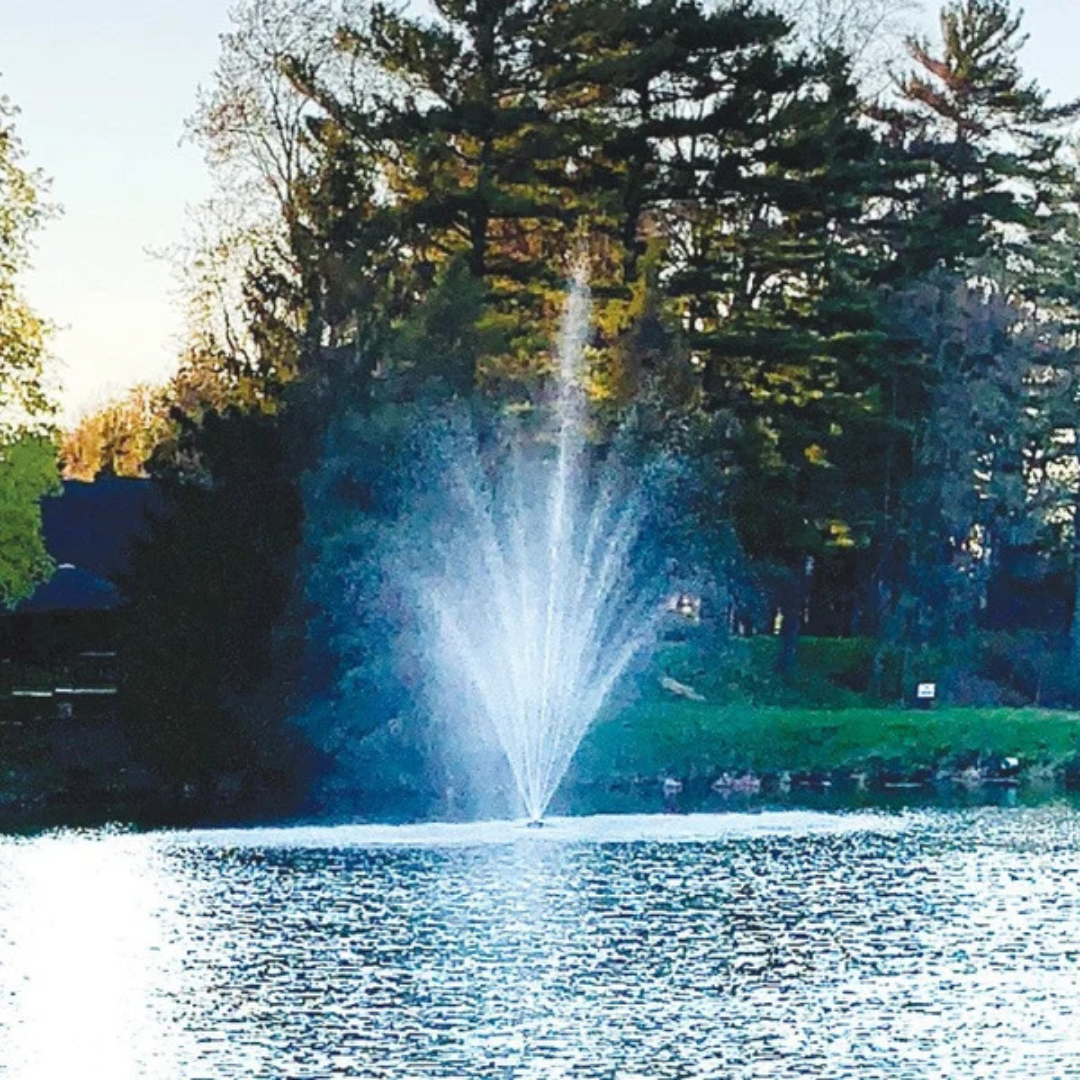

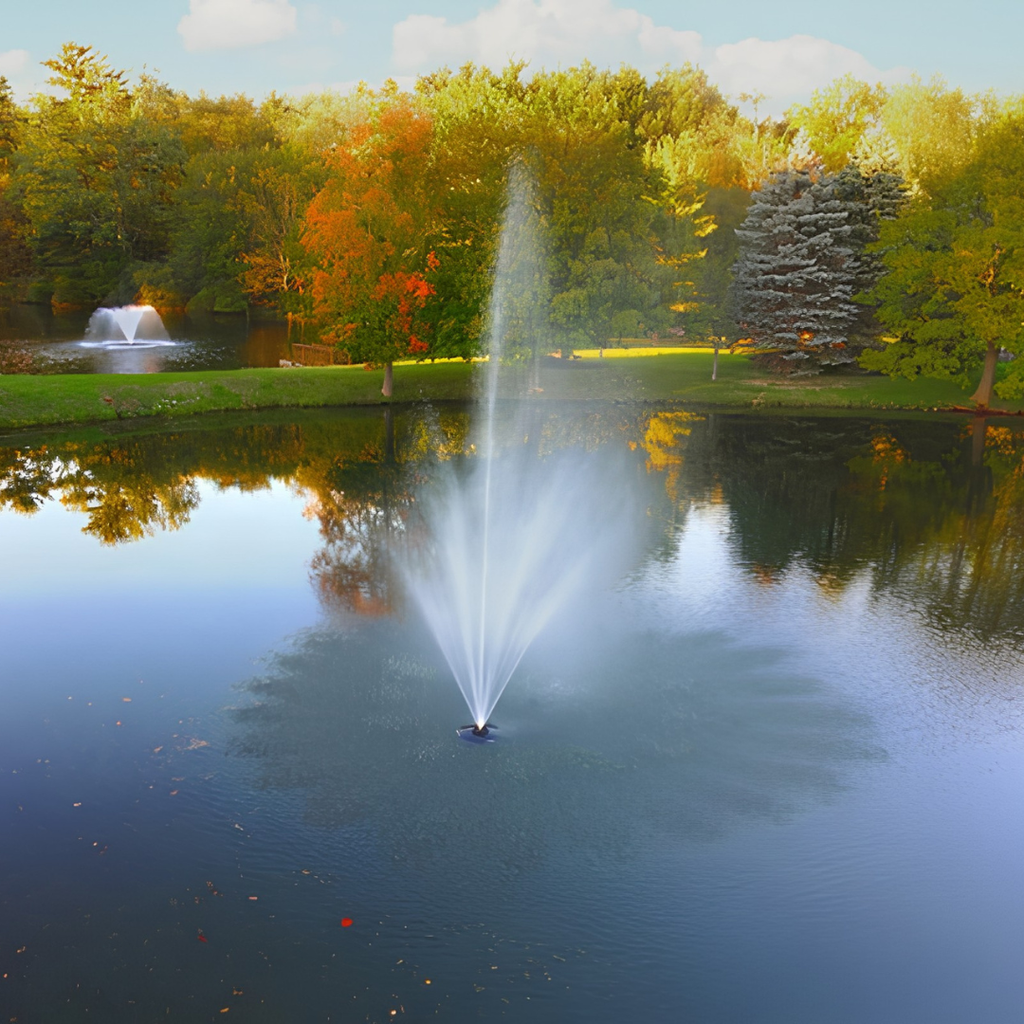

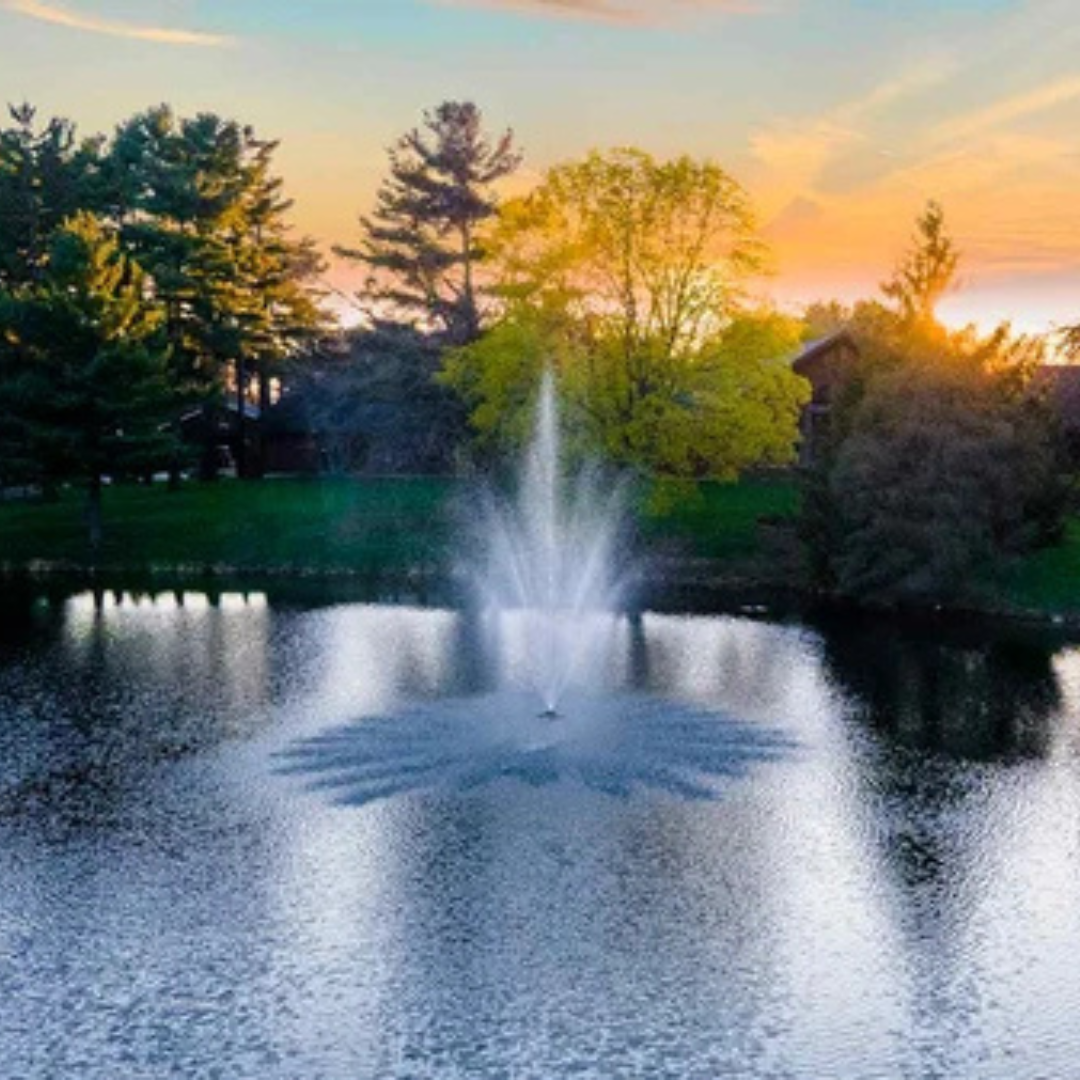

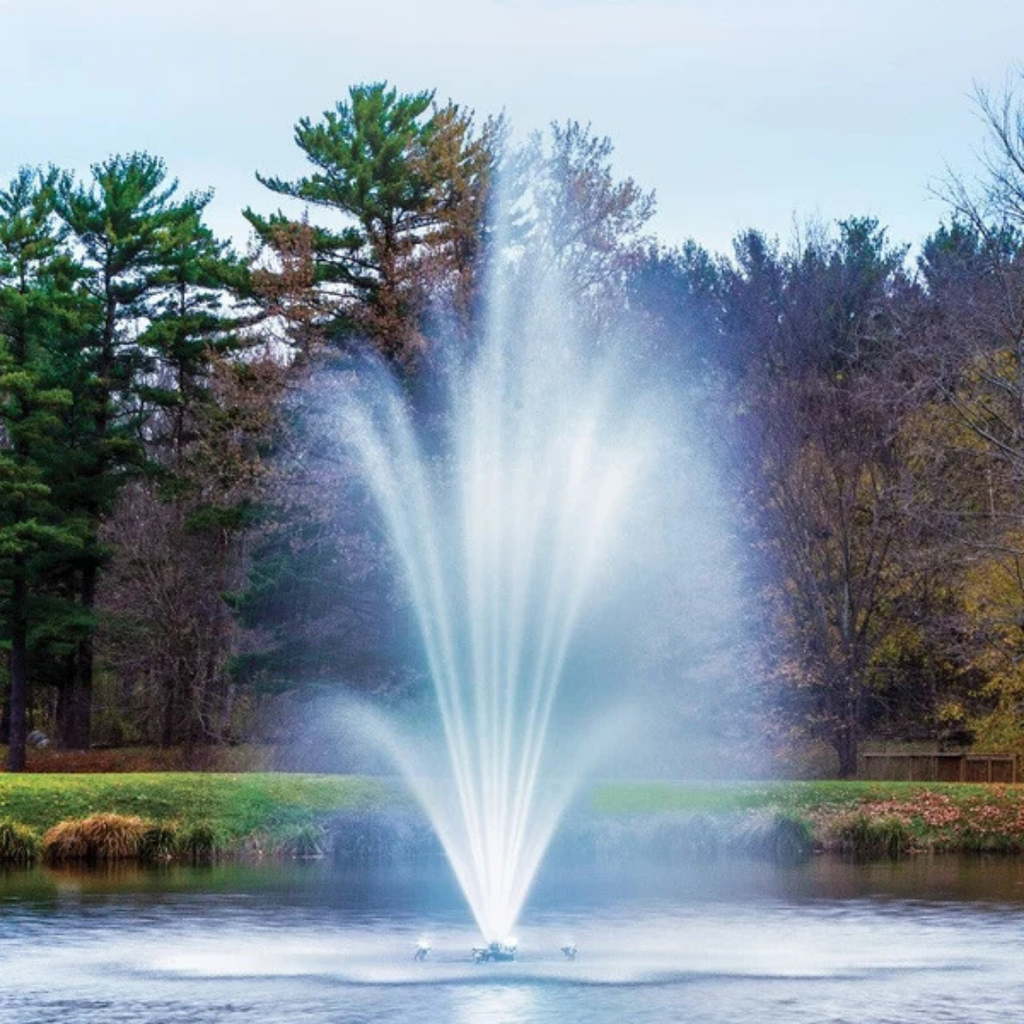

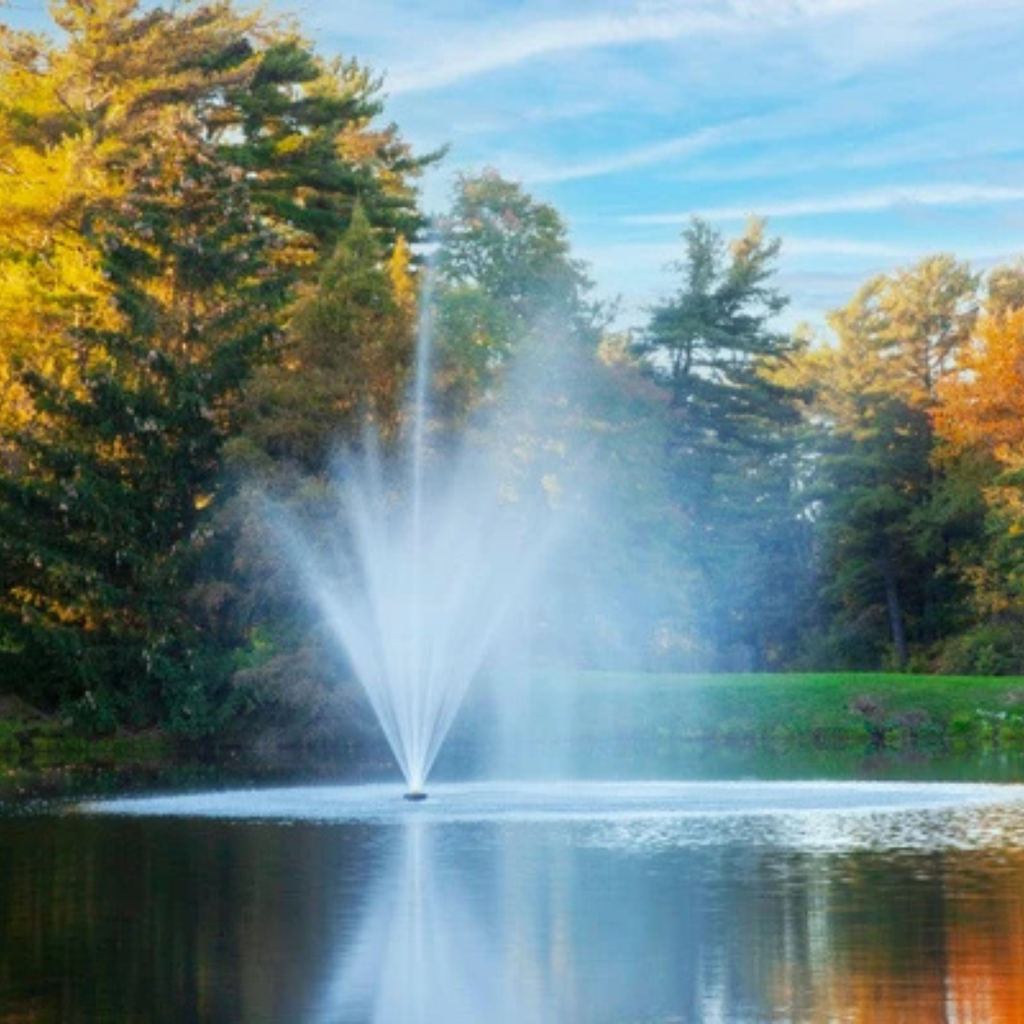

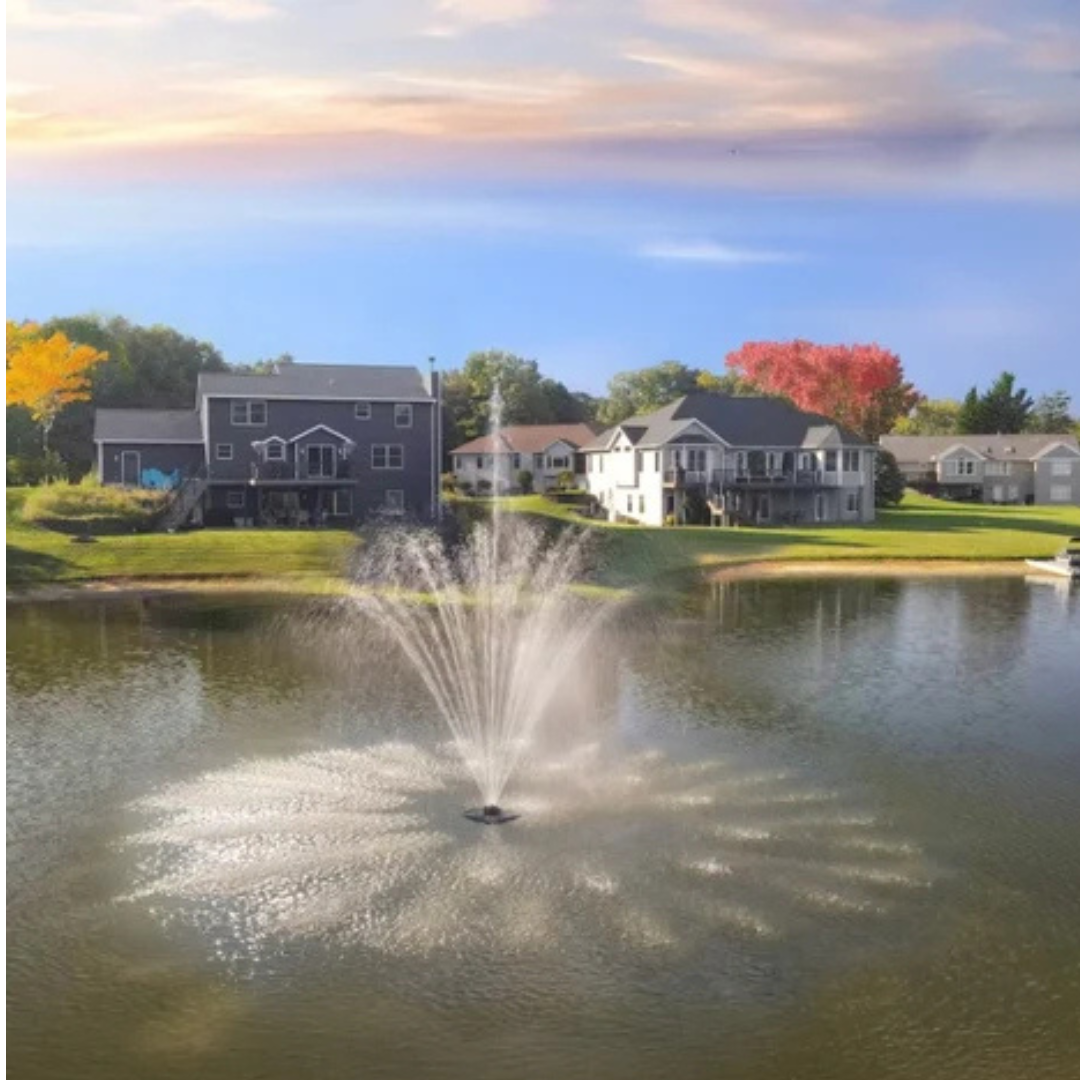

Classic Three-Tier Display: Creates a stately water pattern with three clearly separated tiers capped by a prominent center column.
Decorative Pond Feature: Provides a distinct visual focal point and creates a ripple effect across the water’s surface.
Water Circulation: Circulates 50 gallons of water per minute.
Oil-Free Motor: Uses an oil-free submersible motor that does not require oil changes.
Stainless-Steel Motor: The submersible motor is manufactured using stainless steel.
Continuous Operation: Designed for 24-hour-per-day operation.
Freshwater and Saltwater Use: Approved for operation in fresh water and salt water.
Low-Maintenance Design: No routine motor maintenance is required.
No Control Box Required: Operates without a separate control box.
Winter-Ready Installation: Can remain installed in the water during winter with the power turned off and be restarted after the water thaws.
Subzero-Condition Durability: Components are designed to withstand subzero conditions without damage.

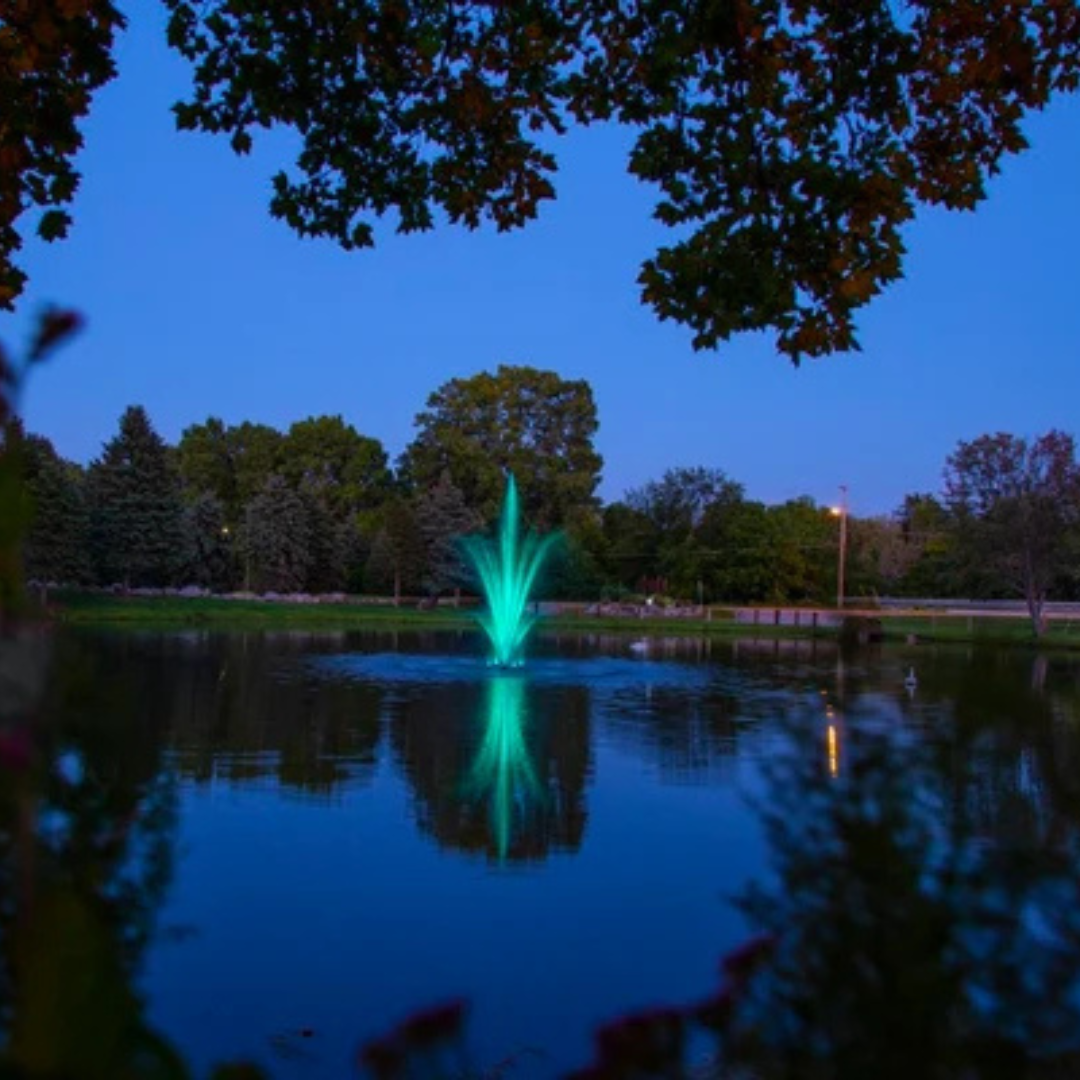

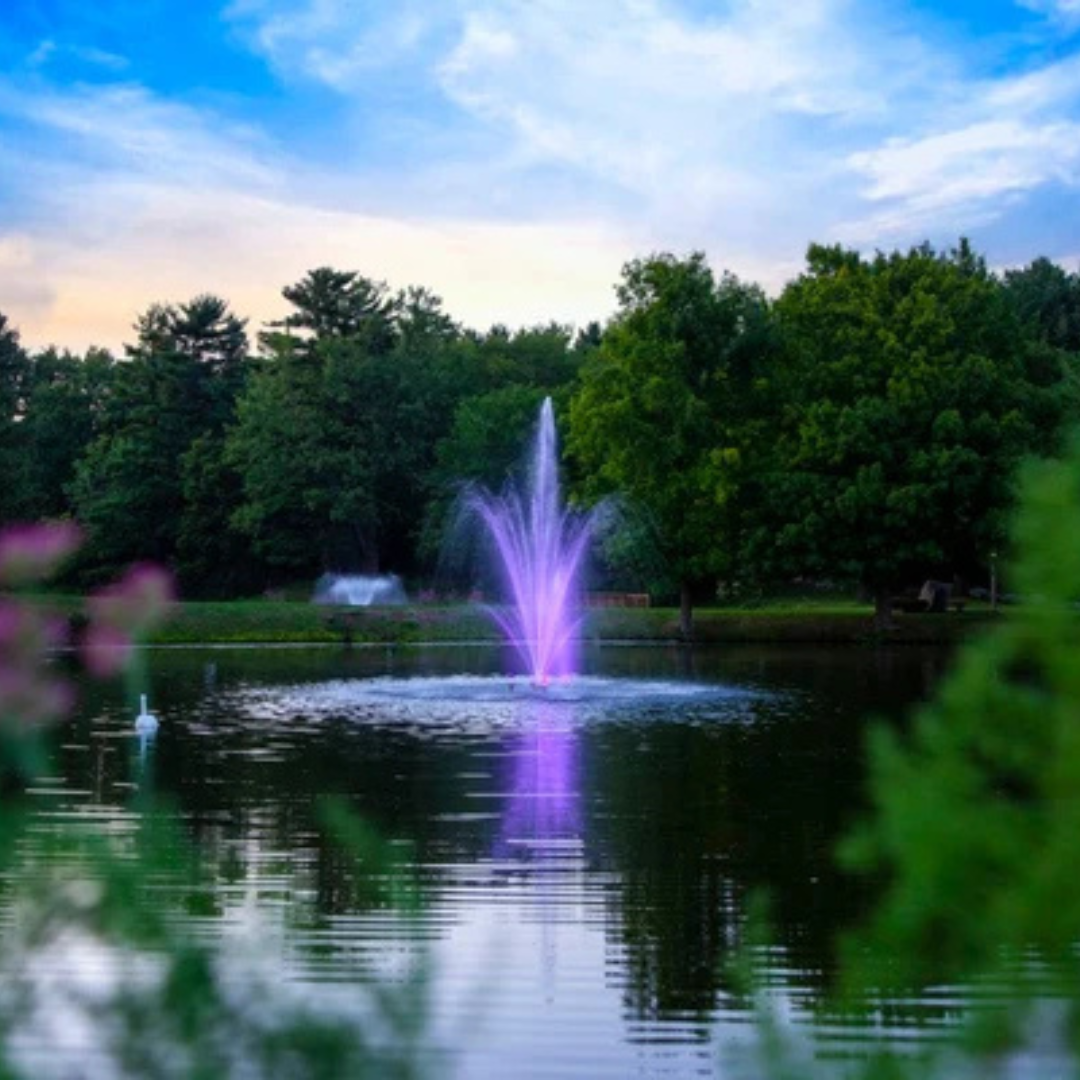

Optional Lighting: White LED and color-changing LED light sets can be added during the original purchase or installed later.
Extended Cord Availability: The electric power cord can be ordered in lengths greater than the standard supplied cord.
Made in the USA: Manufactured in Holland, Michigan.
Safety Compliance: ARL-tested and compliant with applicable UL requirements and the National Electrical Code when installed as a complete package.
Specifications
Motor Rating: ½ hp
Available Voltages: 115 volts and 230 volts
Motor Type: Oil-free, submersible motor
Motor Material: Stainless steel
Frequency: 60 Hz
Phase: Single-phase
Motor Speed: 3,450 rpm
115-Volt Current Draw: 10 amps
230-Volt Current Draw: 5 amps
Flow Rate: 50 gallons per minute
Spray Pattern: Approximately 8 feet high by 15 feet wide
Minimum Pond Depth: 36 inches
Standard Power Cord Length: 70 feet
Supplied Power Cord Gauge: 12-gauge
115-Volt Power Cord: Submersible electric power cord with plug
230-Volt Power Cord: Submersible electric power cord
Extended Cord Availability: The electric power cord can be ordered in greater lengths.
Required Anchor Weight: Two 25-pound weights or concrete blocks
Required Anchoring Ropes: Two nylon ropes
Operating Schedule: Designed for 24-hour-per-day operation
Alternative Electrical Configurations: Three-phase and/or 50 Hz configurations are also available.
GFCI Requirement: A Ground Fault Circuit Interrupter is required.
Swimmer Safety: Always disconnect power when swimmers are present.
Extension Cord Restriction: Do not use an extension cord to supply power to the motor.
Maintenance Requirement: No routine motor maintenance required
Control Box Requirement: No separate control box required

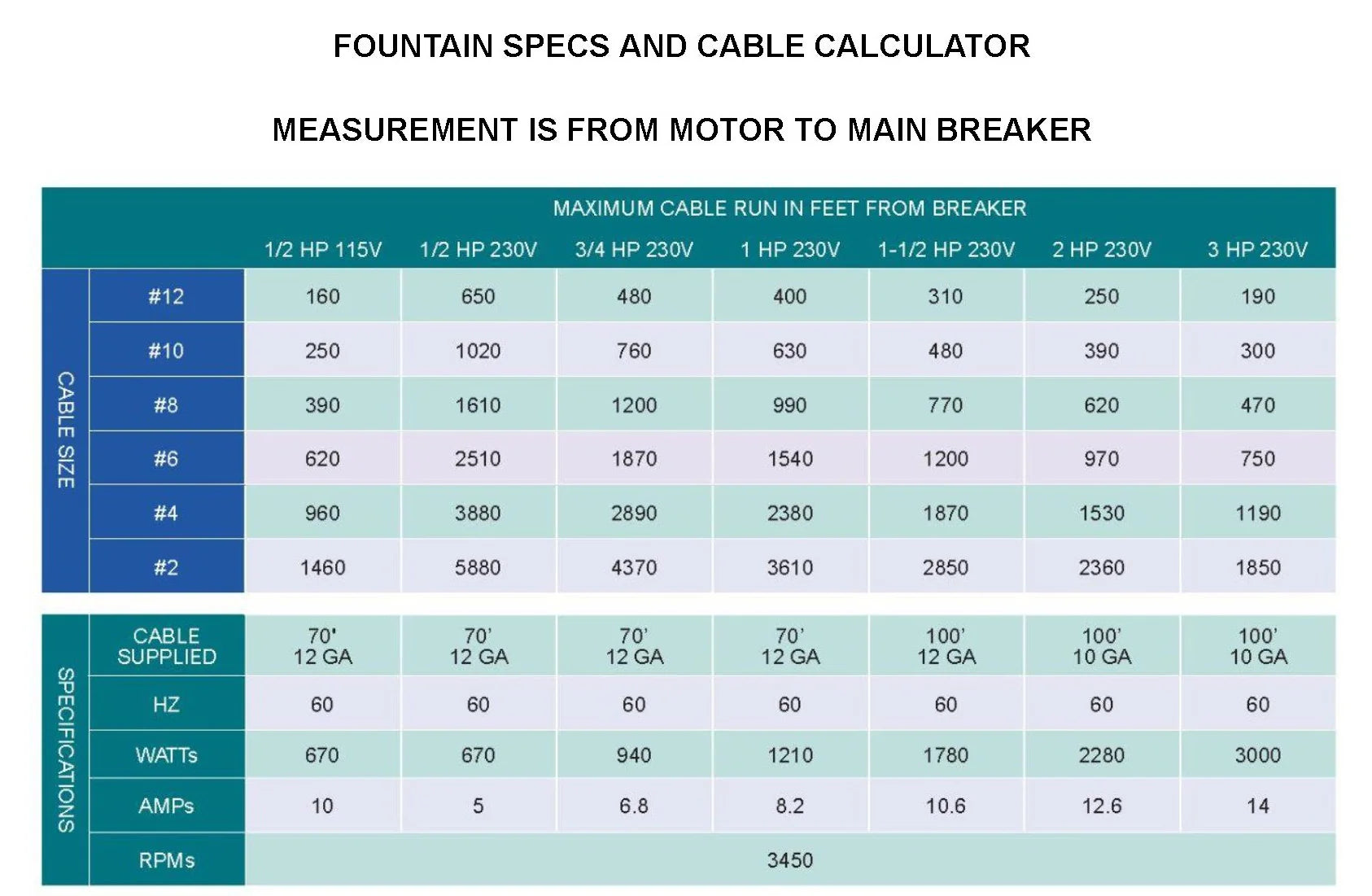

½ hp 115-Volt Maximum Cable Length With 12-Gauge Cable: 160 feet from the motor to the main power source
½ hp 115-Volt Maximum Cable Length With 10-Gauge Cable: 250 feet from the motor to the main power source
½ hp 115-Volt Maximum Cable Length With 8-Gauge Cable: 390 feet from the motor to the main power source
½ hp 115-Volt Maximum Cable Length With 6-Gauge Cable: 620 feet from the motor to the main power source
½ hp 115-Volt Maximum Cable Length With 4-Gauge Cable: 960 feet from the motor to the main power source
½ hp 115-Volt Maximum Cable Length With 2-Gauge Cable: 1,460 feet from the motor to the main power source
½ hp 230-Volt Maximum Cable Length With 12-Gauge Cable: 650 feet from the motor to the main power source
½ hp 230-Volt Maximum Cable Length With 10-Gauge Cable: 1,020 feet from the motor to the main power source
½ hp 230-Volt Maximum Cable Length With 8-Gauge Cable: 1,610 feet from the motor to the main power source
½ hp 230-Volt Maximum Cable Length With 6-Gauge Cable: 2,510 feet from the motor to the main power source
½ hp 230-Volt Maximum Cable Length With 4-Gauge Cable: 3,880 feet from the motor to the main power source
½ hp 230-Volt Maximum Cable Length With 2-Gauge Cable: 5,880 feet from the motor to the main power source
Size Guide
Minimum Pond Depth: 36 inches
Spray Height: Approximately 8 feet
Spray Width: Approximately 15 feet
Compatibility
Compatible With: Freshwater and saltwater ponds or lakes with a minimum water depth of 36 inches.
115-Volt Electrical Compatibility: 115-volt, 60 Hz, single-phase electrical service.
230-Volt Electrical Compatibility: 230-volt, 60 Hz, single-phase electrical service.
115-Volt Selection Advisory: The product page recommends choosing a 230-volt motor when the total distance from the main breaker exceeds 100 feet.
Optional Lighting Compatibility: White LED and color-changing LED fountain light sets can be added at purchase or installed later.

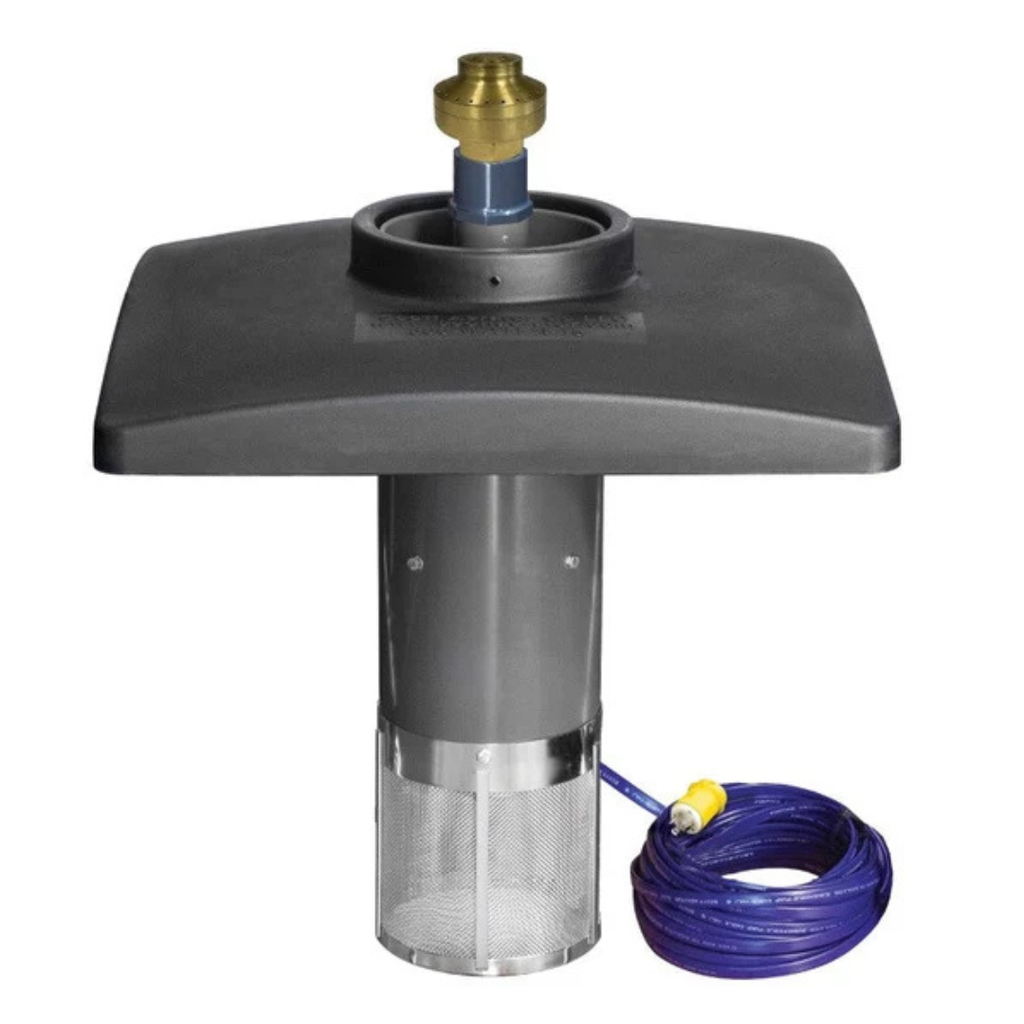

Included
Float platform
Pump assembly
Stainless-steel filter
Two 5/16-inch by 2-inch stainless-steel bolts
Two stainless-steel nuts and washers
Three stainless-steel screws
70-foot, 12-gauge submersible electric power cord
Power-cord plug with the 115-volt configuration
Not Included
Two nylon anchoring ropes
Two 25-pound anchoring weights or concrete blocks
Light set Not Included
