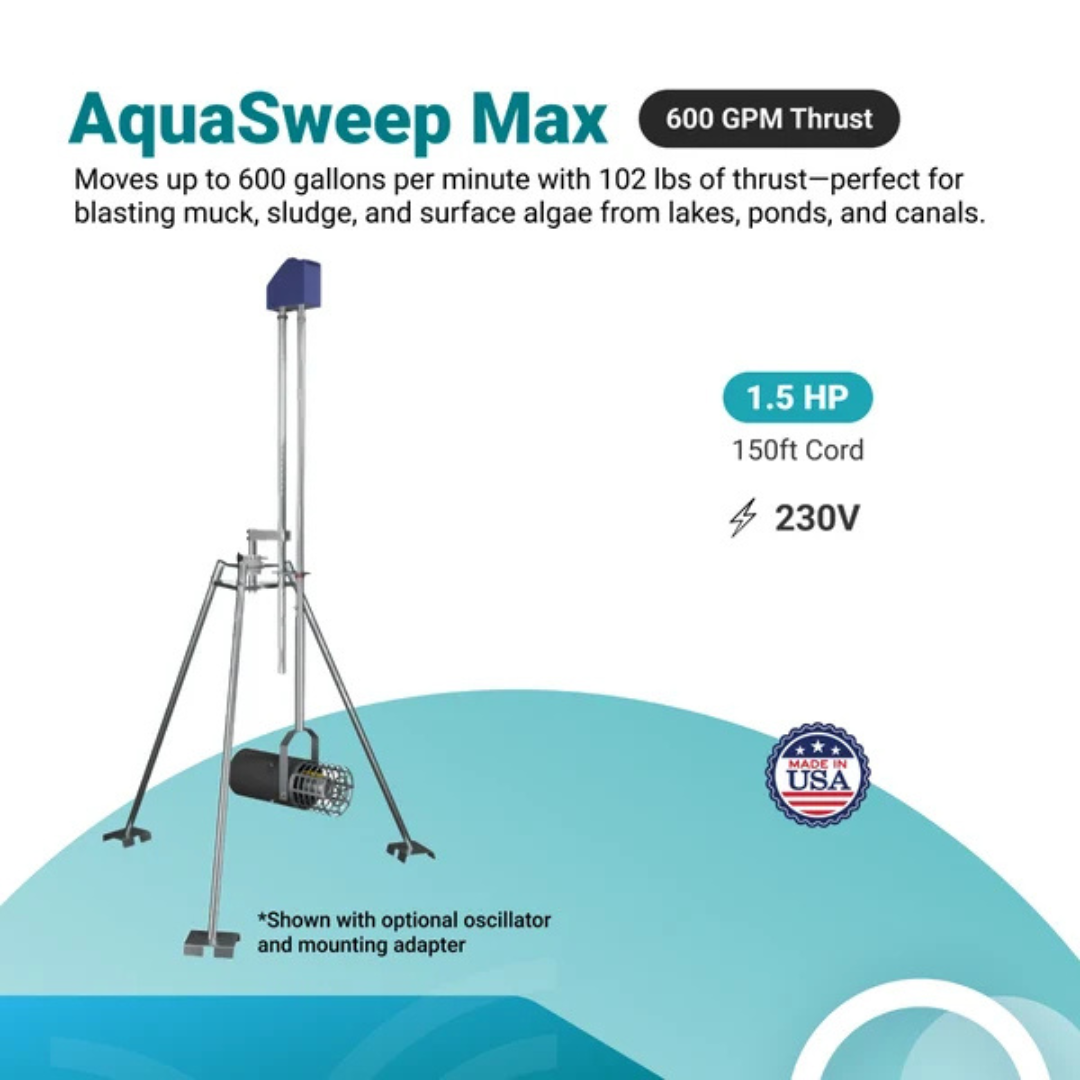

The AquaSweep Max is designed for open-water pond and lake maintenance rather than dock-mounted use. Its freestanding tripod configuration allows the unit to be positioned in open water and aimed toward areas affected by bottom muck, sediment, weeds, floating algae, and surface debris.
Powered by a 1½ HP, 230V oil-free submersible motor, the unit moves up to 600 gallons of water per minute with a specified flow distance of 100 feet. High-velocity water propulsion can push surface debris up to 250 feet away from swimming areas, docks, or boat lifts.
The unit features directional and vertical adjustment for targeting surface or bottom conditions. Its debris-shield design helps prevent grasses, weeds, and other material from clogging the moving components during continuous operation.
Key Features
-
Open-Water Configuration: Designed for use in open water rather than as a dock-mounted unit.
-

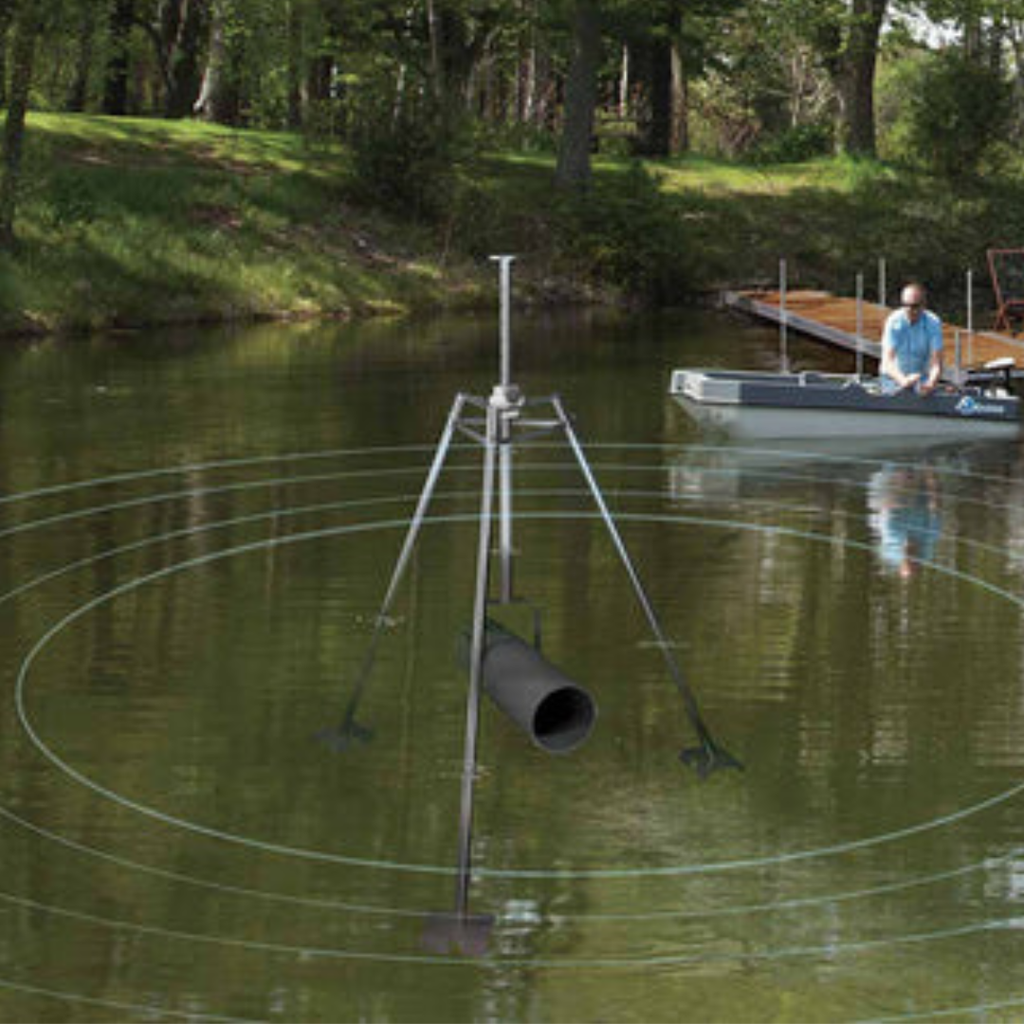

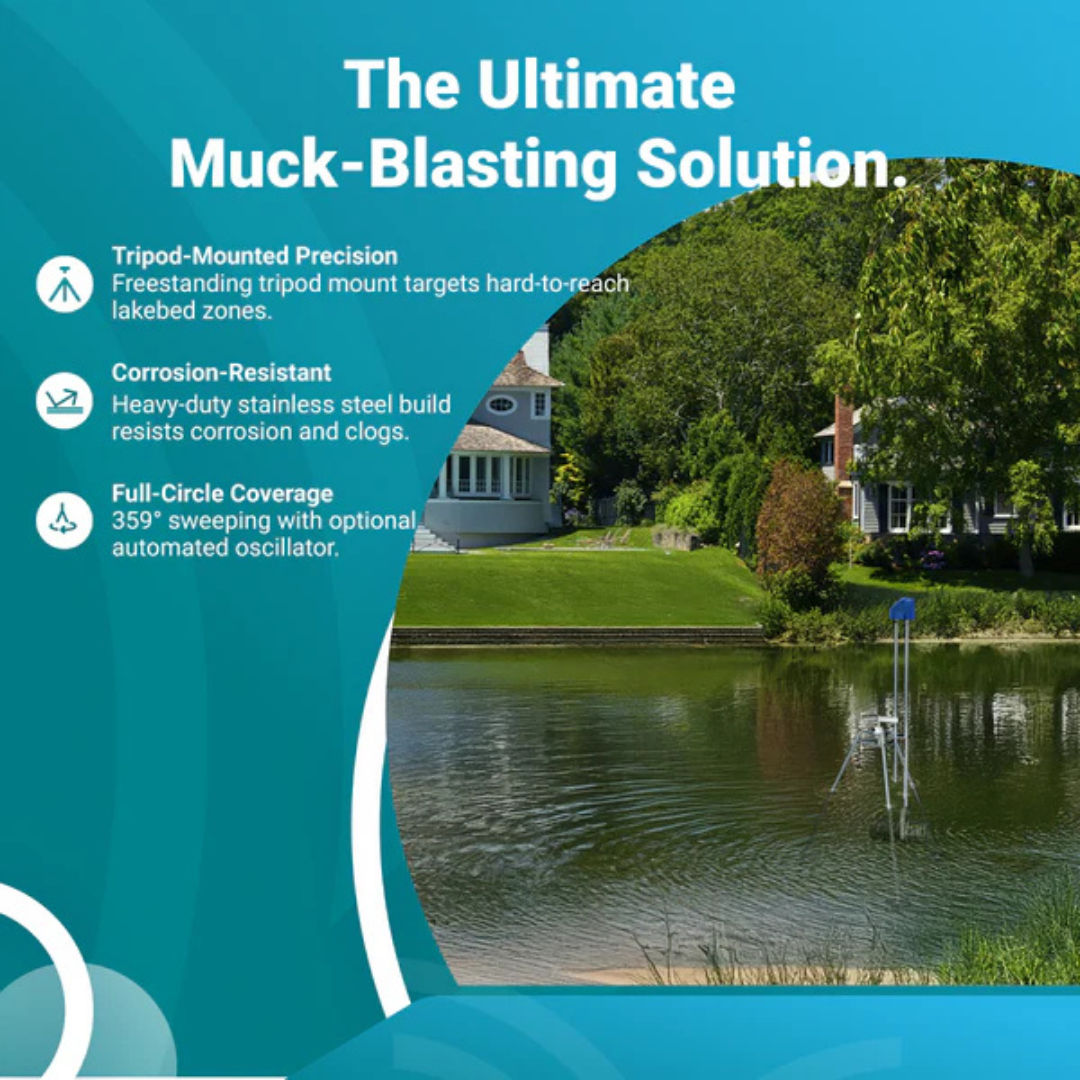

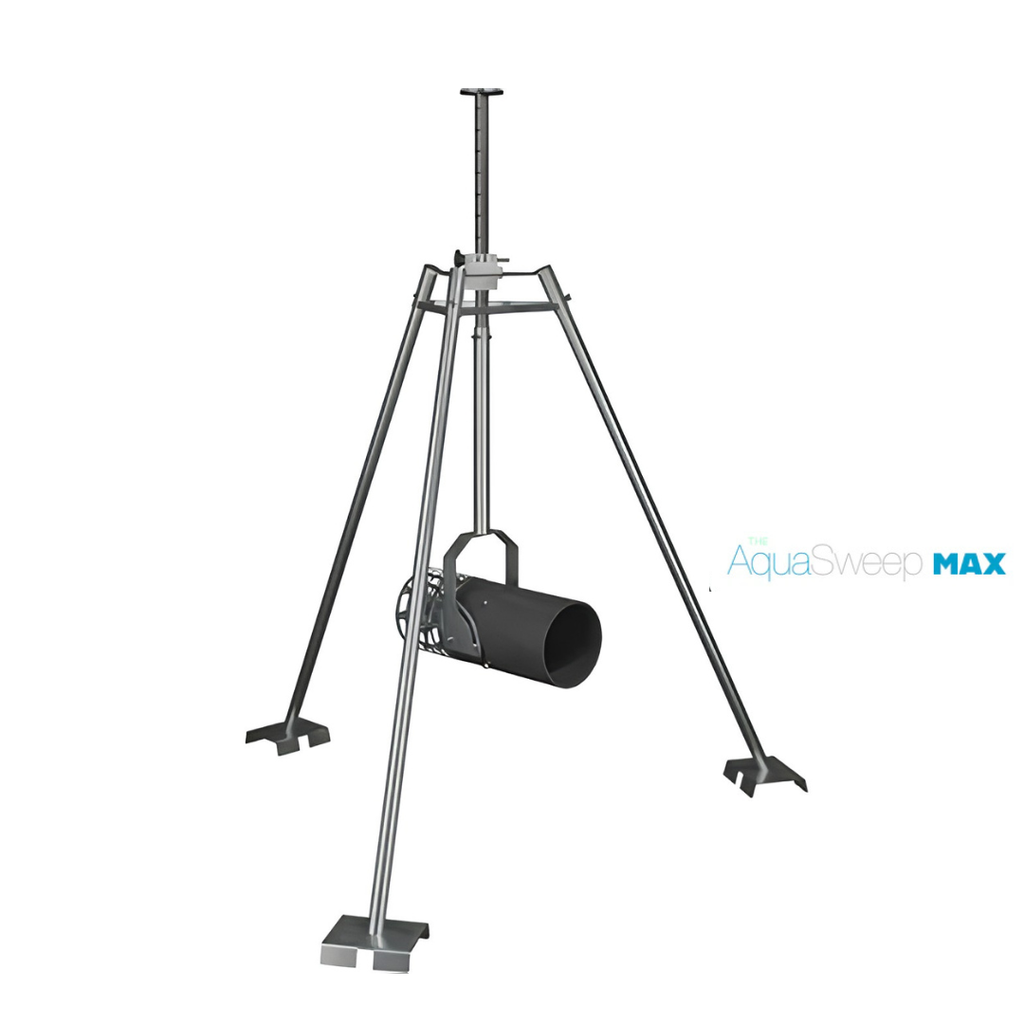

Freestanding Tripod Mount: Uses a rugged tripod configuration that allows the unit to be positioned within the pond or lake.
-

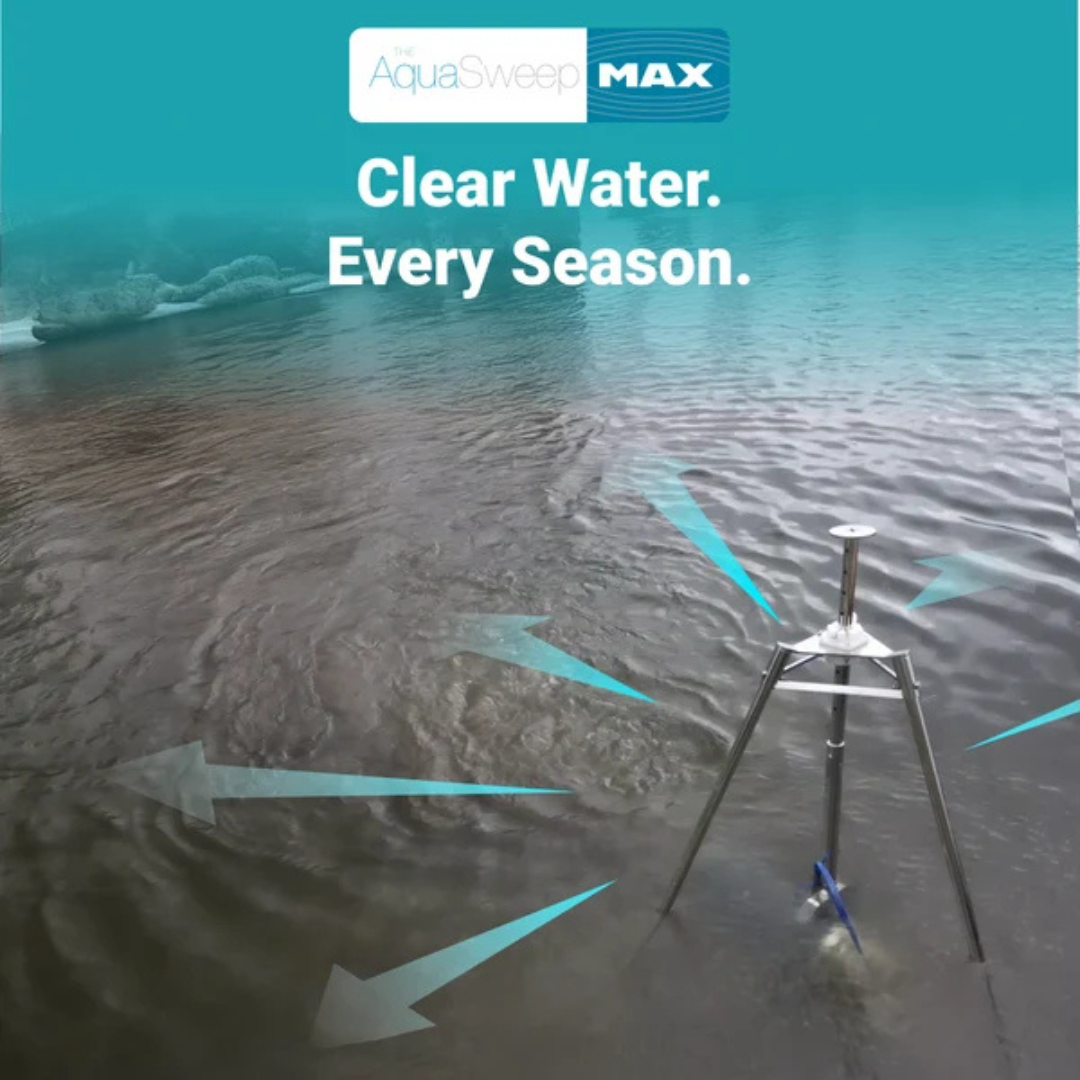

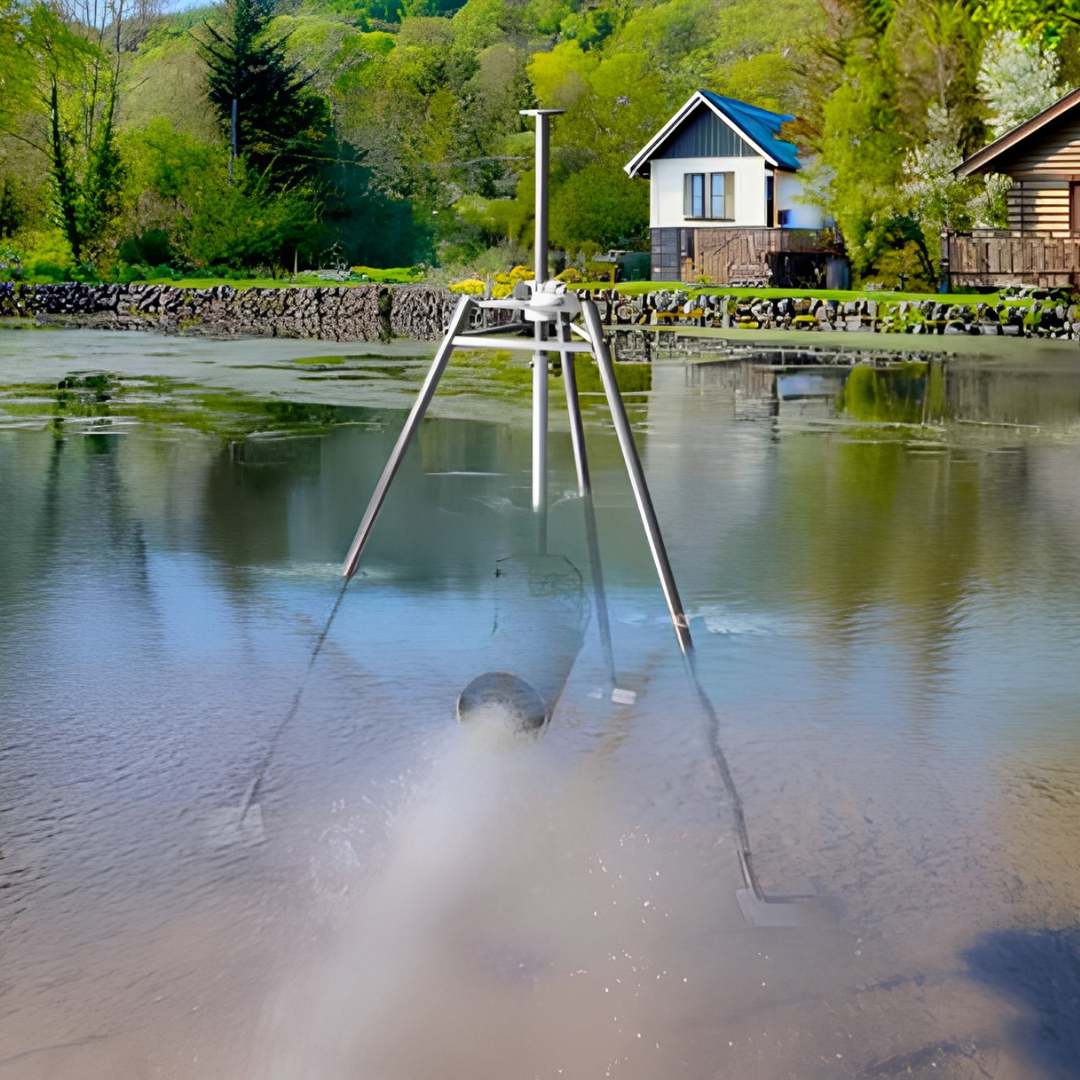

Bottom-Muck Movement: Directs high-velocity water toward decaying bottom muck and sediment.
-
Surface-Debris Movement: Helps push floating algae and surface debris away from swimming areas, docks, and boat lifts.
-
Directional Adjustment: Can be pointed in different directions to target specific problem areas.
-
Vertical Adjustment: Allows the unit to target bottom muck, weedy areas, or floating surface algae.
-
Debris-Shield Design: Helps prevent grasses, weeds, and other material from clogging the moving components.
-
Continuous-Run Capability: The weed-resistant design supports continuous muck movement.
-

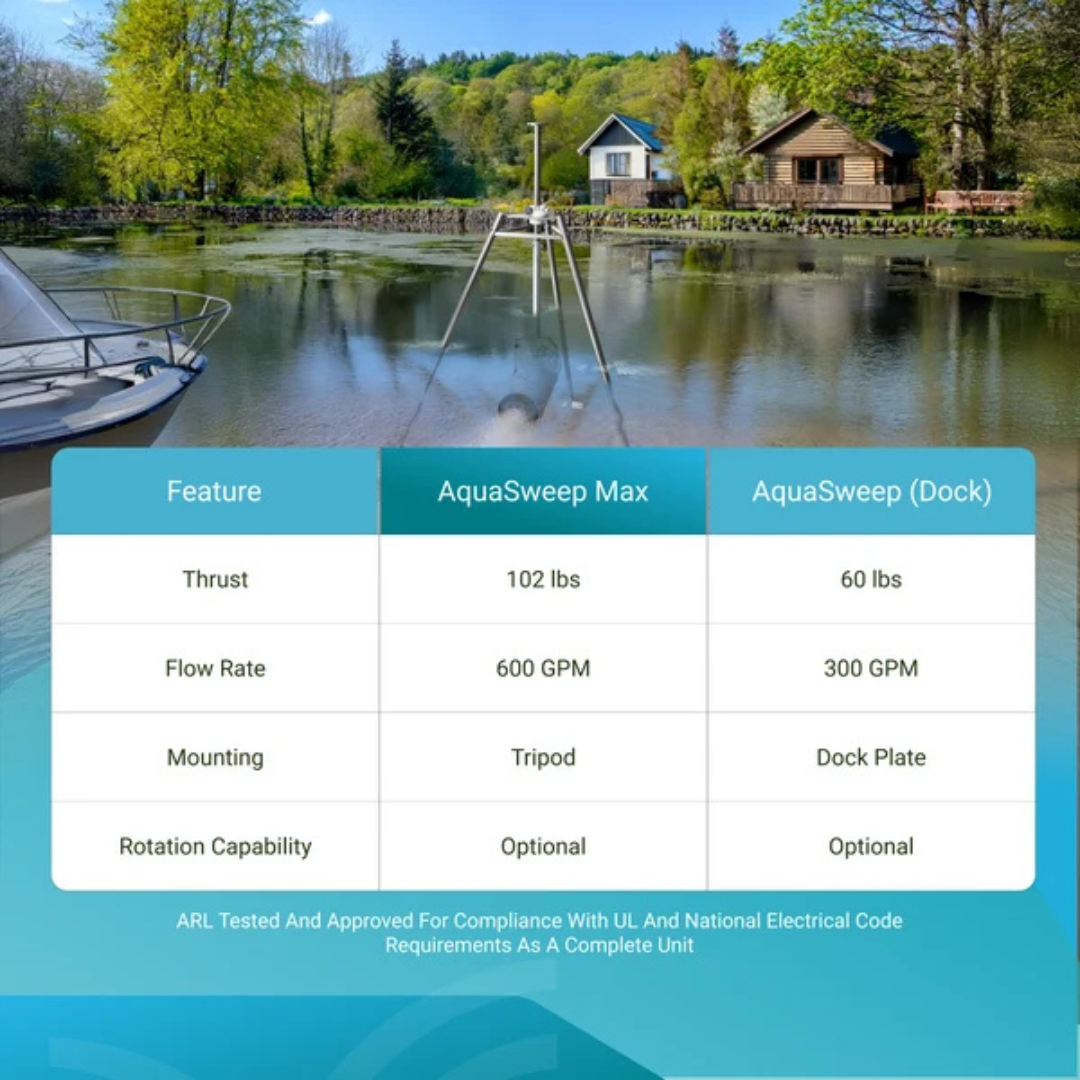

High Water Flow: Moves up to 600 gallons of water per minute.
-

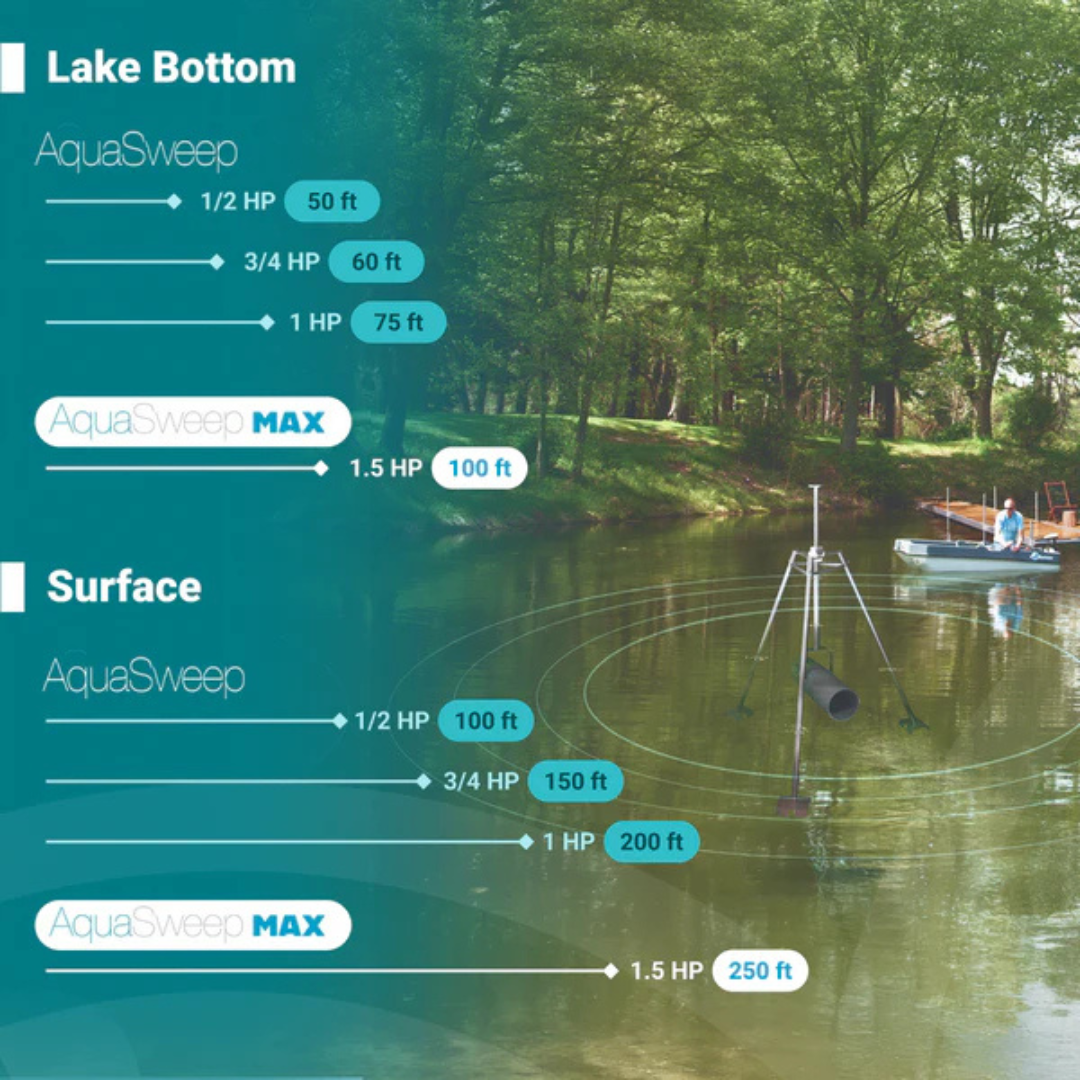

Surface-Debris Reach: High-velocity water propulsion can push surface debris up to 250 feet.
-
Oil-Free Motor: Uses a stainless-steel, oil-free submersible motor with no oil changes required.
-
Freshwater and Saltwater Use: Designed for operation in fresh water and salt water.
-
Low-Maintenance Operation: Requires no routine maintenance or separate control box.
-
Made in the USA: Manufactured in Holland, Michigan.
Specifications
-
Motor Power: 1½ HP
-
Voltage: 230V
-
Motor Type: Stainless-steel, oil-free, submersible motor
-
Frequency: 60 Hz
-
Phase: Single-phase
-
Motor Speed: 3,450 rpm
-
Power Rating: 1.1 kW
-
Current Draw: 10.6 amps
-
Flow Rate: 600 gallons per minute
-
Flow Distance: 100 feet
-
Surface-Debris Movement: Up to 250 feet
-
Power-Cord Length: 150 feet
-
Power-Cord Gauge: 12-gauge
-
Power-Cord Type: Submersible power cable
-
Plug Type: Marine-grade, water-resistant plug
-
Extended Cord Availability: The electric power cord can be ordered in greater lengths.
-
Unit Length: Over 7 feet
-
Unit Weight: 55–68 pounds
-
Construction: High-density polyurethane and stainless steel
-
Mounting Configuration: Freestanding tripod
-
Water Compatibility: Fresh water and salt water
-
Maintenance Requirement: No routine maintenance required
-
Control Box Requirement: No separate control box required
-
Alternate Electrical Configurations: Three-phase and/or 50 Hz versions are available by request.
Size Guide
-
Unit Length: Over 7 feet
-
Unit Weight: 55–68 pounds
-
Power-Cord Length: 150 feet
-
Specified Flow Distance: 100 feet
-
Surface-Debris Movement: Up to 250 feet
-
Recommended Setting: Open-water ponds and lakes rather than dock-mounted applications.
Compatibility
-
Suitable Applications: Ponds, lakes, canals, beaches, shorelines, swimming areas, and areas near boat lifts.
-
Compatible Water Types: Fresh water and salt water.
-
Designed For: Bottom muck, sediment, weedy areas, floating surface algae, and surface debris.
-
Installation Type: Open-water installation using the freestanding tripod configuration.
-
Optional Accessory: The product page displays an Oscillator option. The exact confirmed selected value is “None.”
-
Alternate Power Configurations: Three-phase and/or 50 Hz versions are available by request.
Included
- AquaSweep Max 1½ HP, 230V unit
- Freestanding tripod mounting configuration
- 150-foot, 12-gauge submersible power cable
- Marine-grade, water-resistant plug
