Key Features
Distinctive Water Display: Uses a durable brass center jet surrounded by eight precision-crafted brass nozzles to create a multi-stream fountain pattern.

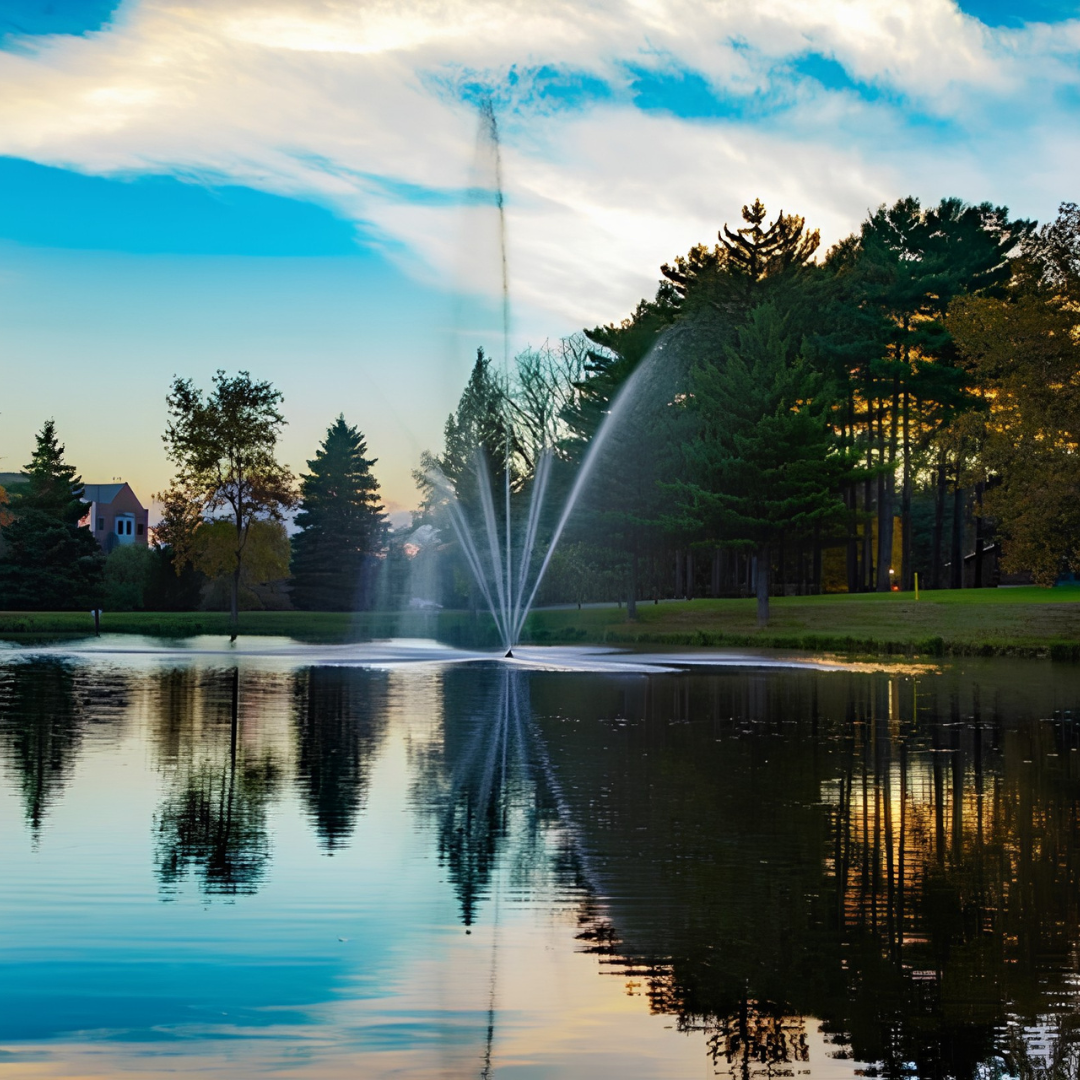

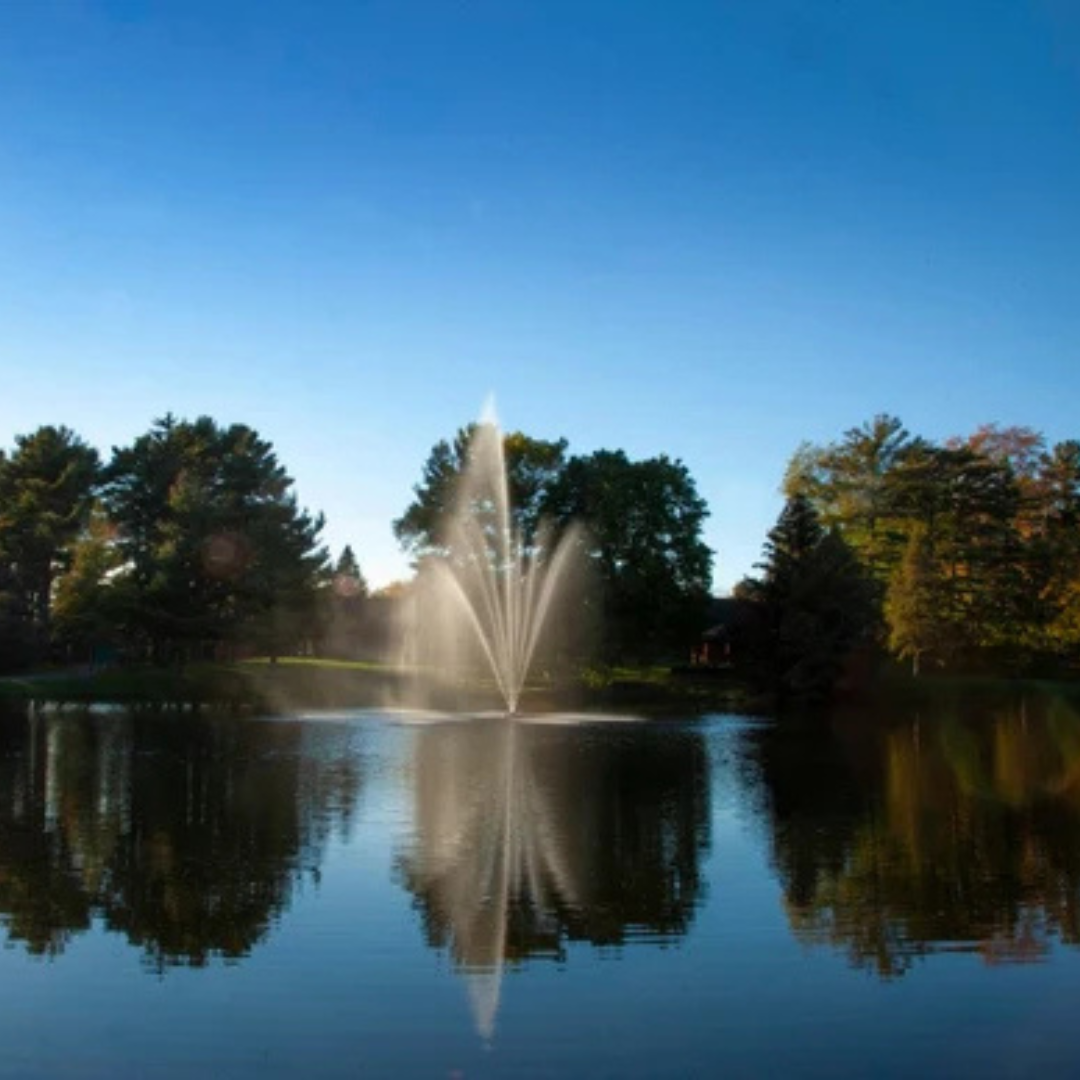

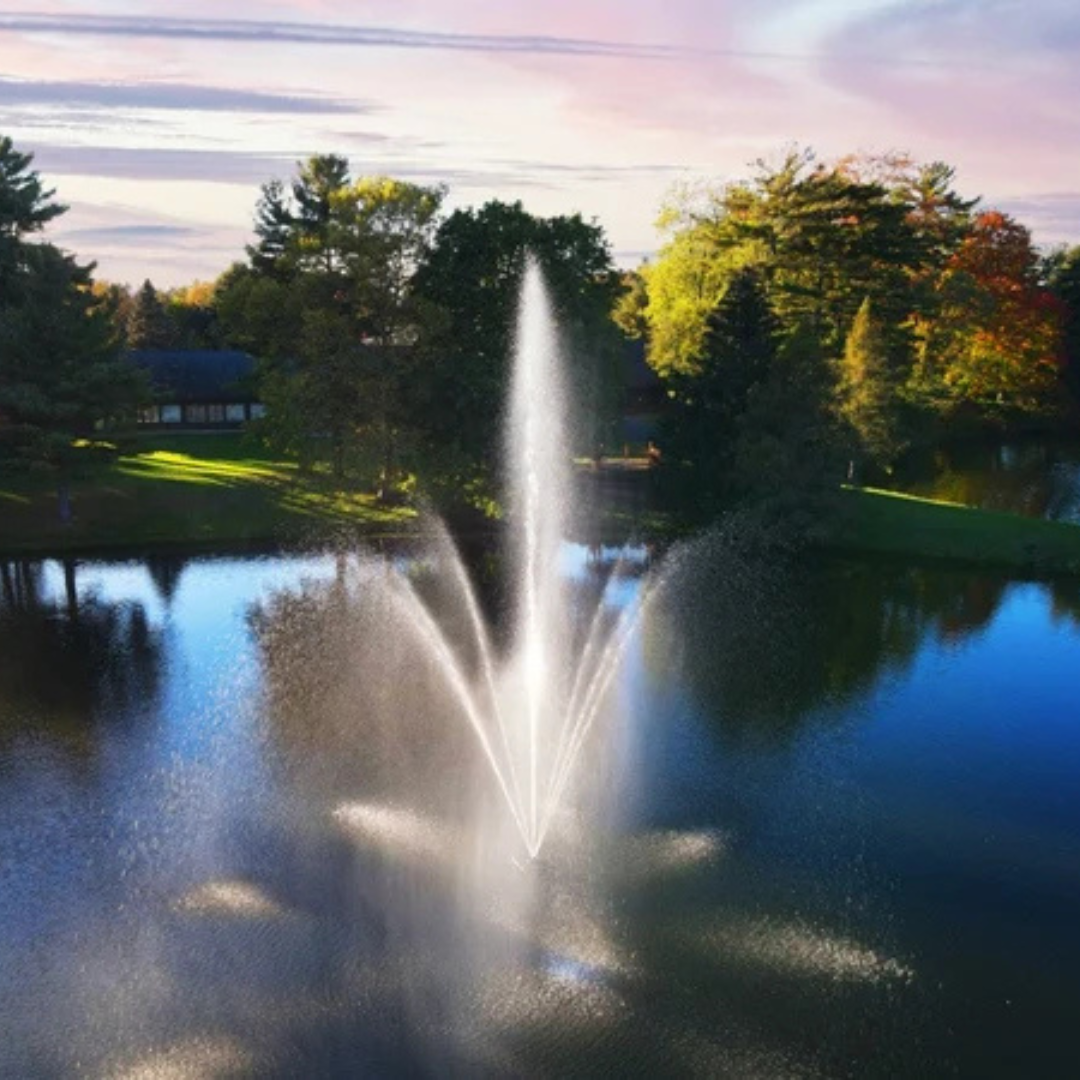

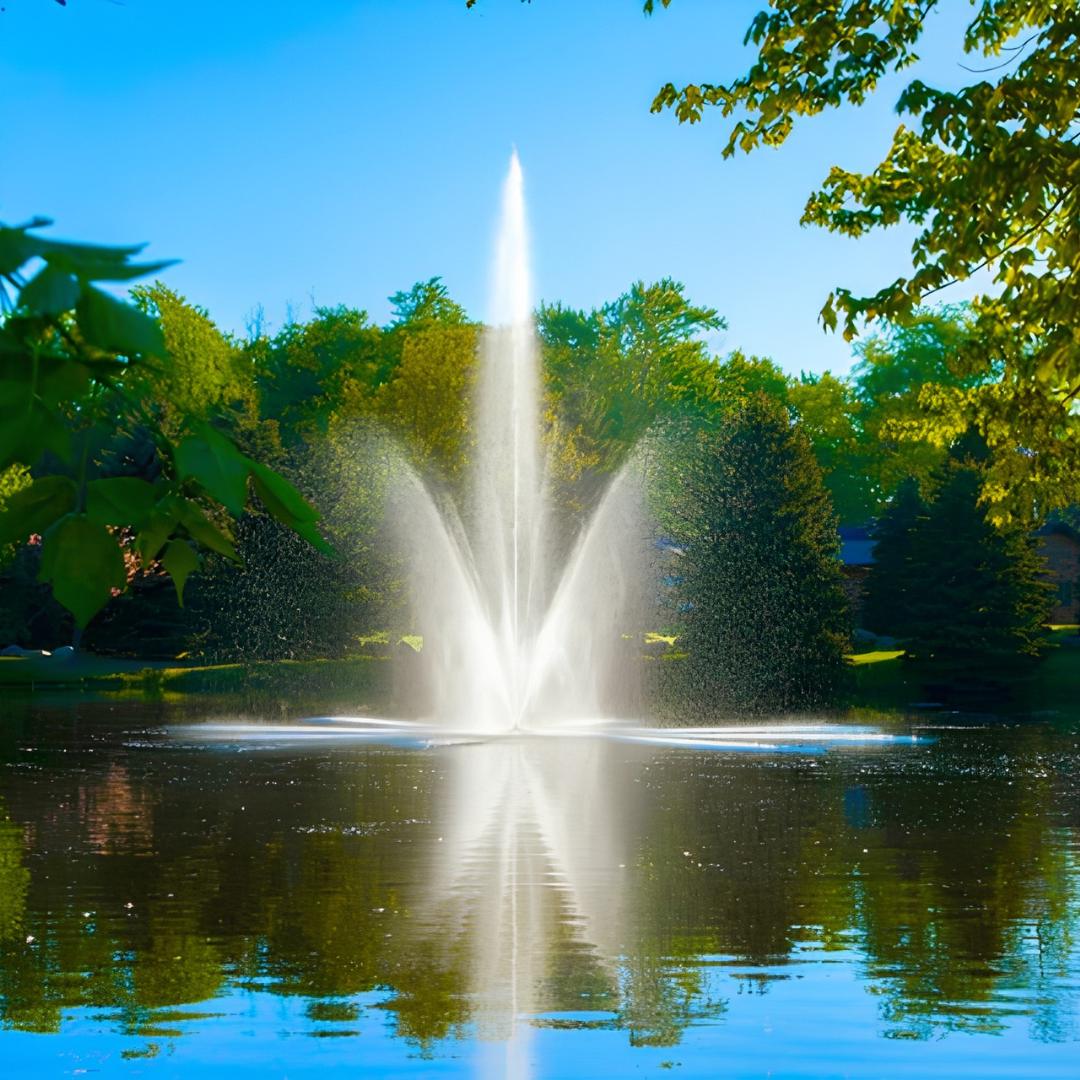

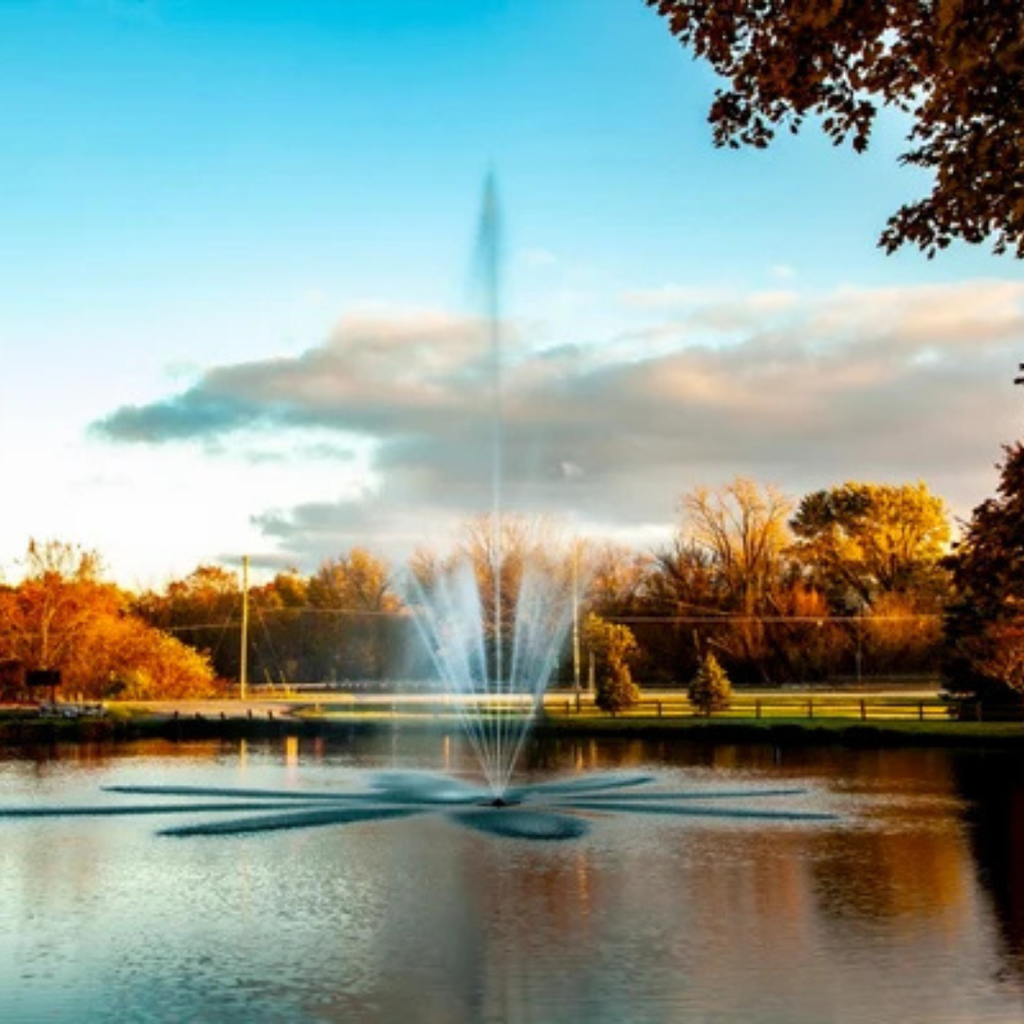

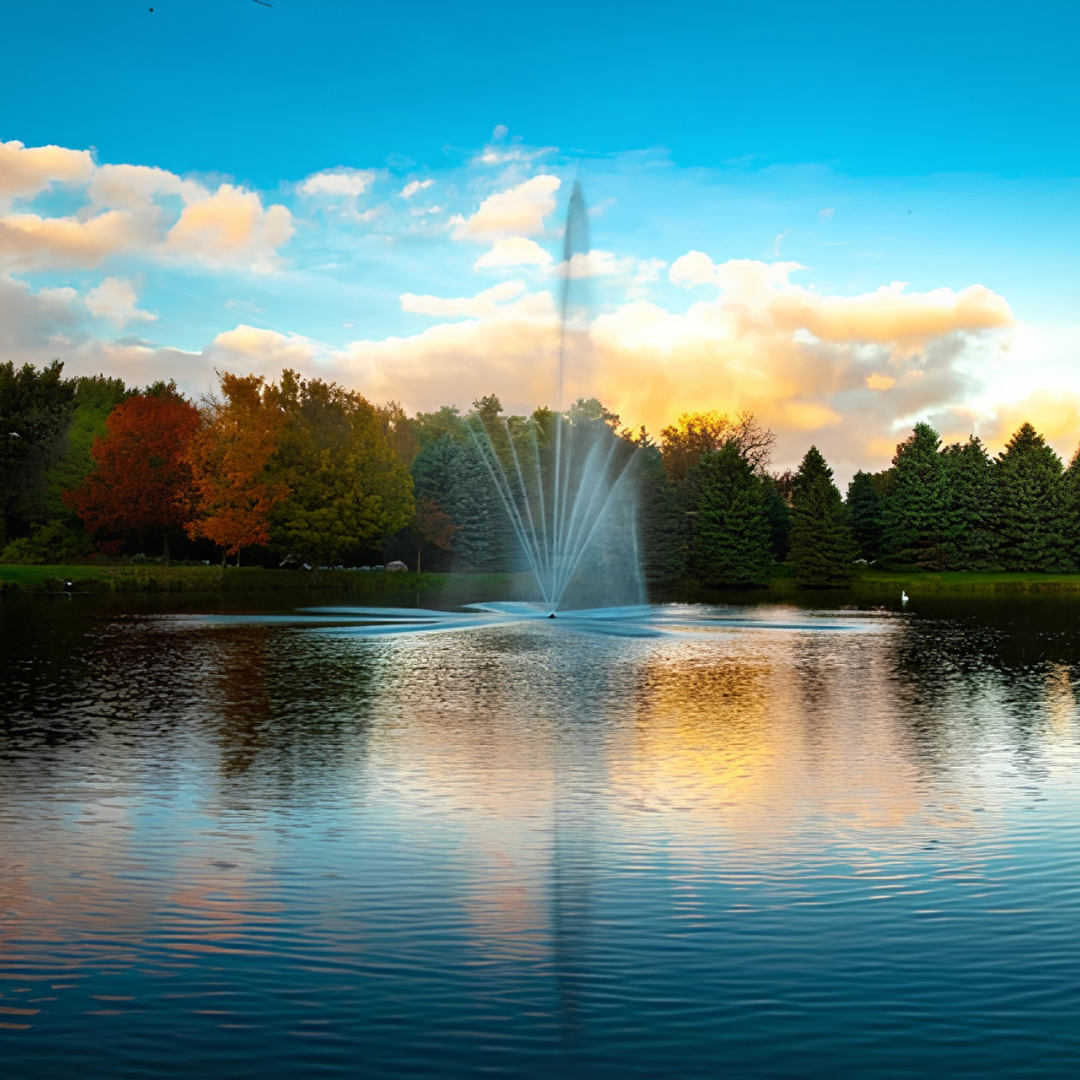

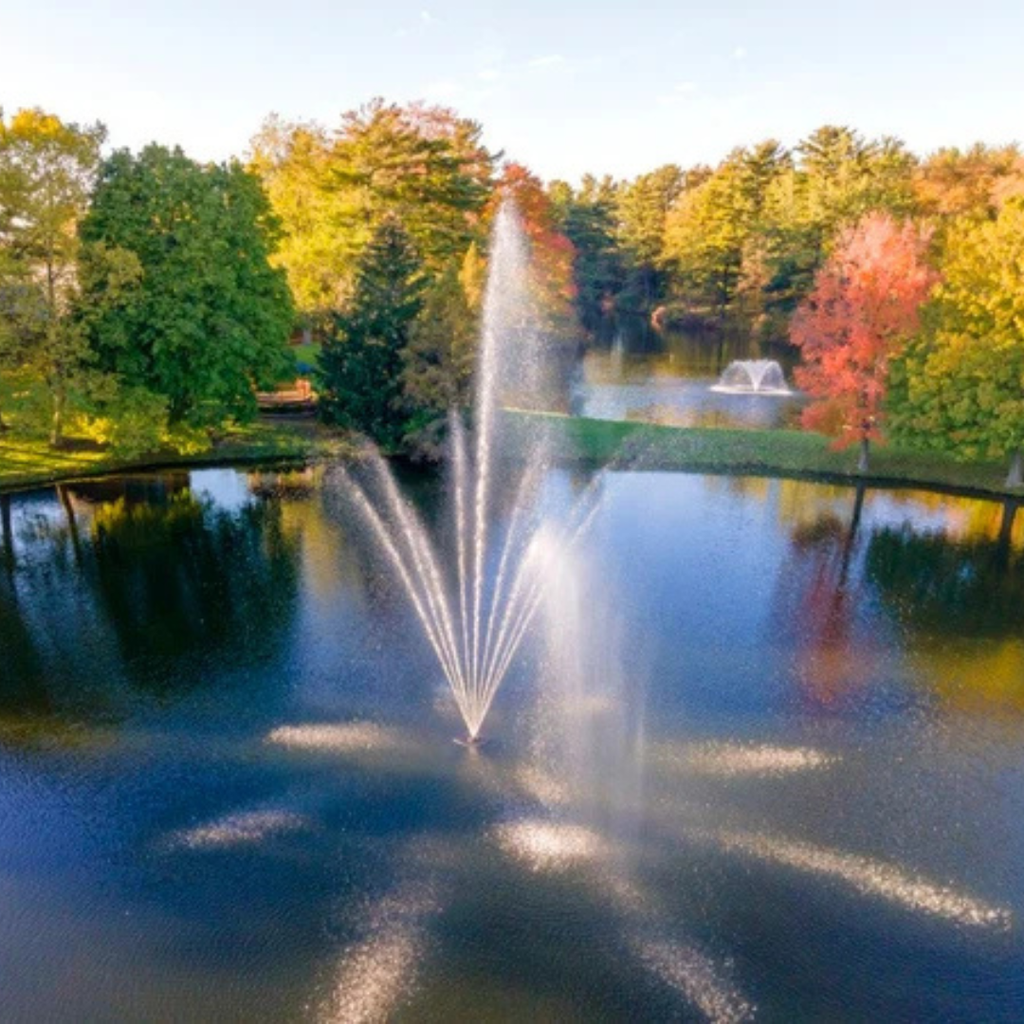

Large Spray Pattern: Produces an approximately 50-foot-high by 60-foot-wide water display.
High-Volume Flow: Circulates 155 gallons of water per minute.
Oil-Free Motor: Uses an oil-free submersible motor with no oil changes required.
Stainless-Steel Motor: The submersible motor is manufactured using stainless steel.
Continuous Operation: Designed for 24-hour-per-day operation.
Freshwater and Saltwater Use: Designed for operation in both fresh water and salt water.
Low-Maintenance Design: No routine motor maintenance is required.
No Control Box Required: Operates without a separate control box.
Winter-Ready Installation: Can remain installed during freezing weather with the power turned off and be restarted after the ice thaws.
Freezing-Condition Durability: Components are designed to withstand freezing temperatures without damage.
Optional Lighting: Compatible LED lighting kits can be added during the original purchase or installed later.
Residential and Commercial Applications: The water pattern is suitable for residential and commercial pond settings.
Easy Installation: Designed for installation using two nylon anchoring ropes and two weighted anchors.
Made in the USA: Manufactured in Holland, Michigan.
Safety Compliance: ARL-tested and compliant with UL standards and the National Electrical Code when installed as a complete package.
Specifications
Motor Rating: 2 hp
Voltage: 230 volts
Motor Type: Oil-free, submersible motor
Motor Material: Stainless steel
Frequency: 60 Hz
Phase: Single-phase
Motor Speed: 3,450 rpm
Current Draw: 10 amps
Flow Rate: 155 gallons per minute
Spray Pattern: Approximately 50 feet high by 60 feet wide
Standard Power Cord Length: 100 feet
Supplied Power Cord Gauge: 10-gauge
Power Cord Type: Submersible electric power cord

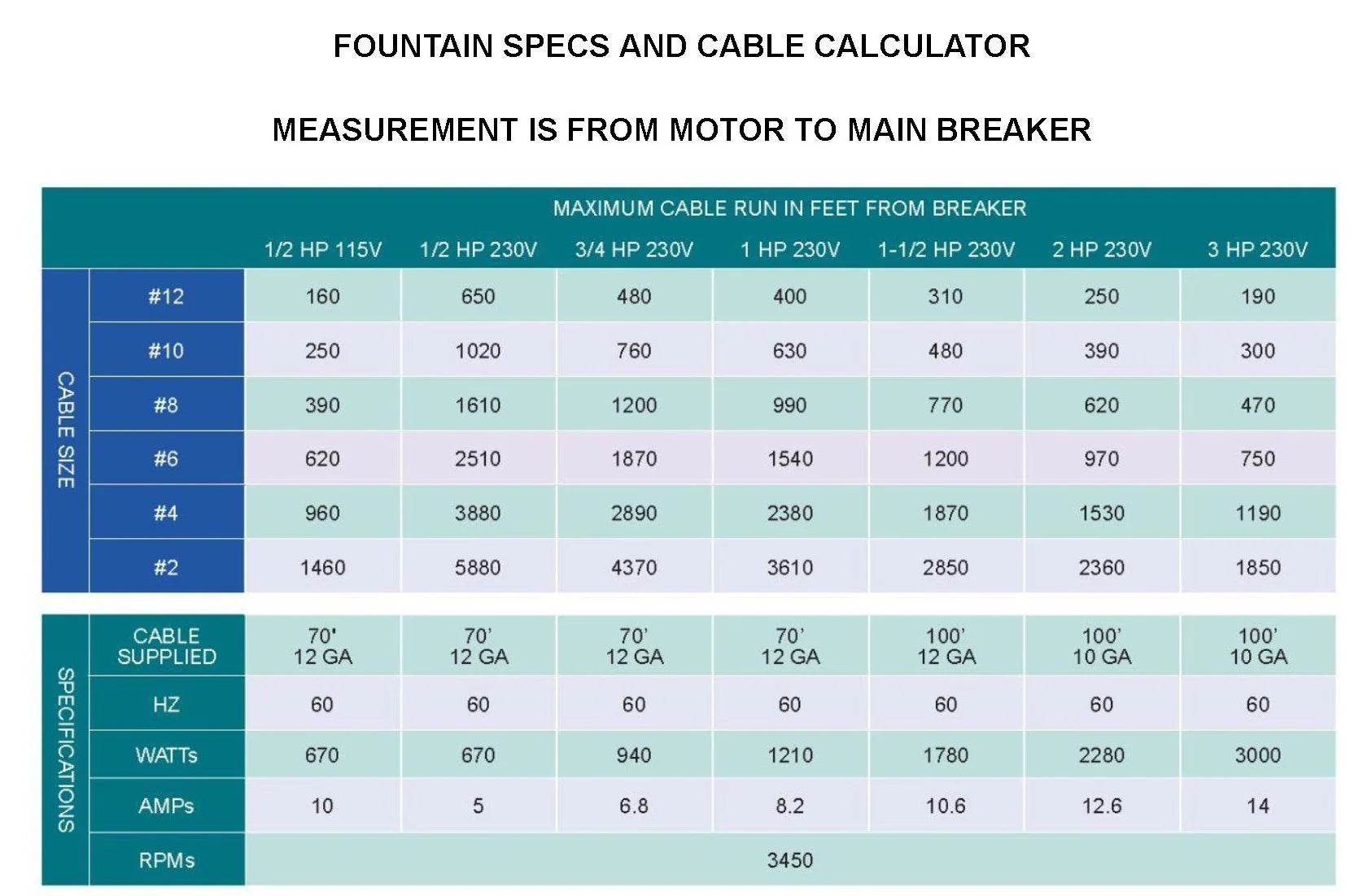

Maximum Cable Length With 12-Gauge Cable: 250 feet from the motor to the main power source
Maximum Cable Length With 10-Gauge Cable: 390 feet from the motor to the main power source
Maximum Cable Length With 8-Gauge Cable: 620 feet from the motor to the main power source
Maximum Cable Length With 6-Gauge Cable: 970 feet from the motor to the main power source
Maximum Cable Length With 4-Gauge Cable: 1,530 feet from the motor to the main power source
Maximum Cable Length With 2-Gauge Cable: 2,360 feet from the motor to the main power source
Extended Cord Availability: The electric power cord can be ordered in greater lengths.
Extension Cord Restriction: Do not use an extension cord to supply power to the motor.
Required Anchor Weight: Two 45-pound weights or concrete blocks
Required Anchoring Ropes: Two nylon ropes
Operating Schedule: Designed for 24-hour-per-day operation
Alternative Electrical Configurations: Three-phase and/or 50 Hz versions are also available.
GFCI Requirement: A Ground Fault Circuit Interrupter is required.
Swimmer Safety: Always disconnect power when swimmers are present.
Maintenance Requirement: No routine maintenance required
Control Box Requirement: No separate control box required
Size Guide
Minimum Pond Depth: 56 inches
Spray Height: Approximately 50 feet
Spray Width: Approximately 60 feet
Compatibility
Compatible With: Freshwater and saltwater ponds with a minimum water depth of 56 inches.
Electrical Compatibility: 230-volt, 60 Hz, single-phase electrical service.
Application Compatibility: Suitable for residential and commercial pond applications.
Optional Lighting Compatibility: Compatible LED lighting kits can be added during the original purchase or installed later.
Included
2 hp, 230-volt pond fountain
Solid brass center jet
Eight individual brass nozzles
100-foot, 10-gauge submersible electric power cord
Not Included
Two 45-pound anchoring weights or concrete blocks
Two nylon anchoring ropes
Light set Not Included
