Key Features
Distinctive Water Display: Uses a solid brass center nozzle surrounded by eight individual brass nozzles to create a multi-stream fountain pattern.
Large Spray Pattern: Produces an approximately 30-foot-high by 40-foot-wide display.
Water Circulation: Improves pond circulation and increases oxygen levels in the water.
High-Volume Flow: Moves 75 gallons of water per minute.
Oil-Free Motor: Uses an oil-free submersible motor with no oil changes required.
Stainless-Steel Construction: The submersible motor is manufactured from stainless steel.
Continuous Operation: Designed for 24-hour-per-day operation.
Freshwater and Saltwater Use: Suitable for operation in both fresh water and salt water.
Low-Maintenance Design: No routine motor maintenance is required.
No Control Box Required: Operates without a separate control box.
Winter-Ready Installation: Can remain in the water during winter with the power turned off and be restarted after the ice melts.
Subzero-Condition Durability: Components are designed to withstand freezing conditions without damage.
Optional Lighting: Compatible LED light kits can be added during the original purchase or installed later.
Easy Installation: Designed for installation using two nylon anchoring ropes and two weighted anchors.
Made in the USA: Manufactured in Holland, Michigan.
Safety Compliance: ARL-tested and compliant with applicable UL standards and the National Electrical Code when installed as a complete package.
Specifications
Motor Rating: 1 hp
Voltage: 115 volts
Motor Type: Oil-free, submersible motor
Motor Material: Stainless steel
Frequency: 60 Hz
Phase: Single-phase
Motor Speed: 3,450 rpm
Current Draw: 11.5 amps
Flow Rate: 75 gallons per minute
Spray Pattern: Approximately 30 feet high by 40 feet wide
Standard Power Cord Length: 100 feet
Supplied Power Cord Gauge: 10-gauge
Power Cord Type: Submersible electric power cord with plug

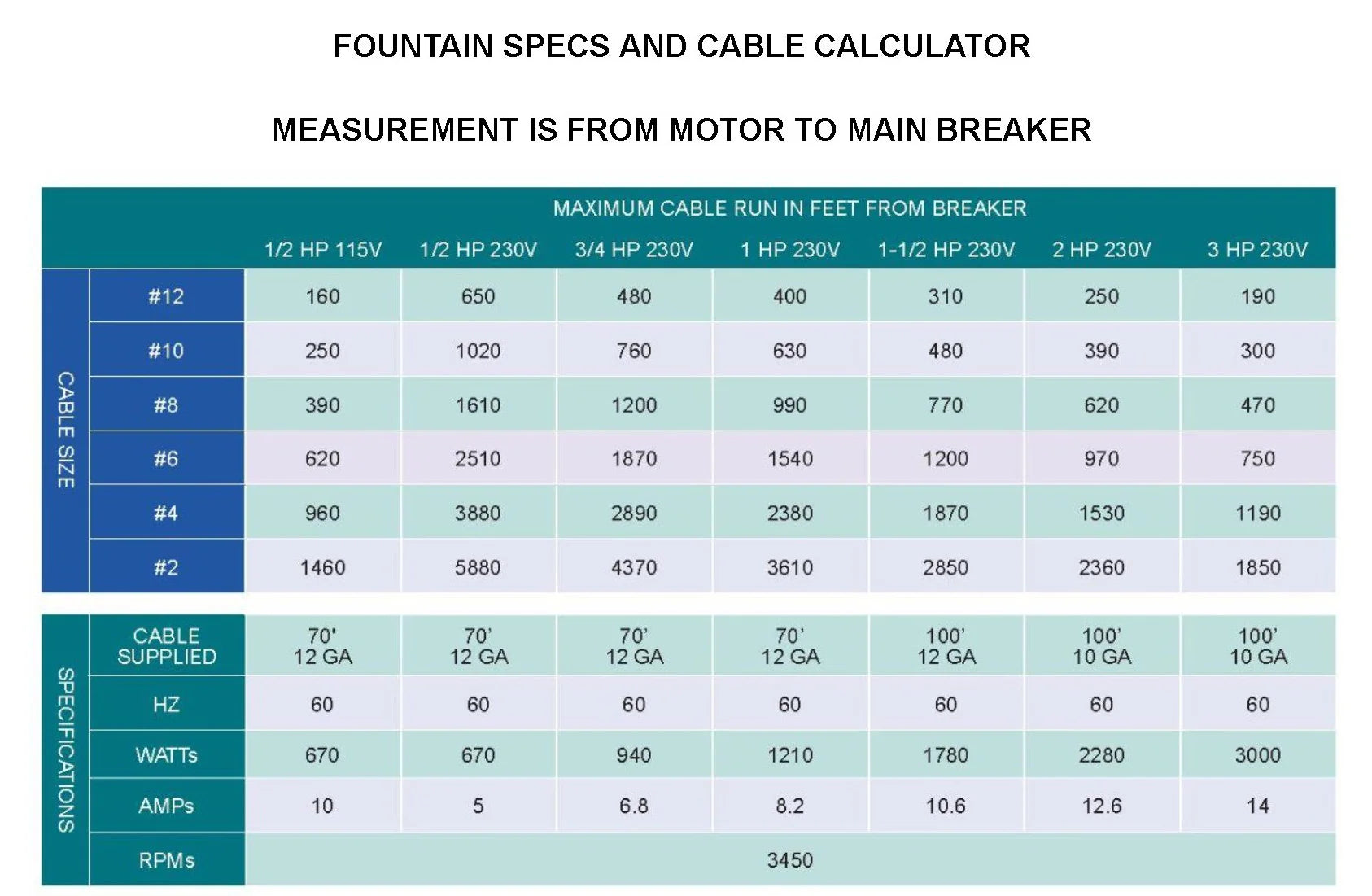

Maximum Cable Length With 10-Gauge Cable: 100 feet from the motor to the main power source
Extension Cord Restriction: Do not use an extension cord to supply power to the motor.
Required Anchor Weight: Two 35-pound weights or concrete blocks
Required Anchoring Ropes: Two nylon ropes
Operating Schedule: Designed for 24-hour-per-day operation
Alternative Electrical Configurations: Three-phase and/or 50 Hz versions are also available.
GFCI Requirement: A Ground Fault Circuit Interrupter is required.
Swimmer Safety: Always disconnect power when swimmers are present.
Maintenance Requirement: No routine maintenance required
Control Box Requirement: No separate control box required
Size Guide
Minimum Pond Depth: 44 inches
Spray Height: Approximately 30 feet
Spray Width: Approximately 40 feet
Compatibility
Compatible With: Freshwater and saltwater ponds with a minimum water depth of 44 inches.
Electrical Compatibility: 115-volt, 60 Hz, single-phase electrical service where the distance from the motor to the main power source does not exceed 100 feet using the supplied 10-gauge cable.
Application Compatibility: Suitable for residential and commercial pond applications.
Optional Lighting Compatibility: Compatible LED light sets can be added during the original purchase or installed later.
Included
1 hp, 115-volt pond fountain with a solid brass center nozzle and eight individual brass nozzles
100-foot, 10-gauge submersible electric power cord with plug
Not Included
Two 35-pound anchoring weights or concrete blocks
Two nylon anchoring ropes
Light set Not Included
