Key Features

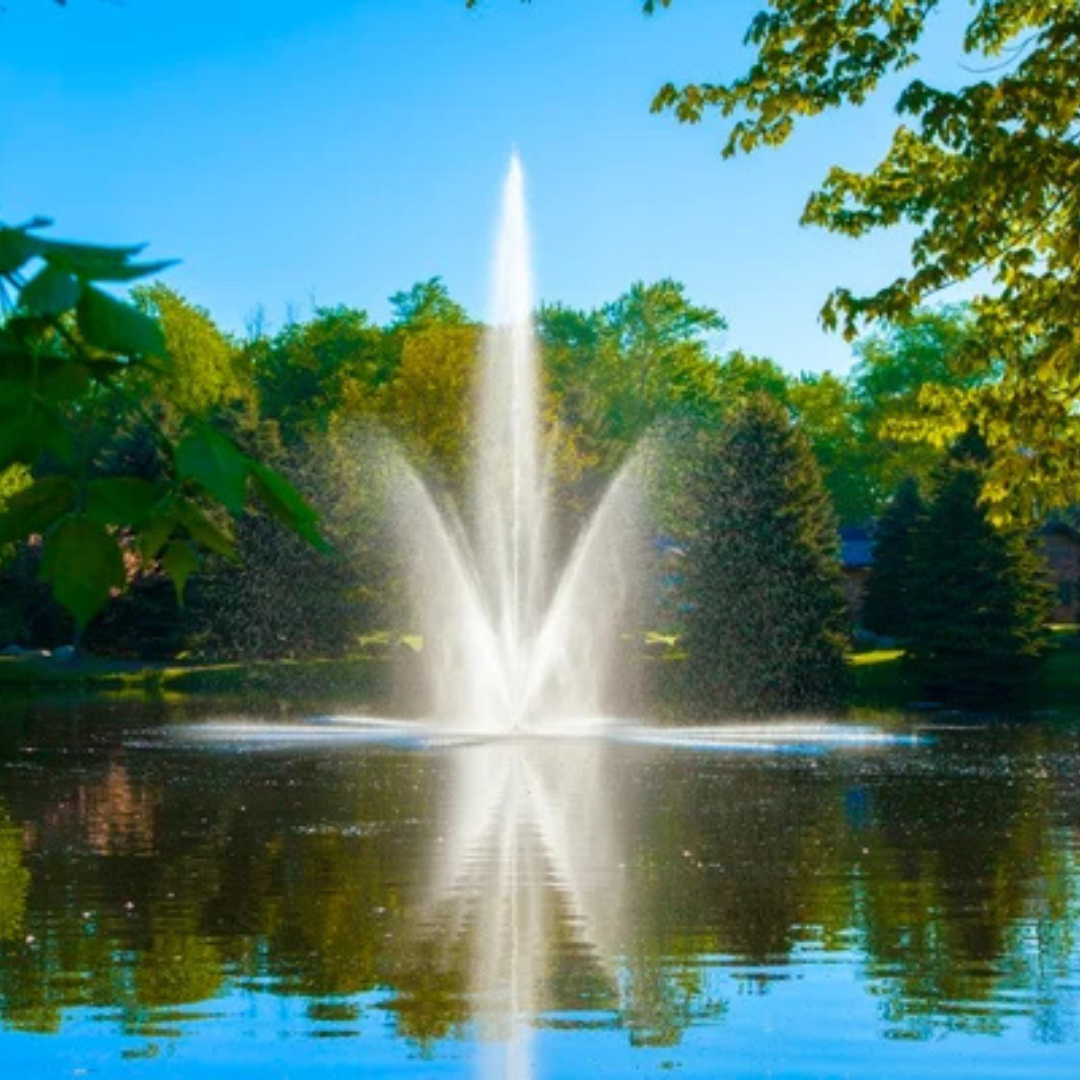

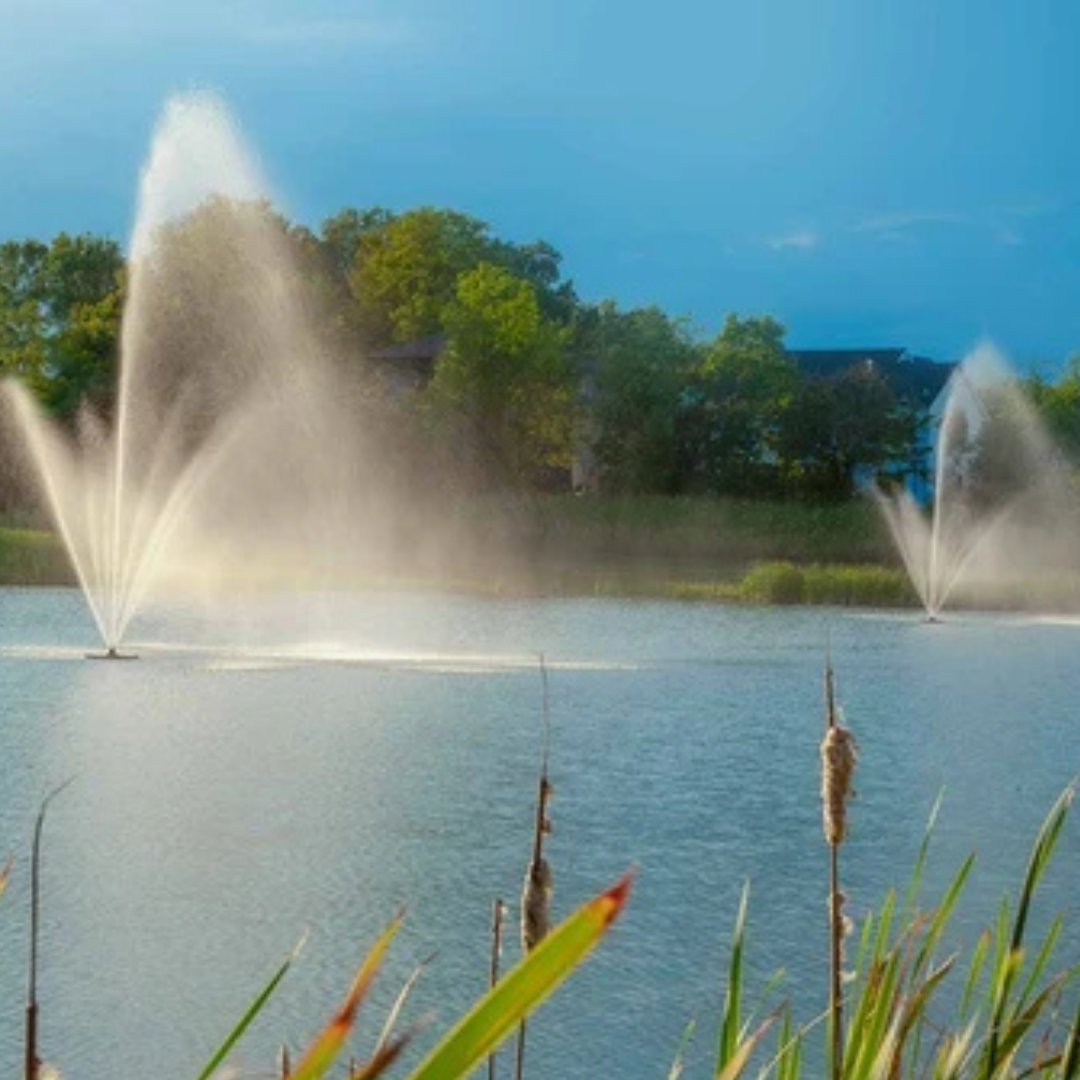

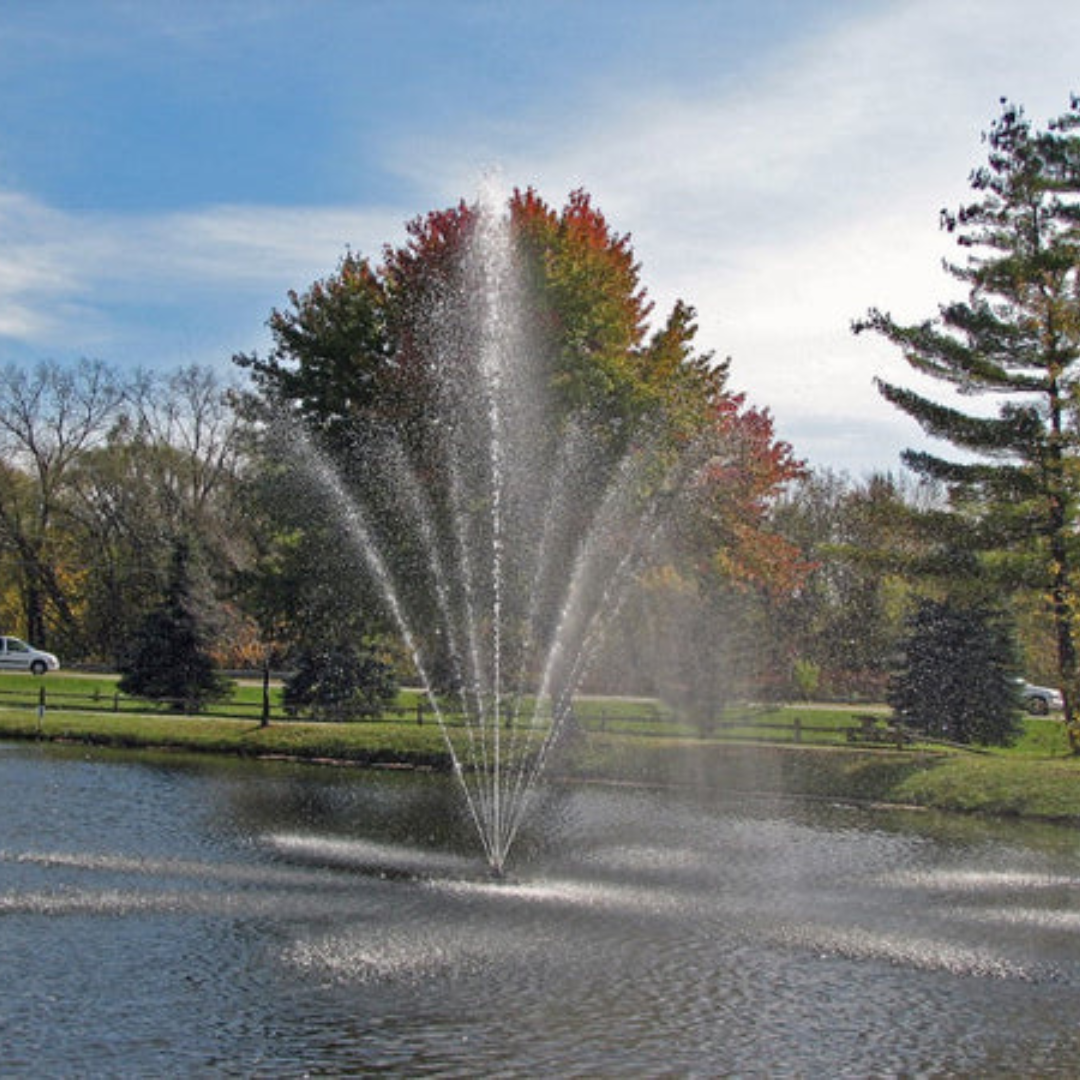

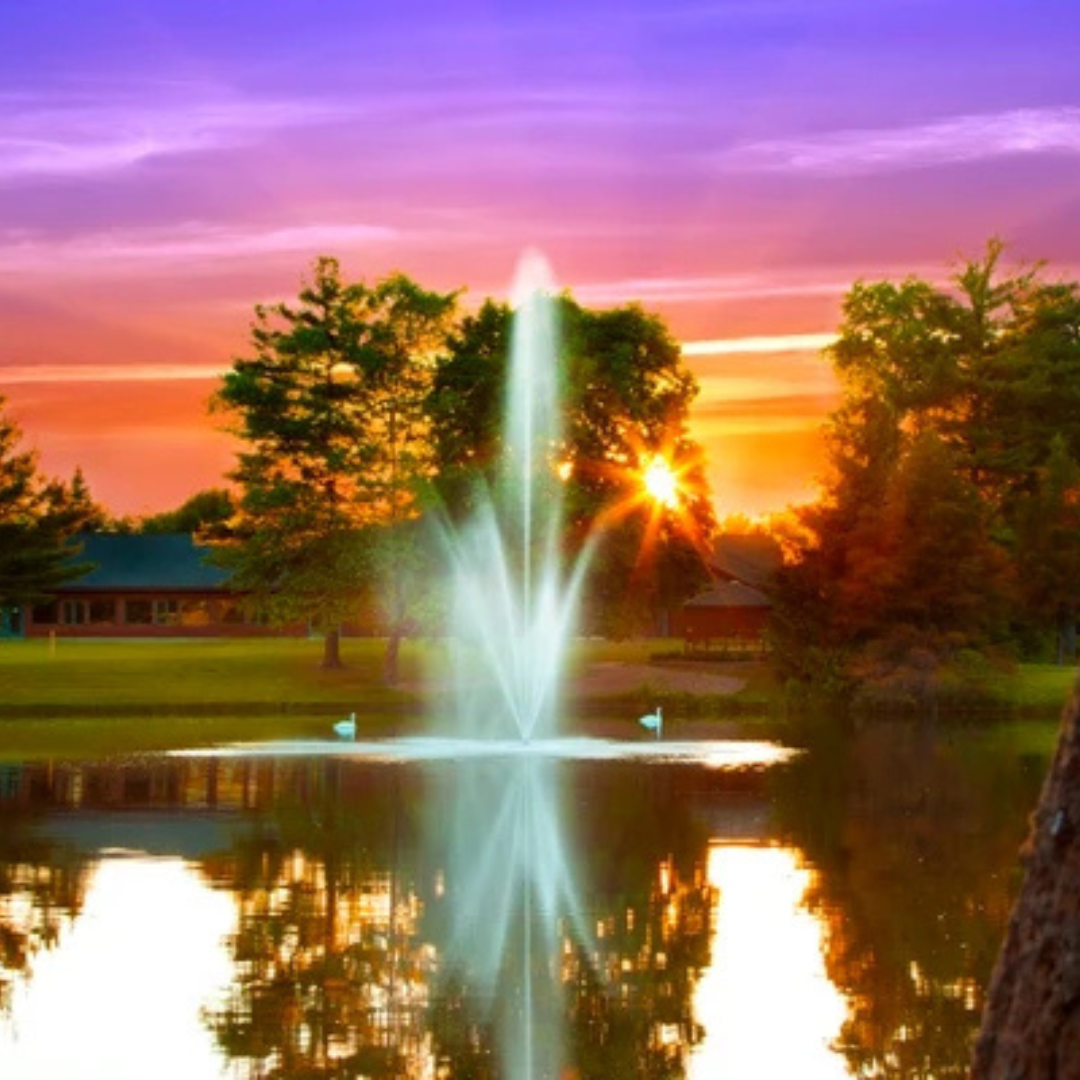

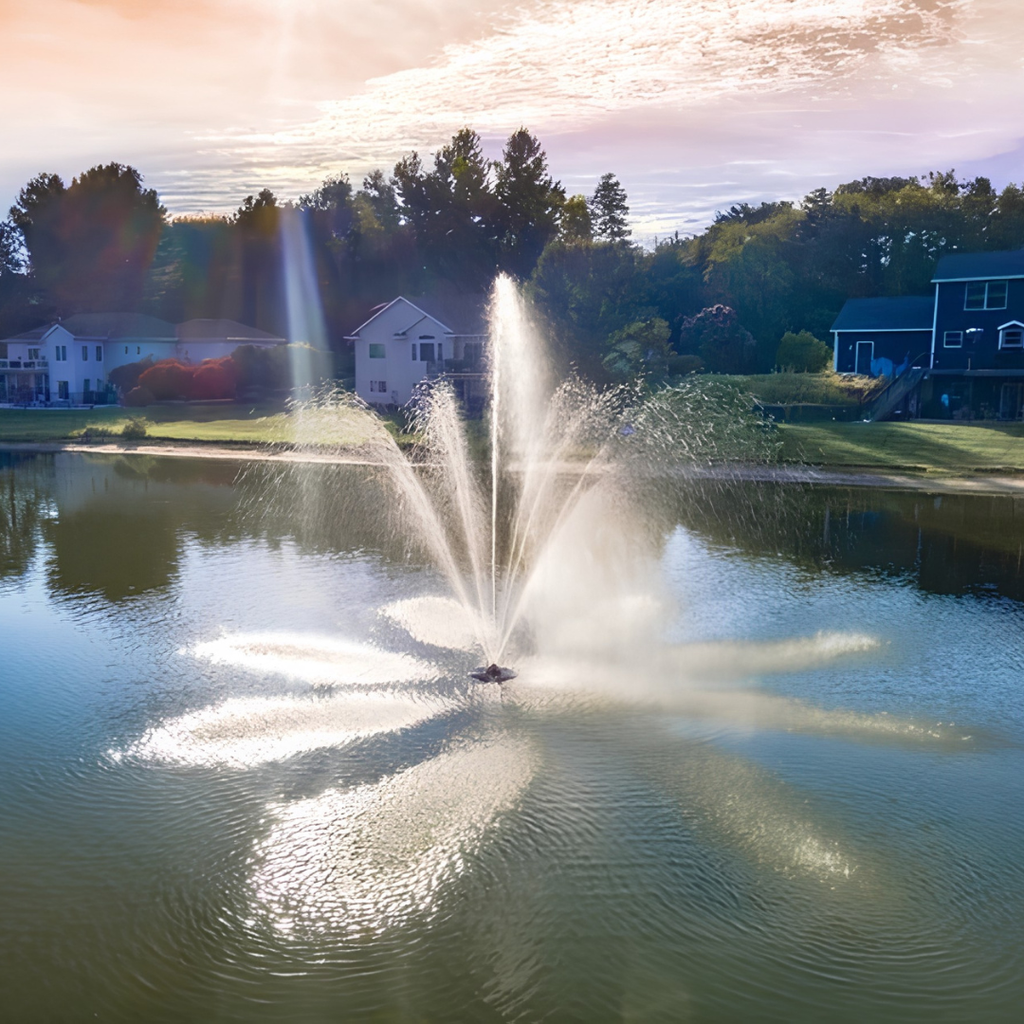

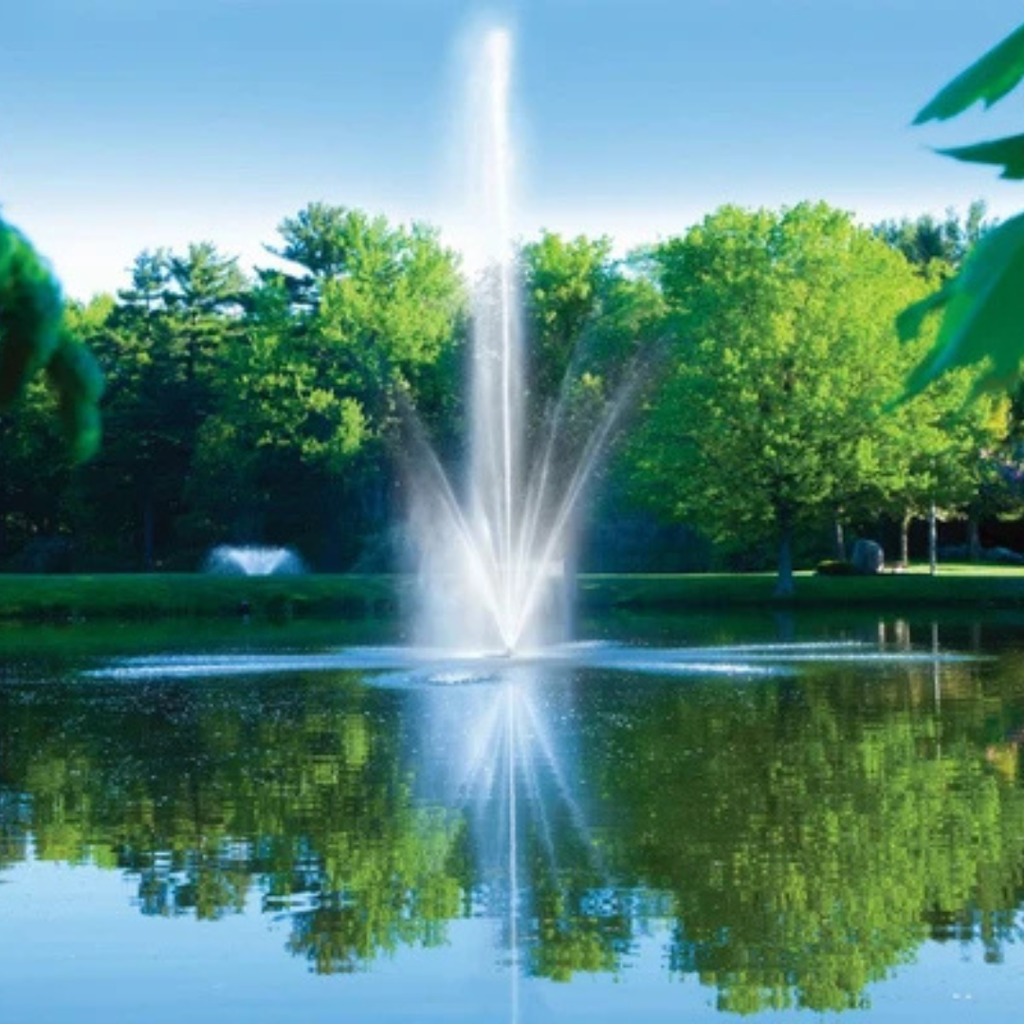

Distinctive Water Display: Creates a 20-foot center stream surrounded by angled side sprays measuring approximately 35 feet in diameter.
Brass Nozzle Arrangement: Uses one solid brass center nozzle surrounded by eight individual brass nozzles.
Water Circulation: Increases circulation and improves oxygen distribution throughout the pond.
Oil-Free Motor: Uses an oil-free submersible motor with no oil changes required.
Stainless-Steel Motor: The submersible motor is manufactured from stainless steel.
Continuous Operation: Designed for 24-hour-per-day operation.
Freshwater and Saltwater Use: Designed for operation in both fresh water and salt water.
Low-Maintenance Design: No routine motor maintenance or oil changes are required.
No Control Box Required: Operates without a separate control box.
Winter-Ready Installation: Can remain in the water during winter with the power turned off and be restarted after the water thaws.
Subzero-Condition Durability: Components are designed to withstand subzero conditions without damage.
Optional Lighting: Compatible LED light sets can be added during the original purchase or installed later.
Multiple Electrical Options: Available in 115-volt and 230-volt configurations.
Made in the USA: Manufactured in Holland, Michigan.
Safety Compliance: ARL-tested and compliant with applicable UL standards and the National Electrical Code when installed as a complete package.
Specifications
Motor Rating: ½ hp
Available Voltages: 115 volts and 230 volts
Motor Type: Oil-free, submersible motor
Motor Material: Stainless steel
Frequency: 60 Hz
Phase: Single-phase
Motor Speed: 3,450 rpm
115-Volt Current Draw: 10 amps
230-Volt Current Draw: 5 amps
Flow Rate: 45 gallons per minute
Center Stream Height: Approximately 20 feet
Side Spray Diameter: Approximately 35 feet
Standard Power Cord Length: 70 feet
Supplied Power Cord Gauge: 12-gauge
115-Volt Power Cord: Submersible power cord with plug
230-Volt Power Cord: Submersible power cord
Extended Cord Availability: The power cord can be ordered in greater lengths.
115-Volt Power-Distance Requirement: The distance from the main breaker to the fountain must not exceed 100 feet for proper operation.

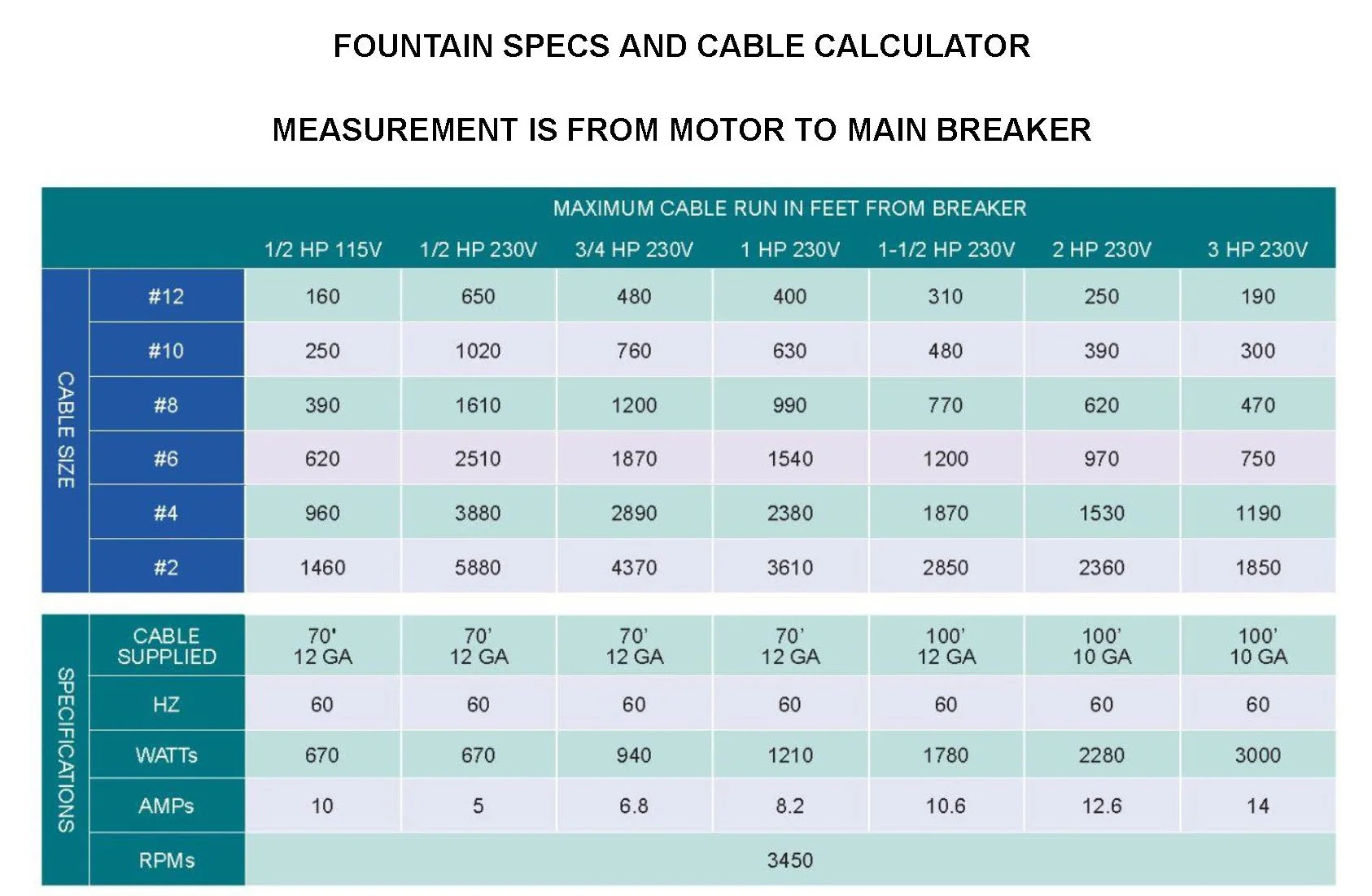

230-Volt Maximum Cable Length With 12-Gauge Cable: 650 feet from the motor to the main power source
Extension Cord Restriction: Do not use an extension cord to supply power to the motor.
Required Anchor Weight: Two 25-pound weights or concrete blocks
Required Anchoring Ropes: Two nylon ropes
Recommended Anchoring-Rope Thickness: ⅜ inch or thicker
Minimum Anchor Spacing: 20 feet apart
Operating Schedule: Designed for 24-hour-per-day operation
GFCI Requirement: A Ground Fault Circuit Interrupter must be used.
Electrical Installation: A licensed electrical contractor should supply power to the fountain.
Swimmer Safety: Always disconnect power when swimmers are present.
Alternative Electrical Configurations: Three-phase and/or 50 Hz configurations are also available.
Control Box Requirement: No separate control box required.
Anchoring-Rope Maintenance: Quality nylon anchoring ropes measuring ⅜ inch or thicker should generally be replaced approximately every five years.
Cleaning Guidance: The fountain may be cleaned with high-pressure water when removed for anchoring-rope replacement.
Inspection Guidance: Inspect the fountain after cleaning to ensure nothing is restricting water flow.
Size Guide
Minimum Pond Depth: 36 inches
Center Stream Height: Approximately 20 feet
Side Spray Diameter: Approximately 35 feet
Compatibility
Compatible With: Freshwater and saltwater ponds with a minimum water depth of 36 inches.
115-Volt Electrical Compatibility: 115-volt, 60 Hz, single-phase electrical service where the distance from the main breaker to the fountain does not exceed 100 feet.
230-Volt Electrical Compatibility: 230-volt, 60 Hz, single-phase electrical service.
Optional Lighting Compatibility: Color-Changing LED two-light and four-light sets and Night Glo LED two-light and four-light sets can be added, but are not included with the requested configurations.
Included
Atriarch fountain pump assembly
Solid brass center nozzle
Eight individual brass nozzles
Float platform
Stainless-steel filter
Two 5/16-inch by 2-inch stainless-steel bolts
Two stainless-steel nuts and washers
Three stainless-steel screws
70-foot, 12-gauge submersible power cord
Plug on the 115-volt power cord
Not Included
Two 25-pound anchoring weights or concrete blocks
Two nylon anchoring ropes
Color-Changing LED light set
Night Glo LED light set
