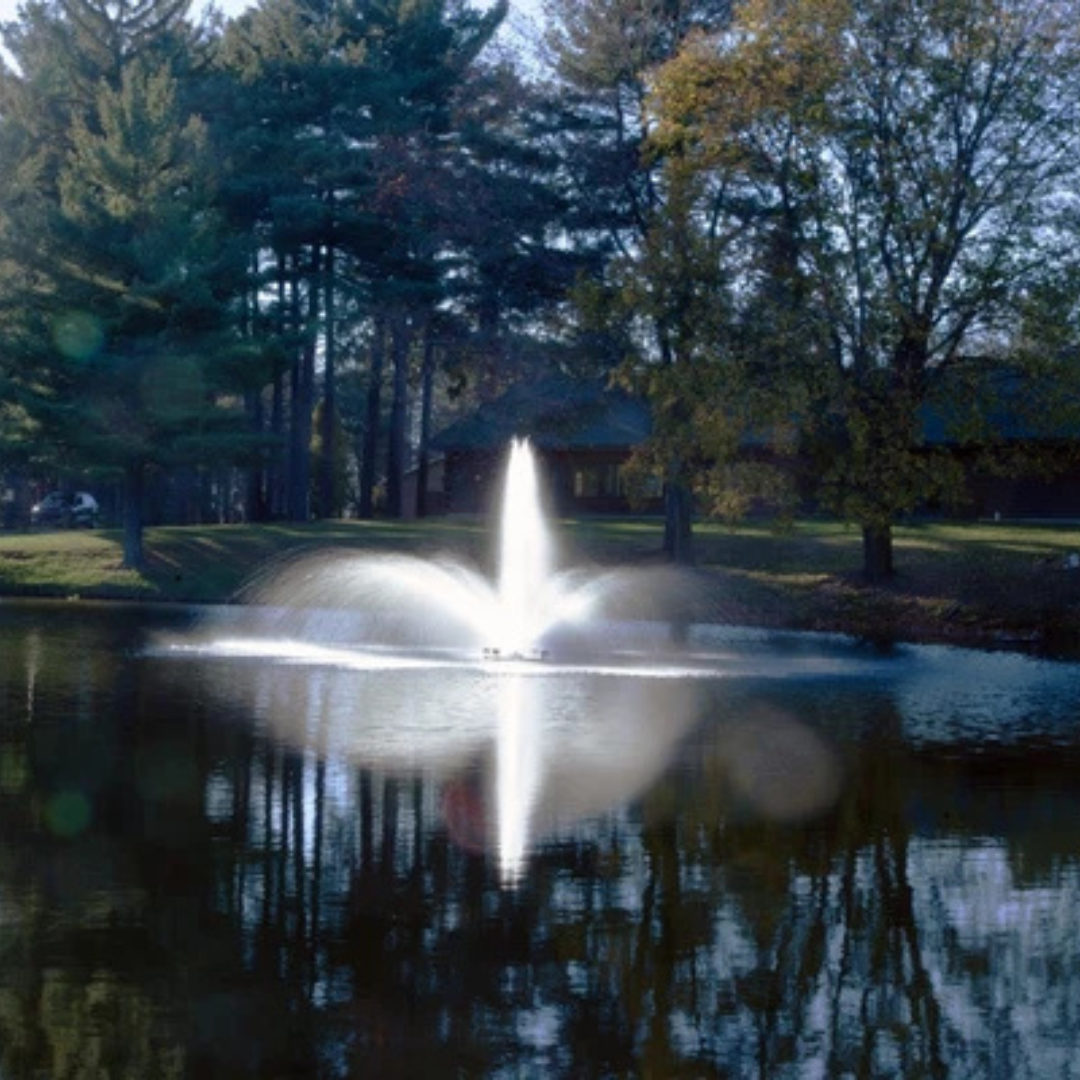

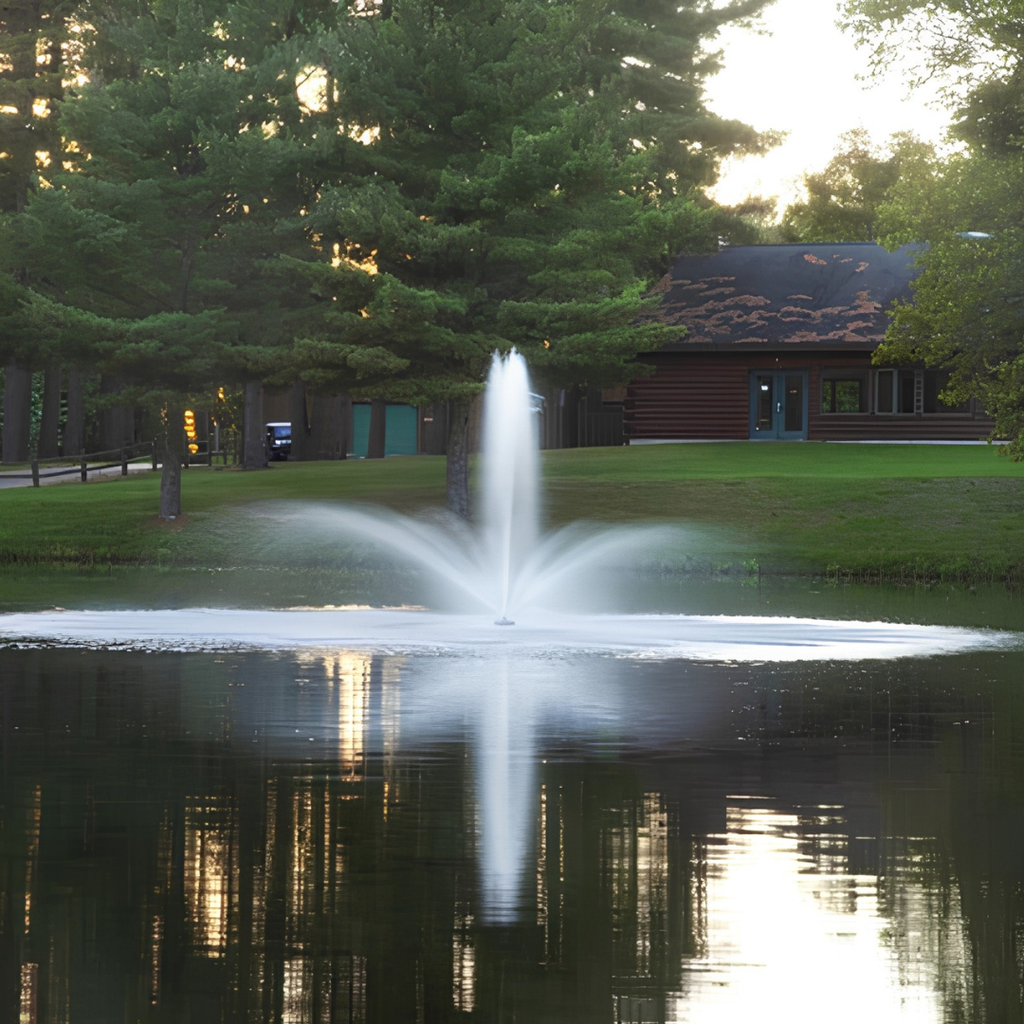

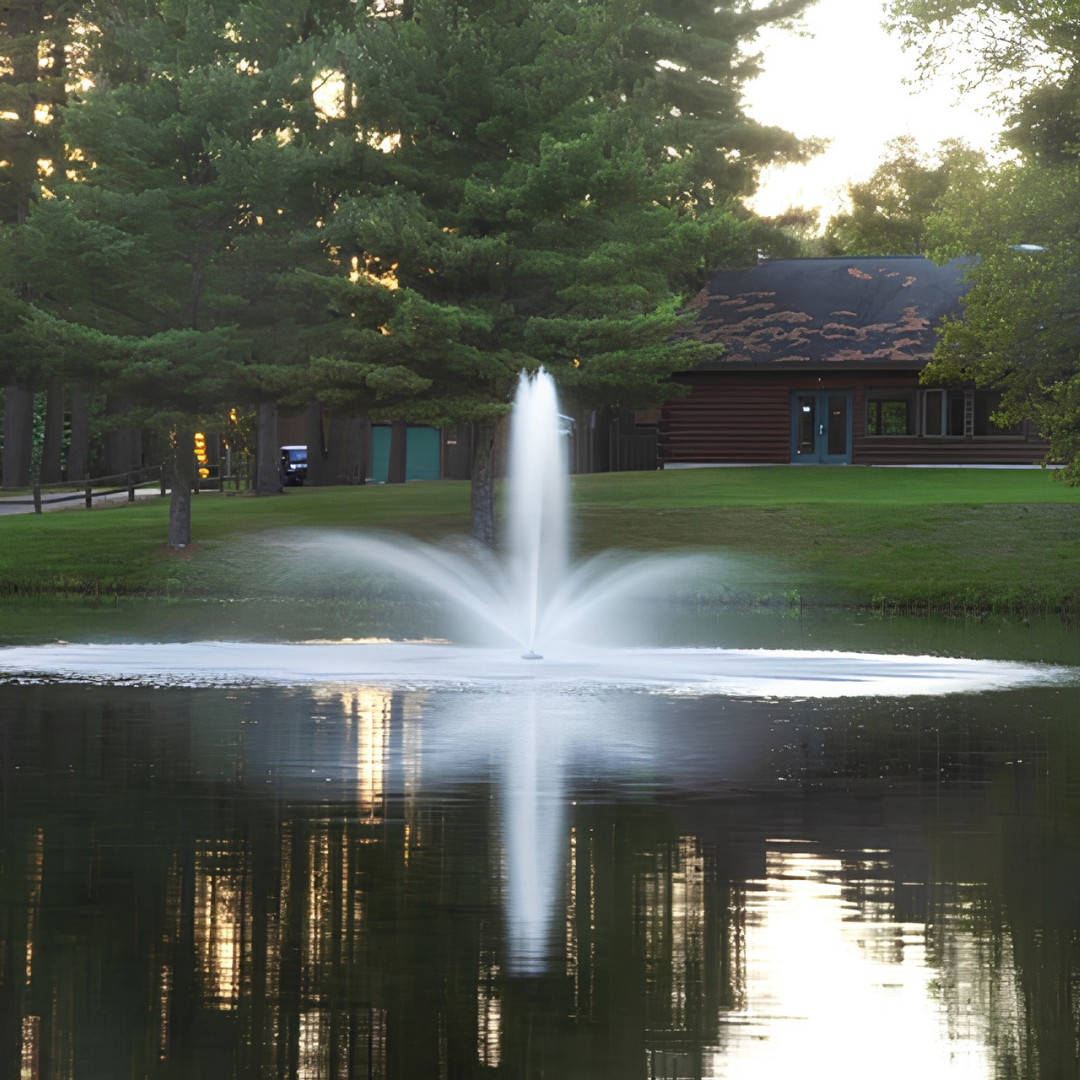

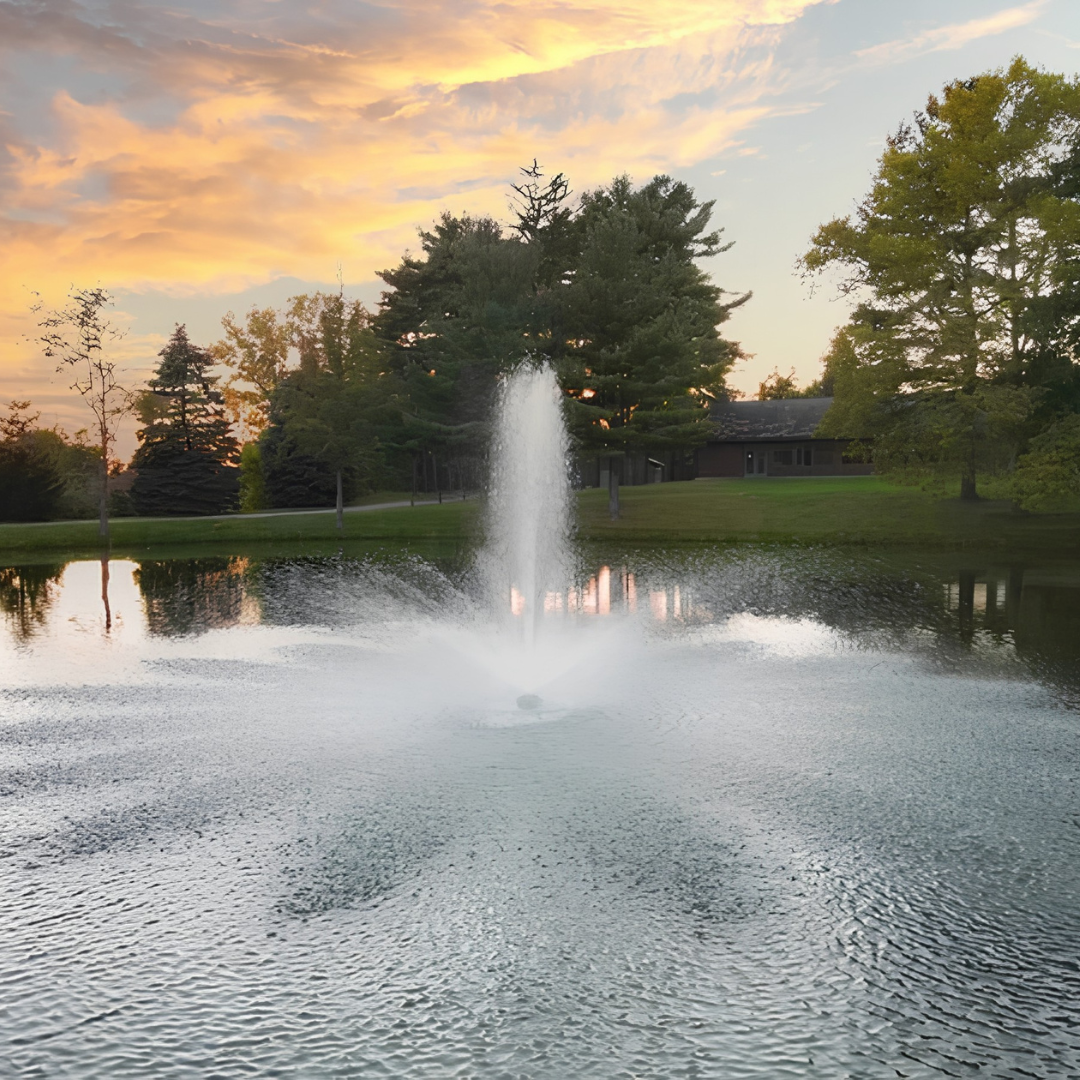

The Baystone Fountain is designed for medium-sized residential ponds, producing a prominent center peak surrounded by a traditional outer spray pattern. The display adds movement and visual interest while supporting the pond’s overall aquatic environment.
This configuration uses a 1-hp, 115-volt motor with a flow rate of 75 gallons per minute. It creates a spray pattern measuring up to 14 feet high by 30 feet wide and requires a minimum pond depth of 44 inches.
The stainless-steel, oil-free, submersible motor is designed for continuous operation in fresh or salt water. It requires no oil changes, routine maintenance, or separate control box.
Key Features
-
Center-Peak Display: Produces a center peak surrounded by a traditional outer spray pattern.
-
Medium-Pond Application: Designed for medium-sized residential ponds.
-
Water Circulation: Delivers a flow rate of 75 gallons per minute.
-
Oil-Free Motor: Requires no motor oil changes.
-
Submersible Construction: Uses a stainless-steel, oil-free, submersible motor.
-
Low-Maintenance Operation: No routine maintenance or separate control box is required.
-
Continuous Operation: Designed for operation 24 hours per day.
-
Freshwater and Saltwater Use: Suitable for operation in both fresh and salt water.
-
Cold-Weather Installation: The fountain may remain installed during freezing conditions after the power is switched off. Power can be restored after the ice thaws.
-
Optional Lighting: Compatible light kits may be selected during purchase or added later.
-
Made in the USA: Manufactured in Holland, Michigan.
Specifications
-
Motor Power: 1 hp
-
Voltage: 115 V
-
Frequency: 60 Hz
-
Phase: Single-phase
-
Motor Speed: 3,450 rpm
-
Current Draw: 11.5 amps
-
Flow Rate: 75 gallons per minute
-
Spray Dimensions: Up to 14 feet high × 30 feet wide
-
Minimum Pond Depth: 44 inches
-
Supplied Power Cord: 100 feet long, 10-gauge, submersible, with plug
-
Longer Power Cord Availability: Electric power cords may be ordered in greater lengths.
-
Maximum Main-Breaker Distance: The distance from the main breaker to the fountain must not exceed 100 feet for proper 115-volt motor operation. A 230-volt motor should be selected when the distance exceeds 100 feet.
-
Motor Construction: Stainless-steel, oil-free and submersible
-
Water Compatibility: Fresh water and salt water
-
Operating Capability: Designed for 24-hour-per-day operation
-
Maintenance Requirement: No routine maintenance or oil changes required
-
Control Box Requirement: No separate control box required
-
Required Anchoring Weight: Two 35-pound weights or concrete blocks
-
Required Anchoring Lines: Two nylon ropes
-
Required Electrical Protection: A Ground Fault Circuit Interrupter is required.
-
Swimmer Safety: Always disconnect power when swimmers are present.
-
Testing and Compliance: ARL-tested and compliant with UL standards and the National Electrical Code when installed as a complete package.
Size Guide
-
Spray Height: Up to 14 feet
-
Spray Width: Up to 30 feet
-
Minimum Pond Depth: 44 inches
Compatibility
-
Compatible With: Medium-sized residential freshwater and saltwater ponds.
-
Electrical Application: 115-volt installations where the distance from the main breaker to the fountain does not exceed 100 feet.
-
Compatible Lighting: Light kits offered for this fountain may be selected during purchase or added later.
Included
- Baystone brass nozzle
- 100-foot, 10-gauge submersible electric power cord with plug
Not Included
- Two 35-pound anchoring weights or concrete blocks
- Two nylon anchoring ropes
- Light set Not Included
