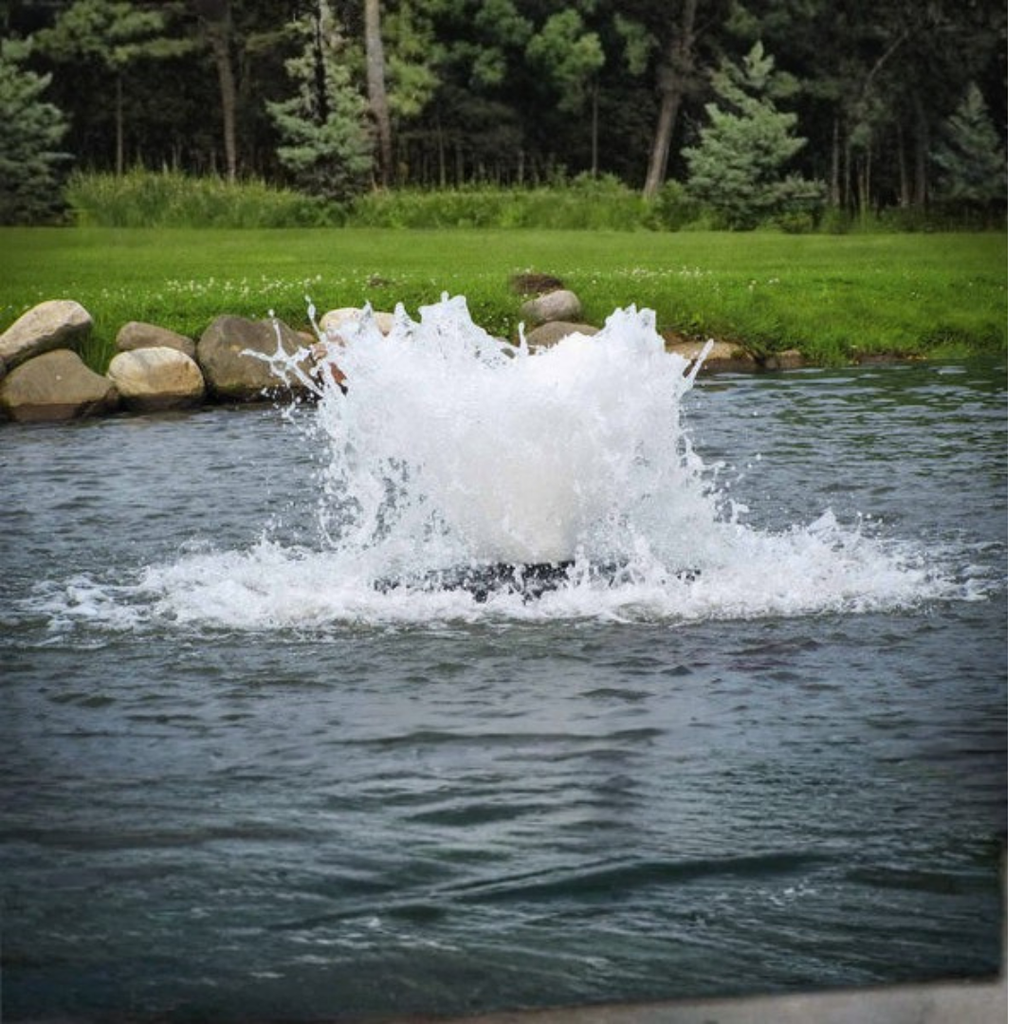

The Boilermaker is a surface aerator designed to increase oxygen transfer and circulate a large volume of water in large commercial ponds. Its low-profile design creates a high-volume white-boil effect of highly aerated water with minimal vertical display.
This product is available with 2 hp and 3 hp, 230-volt motor configurations. The 2 hp configuration delivers a flow rate of 700 gallons per minute, while the 3 hp configuration delivers 800 gallons per minute. Both are intended for ponds greater than ½ acre and require a minimum water depth of 42 inches.
Both configurations use stainless-steel, oil-free submersible motors designed for continuous operation in fresh water and salt water. The aerator can also remain installed during winter and function as a pond de-icer.
Key Features
High-Volume Aeration: Provides high oxygen-transfer rates and large-volume water circulation for pond aeration.
Two Motor Configurations: Available with either a 2 hp or 3 hp, 230-volt motor.
Low-Profile Water Display: Produces a high-volume white-boil effect of highly aerated water with minimal vertical display.
Strong Surface Current: The larger motor configurations generate increased water flow and a stronger surface current for lakes and ponds.
Pond De-Icing Capability: Performs as a pond de-icer during winter conditions.
Winter-Ready Design: Can remain installed after power is turned off and be restarted after the water thaws.
Subzero-Condition Durability: Components are engineered to withstand subzero temperatures without damage.
Oil-Free Motor: Uses an oil-free submersible motor with no oil changes required.
Low-Maintenance Operation: No routine maintenance or separate control box is required.
Continuous Operation: Designed for 24-hour-per-day operation.
Freshwater and Saltwater Use: Designed for fresh water and approved for saltwater operation.
Made in the USA: Manufactured in Holland, Michigan.
Safety Compliance: ARL-tested and compliant with UL standards and the National Electric Code when installed as a complete package.
Specifications
Motor Options: 2 hp, 230 volts; 3 hp, 230 volts
Motor Type: Oil-free, submersible motor
Motor Material: Stainless steel
Voltage: 230 volts
Frequency: 60 Hz
Phase: Single-phase
Motor Speed: 3,450 rpm
2 hp Power Rating: 1.5 kW
3 hp Power Rating: 2.2 kW
2 hp Current Draw: 10 amps
3 hp Current Draw: 13.3 amps
2 hp Flow Rate: 700 gallons per minute
3 hp Flow Rate: 800 gallons per minute
Spray Type: Highly aerated, low-profile spray
Standard Power Cord Length: 100 feet
Power Cord Gauge: 10-gauge
Power Cord Type: Submersible electric power cord
Extended Cord Availability: The electric power cord can be ordered in greater lengths.

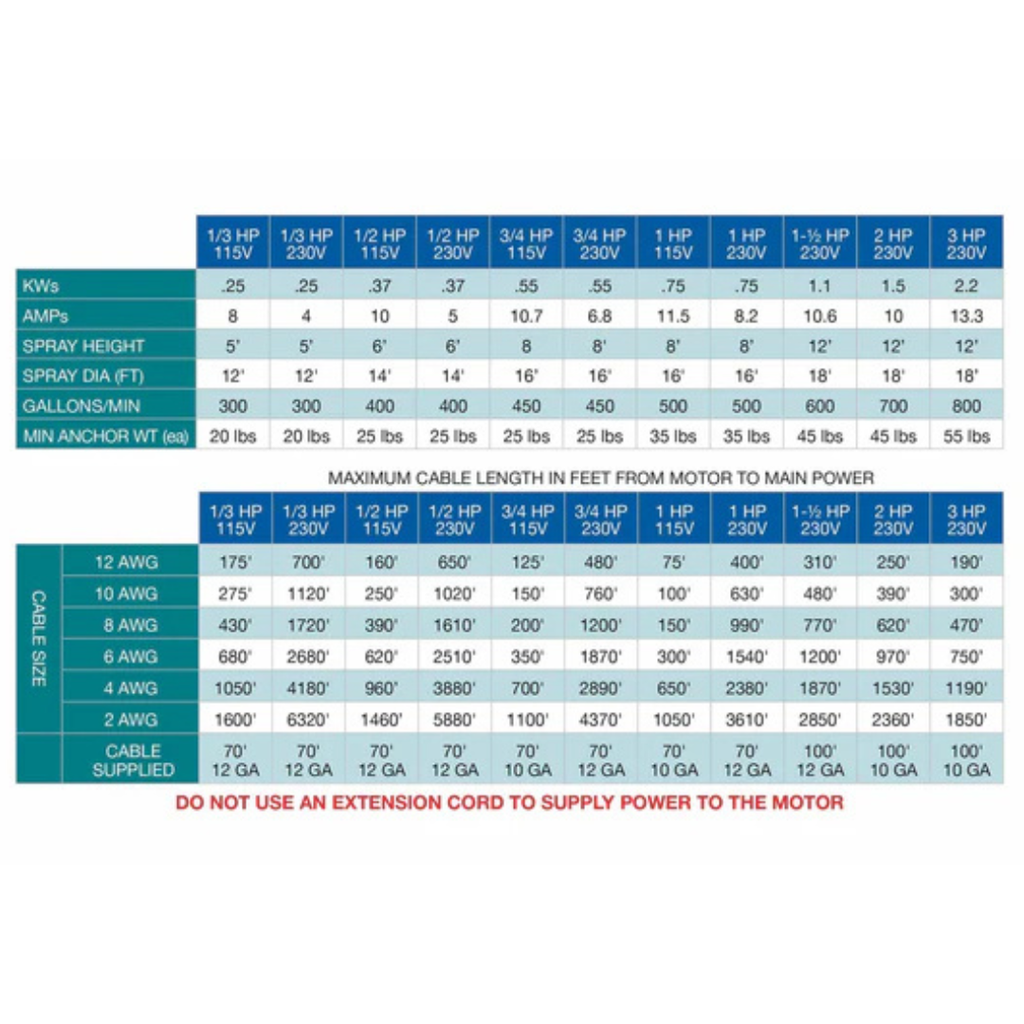

2 hp Maximum Cable Length With 10 AWG Cable: 390 feet from the motor to the main power source
3 hp Maximum Cable Length With 10 AWG Cable: 300 feet from the motor to the main power source
Extension Cord Restriction: Do not use an extension cord to supply power to the motor.
2 hp Required Anchoring Weight: Two 45-pound weights or concrete blocks
3 hp Required Anchoring Weight: Two 55-pound weights or concrete blocks
Required Anchoring Ropes: Two nylon ropes
Operating Schedule: Designed for 24-hour-per-day operation
Alternative Electrical Configurations: Three-phase and/or 50 Hz versions are also available.
GFCI Requirement: A Ground Fault Circuit Interrupter is required.
Swimmer Safety: Power must always be disconnected when swimmers are present.
Maintenance Requirement: No maintenance required
Control Box Requirement: No control box required
Size Guide
Recommended Pond Size: Greater than ½ acre
Minimum Pond Depth: 42 inches
Compatibility
Compatible With: Freshwater and saltwater ponds greater than ½ acre with a minimum water depth of 42 inches
Electrical Compatibility: 230-volt, 60 Hz, single-phase electrical service
Included
Selected 2 hp or 3 hp, 230-volt surface aerator
100-foot, 10-gauge submersible electric power cord
Not Included
Two anchoring weights or concrete blocks—45 pounds each for the 2 hp configuration or 55 pounds each for the 3 hp configuration
