Scott Aerator Bubble Pro Max Subsurface Aerators

The Bubble Pro Max Subsurface Aerators provide bottom-up pond aeration using diffusers positioned on the pond floor and connected to an onshore compressor through weighted airline tubing. Fine bubbles rise through the water column, creating circulation that moves oxygen-depleted bottom water toward the surface for natural reoxygenation.

The system is designed for straightforward installation and can also be used as a de-icing solution.

Key Features

• Subsurface Aeration: Delivers air from a shore-mounted compressor to diffusers positioned at the pond bottom.

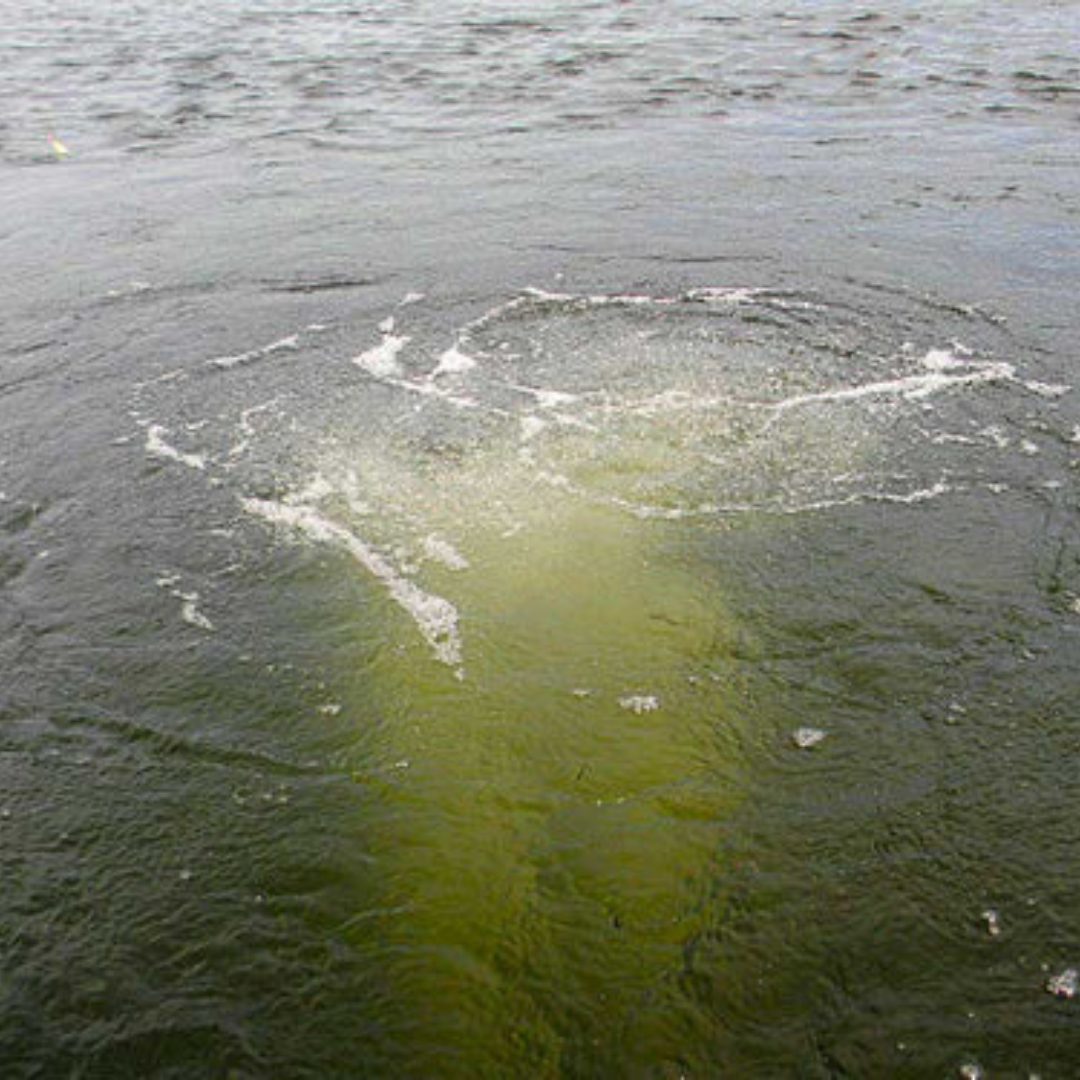

• Water Circulation: Rising microbubbles create an upward current that circulates water through the pond.
• Individual Airflow Control: The valved air outlet assembly provides individual control for each hose.
• Pressure Relief: The air outlet assembly incorporates a pressure relief valve.
• De-Icing Application: Can also be used as a pond de-icing solution.

Specifications

• Compressor: ½ hp rocking-piston compressor
• Diffusers: Three double diffusers
• Weighted Airline: Three 100 ft lengths of 3/8 in quick-sink weighted tubing
• Voltage Options: 115 V and 230 V

Size Guide

• 5–8 ft Pond Depth: Covers up to ¾ acre
• 9–12 ft Pond Depth: Covers up to 1½ acres
• 13–16 ft Pond Depth: Covers up to 3 acres

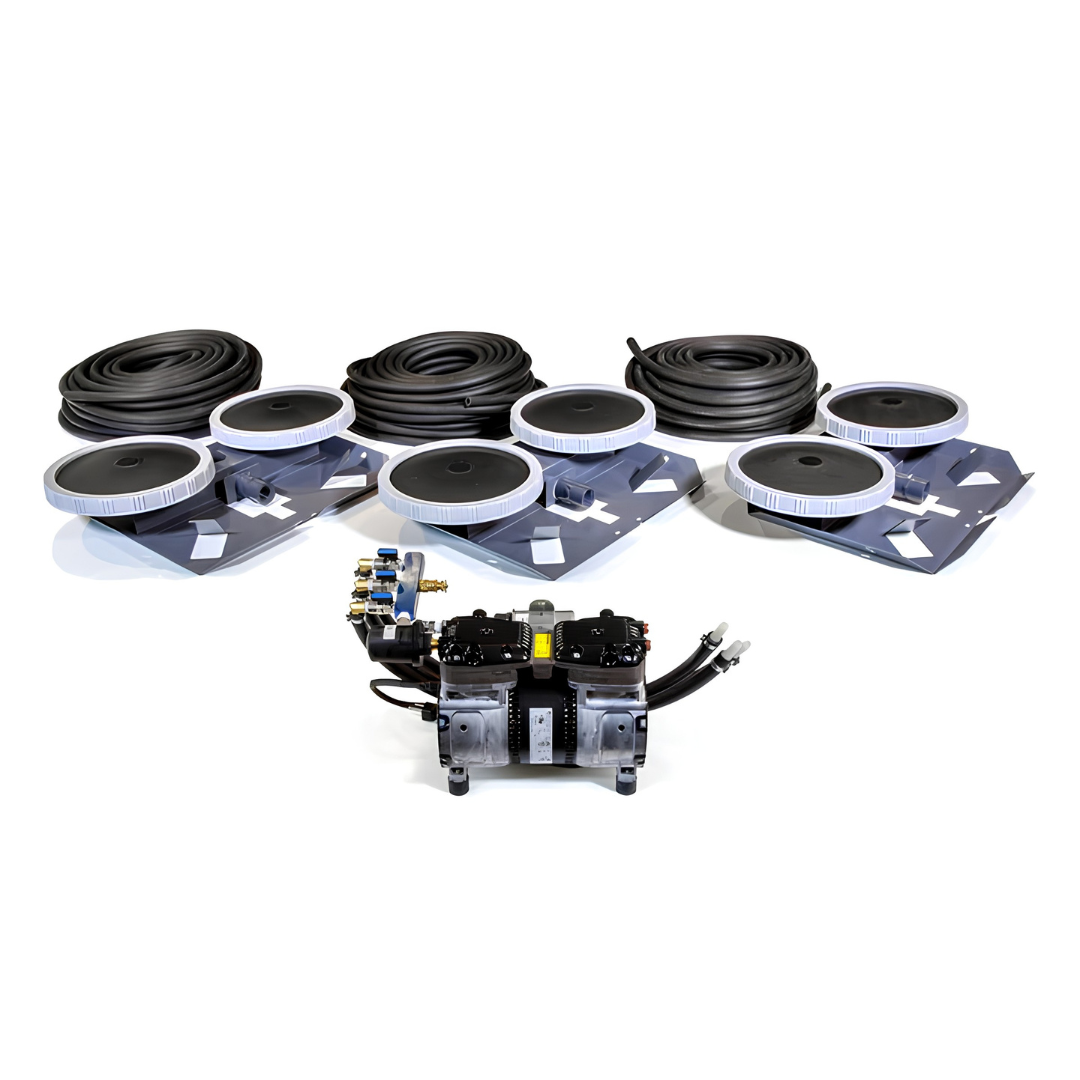

Included

• Three double diffusers
• Three 100 ft lengths of 3/8 in quick-sink weighted tubing
• ½ hp rocking-piston compressor
• Valved air outlet assembly with individual controls for each hose
• Pressure relief valve
• Required fittings and clamps
