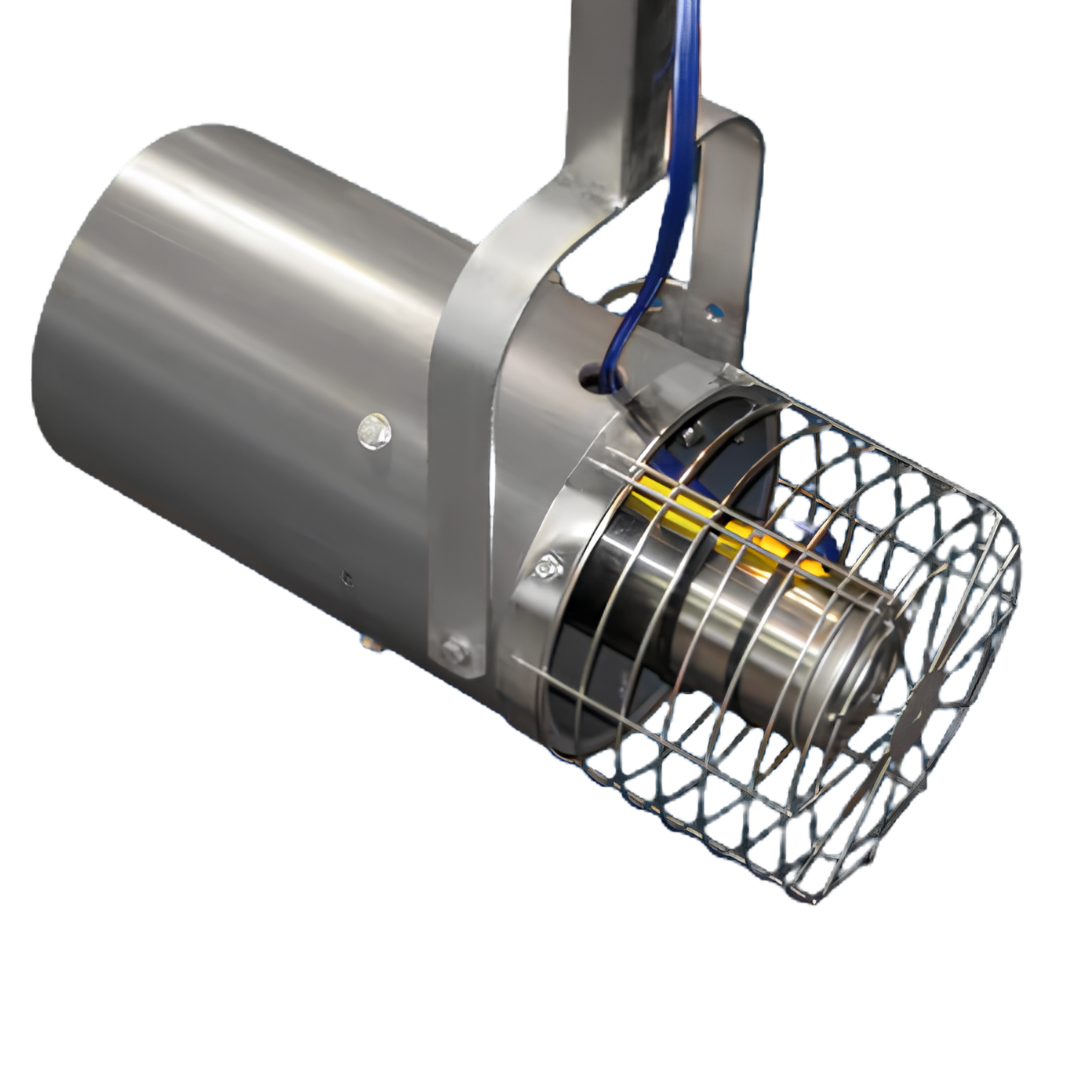

The Dock Mount AquaSweep provides directed water movement for cleaning and maintaining docks, shorelines, canals, beaches, swimming areas, and boat-lift locations. It can be aimed toward floating debris or adjusted downward to move muck and sediment from the bottom.
The ½ HP 115V configuration moves up to 400 gallons of water per minute with a flow distance of 40 feet. Its protective debris shield helps prevent weeds, grass, and other materials from interfering with the moving components.
The unit includes directional and vertical adjustment and can be positioned approximately 2–4 inches above the bottom for muck-moving applications.
Key Features
-
400-Gallon Flow Rate: Moves up to 400 gallons of water per minute.
-
Surface-Debris Movement: Helps move algae, trash, and decaying debris.
-
Bottom Cleaning: Directs water toward muck, silt, weeds, and leaves.
-
Debris Shield: Helps prevent vegetation from clogging moving components.
-
Continuous-Run Capability: Designed for continuous operation.
-
Adjustable Direction: Can be aimed around the dock or waterfront.
-
Adjustable Depth: Supports surface and bottom-cleaning applications.
-
Freshwater and Saltwater Use: Designed for both environments.
-
Oil-Free Motor: Requires no oil changes.
-
Low-Maintenance Operation: Requires no routine maintenance or separate control box.

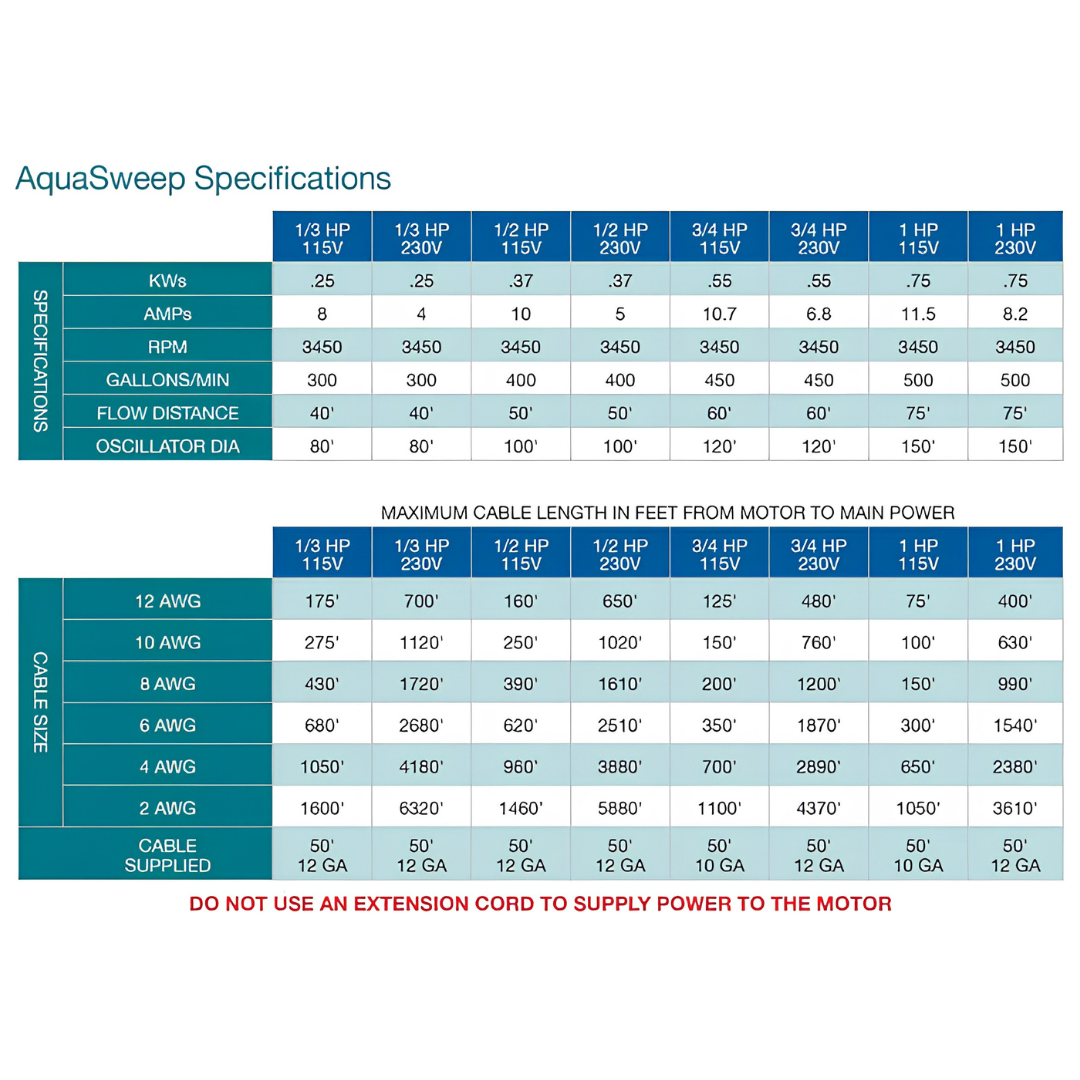

Specifications
-
Motor Power: ½ HP
-
Voltage: 115V
-
Motor Type: Oil-free, fully submersible electric motor
-
Frequency: 60 Hz
-
Phase: Single-phase
-
Motor Speed: 3,450 rpm
-
Power Rating: 0.37 kW
-
Current Draw: 10 amps
-
Flow Rate: 400 gallons per minute
-
Flow Distance: 40 feet
-
Standard Power Cord: 50-foot, 12-gauge submersible cord
-
Selectable Cord Lengths: 50 feet and 100 feet
-
Water Compatibility: Fresh water and salt water
-
Unit Length: Over 7 feet
-
Unit Weight: 55–68 pounds
-
Construction: High-density polyurethane and stainless steel
-
Alternate Electrical Configurations: Three-phase and/or 50 Hz versions are available by request.
-
Electrical Protection: A GFCI is required.
-
Safety Requirement: Disconnect power whenever swimmers are present.
-
Compliance: ARL-tested and compliant with UL standards and the National Electrical Code when installed as a complete package.
Size Guide
-
Recommended Bottom Position: Approximately 2–4 inches above the bottom
-
Maximum Yoke Reach: Up to 7 feet deep
-
Overall Unit Length: Over 7 feet
-
Unit Weight Range: 55–68 pounds
Compatibility
-
Suitable Applications: Docks, canals, beaches, shorelines, swimming areas, and boat lifts
-
Compatible Water Types: Fresh water and salt water
-

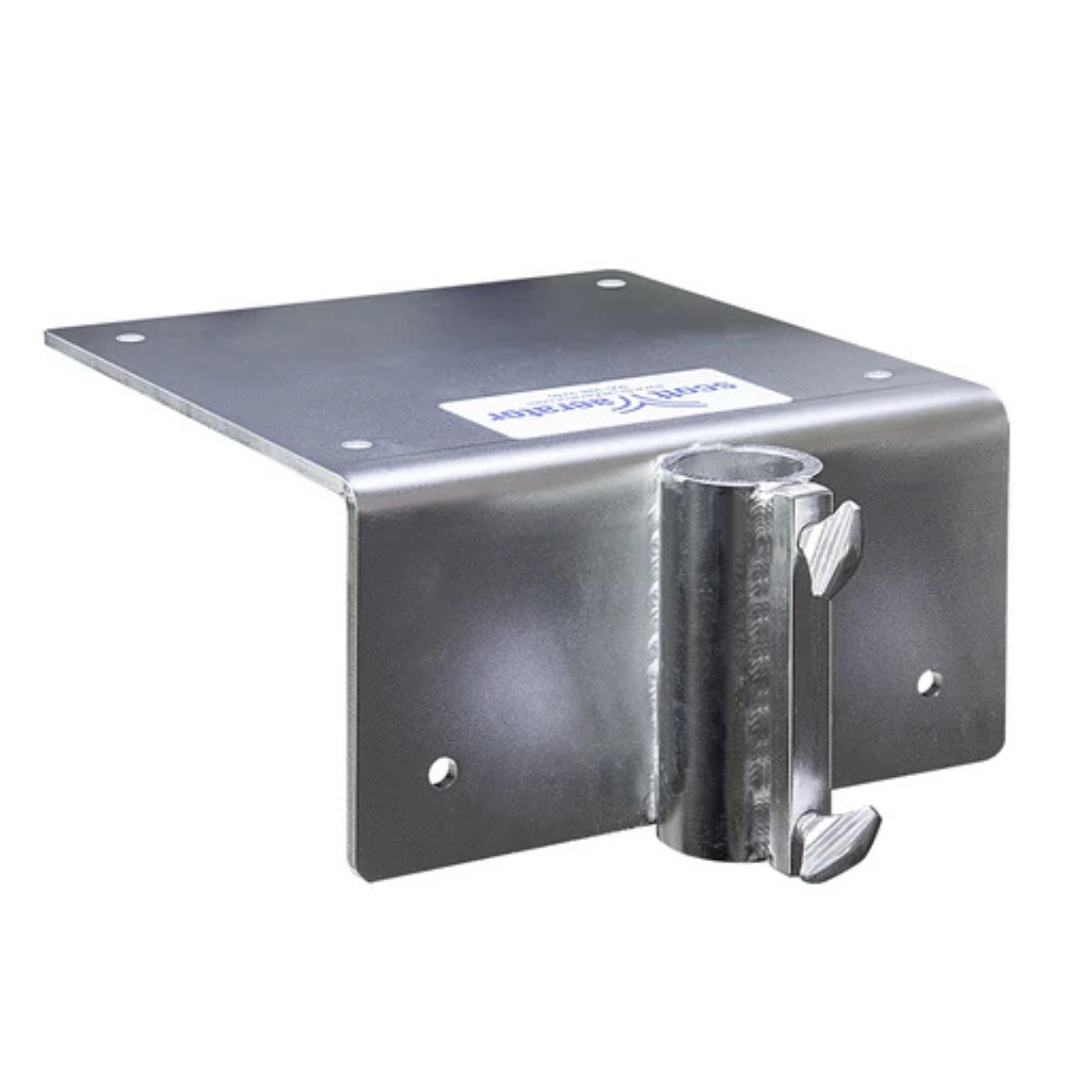

Selectable Mounting Options: Standard Dock Plate, Dock Post Bracket Upgrade, Truss Mount Bracket Upgrade, or Tripod Mount
Included
- Dock Mount AquaSweep unit
- Stainless-steel yoke assembly
- Submersible power cord in the selected length
- Selected mounting configuration
