The Great Lakes Fountain provides five interchangeable water displays for large ponds and commercial water features. Its five brass nozzles can be changed without tools, allowing the fountain pattern to be adjusted while using the same motor assembly.
This 2-hp, 230-volt configuration circulates water at 130 gallons per minute. It includes Rosewood, Baystone, Gusher, Tudor, and Millbrook nozzles, producing multi-tiered, center-peak, vertical-column, and conical spray patterns.
The stainless-steel, oil-free, submersible motor is designed for continuous operation in fresh or salt water. It requires no oil changes, routine maintenance, or separate control box.
Key Features
-
Five Fountain Displays: Includes five interchangeable brass nozzles that can be changed without tools.
-

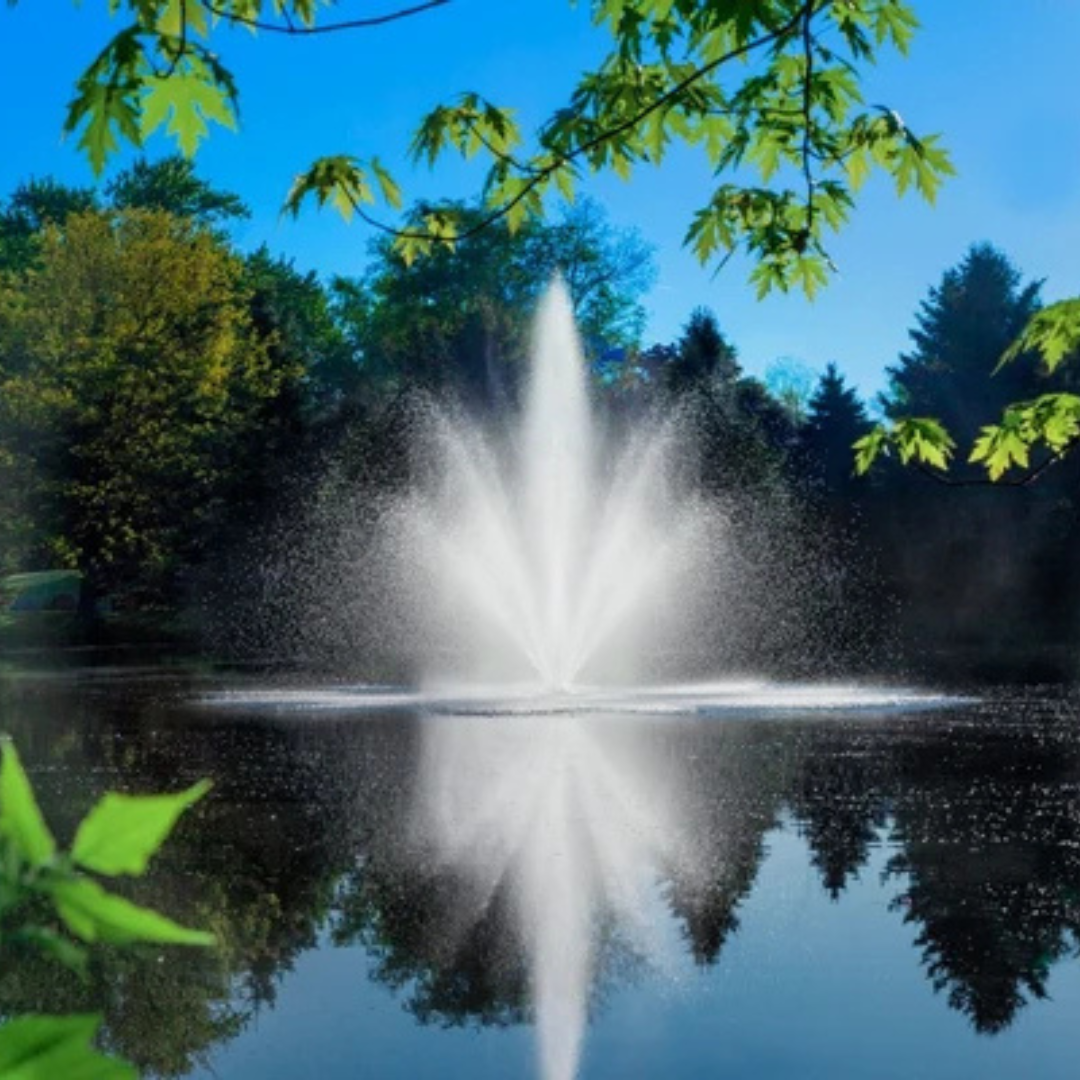

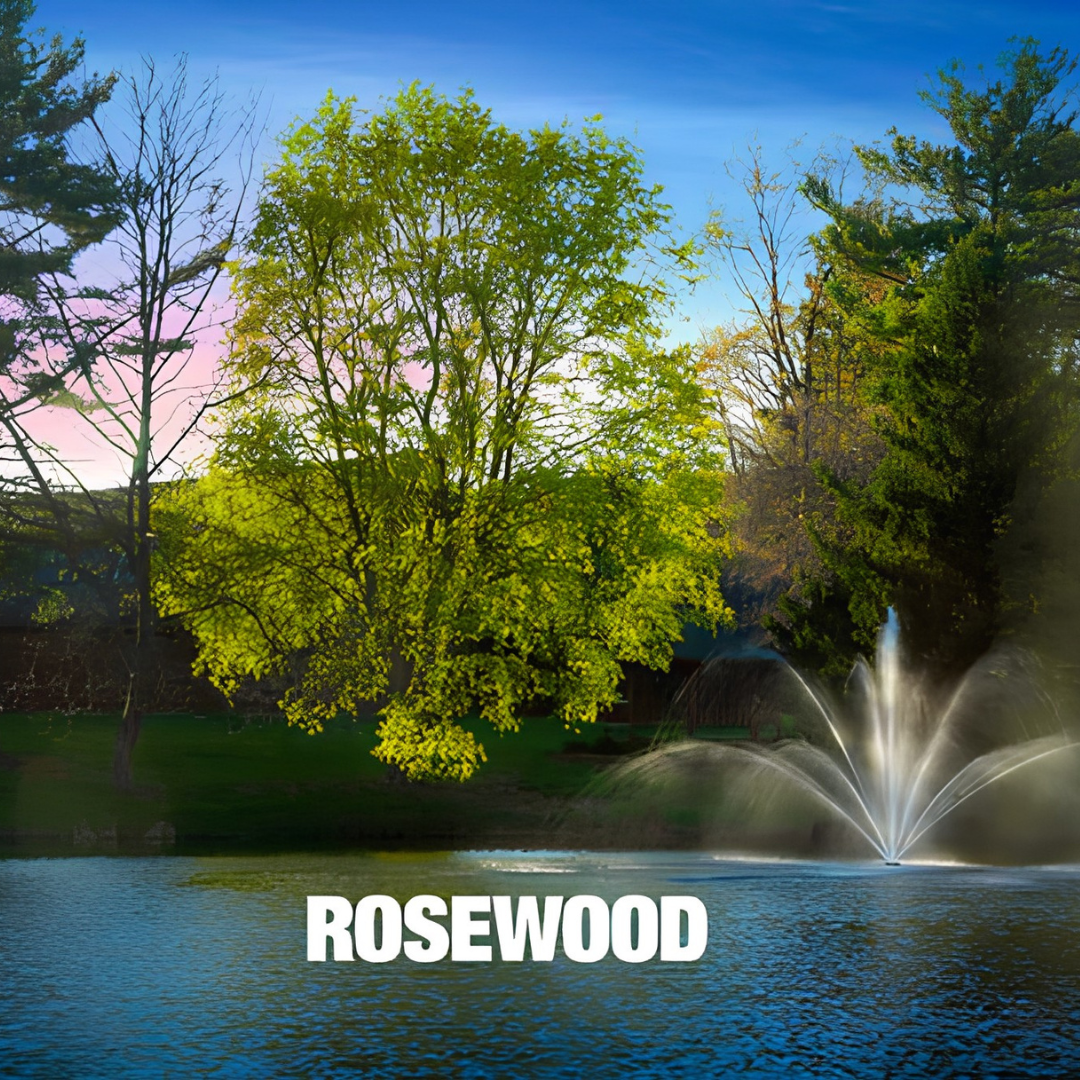

Rosewood Pattern: Produces a multi-tiered classic spray pattern.
-

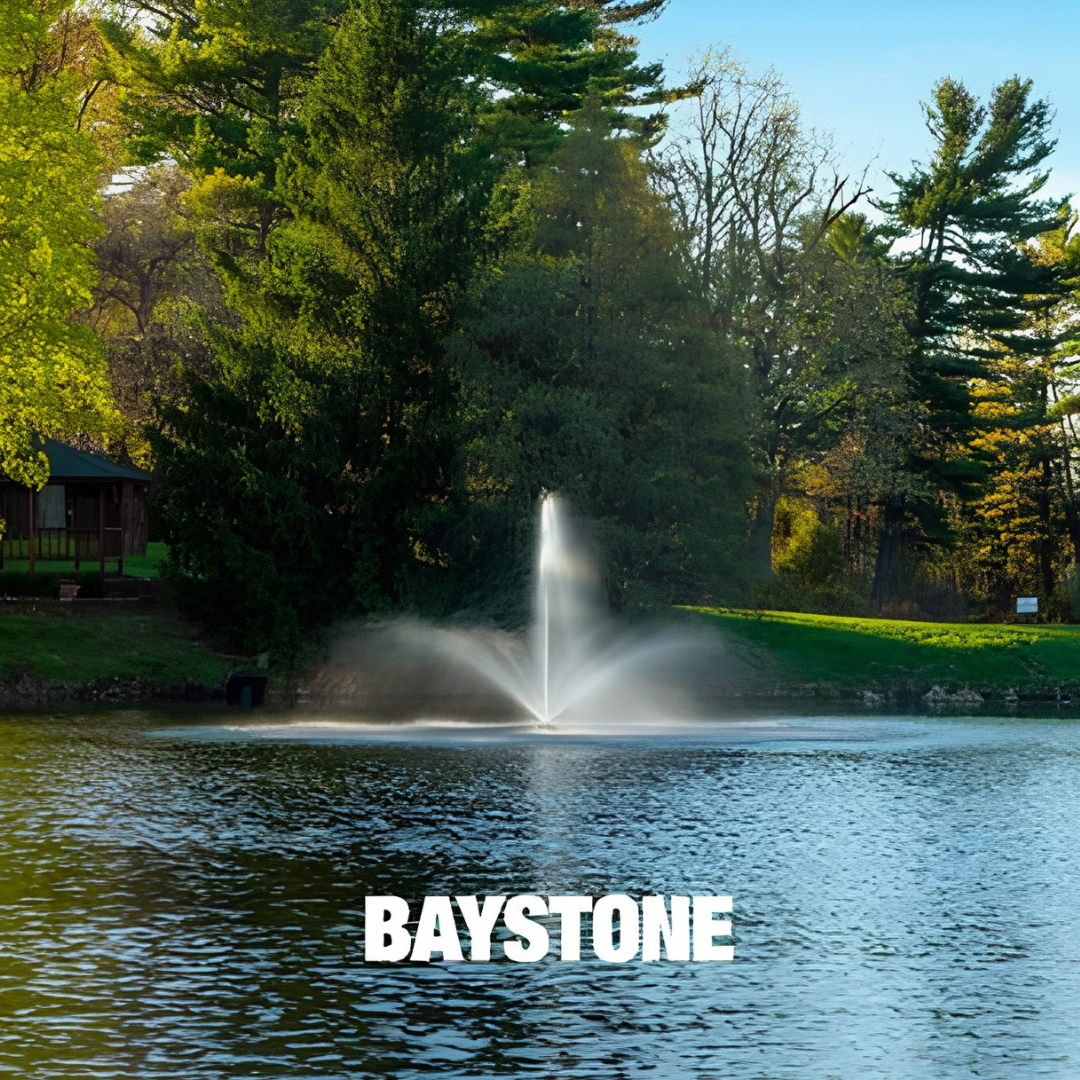

Baystone Pattern: Creates a center peak surrounded by a traditional outer spray.
-

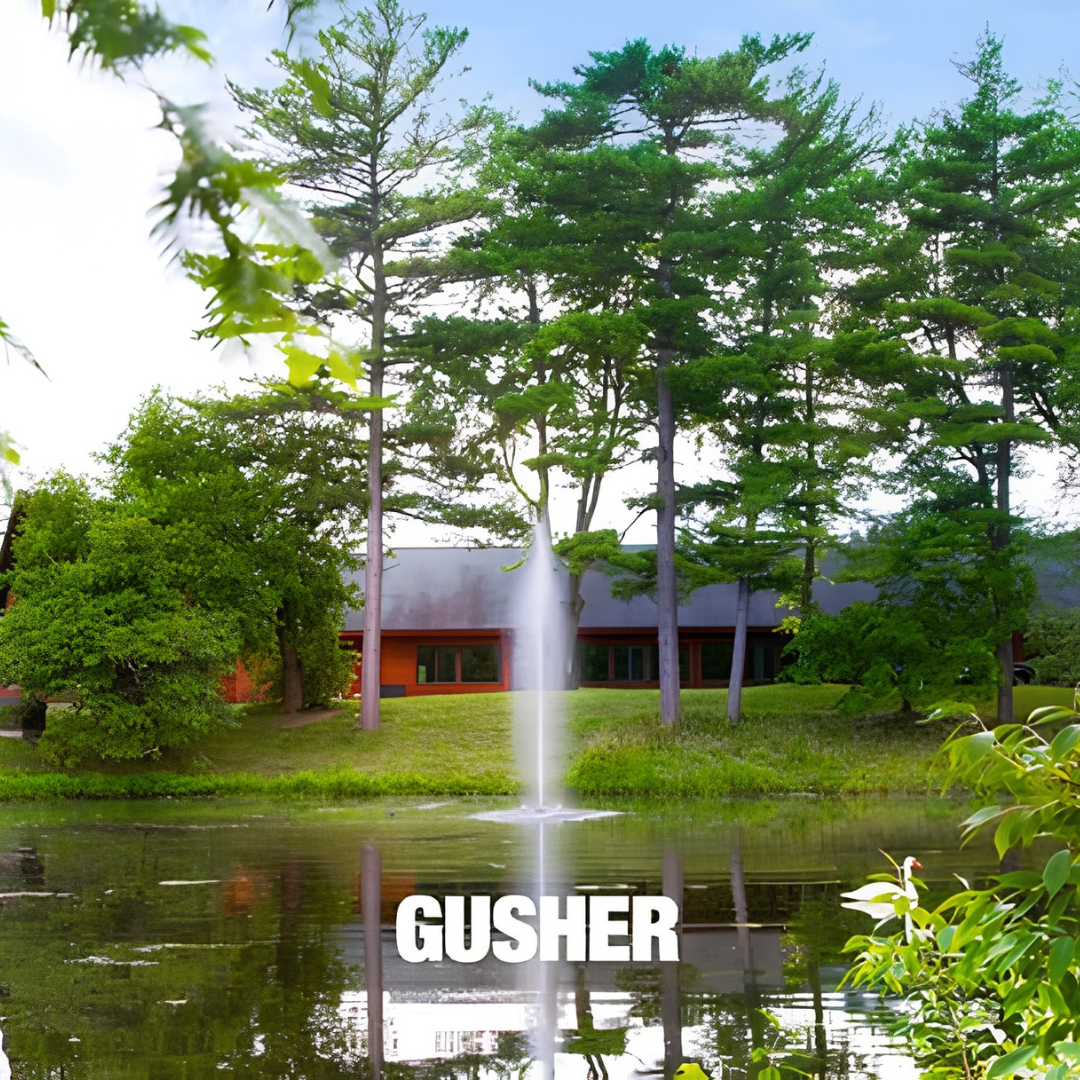

Gusher Pattern: Produces a voluminous vertical water column.
-

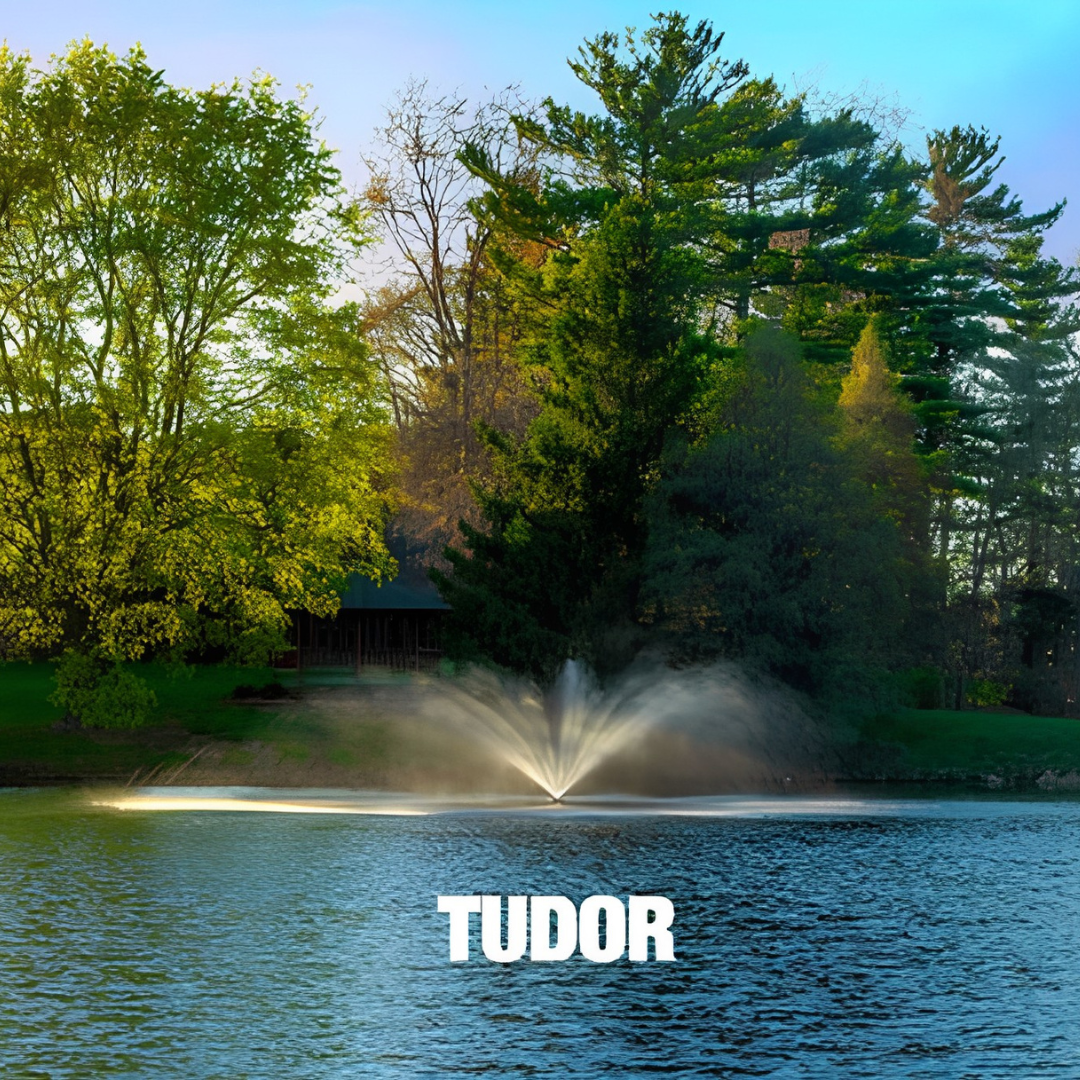

Tudor Pattern: Creates a horizontal conical spray pattern.
-

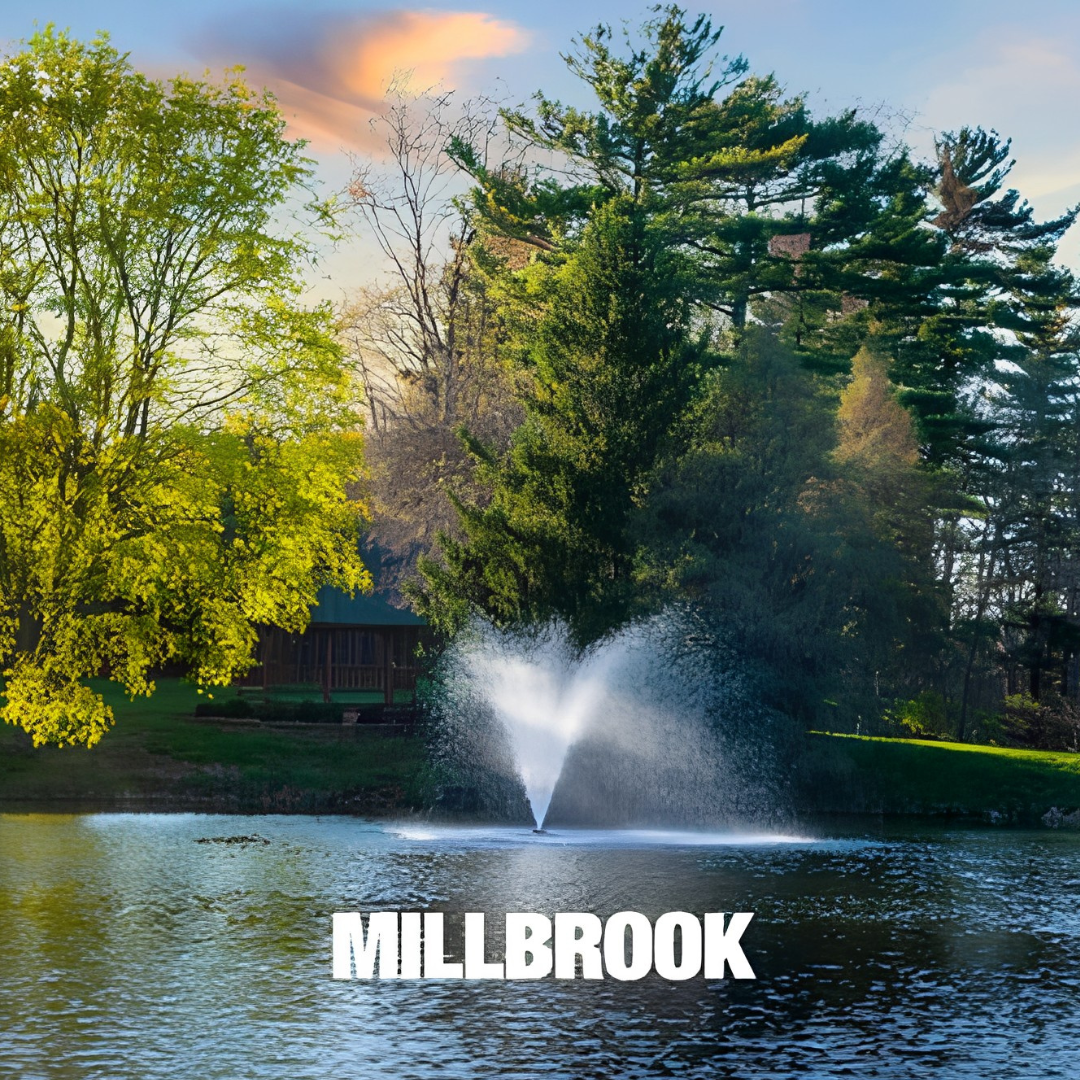

Millbrook Pattern: Creates a vertical conical spray pattern.
-
Water Quality Support: Helps improve water clarity and increase oxygen levels while providing a decorative water display.
-
Cold-Weather Construction: The fountain may remain installed during freezing conditions after the power is switched off. Power can be restored after the ice thaws.
-
Oil-Free Motor: Requires no motor oil or oil changes.
-
Submersible Construction: Uses a stainless-steel, oil-free, submersible motor.
-
Low-Maintenance Operation: Requires no routine maintenance or separate control box.
-
Continuous Operation: Designed for operation 24 hours per day.
-
Freshwater and Saltwater Use: Designed for use in both fresh and salt water.
-
Optional Lighting: Compatible light kits may be selected during purchase or added later.
-
Made in the USA: Manufactured in Holland, Michigan.
Specifications
-
Motor Power: 2 hp
-
Voltage: 230 V
-
Frequency: 60 Hz
-
Phase: Single-phase
-
Motor Speed: 3,450 rpm
-
Power Rating: 1.5 kW
-
Current Draw: 10 amps
-
Flow Rate: 130 gallons per minute
-

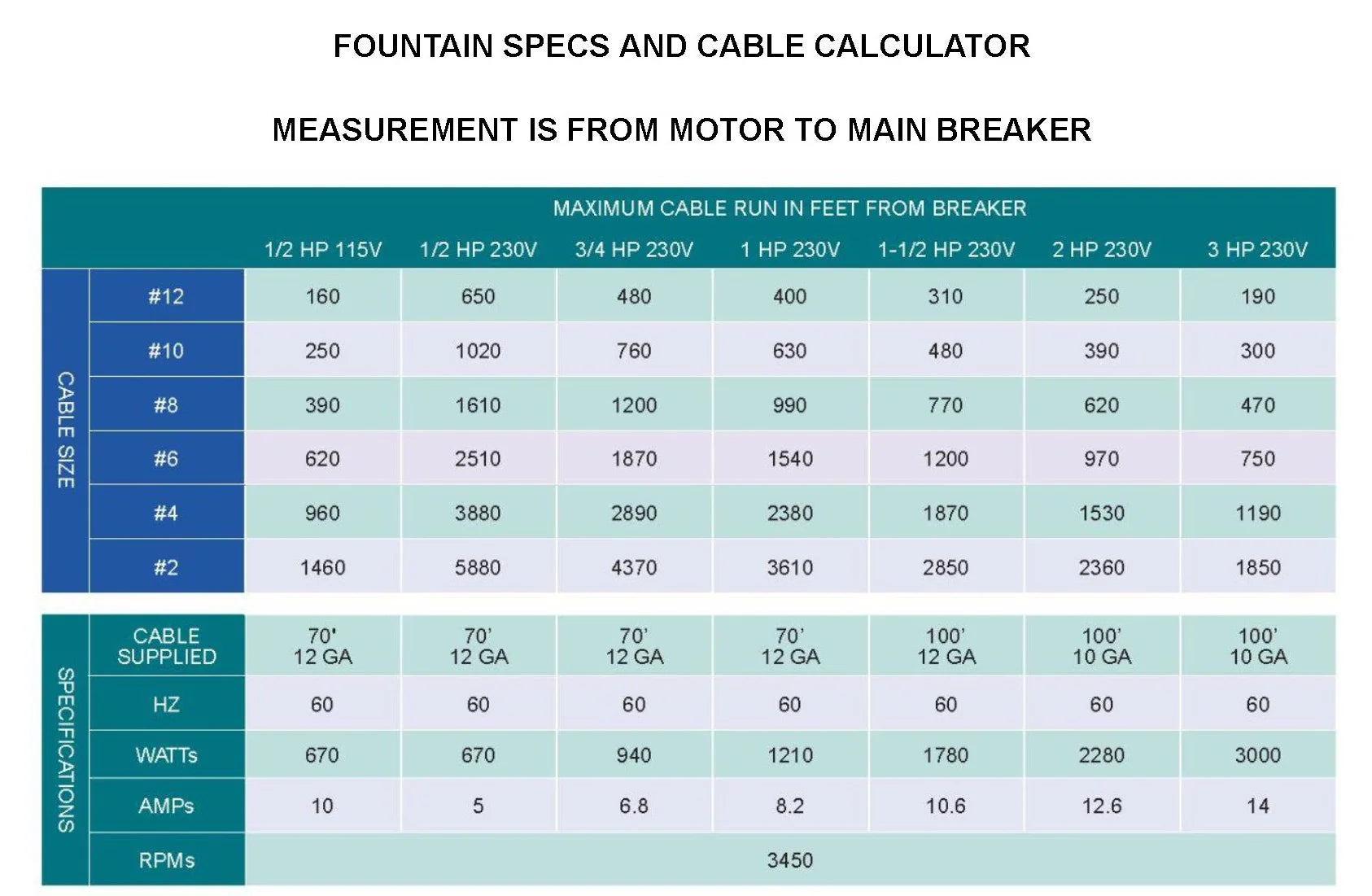

Standard Power Cord: 100 feet long, 10-gauge, and submersible
-
Longer Power Cord Availability: The electric power cord may be ordered in greater lengths.
-
Alternate Electrical Configurations: Also available in three-phase and/or 50 Hz configurations.
-
Motor Construction: Stainless-steel, oil-free, and submersible
-
Water Compatibility: Fresh water and salt water
-
Operating Capability: Designed for 24-hour-per-day operation
-
Maintenance Requirement: No maintenance required
-
Control Box Requirement: No separate control box required
-
Required Anchoring Weight: Two 45-pound weights or concrete blocks
-
Required Anchoring Lines: Two nylon ropes
-
Minimum Pond Depth: 56 inches
-
Required Electrical Protection: A Ground Fault Circuit Interrupter is required.
-
Swimmer Safety: Always disconnect power when swimmers are present.
-
Testing and Compliance: ARL-tested and compliant with UL standards and the National Electric Code when installed as a complete package.
Size Guide
-
Rosewood Spray Dimensions: Up to 40 feet high × 50 feet wide
-
Baystone Spray Dimensions: Up to 24 feet high × 40 feet wide
-
Gusher Spray Height: Up to 45 feet high
-
Tudor Spray Dimensions: Up to 16 feet high × 50 feet wide
-
Millbrook Spray Dimensions: Up to 24 feet high × 40 feet wide
-
Minimum Pond Depth: 56 inches
Compatibility
-
Compatible With: Large freshwater and saltwater ponds and commercial water features.
-
Electrical Configuration: 230-volt power installations.
-
Compatible Lighting: Color-changing LED and LED “Night Glo” two-light and four-light options available through the product selector.
Included
- Rosewood brass nozzle
- Baystone brass nozzle
- Gusher brass nozzle
- Tudor brass nozzle
- Millbrook brass nozzle
- Submersible electric power cord in the selected available length
Not Included
- Two 45-pound anchoring weights or concrete blocks
- Two nylon anchoring ropes
- Light set Not Included
