The Great Lakes Fountain provides five interchangeable water displays for medium-sized residential ponds. Its five brass nozzles can be changed within minutes without tools, allowing the fountain pattern to be adjusted while using the same motor assembly.
This 1-hp, 115-volt configuration moves water at 75 gallons per minute. It includes Cambridge, Baystone, Gusher, Tudor, and Millbrook brass nozzles, with spray patterns ranging from a tall vertical column to multi-tiered and conical displays.
The stainless-steel, oil-free, submersible motor is designed for continuous use in fresh or salt water. It requires no oil changes, routine maintenance, or separate control box.
Key Features
Five Fountain Displays: Includes five interchangeable brass nozzles that can be changed within minutes without tools.

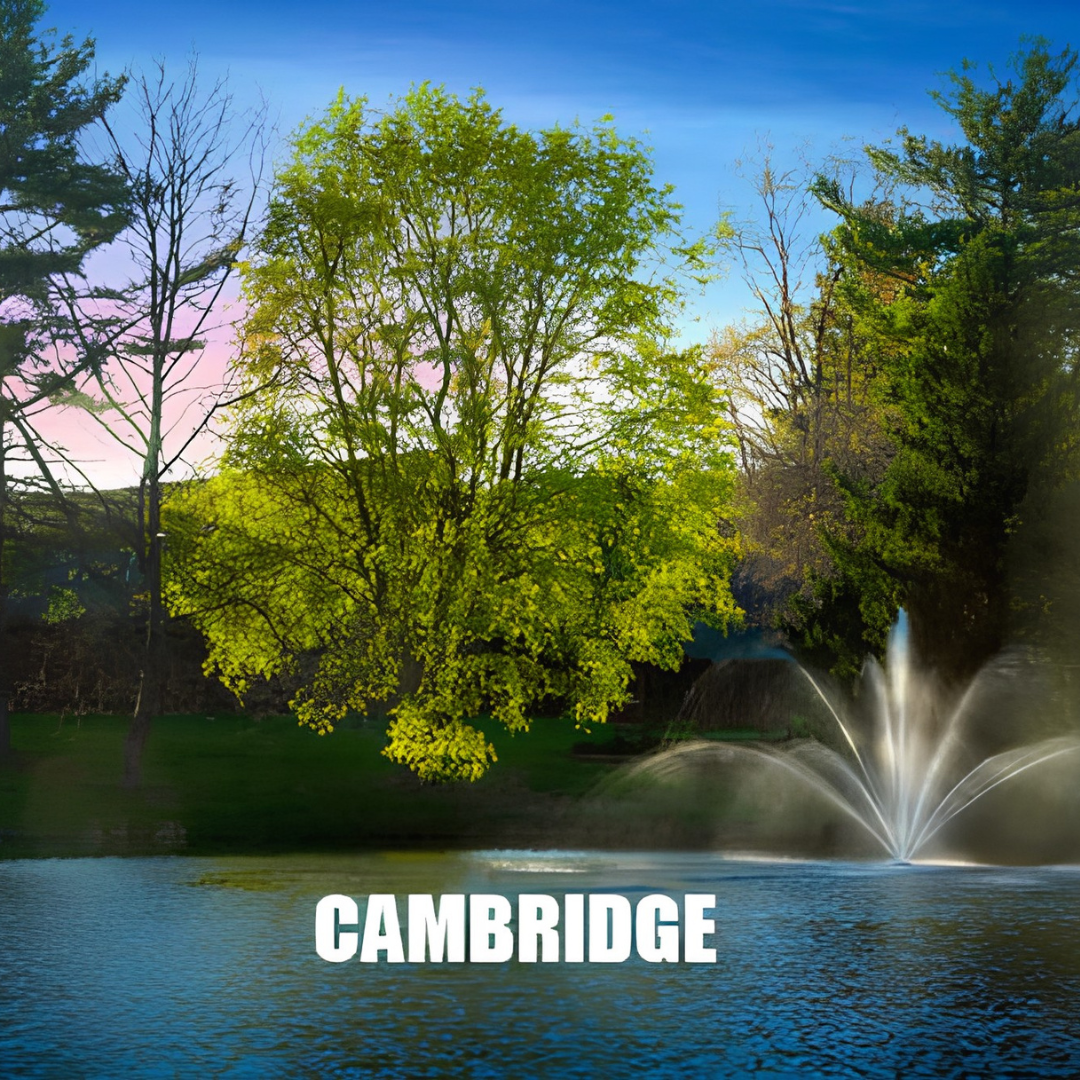

Cambridge Pattern: Produces a multi-tiered classic spray pattern.

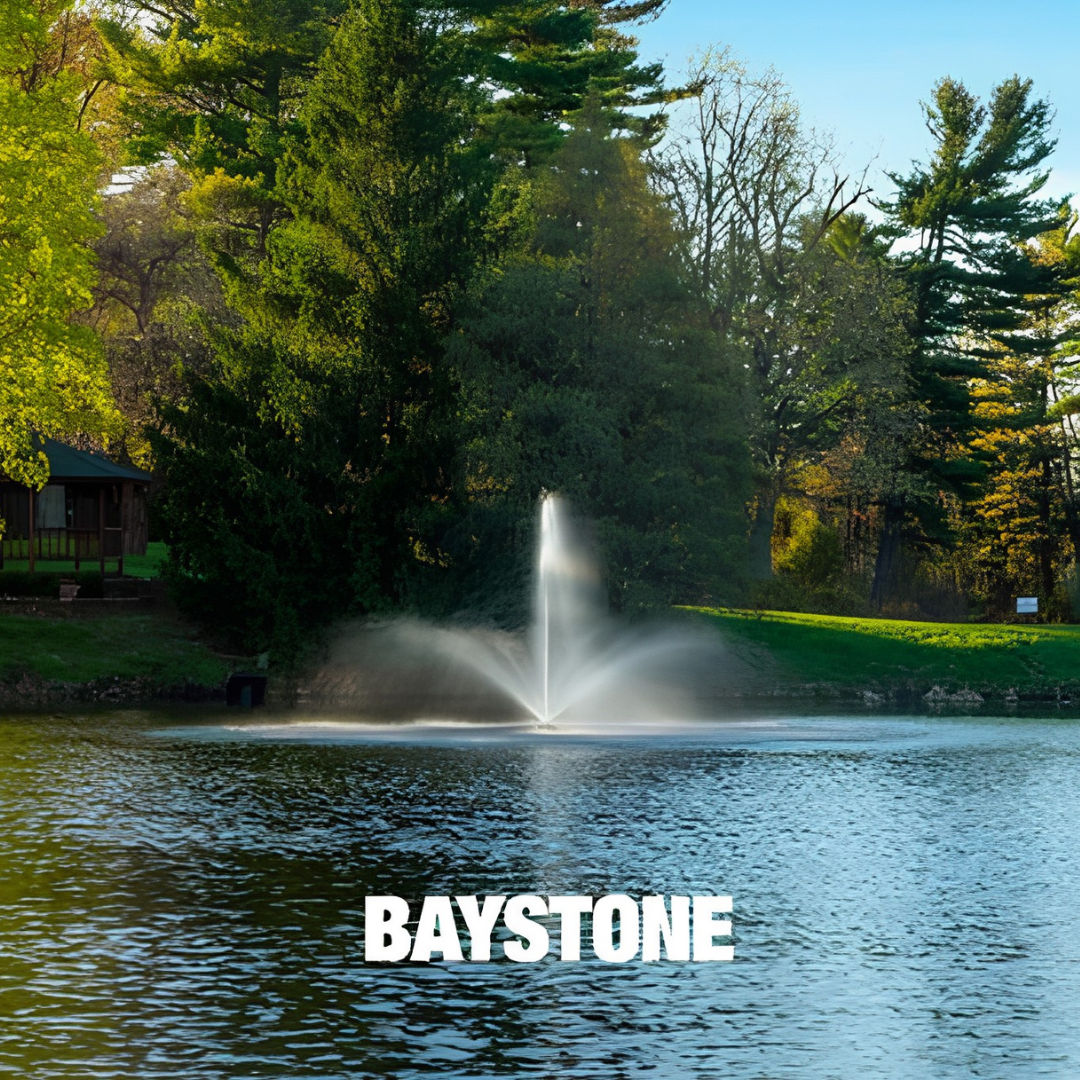

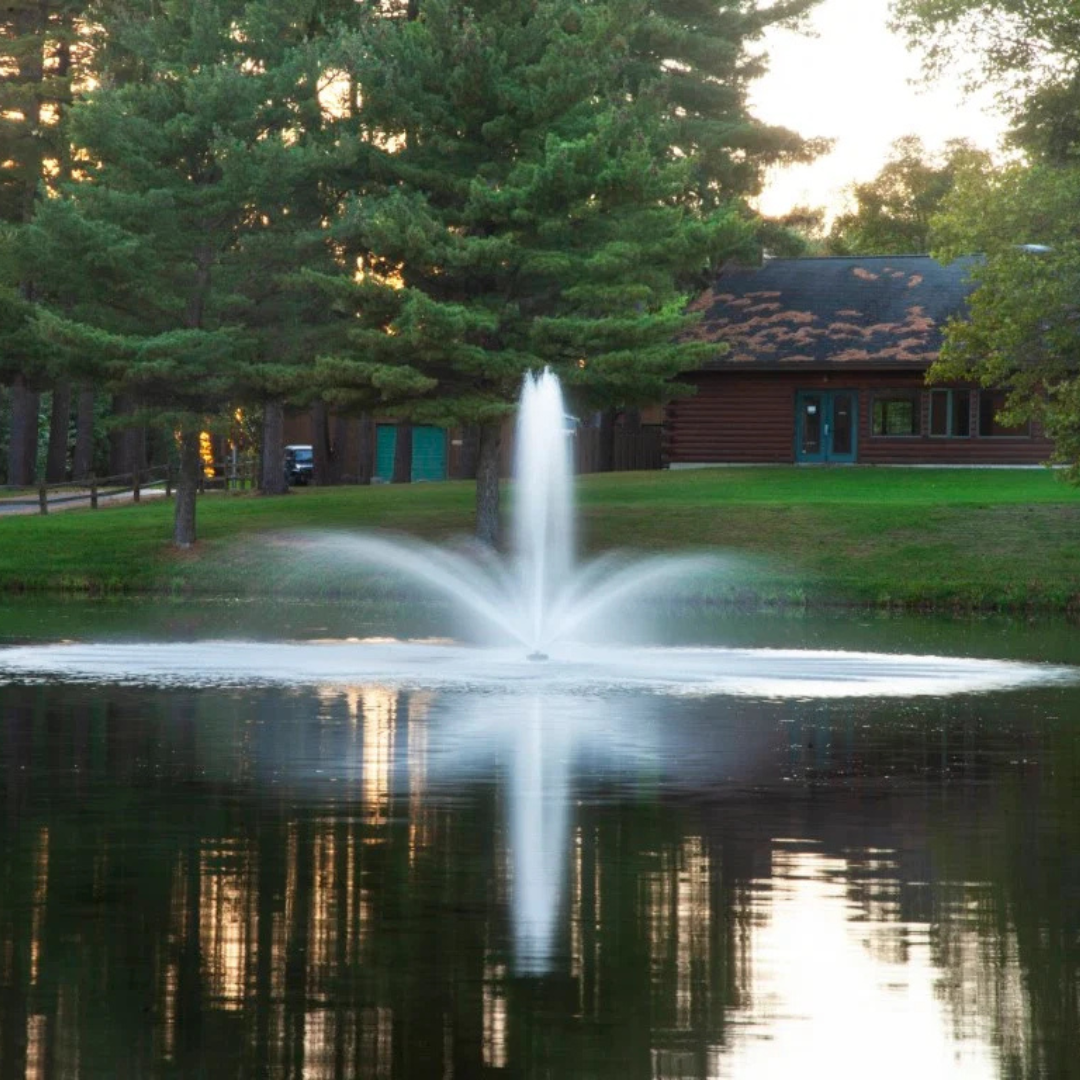

Baystone Pattern: Creates a center peak surrounded by a traditional outer spray.

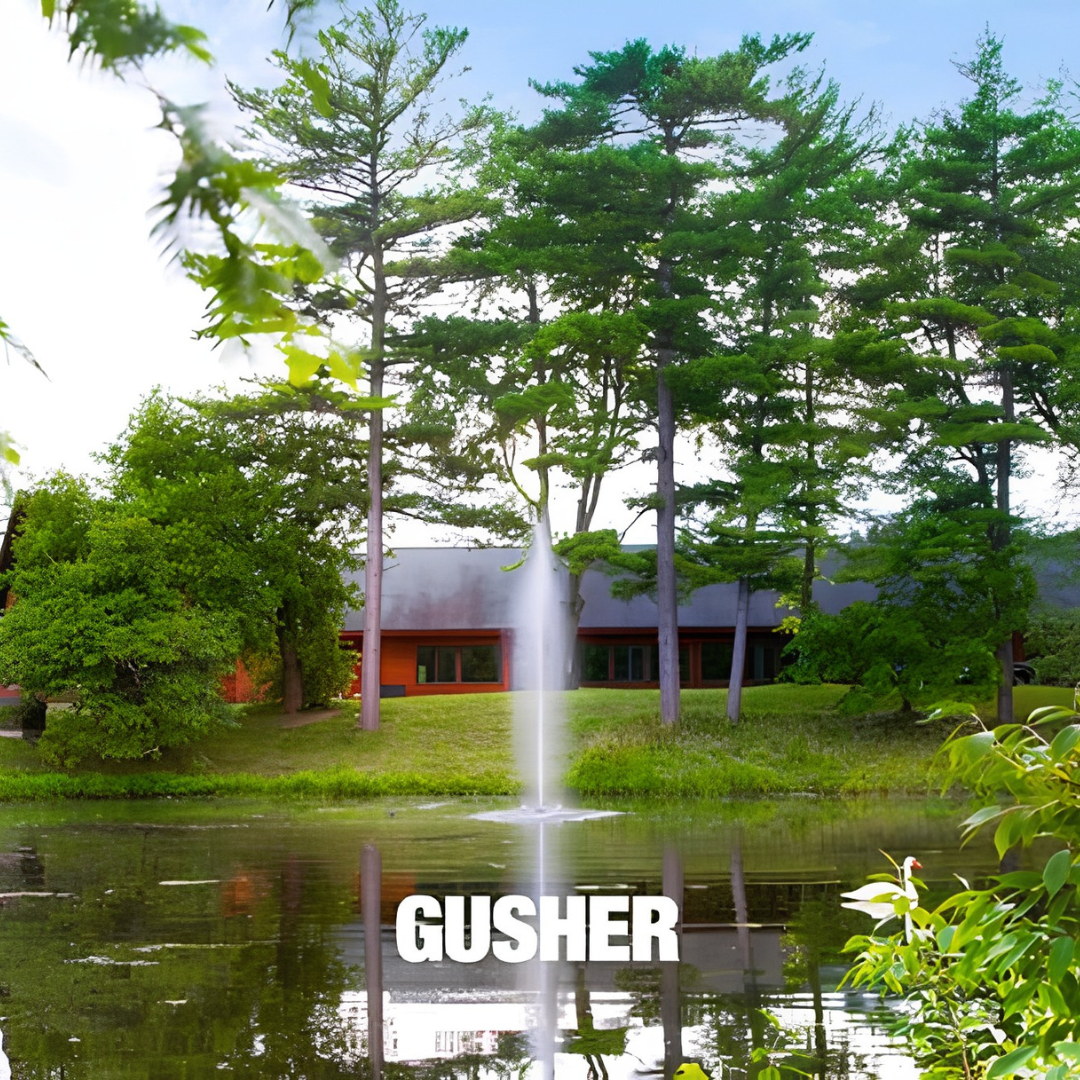

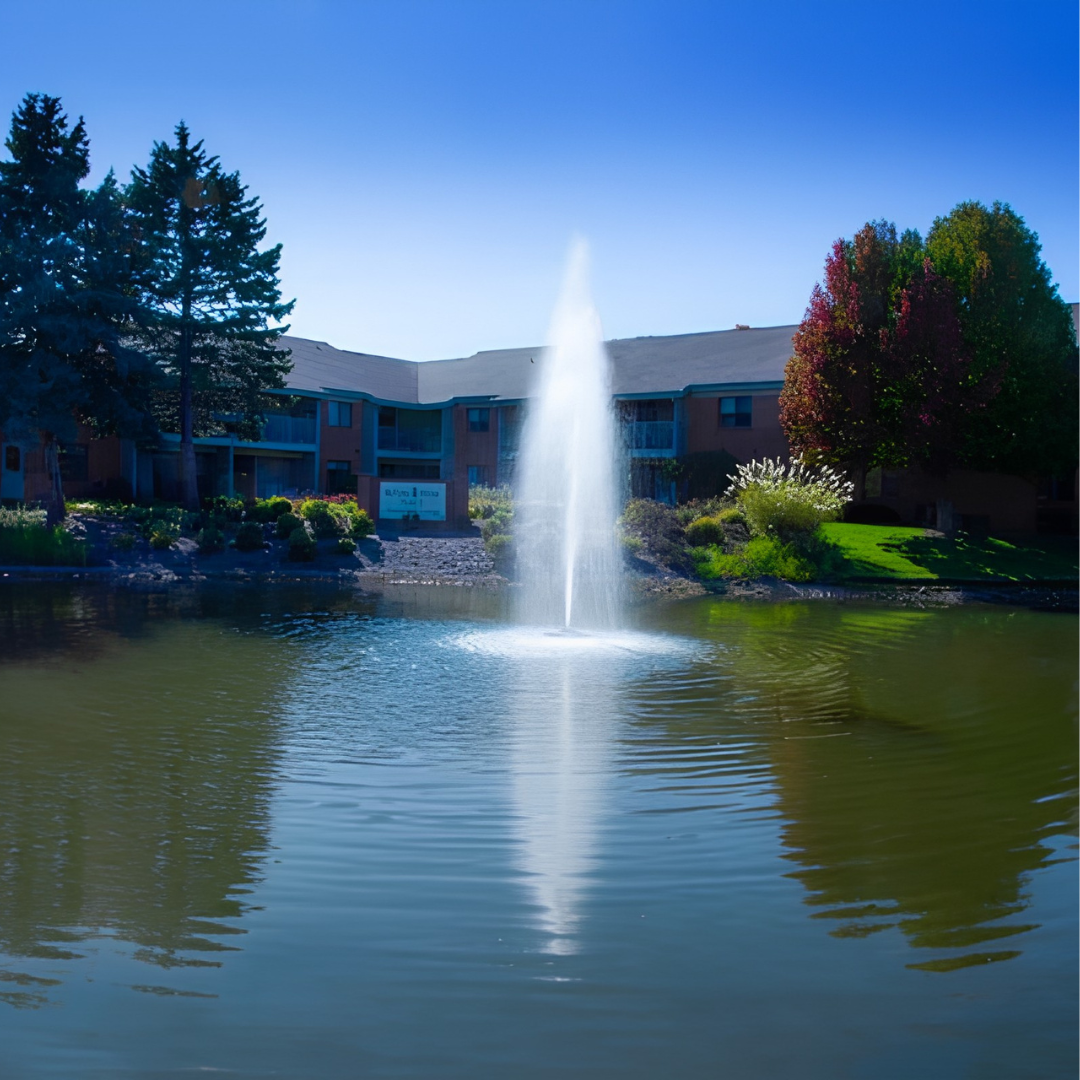

Gusher Pattern: Produces a voluminous vertical column.

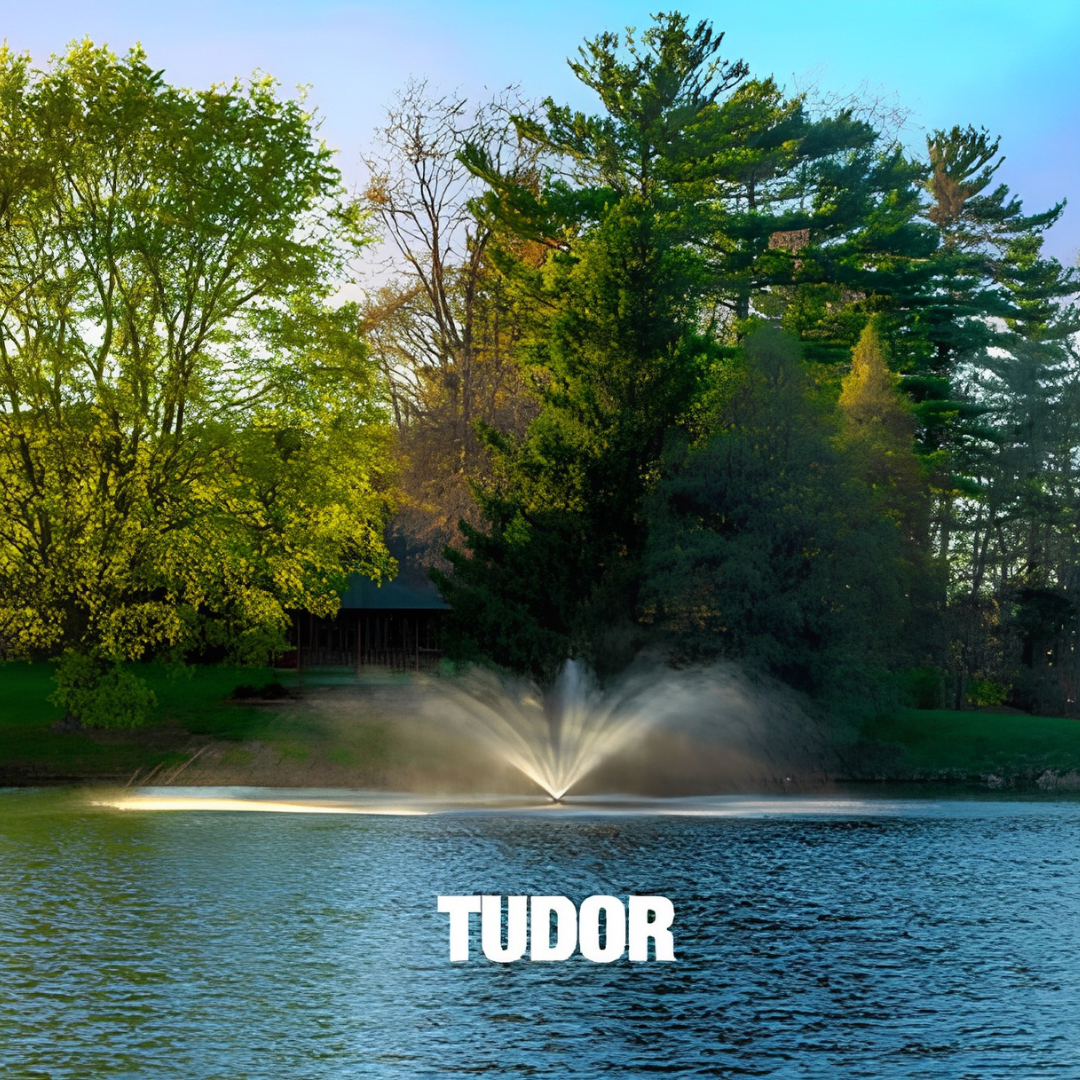

Tudor Pattern: Creates a horizontal conical spray pattern.

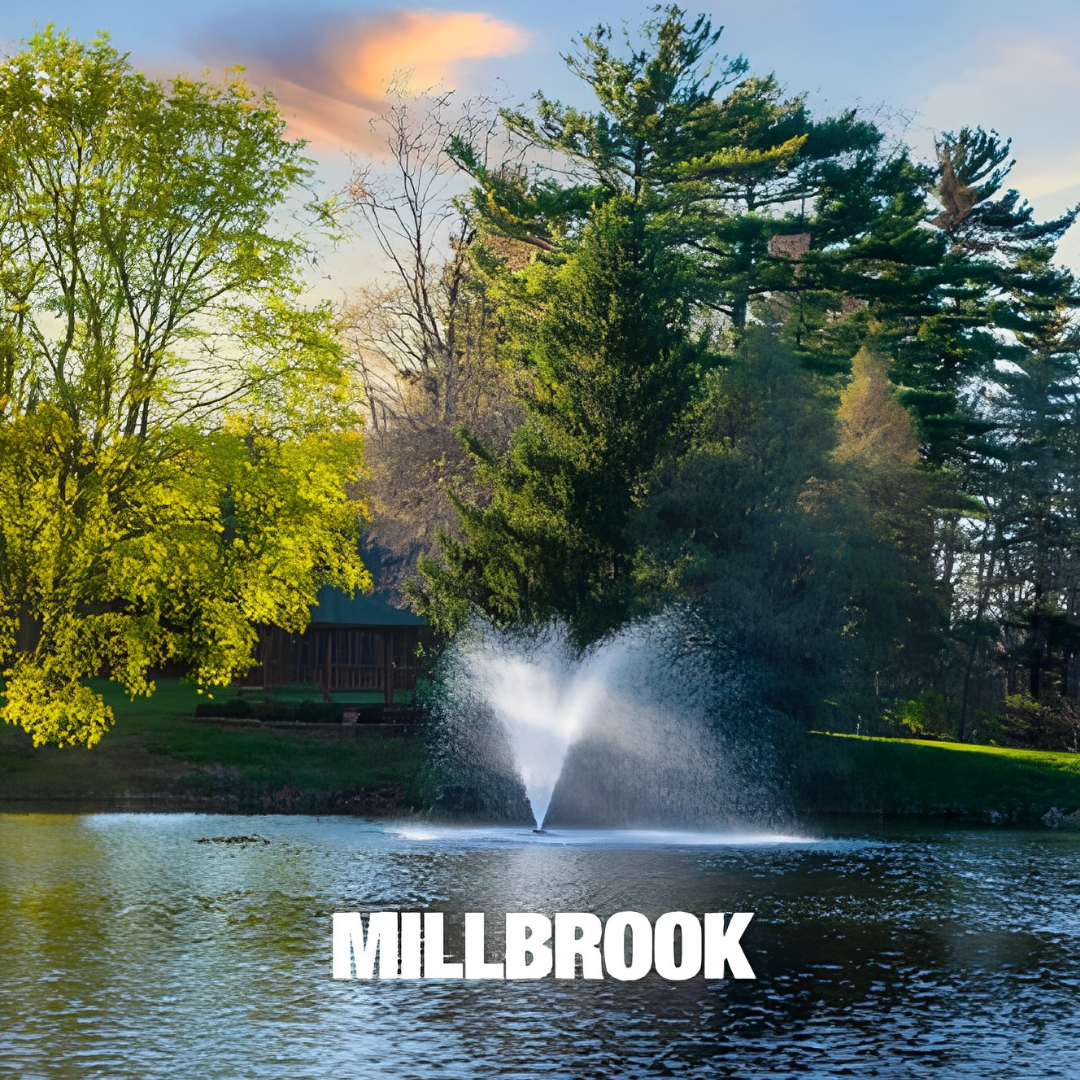

Millbrook Pattern: Creates a vertical conical spray pattern.
Pond Health Support: Each available display promotes a healthy aquatic environment while adding movement to the pond.
Cold-Weather Construction: The fountain may remain installed during freezing conditions after the power is turned off. Power can be restored after the ice thaws.
Oil-Free Motor: Requires no motor oil or oil changes.
Submersible Construction: Uses a stainless-steel, oil-free, submersible motor.
Low-Maintenance Operation: Requires no routine maintenance or separate control box.
Continuous Operation: Designed for operation 24 hours per day.
Freshwater and Saltwater Use: Designed for use in fresh and salt water.
Optional Lighting: Compatible light kits may be selected during purchase or added later.
Made in the USA: Manufactured in Holland, Michigan.
Specifications
Motor Power: 1 hp
Voltage: 115 V
Frequency: 60 Hz
Phase: Single-phase
Motor Speed: 3,450 rpm
Current Draw: 11.5 amps
Flow Rate: 75 gallons per minute
Standard Power Cord: 100 feet long, 10-gauge, submersible, with plug
Longer Power Cord Availability: The electric power cord may be ordered in greater lengths.
Alternate Electrical Configurations: Also available in three-phase and/or 50 Hz versions.
Motor Construction: Stainless-steel, oil-free, and submersible
Water Compatibility: Fresh water and salt water
Operating Capability: Designed for 24-hour-per-day operation
Maintenance Requirement: No maintenance required
Control Box Requirement: No separate control box required
Required Anchoring Weight: Two 35-pound weights or concrete blocks
Required Anchoring Lines: Two nylon ropes
Minimum Pond Depth: 44 inches
Required Electrical Protection: A Ground Fault Circuit Interrupter is required.
Swimmer Safety: Always disconnect power when swimmers are present.
Testing and Compliance: ARL-tested and compliant with UL standards and the National Electric Code when installed as a complete package.
Size Guide
Cambridge Spray Dimensions: Up to 30 feet high × 40 feet wide
Baystone Spray Dimensions: Up to 14 feet high × 30 feet wide
Gusher Spray Height: Up to 25 feet high
Tudor Spray Dimensions: Up to 12 feet high × 40 feet wide
Millbrook Spray Dimensions: Up to 15 feet high × 30 feet wide
Minimum Pond Depth: 44 inches
Compatibility
Compatible With: Medium-sized residential freshwater and saltwater ponds.

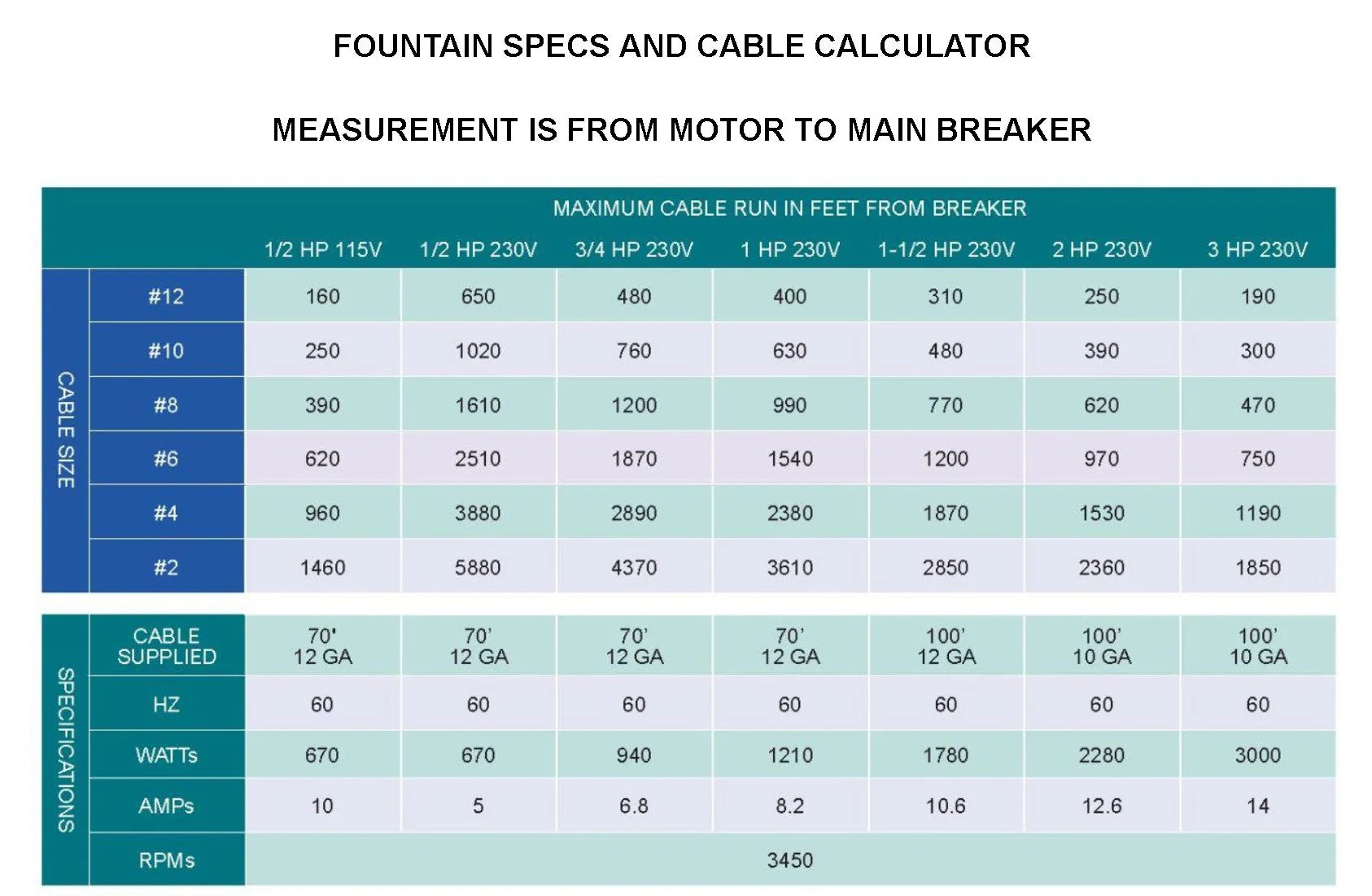

Electrical Application: The distance from the main breaker to the fountain must not exceed 100 feet when using the 115-volt motor. A 230-volt motor should be selected when the distance exceeds 100 feet.
Compatible Lighting: Color Changing LED and LED “Night Glo” two-light and four-light sets offered through the product options.
Included
Cambridge brass nozzle
Baystone brass nozzle
Gusher brass nozzle
Tudor brass nozzle
Millbrook brass nozzle
Submersible electric power cord in the selected available length
Plug with the 115-volt power cord
Not Included
Two 35-pound anchoring weights or concrete blocks
Two nylon anchoring ropes
Light set Not Included
