The Great Lakes Fountain is designed for small residential ponds and provides five interchangeable fountain displays in one system. Five brass nozzles produce Cambridge, Baystone, Gusher, Tudor, and Millbrook spray patterns, allowing the water display to be changed without replacing the fountain.
This ¾-hp, 115-volt configuration circulates water at 65 gallons per minute. The available nozzle patterns range from a voluminous vertical column to multi-tiered, horizontal conical, vertical conical, and center-peak displays.
The stainless-steel, oil-free, submersible motor is designed for continuous operation in fresh or salt water. It requires no oil changes, routine maintenance, or separate control box.
Key Features
Five Fountain Displays: Includes five interchangeable brass nozzles that create Cambridge, Baystone, Gusher, Tudor, and Millbrook spray patterns.

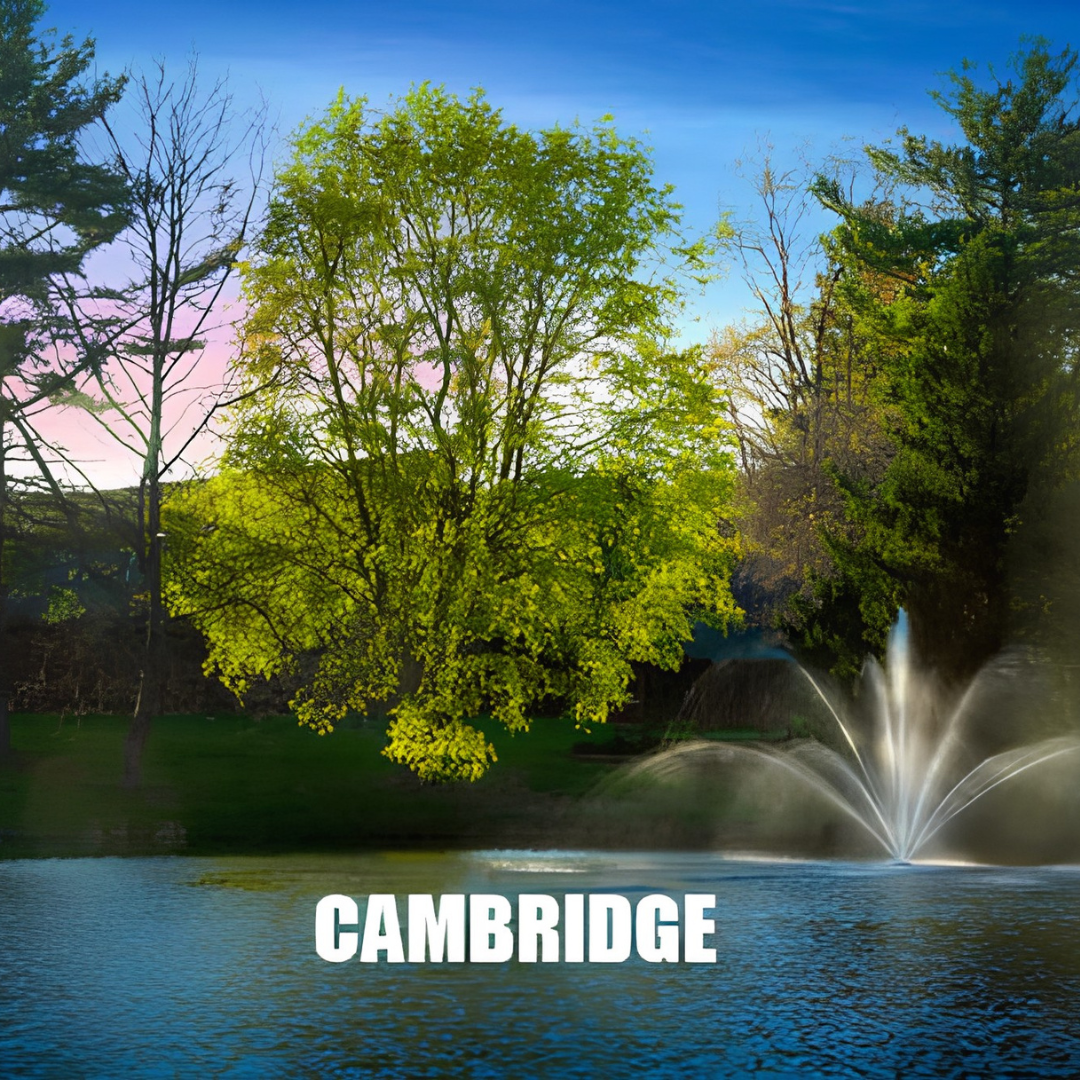

Cambridge Pattern: Produces a multi-tiered classic spray pattern.

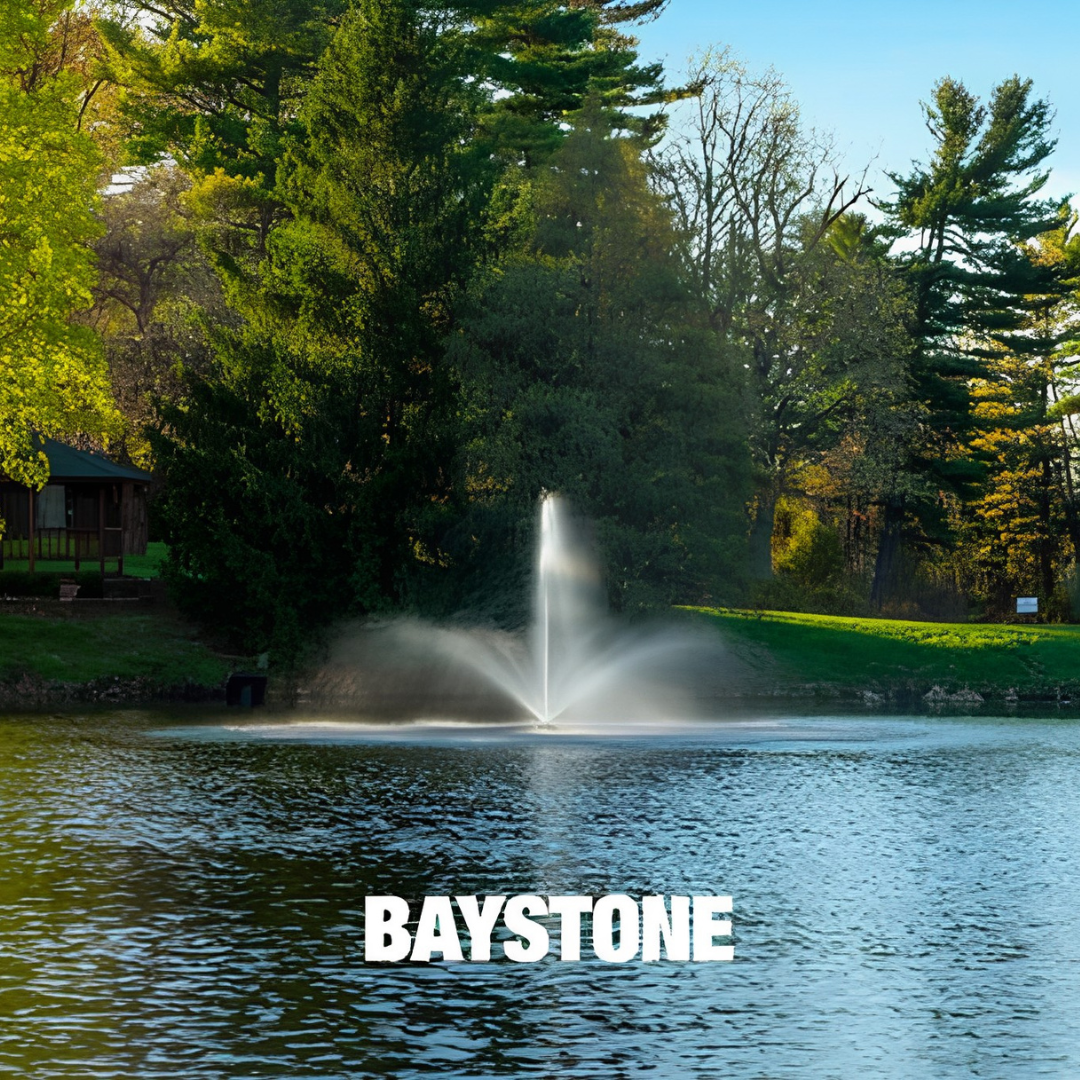

Baystone Pattern: Produces a center peak surrounded by a traditional outer spray pattern.

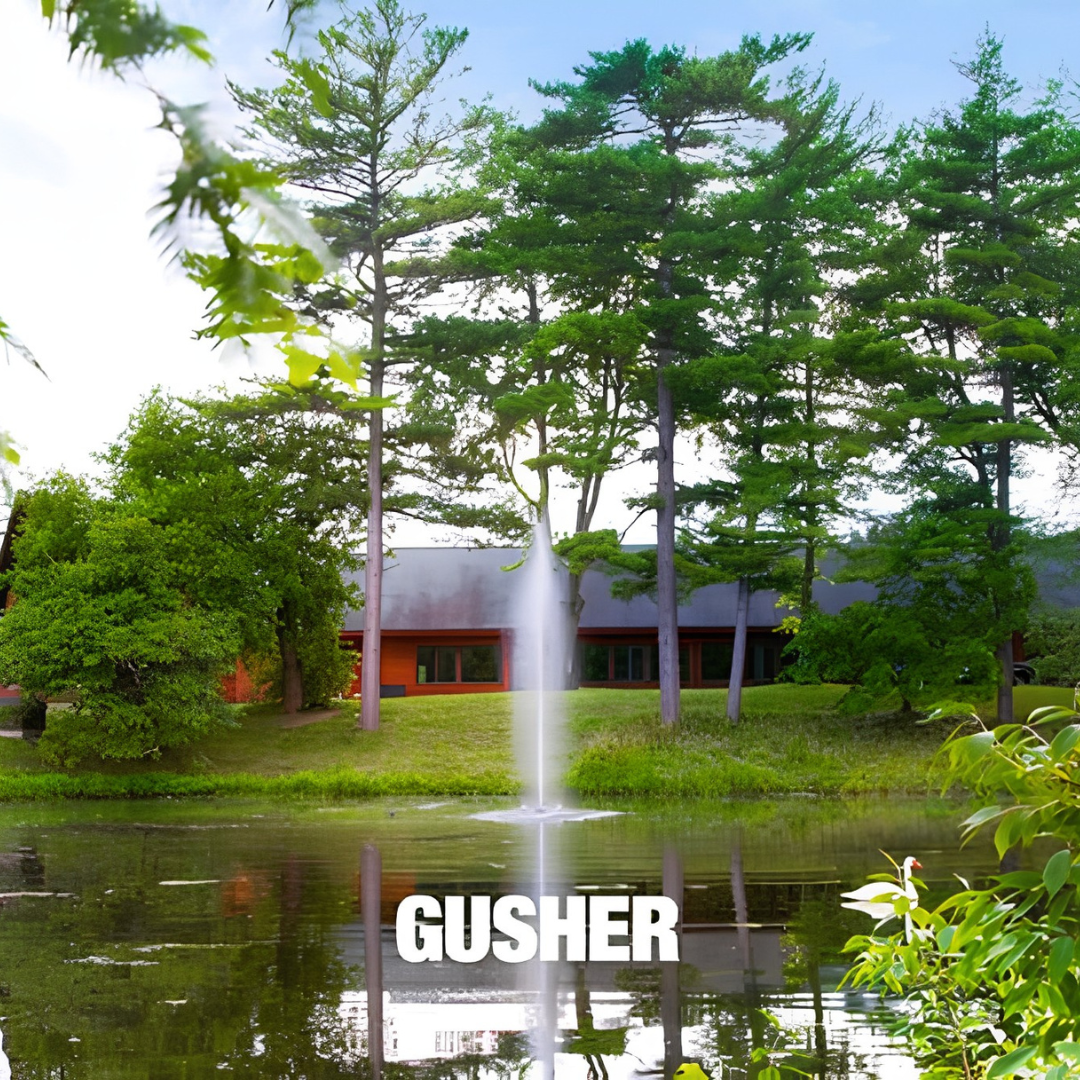

Gusher Pattern: Produces a voluminous vertical water column.

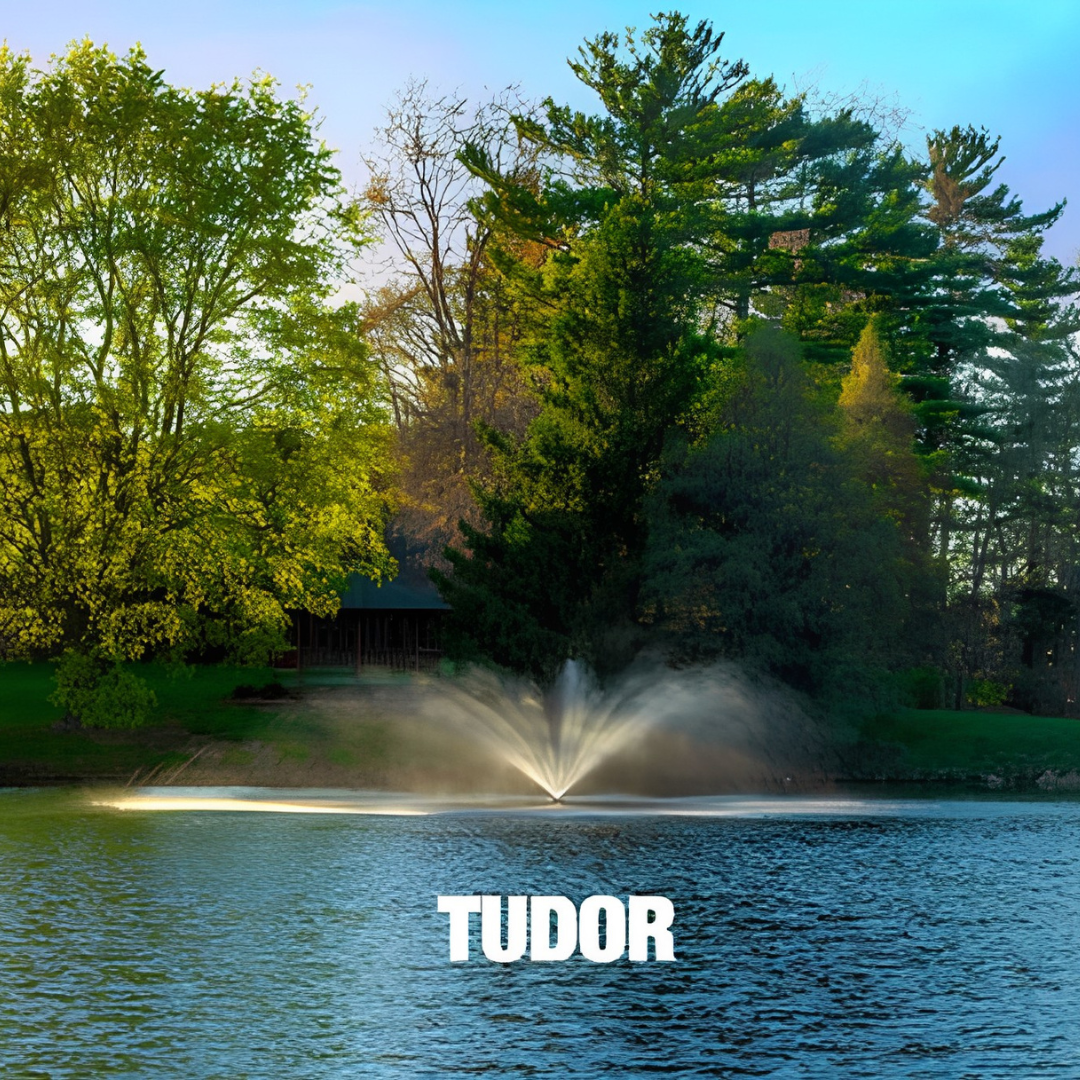

Tudor Pattern: Produces a horizontal conical spray pattern.

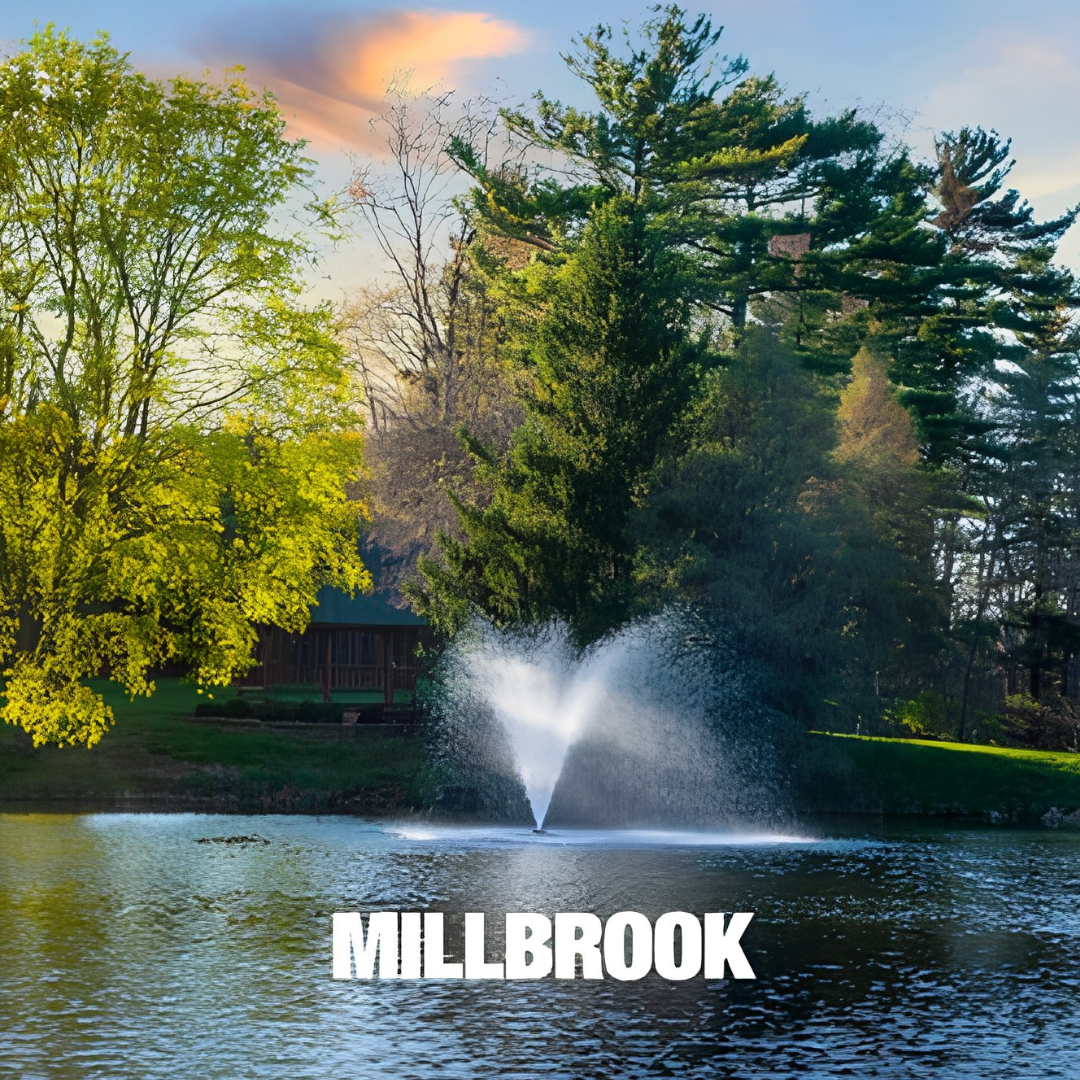

Millbrook Pattern: Produces a vertical conical spray pattern.
Pond Health Support: Promotes a healthy aquatic environment while providing a dynamic water display.
Oil-Free Motor: Uses an oil-free motor that requires no oil changes.
Submersible Construction: Uses a stainless-steel, oil-free, submersible motor.
Low-Maintenance Operation: No routine maintenance or separate control box is required.
Continuous Operation: Designed for operation 24 hours per day.
Freshwater and Saltwater Use: Designed for use in both fresh and salt water.
Cold-Weather Construction: May remain installed during freezing conditions after the power is switched off and can be restarted after the ice thaws.
Optional Lighting: Compatible light kits may be selected during purchase or added later.
Made in the USA: Manufactured in Holland, Michigan.
Specifications
Motor Power: ¾ hp
Voltage: 115 V
Frequency: 60 Hz
Phase: Single-phase
Motor Speed: 3,450 rpm
Current Draw: 10.7 amps
Flow Rate: 65 gallons per minute
Standard Power Cord: 100 feet long, 10-gauge, submersible, with plug
Longer Power Cord Availability: The electric power cord may be ordered in greater lengths.
Alternate Electrical Configurations: Also available in three-phase and/or 50 Hz versions.
Motor Construction: Stainless-steel, oil-free, and submersible
Water Compatibility: Fresh water and salt water
Operating Capability: Designed for 24-hour-per-day operation
Maintenance Requirement: No maintenance required
Control Box Requirement: No separate control box required
Required Anchoring Weight: Two 20-pound weights or concrete blocks
Required Anchoring Lines: Two nylon ropes
Required Electrical Protection: A Ground Fault Circuit Interrupter is required.
Swimmer Safety: Always disconnect power when swimmers are present.
Testing and Compliance: ARL-tested and compliant with UL standards and the National Electric Code when installed as a complete package.
Size Guide
Cambridge Spray Dimensions: Up to 25 feet high × 35 feet wide
Baystone Spray Dimensions: Up to 10 feet high × 25 feet wide
Gusher Spray Height: Up to 20 feet high
Tudor Spray Dimensions: Up to 10 feet high × 35 feet wide
Millbrook Spray Dimensions: Up to 12 feet high × 25 feet wide
Minimum Pond Depth: 44 inches
Compatibility
Compatible With: Small residential freshwater and saltwater ponds.

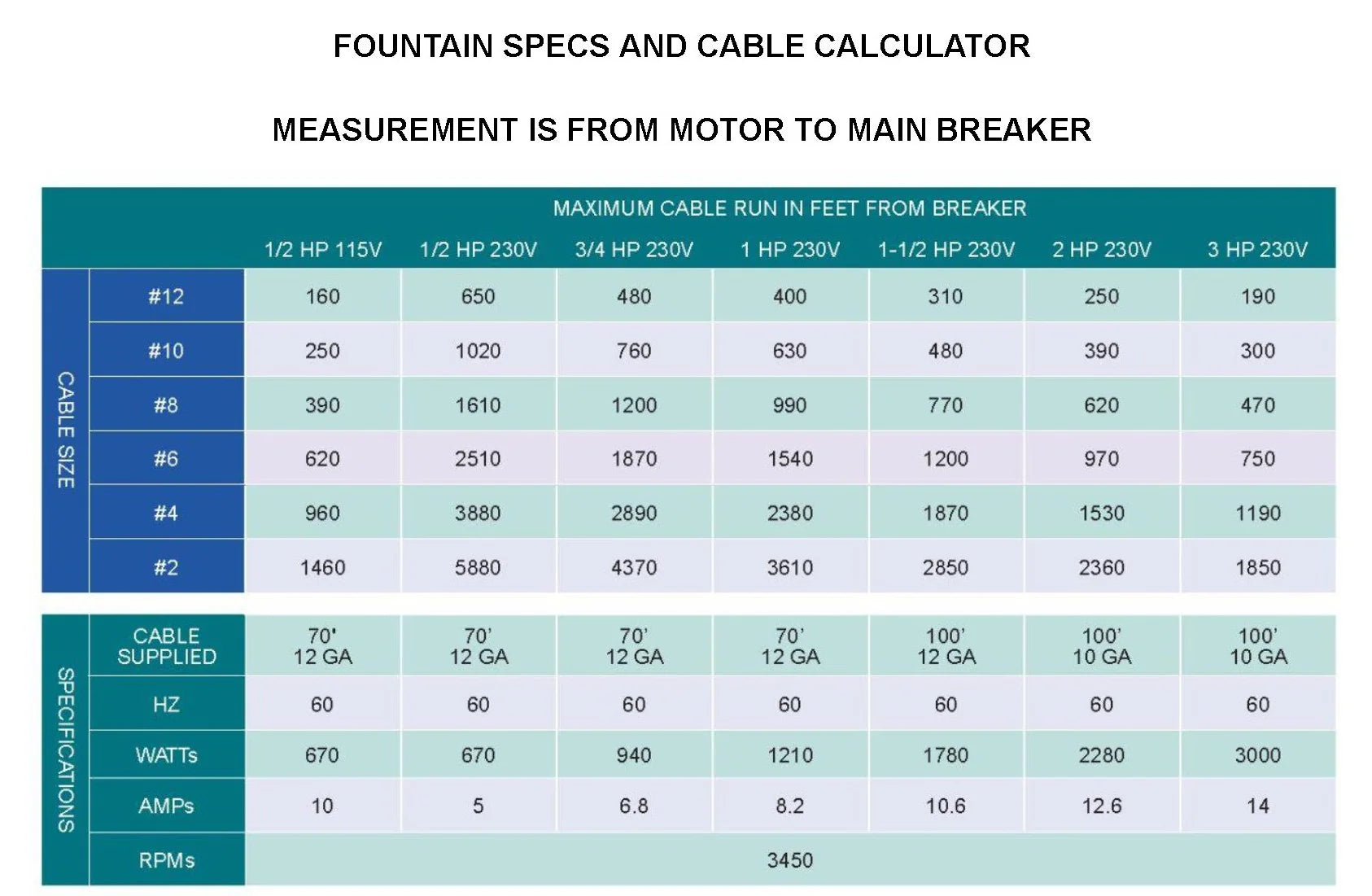

Electrical Application: For proper operation of the 115-volt motor, the distance from the main breaker to the fountain must not exceed 100 feet. The official page advises selecting a 230-volt motor when the distance exceeds 100 feet.
Compatible Lighting: Color-changing LED and LED “Night Glo” light-set options offered through the product selector.
Included
Cambridge brass nozzle
Baystone brass nozzle
Gusher brass nozzle
Tudor brass nozzle
Millbrook brass nozzle
Submersible electric power cord in the selected available length
Plug with the 115-volt power cord
Not Included
Two 20-pound anchoring weights or concrete blocks
Two nylon anchoring ropes
Light set Not Included
