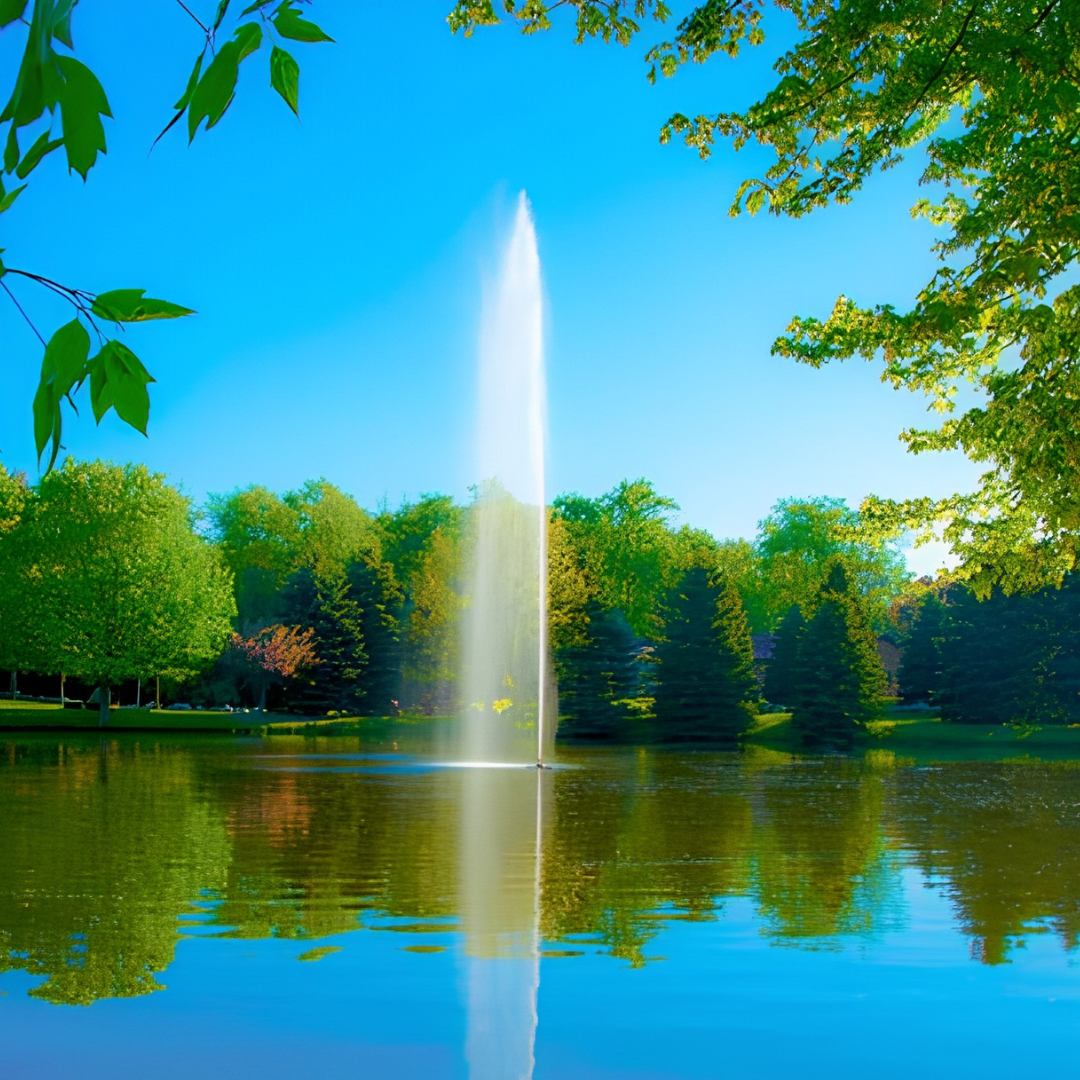

The Gusher Fountain creates a large-scale vertical geyser display for commercial ponds and water features. Its dense, cascading stream produces a full and continuously changing pattern designed to retain its visual impact in windy conditions.
This 3-hp, 230-volt configuration circulates water at 170 gallons per minute and produces a spray reaching 50 feet high. It requires a minimum pond depth of 60 inches.
The stainless-steel, oil-free, submersible motor is designed for continuous operation in fresh or salt water. It requires no oil changes, routine maintenance, or separate control box.
Key Features
Large-Scale Vertical Display: Produces a dense, cascading geyser-style column of water for large ponds and commercial water features.
Wind-Resistant Pattern: The concentrated vertical stream is designed to maintain its display in windy conditions.
Water Clarity Support: Adds oxygen to the water to help maintain water clarity and assist with the breakdown of natural material.
Oil-Free Motor: Requires no motor oil or oil changes.
Submersible Construction: Uses a stainless-steel, oil-free, submersible motor.
Low-Maintenance Operation: Requires no routine maintenance or separate control box.
Continuous Operation: Designed for operation 24 hours per day.
Freshwater and Saltwater Use: Designed for operation in both fresh and salt water.
Easy Installation: Designed for straightforward installation.
Optional Lighting: Compatible fountain light kits can be selected during purchase or added later.
Made in the USA: Manufactured in Holland, Michigan.
Specifications
Motor Power: 3 hp
Voltage: 230 V
Frequency: 60 Hz
Phase: Single-phase
Motor Speed: 3,450 rpm
Power Rating: 2.2 kW
Current Draw: 13.3 amps
Flow Rate: 170 gallons per minute
Spray Pattern: Dense, cascading vertical water column
Spray Height: 50 feet
Minimum Pond Depth: 60 inches

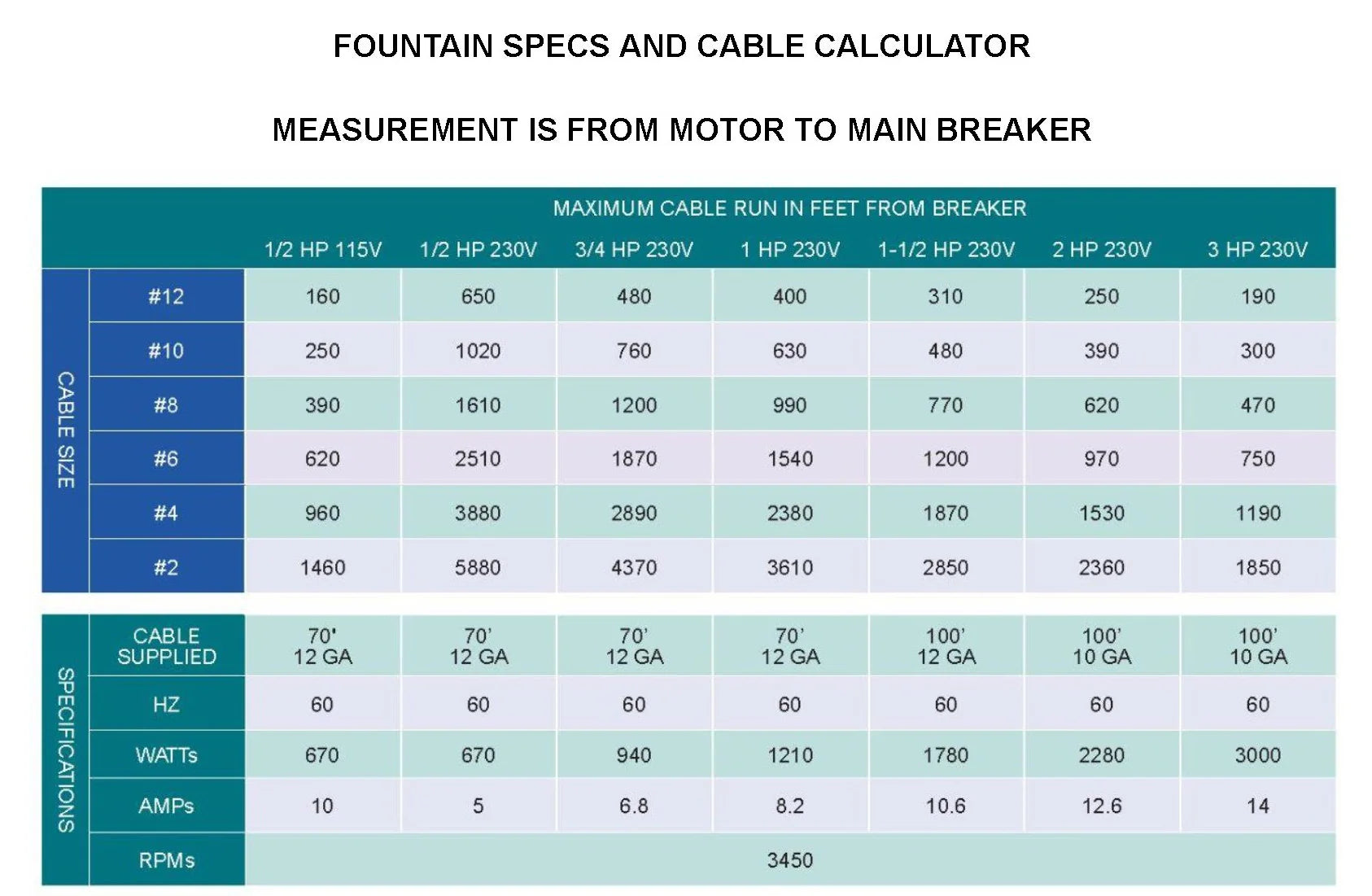

Standard Power Cord: 100 feet long, 10-gauge, and submersible
Longer Power Cord Availability: The electric power cord may be ordered in greater lengths.
Alternate Electrical Configurations: Also available in three-phase and/or 50 Hz configurations.
Motor Construction: Stainless-steel, oil-free, and submersible
Water Compatibility: Fresh water and salt water
Operating Capability: Designed for 24-hour-per-day operation
Maintenance Requirement: No maintenance required
Control Box Requirement: No separate control box required
Required Anchoring Weight: Two 55-pound weights or concrete blocks
Required Anchoring Lines: Two nylon ropes
Required Electrical Protection: A Ground Fault Circuit Interrupter is required.
Swimmer Safety: Always disconnect power when swimmers are present.
Testing and Compliance: ARL-tested and compliant with UL standards and the National Electric Code when installed as a complete package.
Size Guide
Spray Height: 50 feet
Minimum Pond Depth: 60 inches
Compatibility
Compatible With: Large freshwater and saltwater ponds and commercial water features.
Electrical Configuration: 230-volt power installations.
Compatible Lighting: Color-changing LED and LED “Night Glo” two-light and four-light options available through the product selector.
Included
Submersible 10-gauge electric power cord in the selected available length.
Not Included
Two 55-pound anchoring weights or concrete blocks
Two nylon anchoring ropes
Light set Not Included
