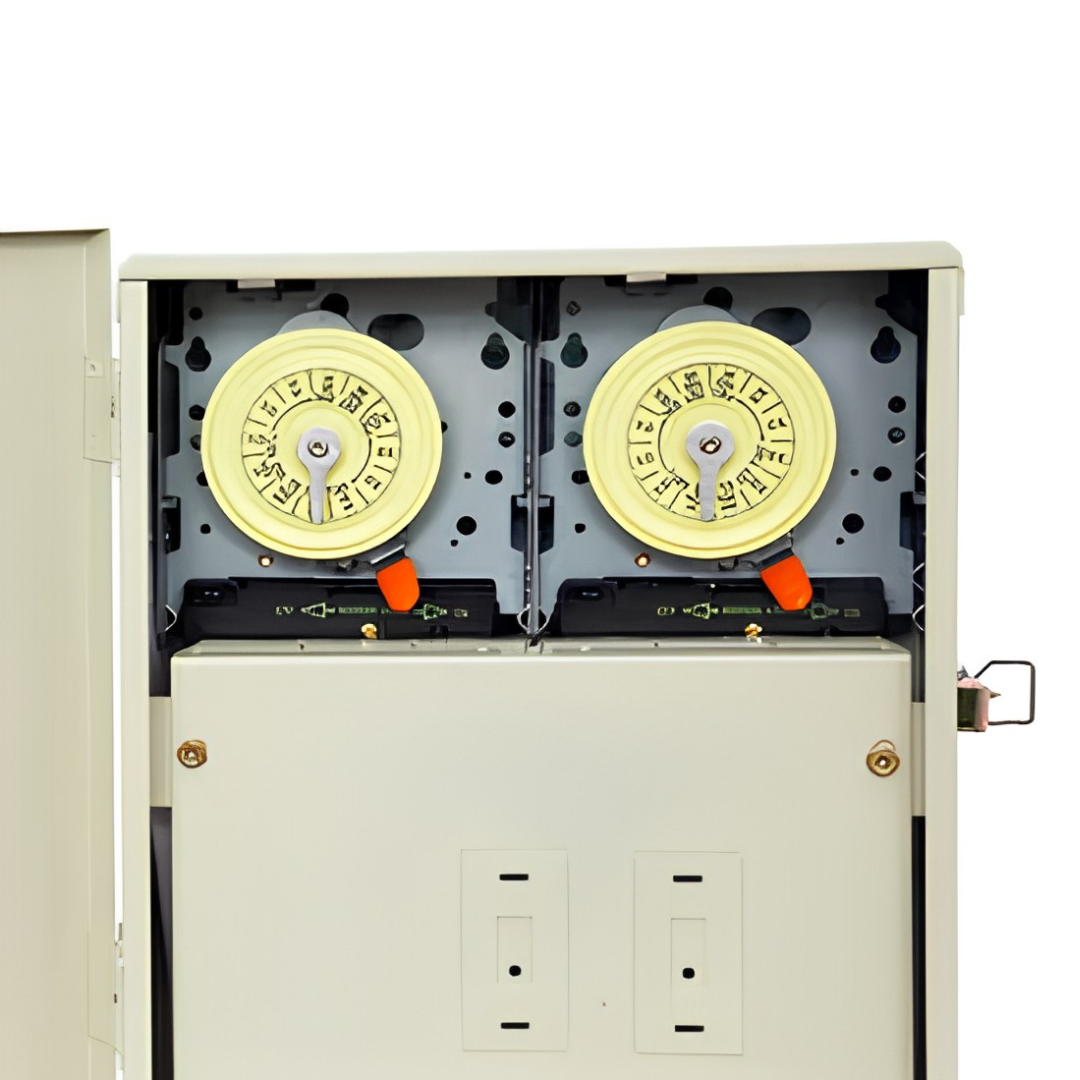

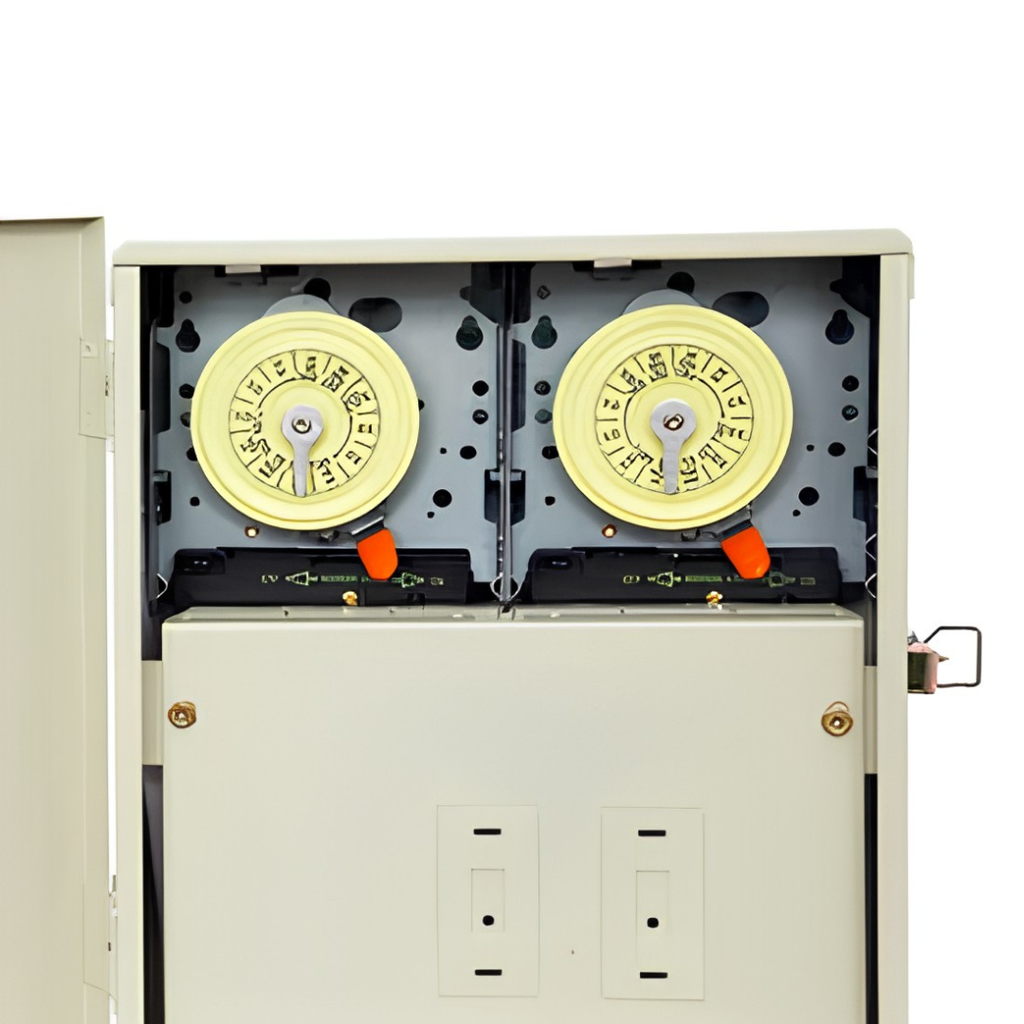

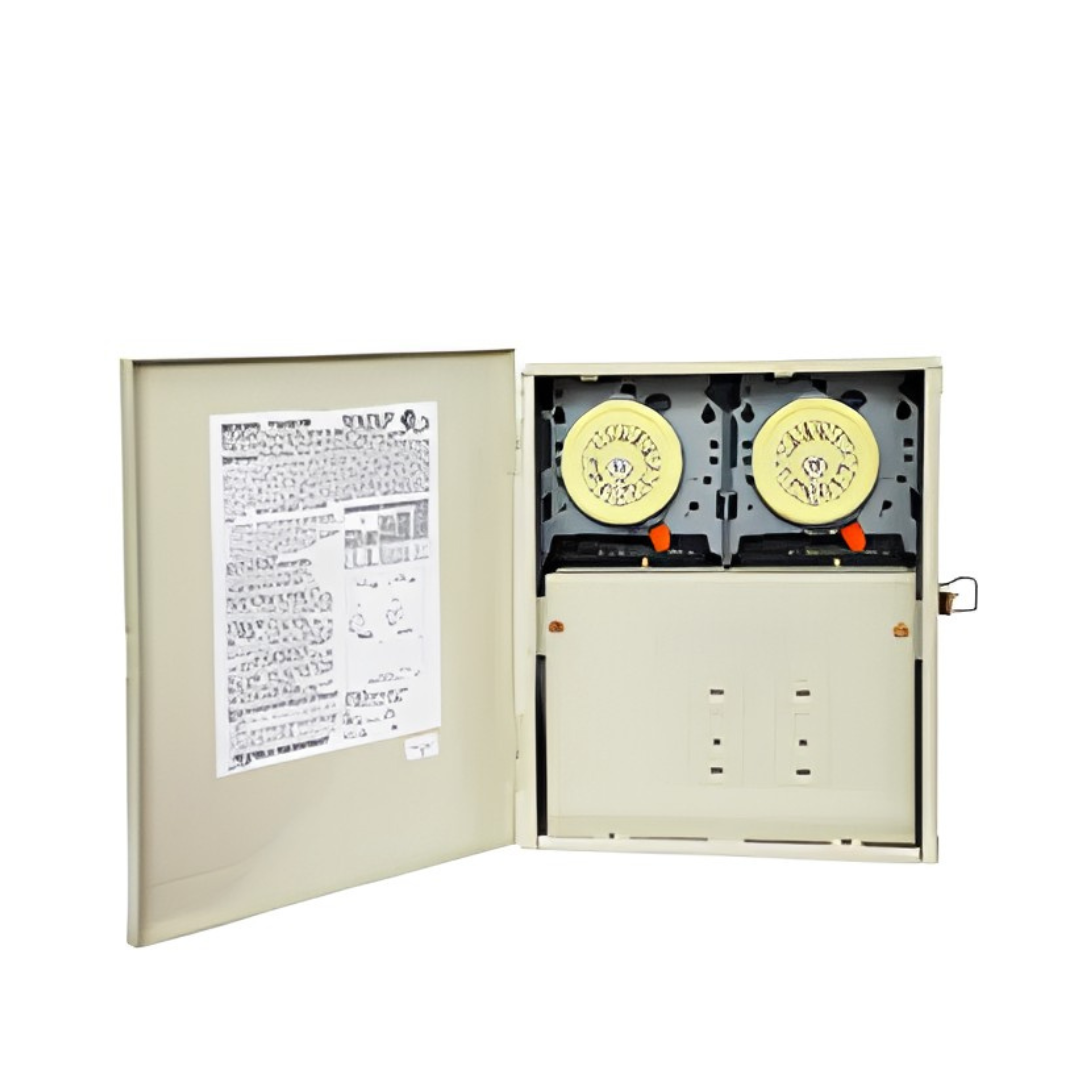

The Intermatic Timing Center combines two timers in a single outdoor enclosure for automated control of fountains, aerators, and lighting systems. It is designed for both residential and commercial installations and supports equipment operating on either 115- or 230-volt power.
The two-timer configuration allows connected equipment and lighting to follow preset operating schedules. Clearly identified manual ON/OFF levers provide direct control without changing the programmed settings.
Its steel outdoor enclosure is tamper-resistant and maintenance-free. Mounting hardware is included, and the enclosure contains knockouts that can accommodate optional switches or GFCI devices.
Key Features
-
Dual-Timer Configuration: Contains two timers within a single outdoor enclosure for controlling connected equipment and lighting.
-
Automated Scheduling: Allows fountains, aerators, and lighting systems to operate according to preset schedules.
-
115V and 230V Compatibility: Designed for use with both 115-volt and 230-volt applications.
-
Manual ON/OFF Control: Clearly identified manual ON/OFF levers allow direct operation without altering preset programs.
-
Outdoor Enclosure: Both timers are housed in a durable steel enclosure intended for outdoor installation.
-
Tamper-Resistant Design: Enclosure is designed to resist unwanted access or adjustment.
-
Maintenance-Free Design: Requires no routine maintenance according to the product description.
-
Residential and Commercial Use: Suitable for both residential and commercial applications.
-
Switch and GFCI Knockouts: Enclosure includes knockouts for installing optional switches or GFCI devices.
-
Mounting Hardware Included: Installation mounting hardware is supplied with the unit.
Specifications
-
Timer Quantity: Two timers
-
Supported Voltage: 115V or 230V applications
-
Enclosure Material: Steel
-
Installation Environment: Outdoor
-
Length: 10¼ inches
-
Width: 12 inches
-
Depth: 4½ inches
-
Manual Control: Clearly identified ON/OFF levers
-
Program Retention During Manual Operation: Manual ON/OFF operation does not alter the preset program.
-
Maintenance: Maintenance-free
-
Enclosure Design: Tamper-resistant
-
Knockouts: Provided for optional switches or GFCI devices
-
Application Type: Residential and commercial
-
115V Power-Distance Requirement: If the total distance from the main breaker to the water area exceeds 100 feet, 115V will not operate properly.
Size Guide
-
Length: 10¼ inches
-
Width: 12 inches
-
Depth: 4½ inches
Compatibility
-
Compatible With: 115V equipment applications
-
Compatible With: 230V equipment applications
-
Compatible Applications: Fountains, aerators, and lighting systems
-
Lighting Application: Suitable for units equipped with light sets.
-
Installation Type: Residential or commercial outdoor installations
-
115V Limitation: For 115V applications, the total distance from the main breaker to the water area should not exceed 100 feet.
Included
- Two timers
- Steel outdoor enclosure
- Mounting hardware
Not Included
