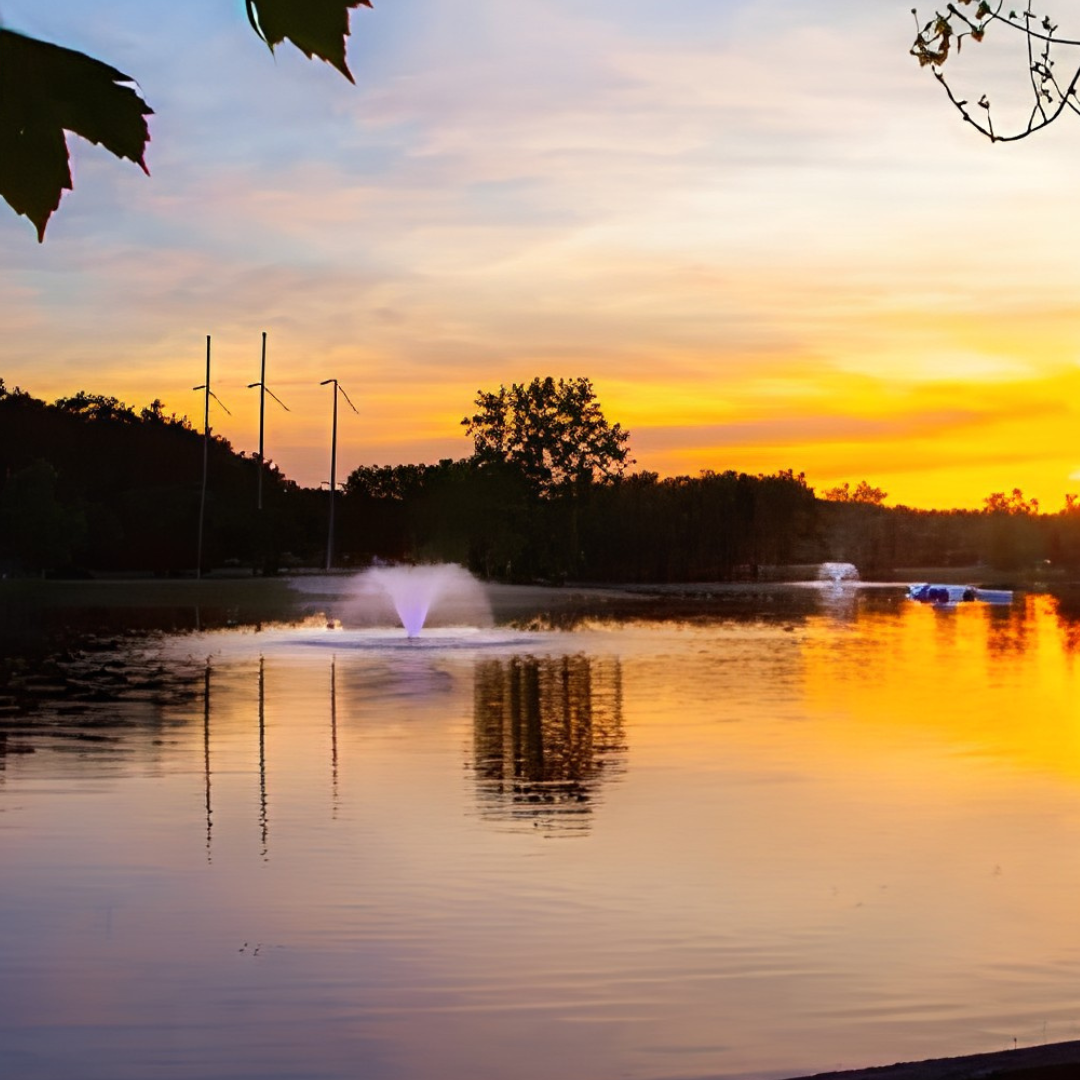

This fountain aerator combines pond aeration with an elegant, trumpet-shaped water display for small residential ponds. It creates a strong surface current that helps oxygenate the water while reducing algae and debris.
The ⅓ hp configuration moves 300 gallons of water per minute and creates an approximately 5-foot-high by 12-foot-wide spray pattern. It is intended for ponds up to ¾ acre and requires a minimum water depth of 32 inches.
The unit uses a stainless-steel, oil-free submersible motor suitable for fresh water and salt water. It can remain installed during winter with the power turned off and may be restarted after the pond thaws.
Key Features
Aeration and Water Display: Combines pond aeration with an elegant, trumpet-shaped decorative water feature.
Strong Surface Circulation: Creates a strong surface current that helps oxygenate the water and reduce algae and debris.
High-Volume Water Movement: Circulates 300 gallons of water per minute.
Wide Spray Pattern: Produces an approximately 5-foot-high by 12-foot-wide water pattern.
Oil-Free Motor: Uses an oil-free submersible motor with no oil changes required.
Low-Maintenance Operation: No routine maintenance or separate control box is required.
Continuous Operation: Designed for 24-hour-per-day operation.
Freshwater and Saltwater Use: Designed for fresh water and approved for saltwater operation.
Winter-Ready Design: Can remain installed with the power turned off during winter and be restarted after the pond thaws.
Subzero-Condition Durability: Components are engineered to withstand subzero conditions without damage.

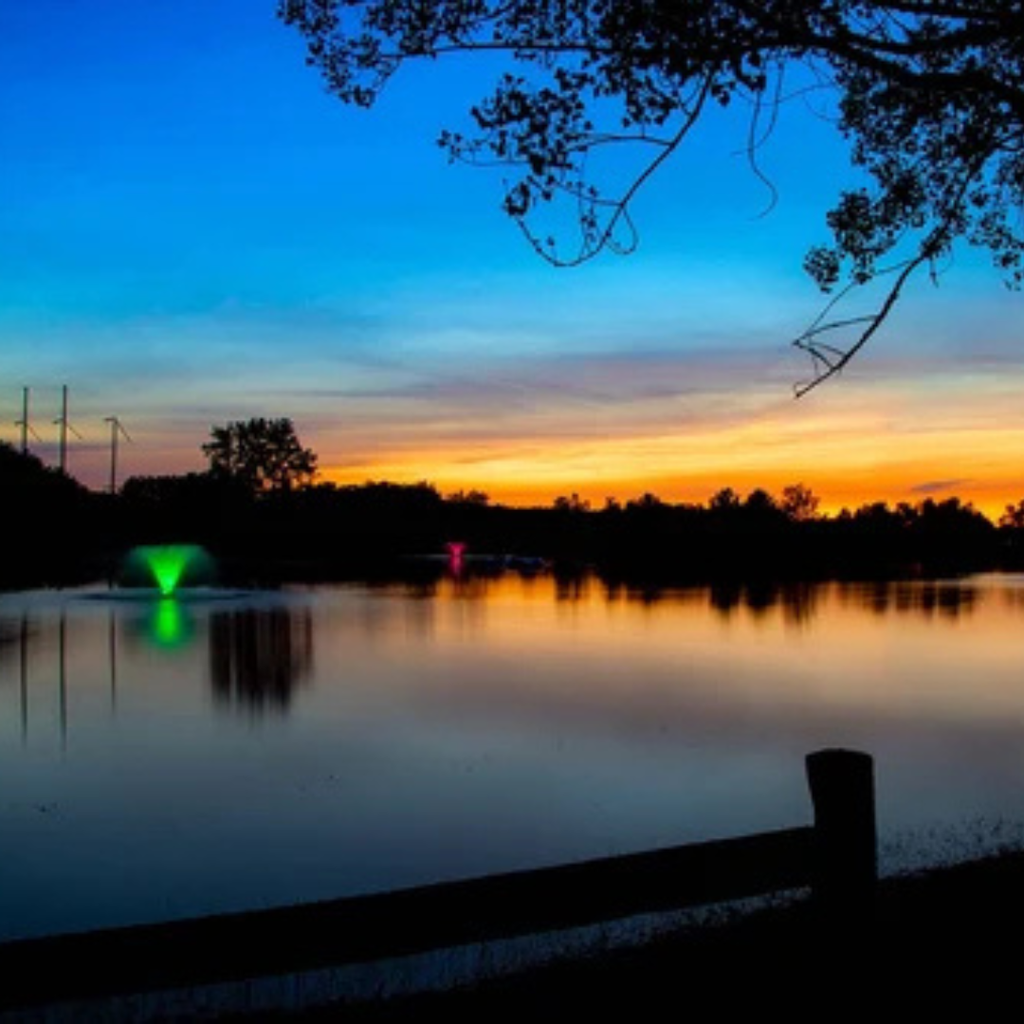

Optional Lighting: Compatible lighting options can be added during the initial purchase or at a later time.
Made in the USA: Manufactured in Holland, Michigan.
Safety Compliance: ARL-tested and fully compliant with UL standards and the National Electrical Code when installed as a complete package.
Specifications
Motor Rating: ⅓ hp
Voltage: 230 volts
Motor Type: Oil-free, submersible motor
Motor Material: Stainless steel
Frequency: 60 Hz
Phase: Single-phase
Motor Speed: 3,450 rpm
Current Draw: 4 amps
Flow Rate: 300 gallons per minute
Spray Pattern: Approximately 5 feet high by 12 feet wide
Standard Power Cord Length: 70 feet
Power Cord Gauge: 12-gauge
Power Cord Type: Submersible electric power cord

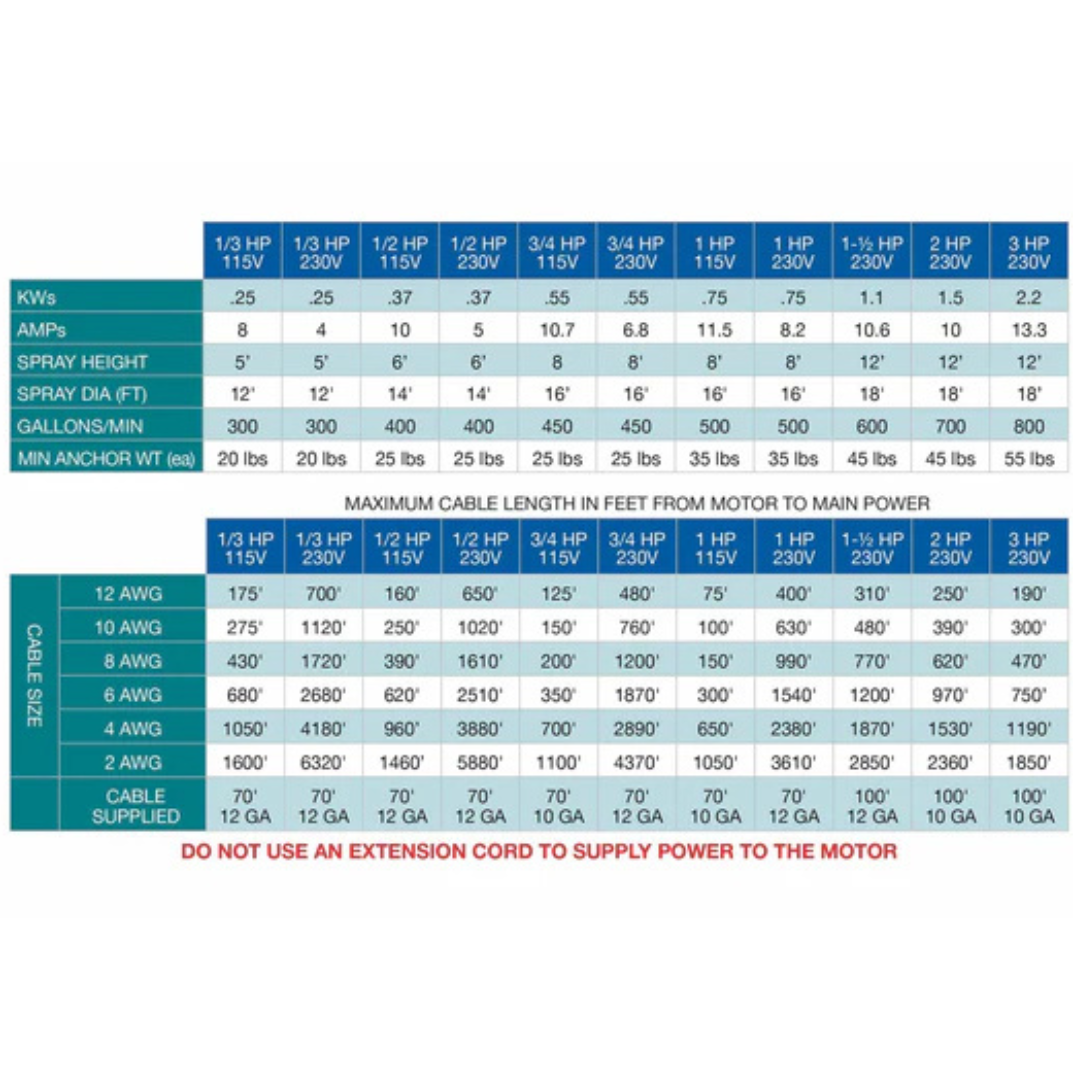

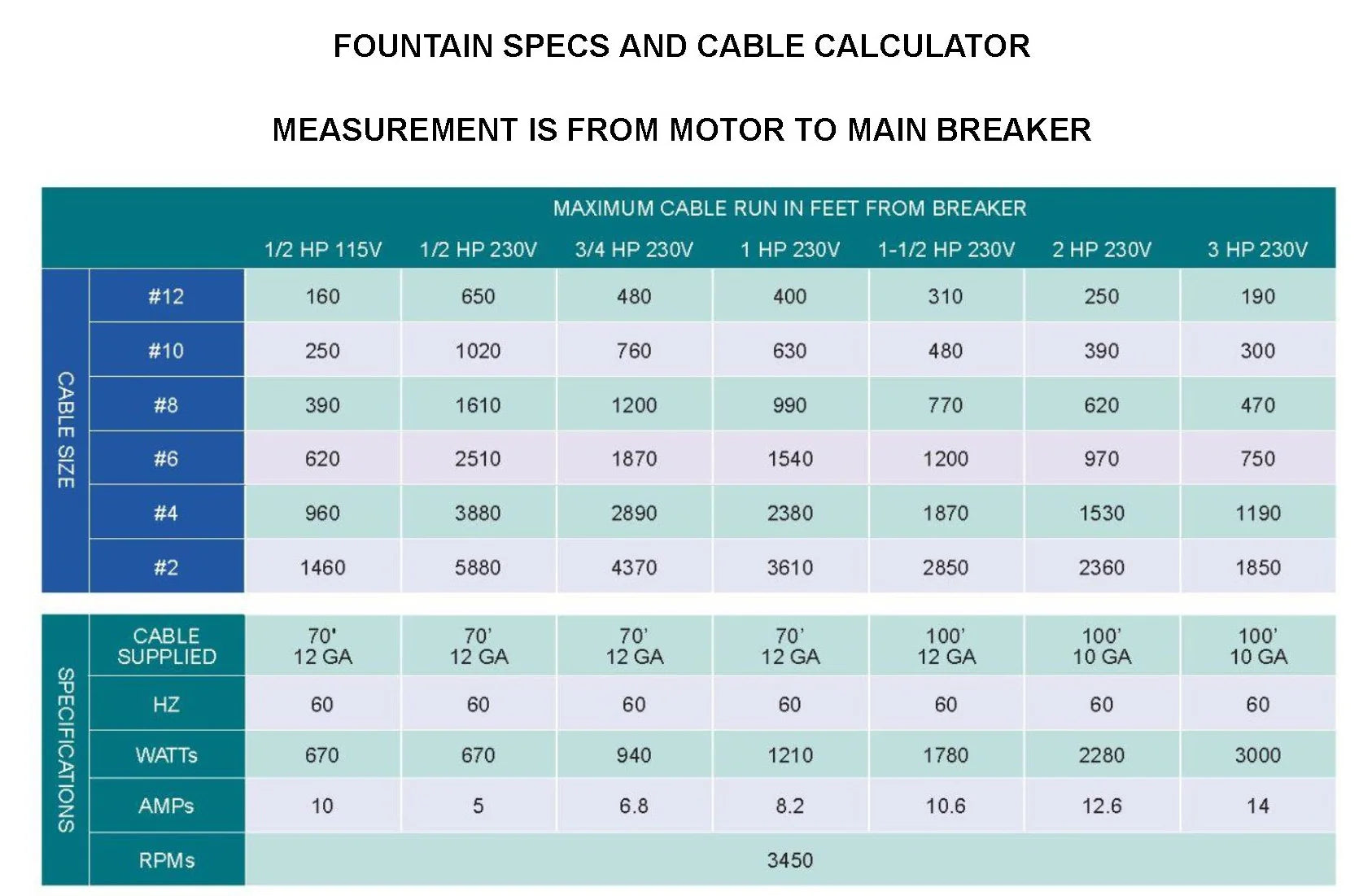

Maximum Cable Length With 12-Gauge Cable: 700 feet from the motor to the main power source
Extended Cord Availability: The electric power cord can be ordered in greater lengths.
Extension Cord Restriction: Do not use an extension cord to supply power to the motor.
Required Anchoring Weight: Two 20-pound weights or concrete blocks
Required Anchoring Ropes: Two nylon ropes
Operating Schedule: Designed for 24-hour-per-day operation
Alternative Electrical Configurations: Three-phase and/or 50 Hz versions are also available.
GFCI Requirement: A Ground Fault Circuit Interrupter is required.
Swimmer Safety: Power must always be disconnected when swimmers are present.
Maintenance Requirement: No maintenance required
Control Box Requirement: No control box required
Size Guide
Recommended Pond Size: Up to ¾ acre
Minimum Pond Depth: 32 inches
Compatibility
Compatible With: Freshwater and saltwater ponds up to ¾ acre with a minimum water depth of 32 inches.
Electrical Compatibility: 230-volt, 60 Hz, single-phase electrical service.
Optional Lighting: Compatible lighting options can be added during the initial purchase or later.
Included
⅓ hp, 230-volt fountain aerator
70-foot, 12-gauge submersible electric power cord
Not Included
Two 20-pound anchoring weights or concrete blocks
Two nylon anchoring ropes
Light set Not Included
