Replacement Diffusers provide replacement options for subsurface aeration systems, with three configurations available to suit different aeration setups. The available choices include a high-efficiency micro-porous diffuser and single- or double-diffuser configurations.
These diffusers use compressed air to create small bubbles at the pond bottom, producing upward water movement that helps improve oxygen transfer through the water column.
Key Features
-
Three Diffuser Options: Choose from US Solar Mounts High-Efficiency O₂ Diffuser, Easy-Pro Single Diffuser, or Easy-Pro Double Diffuser.
-
Subsurface Aeration: Creates small air bubbles at the pond bottom to generate upward water movement.
-
Aeration Benefits: Supports increased oxygen transfer and lift through the water column, while oxygen diffusion helps reduce odors and encourages decomposition of muck and sediment.
-

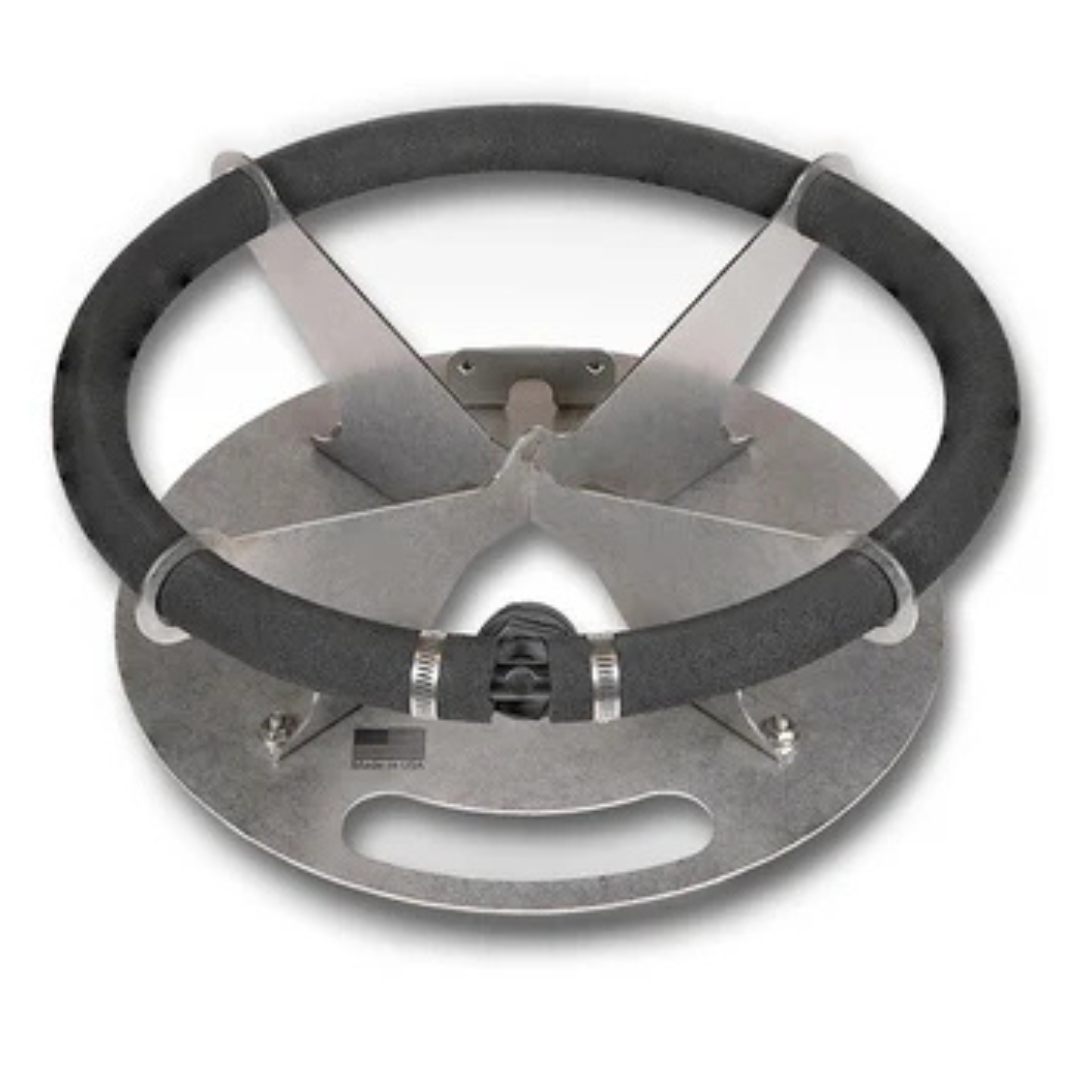

Self-Sinking Design: The US Solar Mounts High-Efficiency O₂ Diffuser features a self-sinking stainless steel base with no sharp edges.
Specifications
-
US Solar Mounts Materials: Stainless steel and EPDM rubber.
-
US Solar Mounts Airflow: 1–10 CFM.
-
US Solar Mounts Airline Compatibility: 3/8 in or ½ in airline.
-
US Solar Mounts Lift Rate: 600 gallons per minute at 6 ft depth.
-
Easy-Pro Single Materials: Powder-coated carbon steel with round rubber EPDM membrane.
-
Easy-Pro Single Airflow: 1.6–6 CFM.
-
Easy-Pro Single Tubing Sizes: Accepts 3/8 in, ½ in, or 5/8 in tubing.
-
Easy-Pro Double Materials: Powder-coated carbon steel with round rubber EPDM membrane.
-
Easy-Pro Double Airflow: 1.6–6 CFM.
-
Easy-Pro Double Tubing Sizes: Accepts 3/8 in, ½ in, or 5/8 in tubing.
Compatibility
-
US Solar Mounts High-Efficiency O₂ Diffuser: Compatible with fresh and salt water and can be used with an air compressor or windmill aerator producing 1–10 CFM.
-

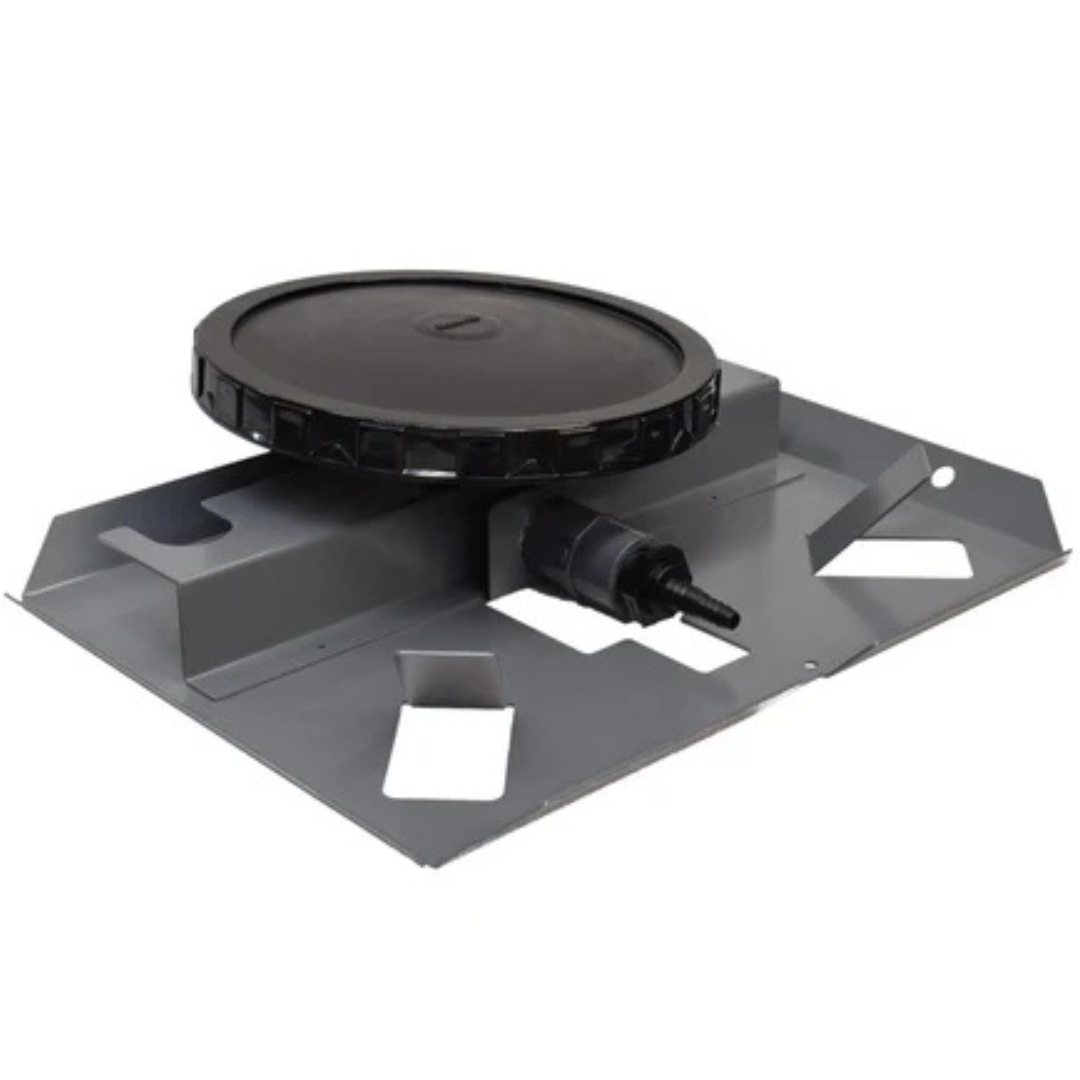

Easy-Pro Single Diffuser: Used standard with Bubble Pro and Bubble Pro Mini subsurface aerator systems; designed for freshwater use.
-

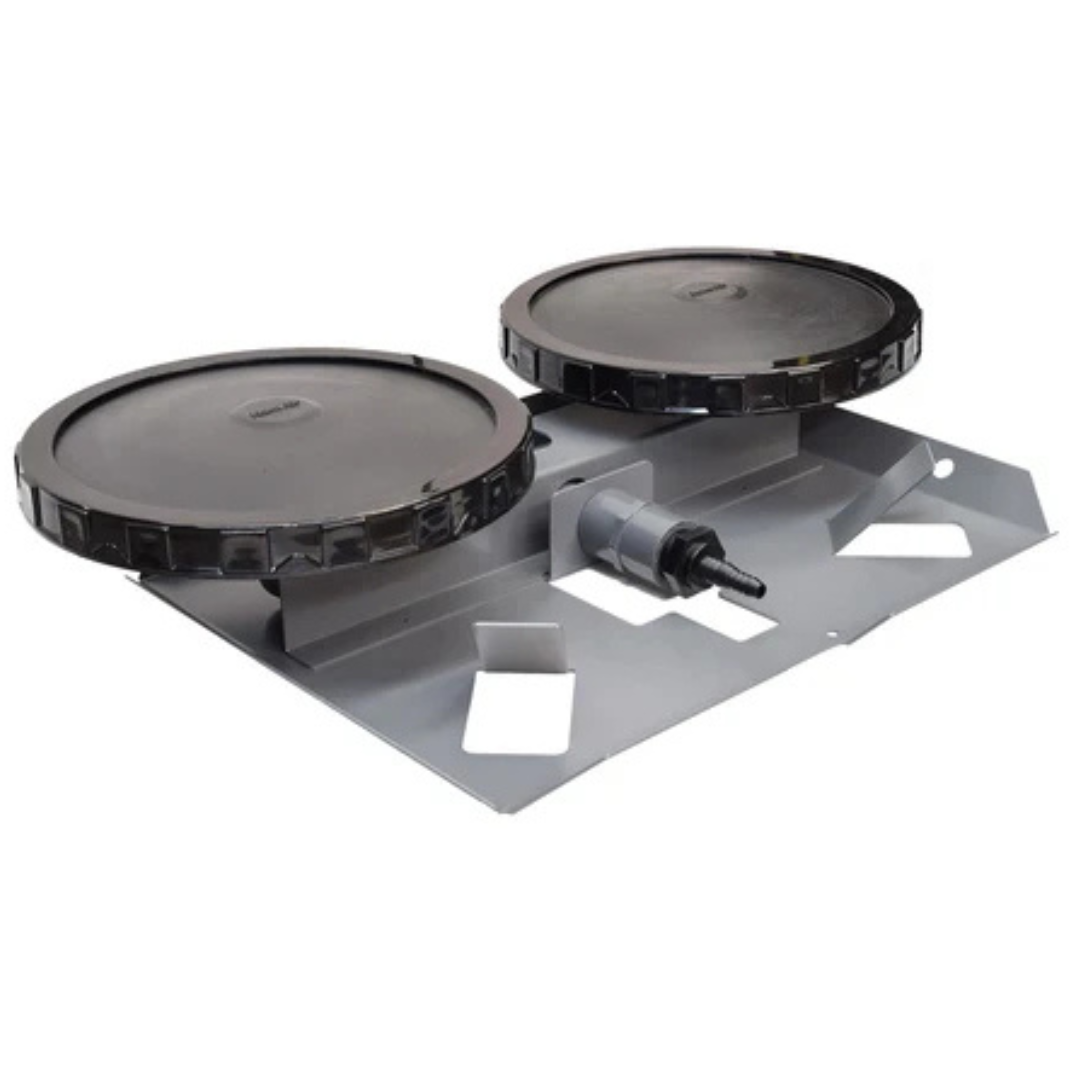

Easy-Pro Double Diffuser: Used standard with Bubble Pro Max and Bubble Pro Max XL subsurface aerator systems; designed for freshwater use.
Included
For the US Solar Mounts High-Efficiency O₂ Diffuser:
- Check valve
- Hose strain relief clamp
Not Included
For the US Solar Mounts High-Efficiency O₂ Diffuser:
- Tubing
- Air compressor or windmill aerator
