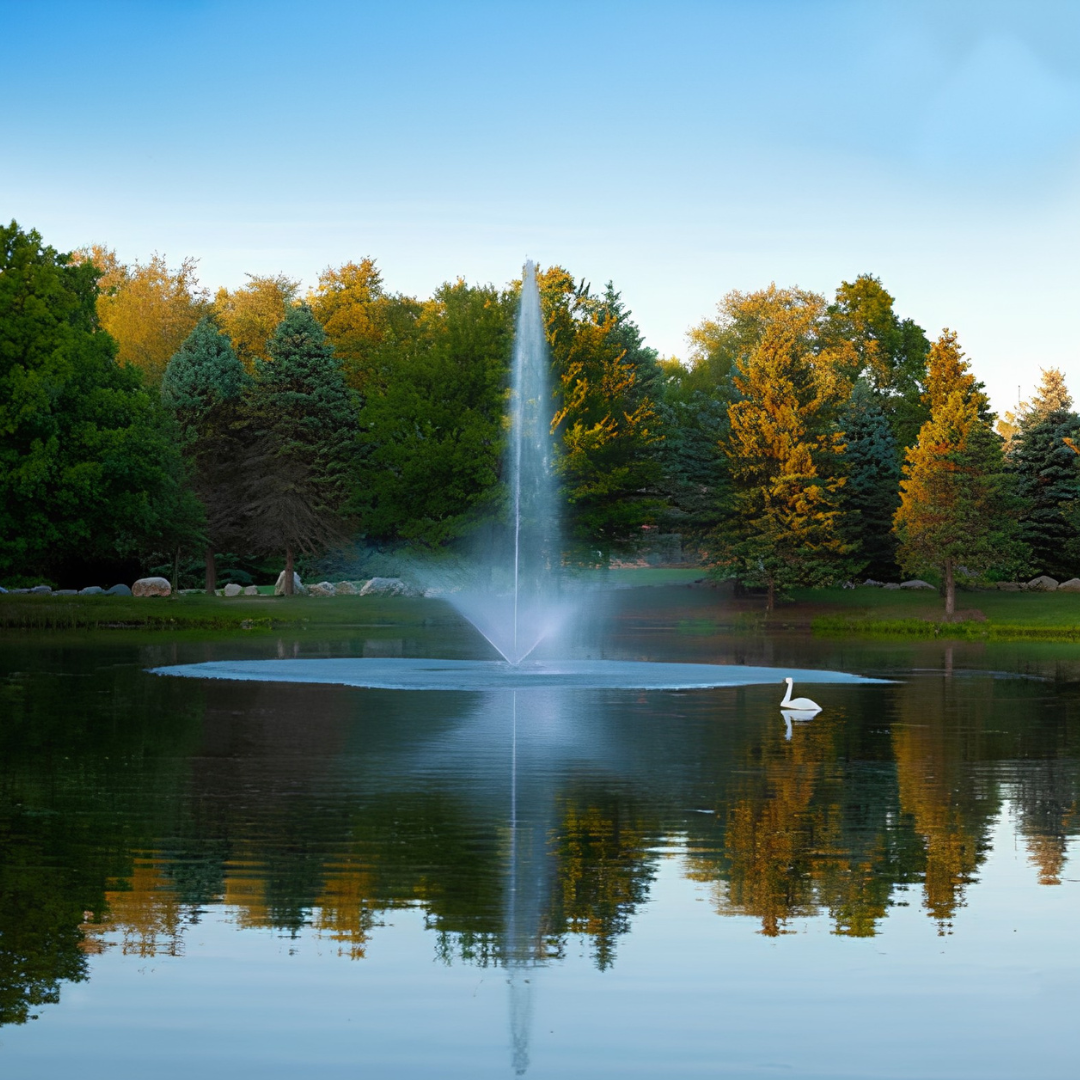

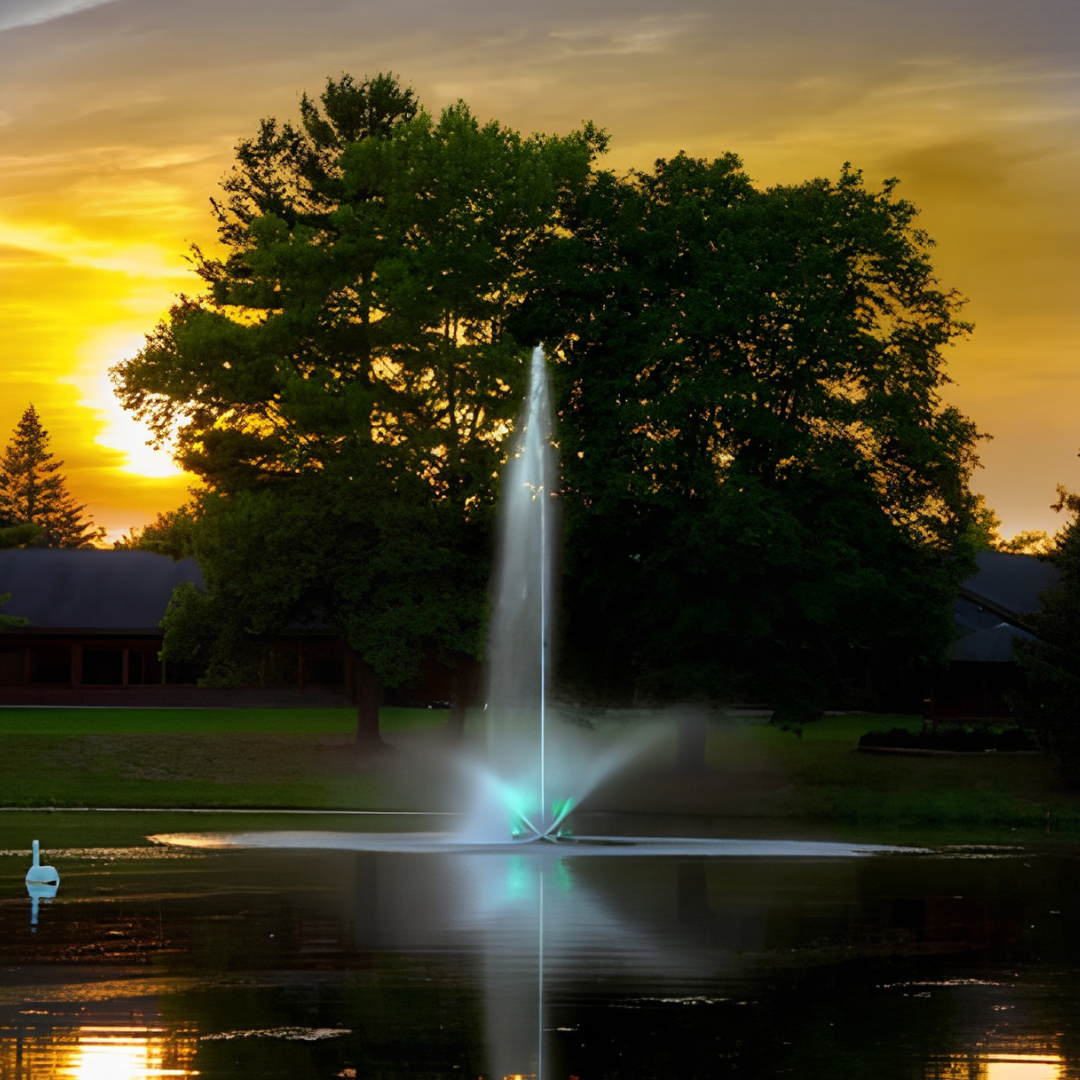

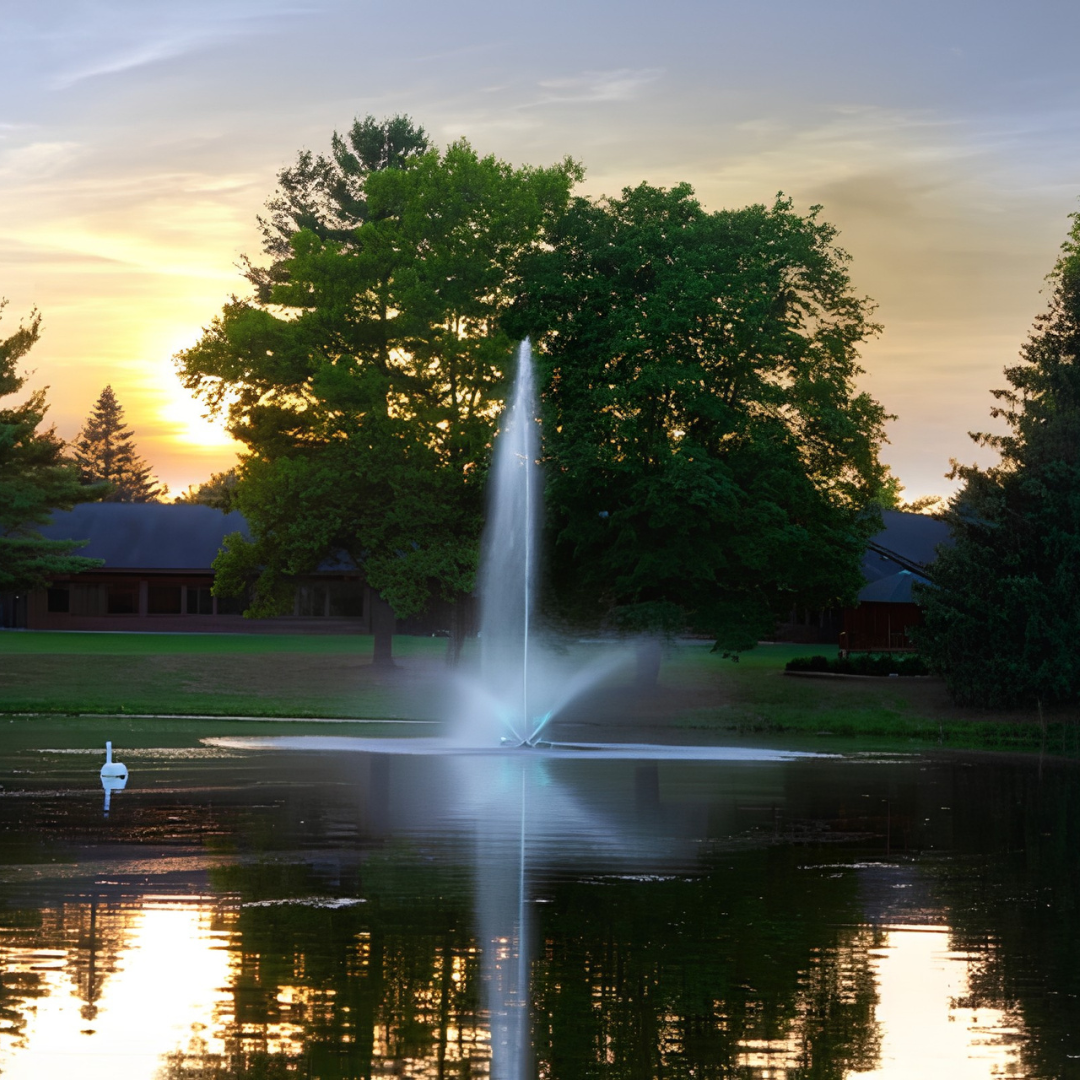

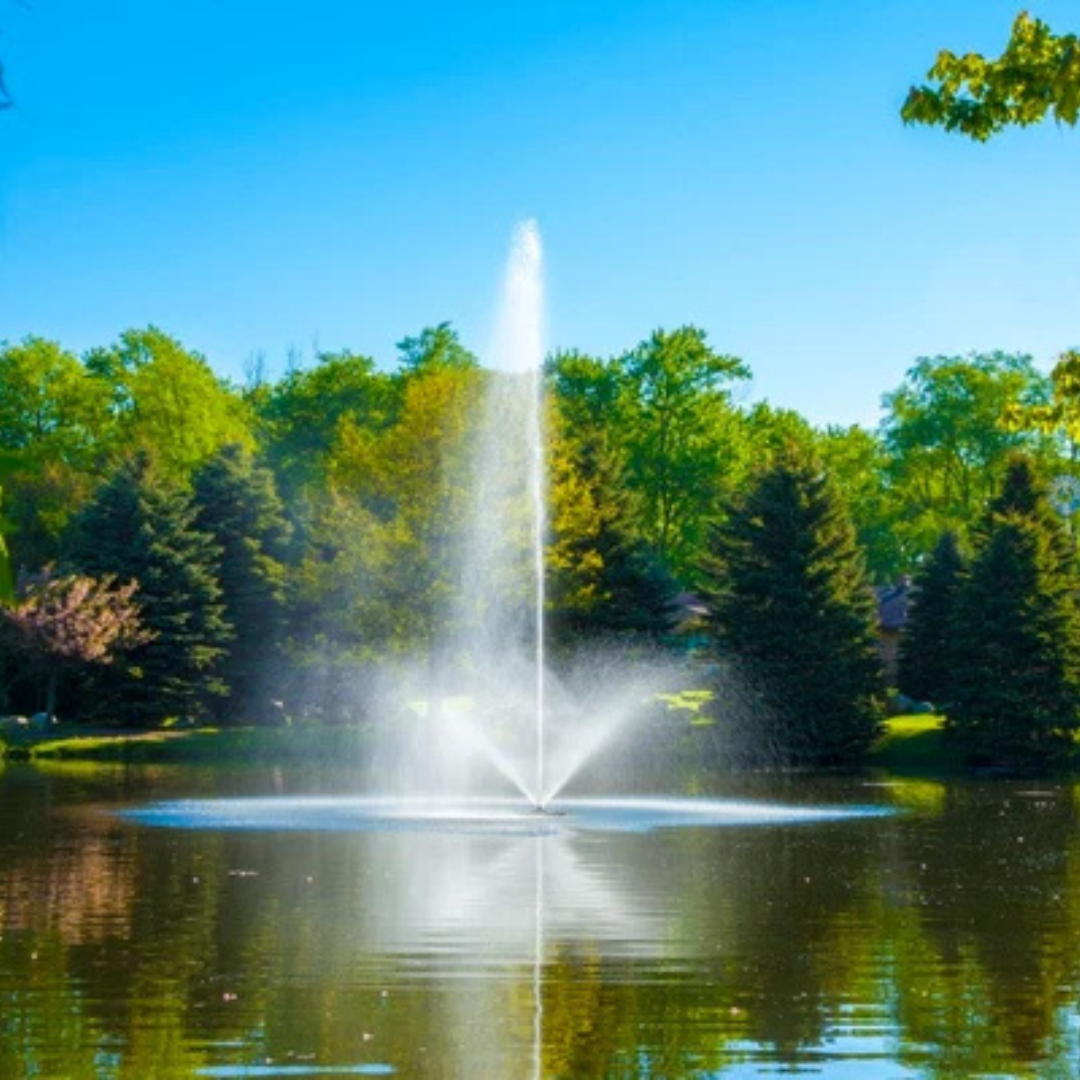

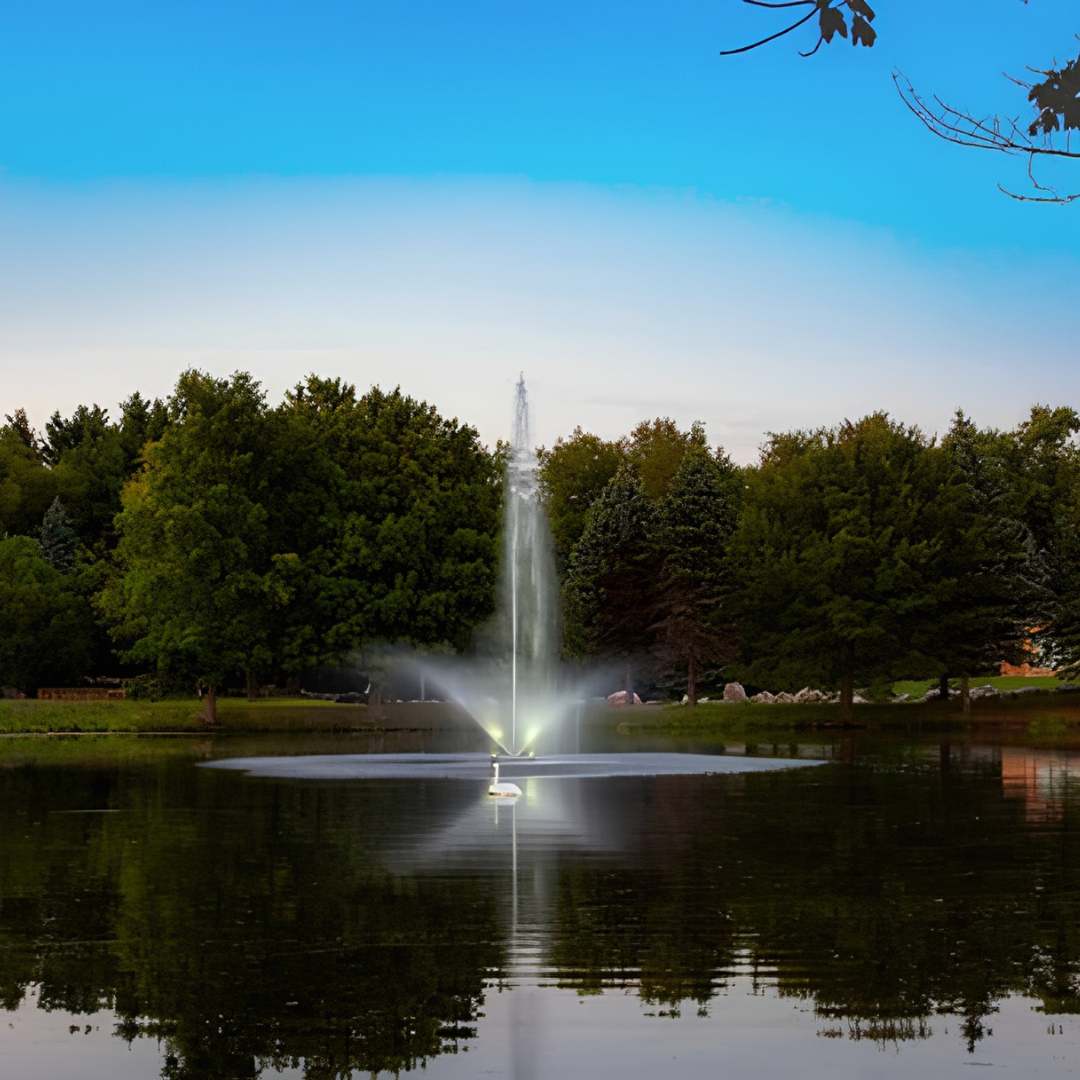

The Skyward Fountain creates a wide, spreading water display for medium-sized residential ponds. Its adjustable center column rises above the surrounding side jets to provide a broad and distinctive pond feature.
This ¾-hp, 230-volt configuration circulates water at 60 gallons per minute and produces an adjustable display measuring up to 25 feet high and 30 feet wide. Continuous circulation increases oxygen levels and supports a healthier aquatic environment.
The stainless-steel, oil-free, submersible motor is designed for continuous fresh- or saltwater operation. It requires no oil changes, routine maintenance, or separate control box.
Key Features
Wide Fountain Display: Produces a spreading pattern with an adjustable center column and surrounding side jets.
Adjustable Center Column: The center spray can be adjusted for height.
Water Circulation: Circulates water at 60 gallons per minute.
Oxygenation Support: Improves circulation and increases oxygen levels in the water.
Oil-Free Motor: Requires no motor oil or oil changes.
Submersible Construction: Uses a stainless-steel, oil-free, submersible motor.
Low-Maintenance Operation: Requires no routine maintenance or separate control box.
Continuous Operation: Designed for operation 24 hours per day.
Freshwater and Saltwater Use: Designed for use in fresh and salt water.
Easy Installation: Designed for straightforward installation.
Optional Lighting: Compatible light kits can be selected during purchase or added later.
Made in the USA: Manufactured in Holland, Michigan.
Specifications
Motor Power: ¾ hp
Voltage: 230 V
Frequency: 60 Hz
Phase: Single-phase
Motor Speed: 3,450 rpm
Power Rating: 0.55 kW
Current Draw: 6.8 amps
Flow Rate: 60 gallons per minute
Spray Pattern: Wide, spreading display with an adjustable center column
Spray Dimensions: Up to 25 feet high × 30 feet wide
Spray Adjustment: Center-column height adjustable
Minimum Pond Depth: 40 inches

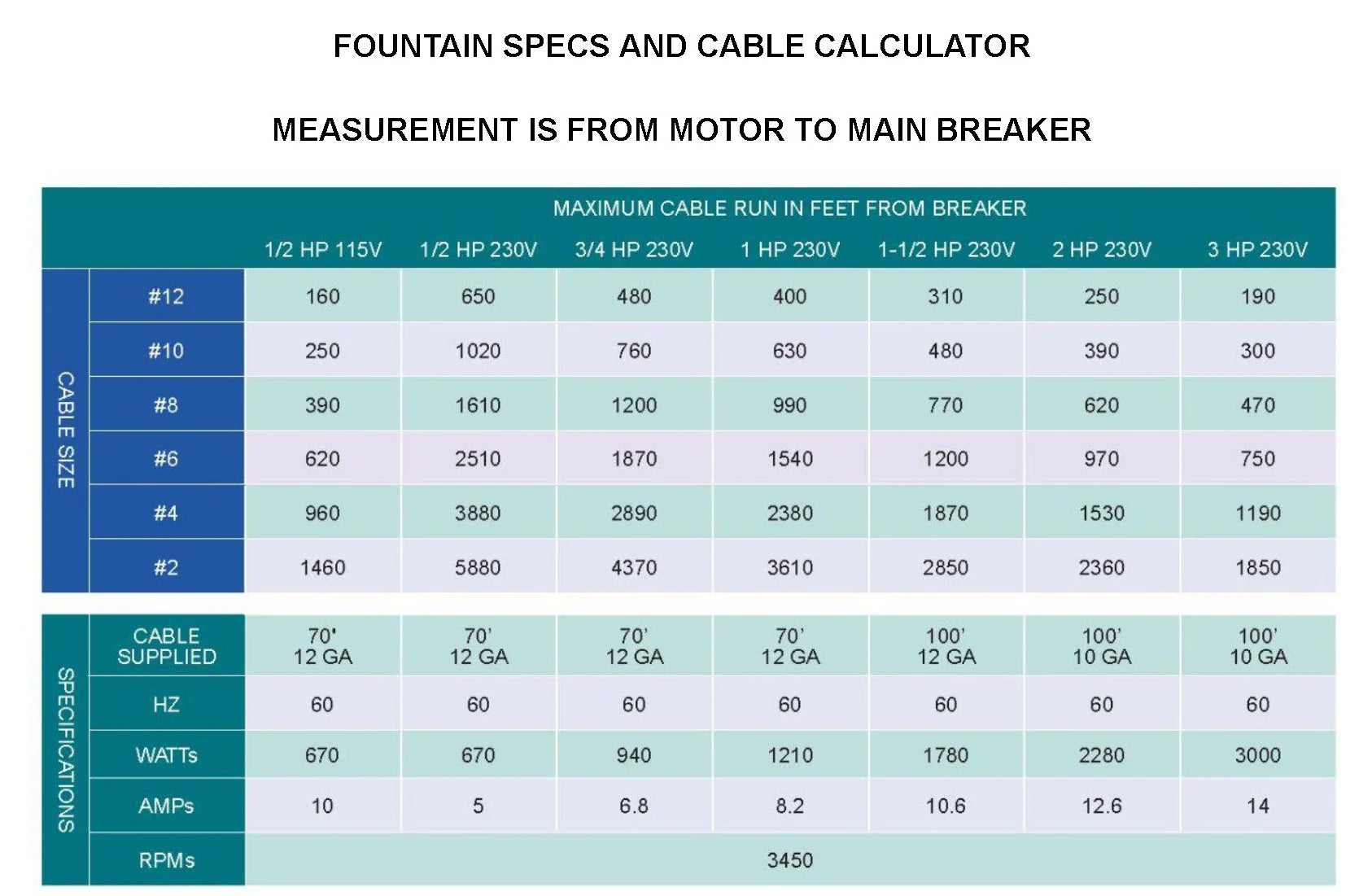

Standard Power Cord: 70 feet long, 12-gauge, and submersible
Longer Power Cord Availability: The electric power cord can be ordered in greater lengths.
Alternate Electrical Configurations: Also available in three-phase and/or 50 Hz configurations.
Motor Construction: Stainless-steel, oil-free, and submersible
Water Compatibility: Fresh water and salt water
Operating Capability: Designed for 24-hour-per-day operation
Maintenance Requirement: No maintenance required
Control Box Requirement: No separate control box required
Required Anchoring Weight: Two 20-pound weights or concrete blocks
Required Anchoring Lines: Two nylon ropes
Required Electrical Protection: A Ground Fault Circuit Interrupter is required.
Swimmer Safety: Always disconnect power when swimmers are present.
Testing and Compliance: ARL-tested and compliant with UL standards and the National Electric Code when installed as a complete package.
Size Guide
Maximum Spray Height: 25 feet
Maximum Spray Width: 30 feet
Center-Column Height: Adjustable
Minimum Pond Depth: 40 inches
Compatibility
Compatible With: Medium-sized residential freshwater and saltwater ponds.
Electrical Configuration: 230-volt power installations.

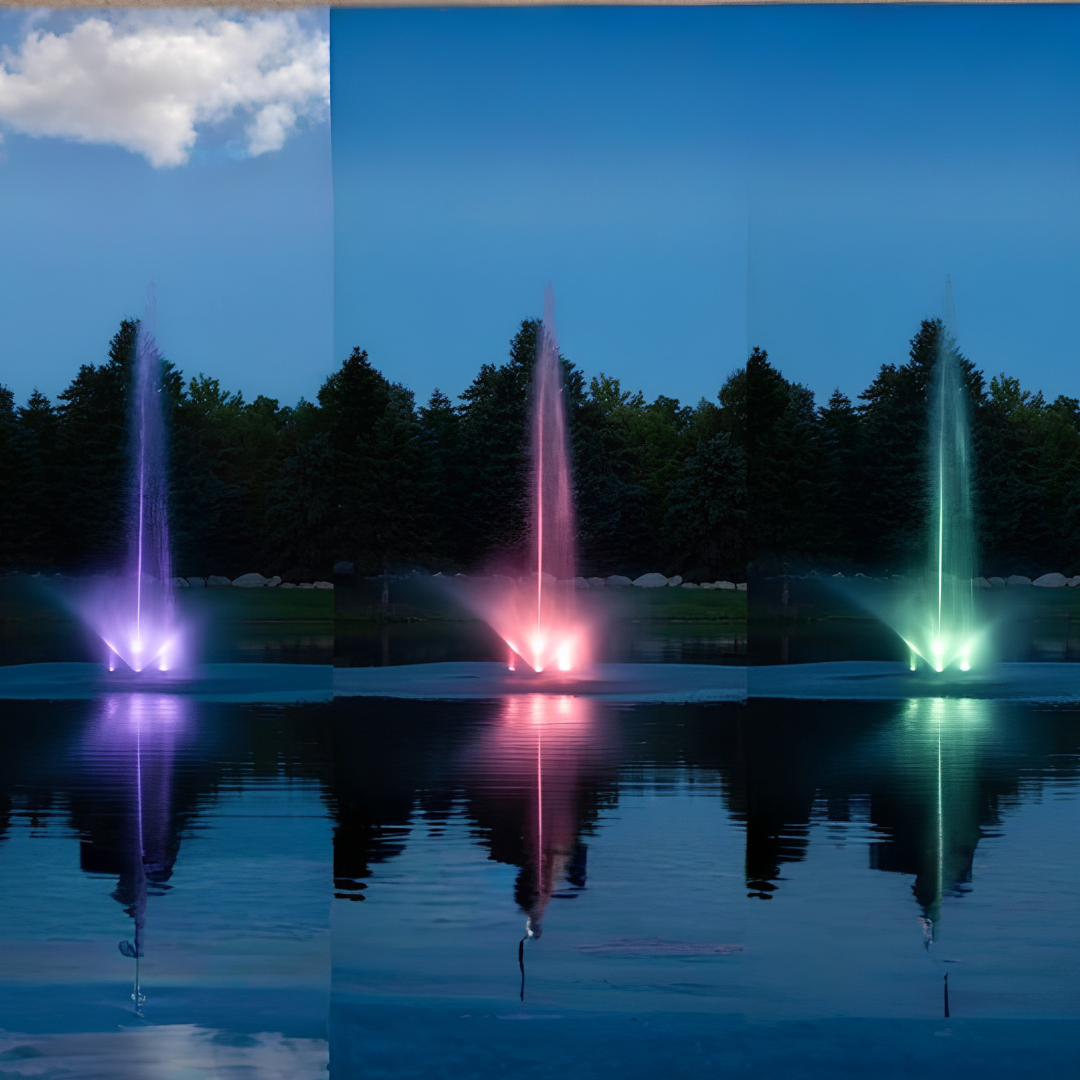

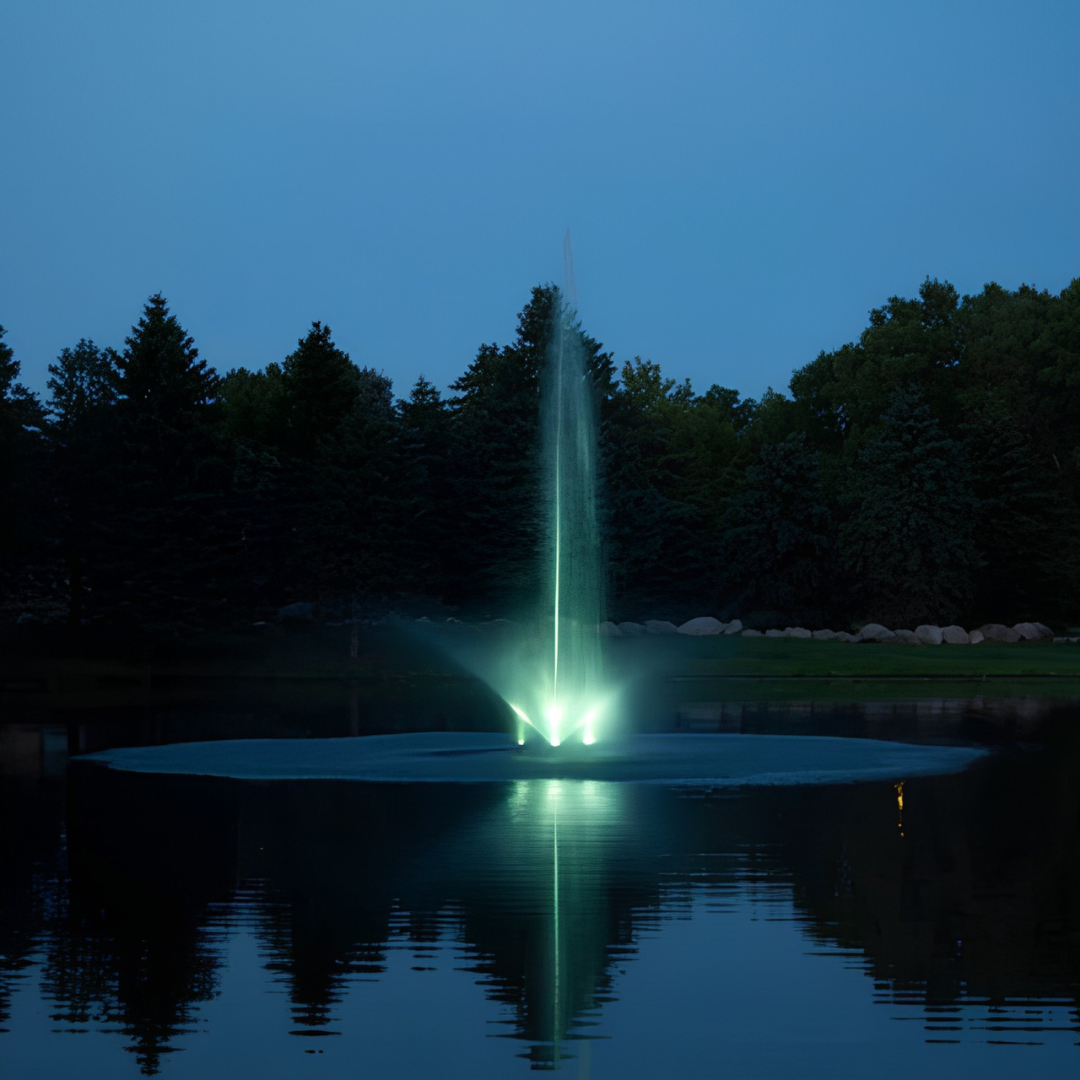

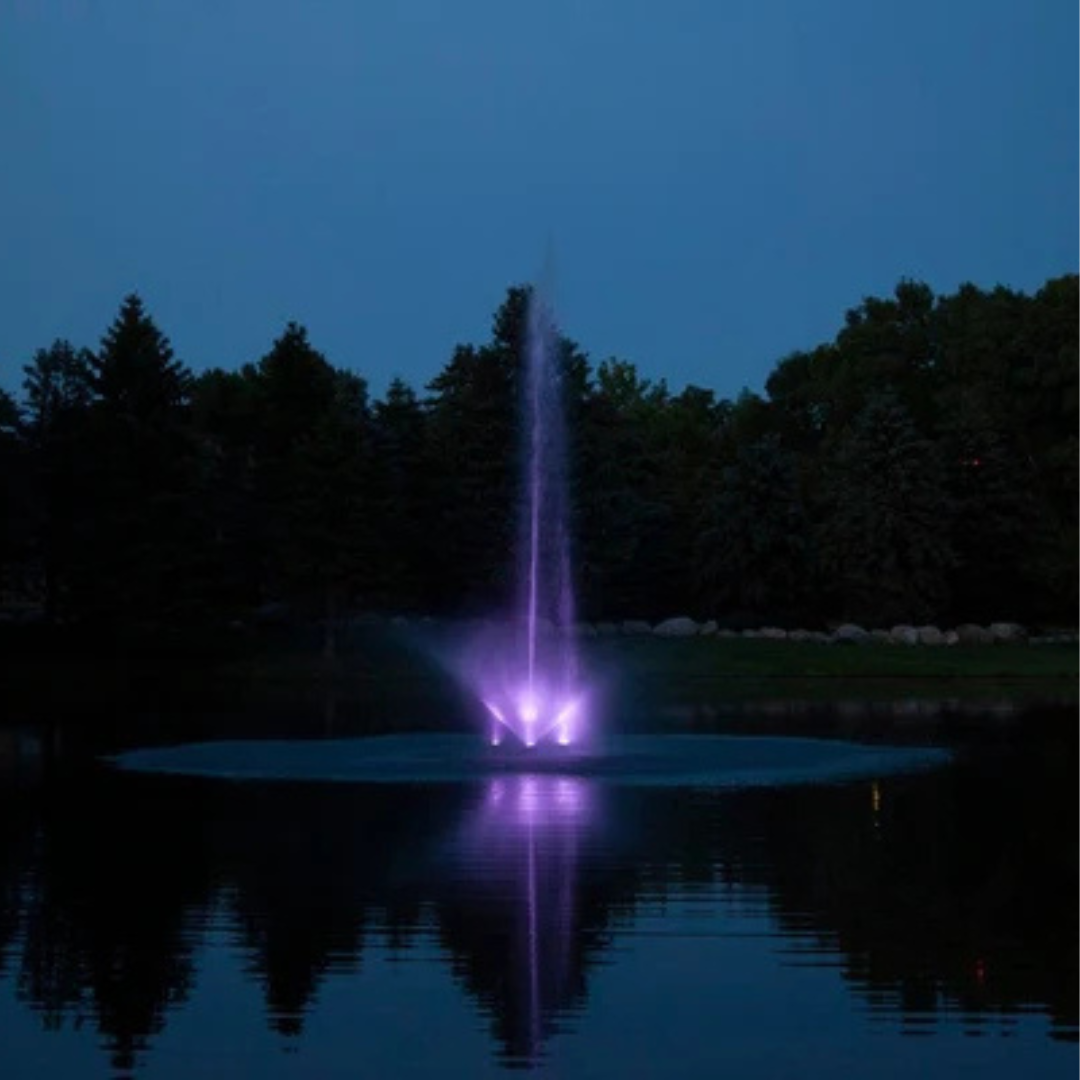

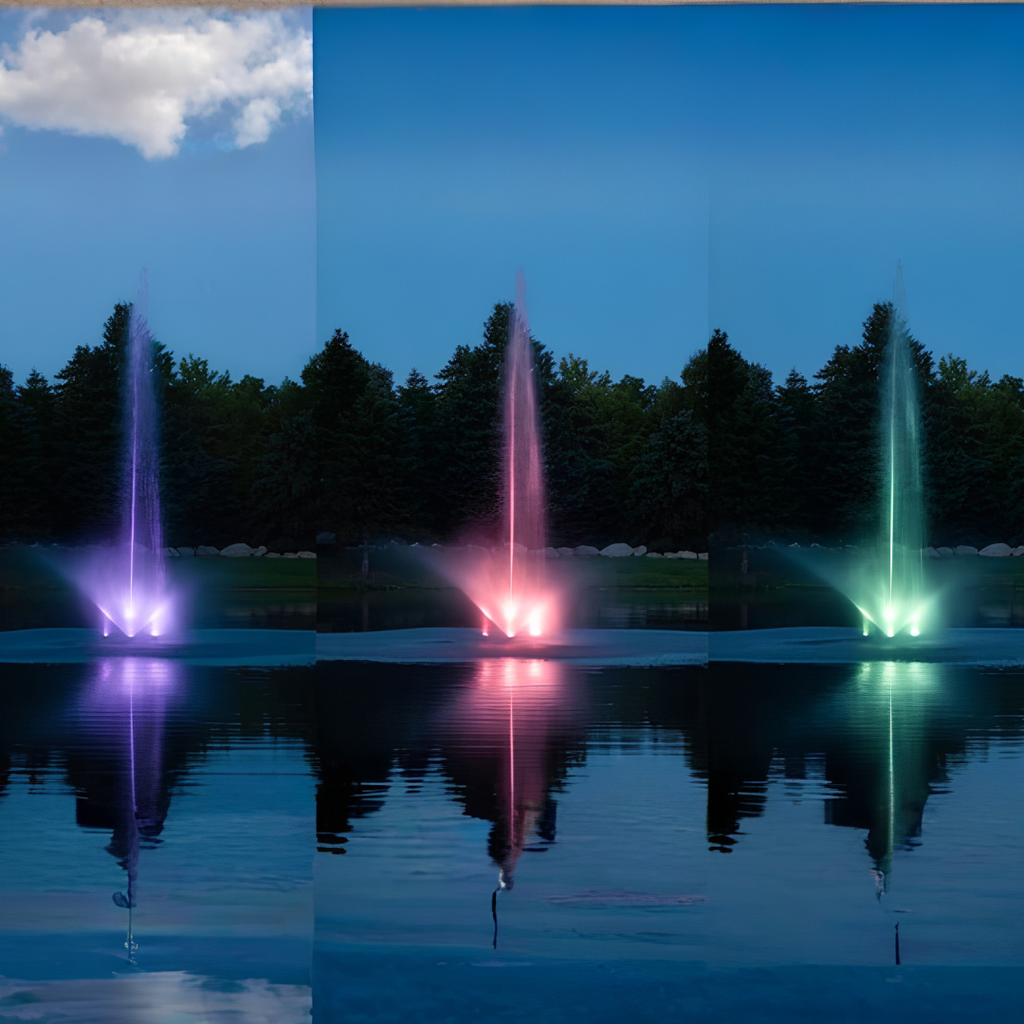

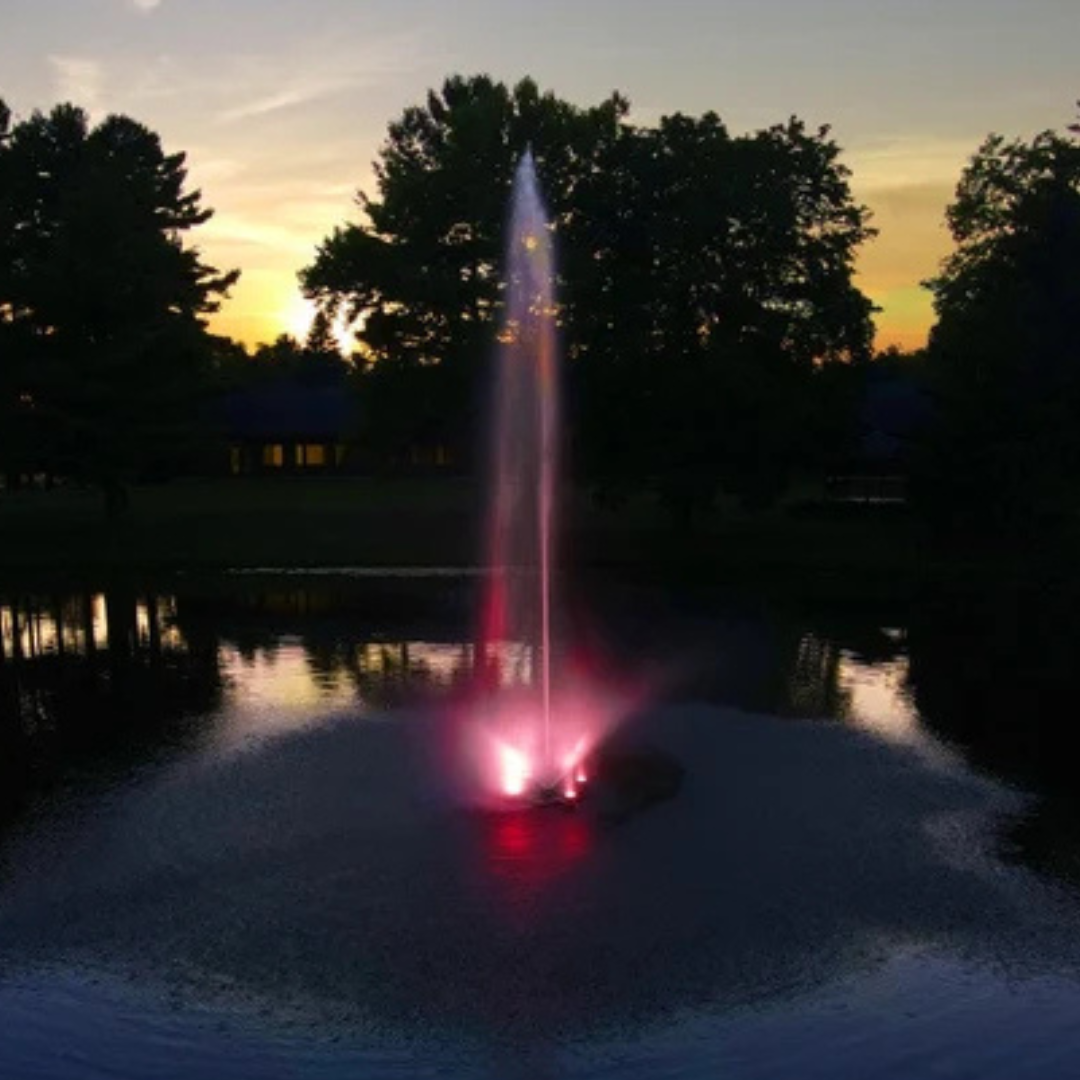

Compatible Lighting: Color Changing LED and LED “Night Glo” two-light and four-light sets available through the product options.
Included
Submersible electric power cord in the selected available length
Not Included
Two 20-pound anchoring weights or concrete blocks
Two nylon anchoring ropes
Light set Not Included
