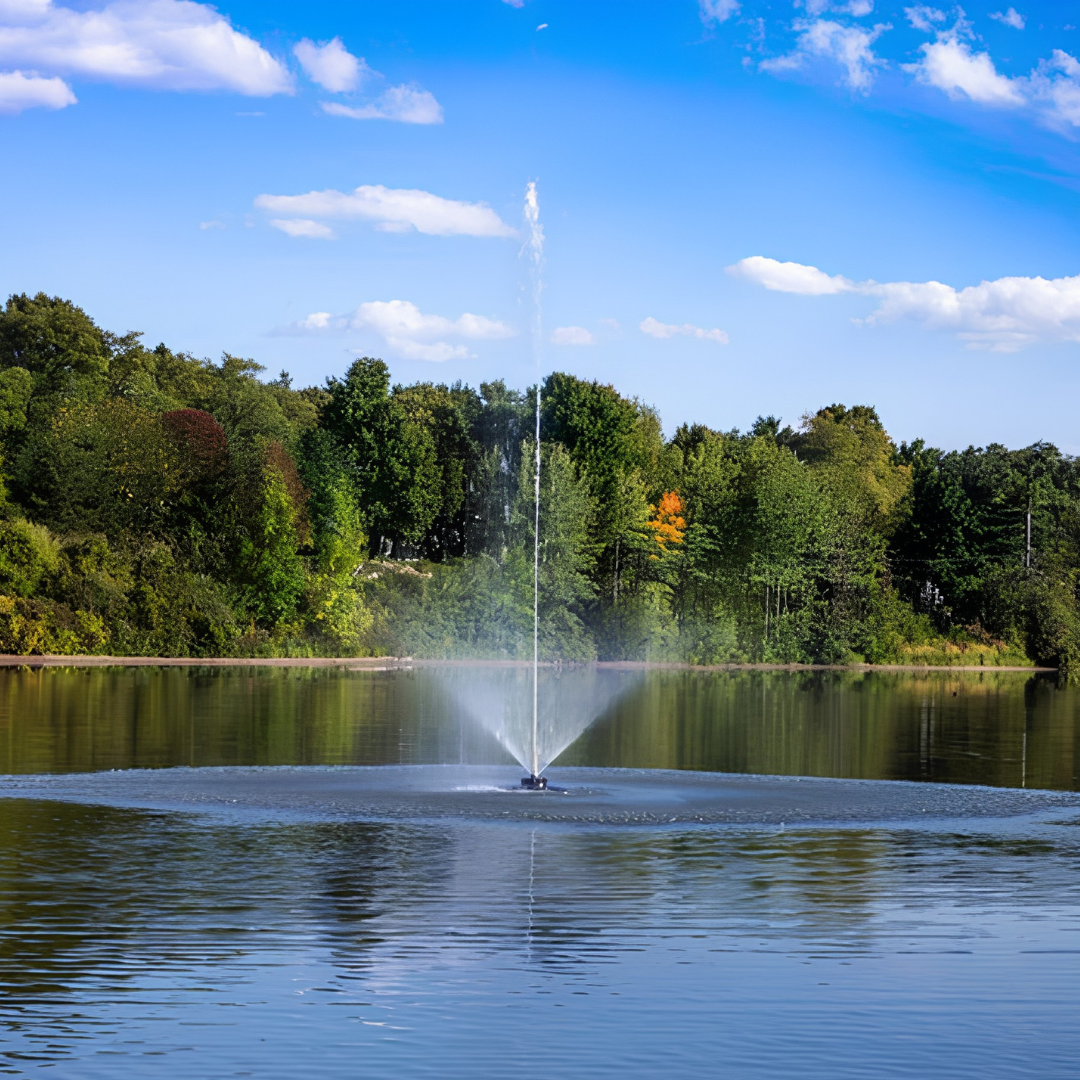

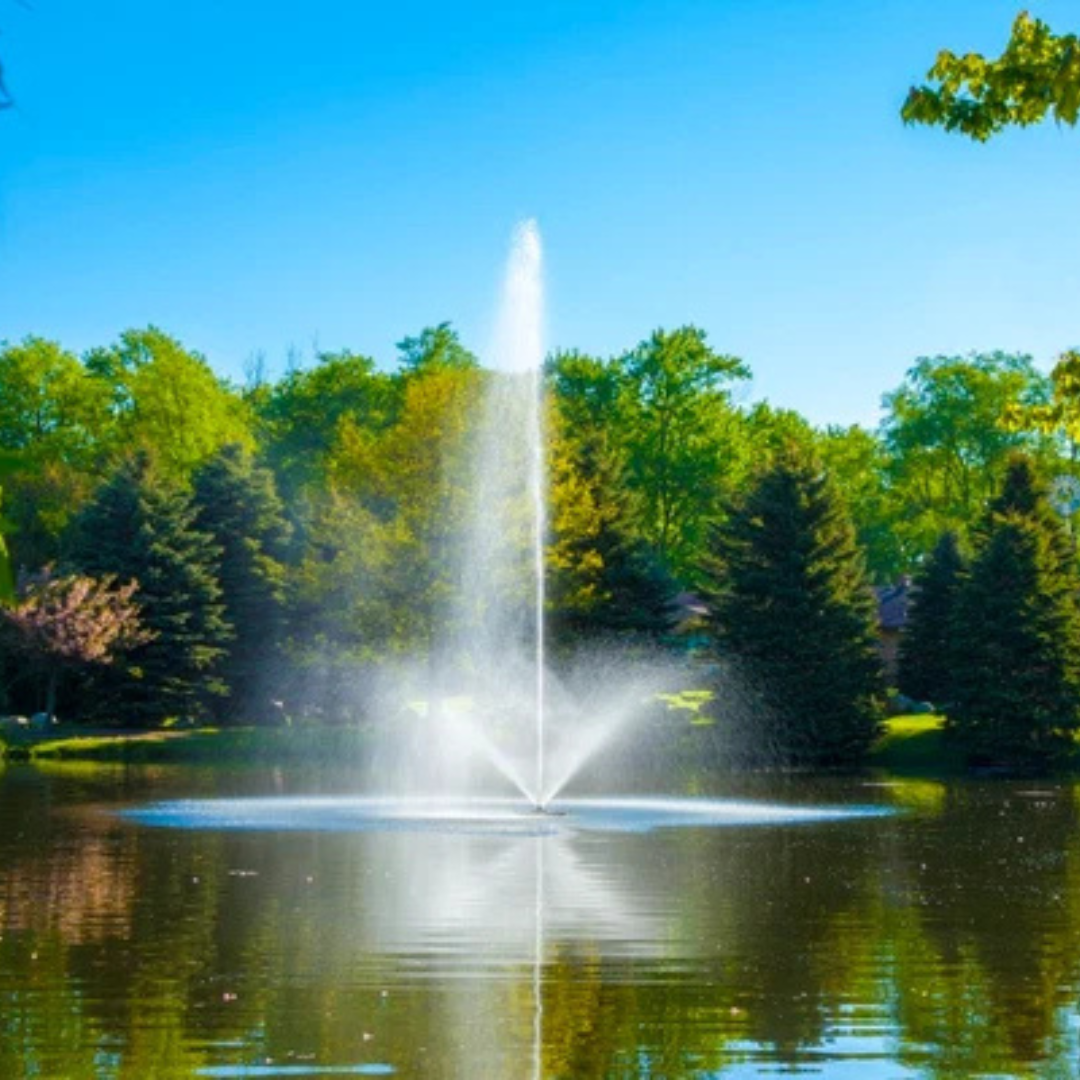

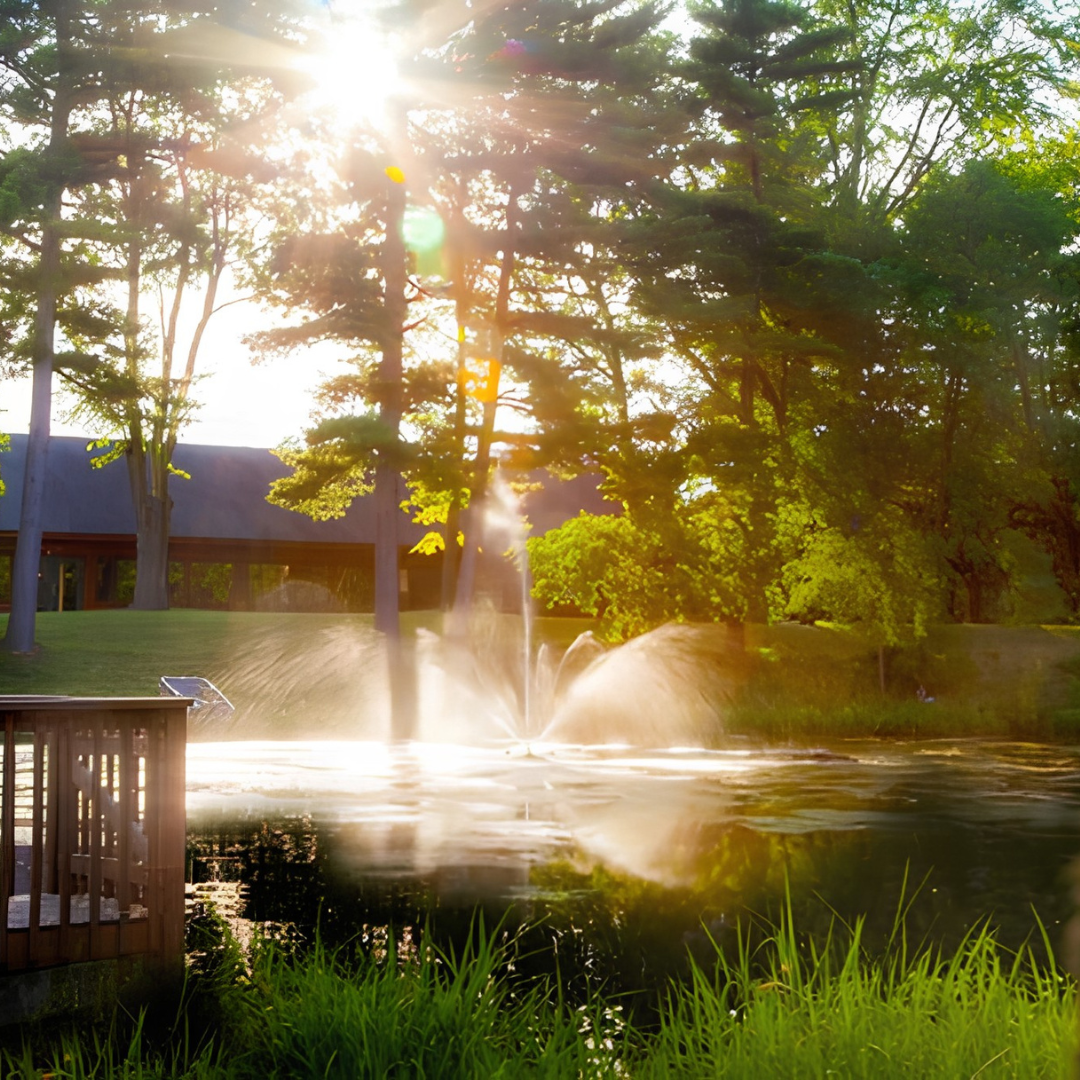

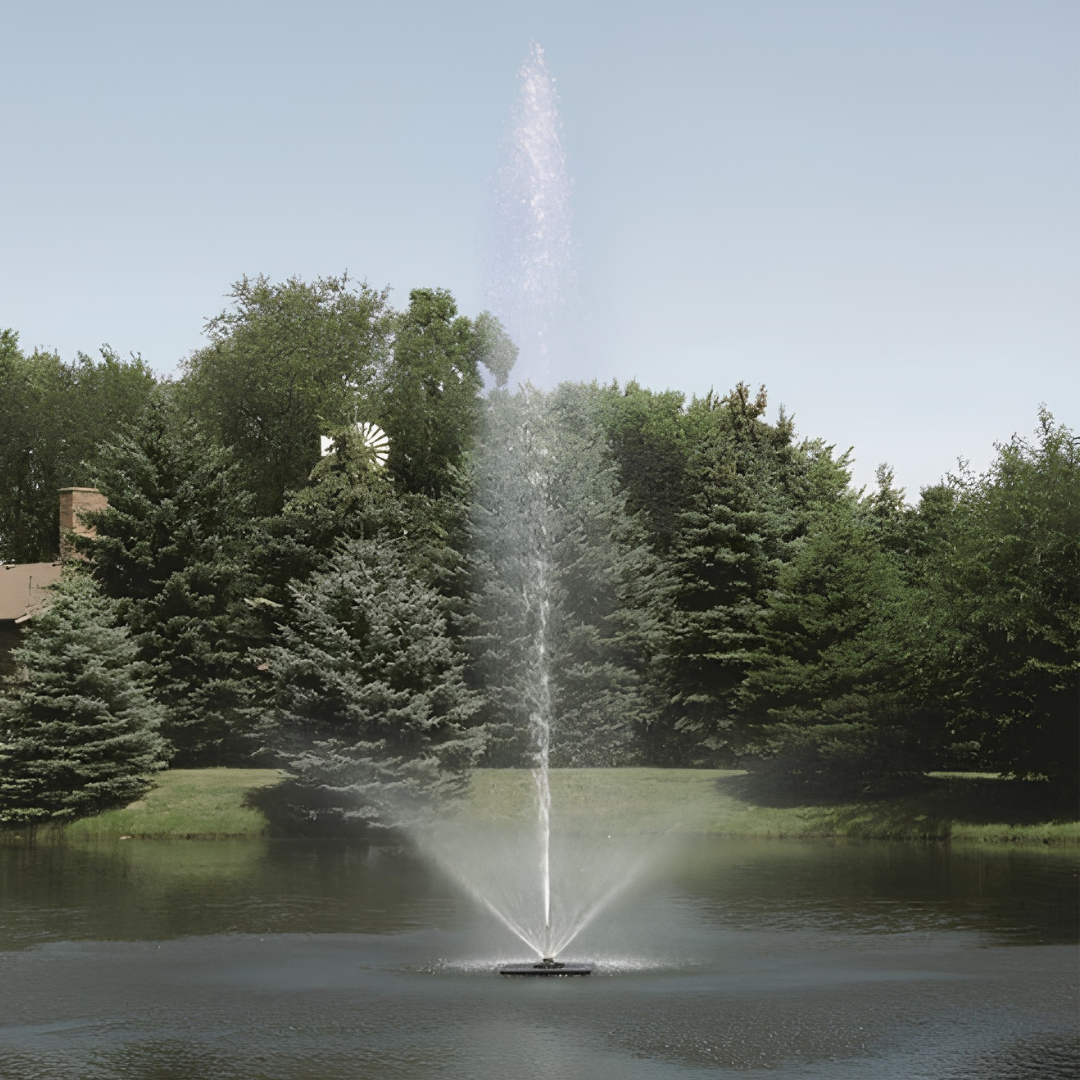

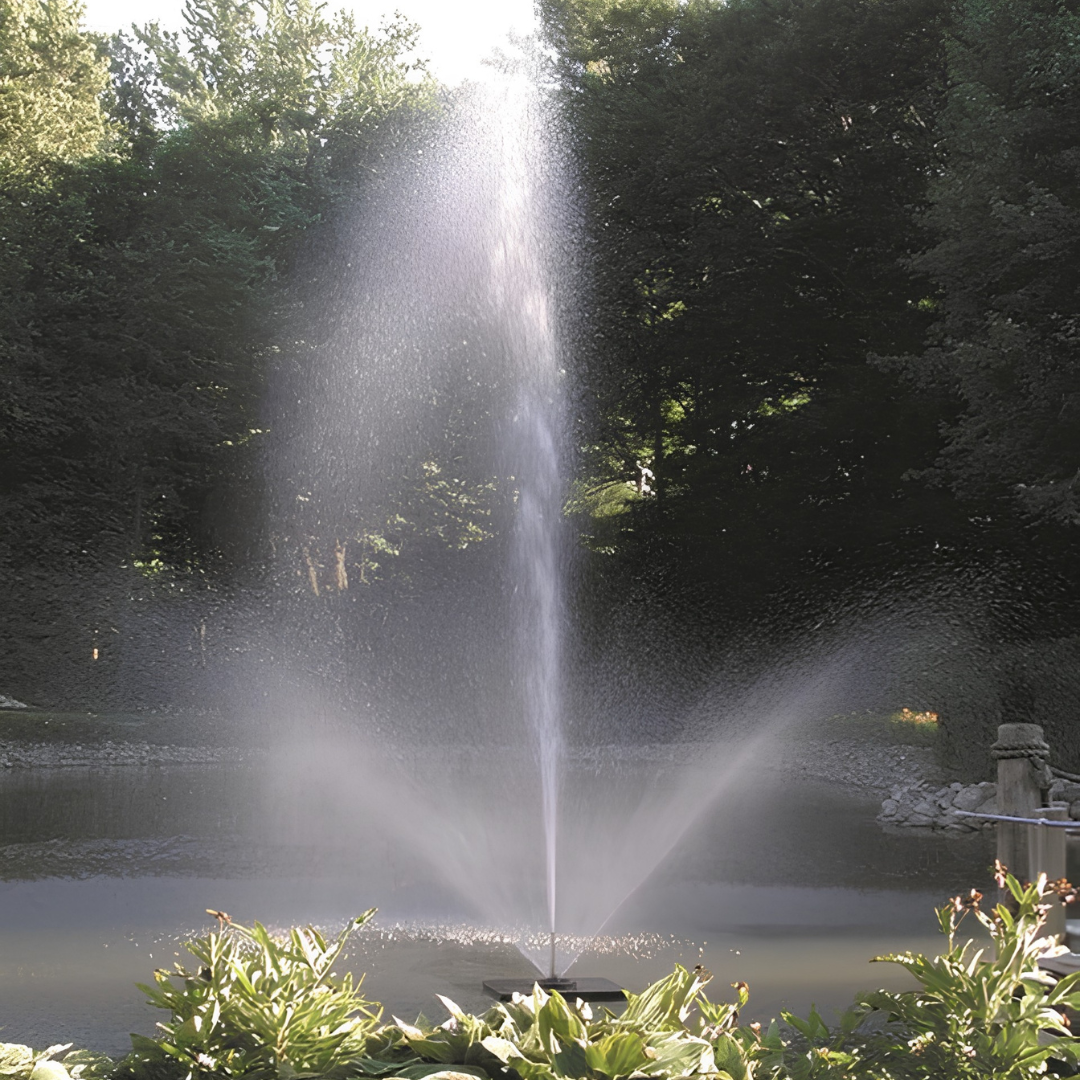

The Skyward Fountain creates a broad, cone-shaped spray with a tall center jet for small residential ponds. Its cascading display provides a refined focal point while increasing water movement and oxygen levels.
This ½-hp, 115-volt configuration circulates water at 50 gallons per minute and produces an adjustable spray measuring up to 20 feet high and 30 feet wide. The spray is produced through a precision-machined, all-brass nozzle that can be adjusted for height.

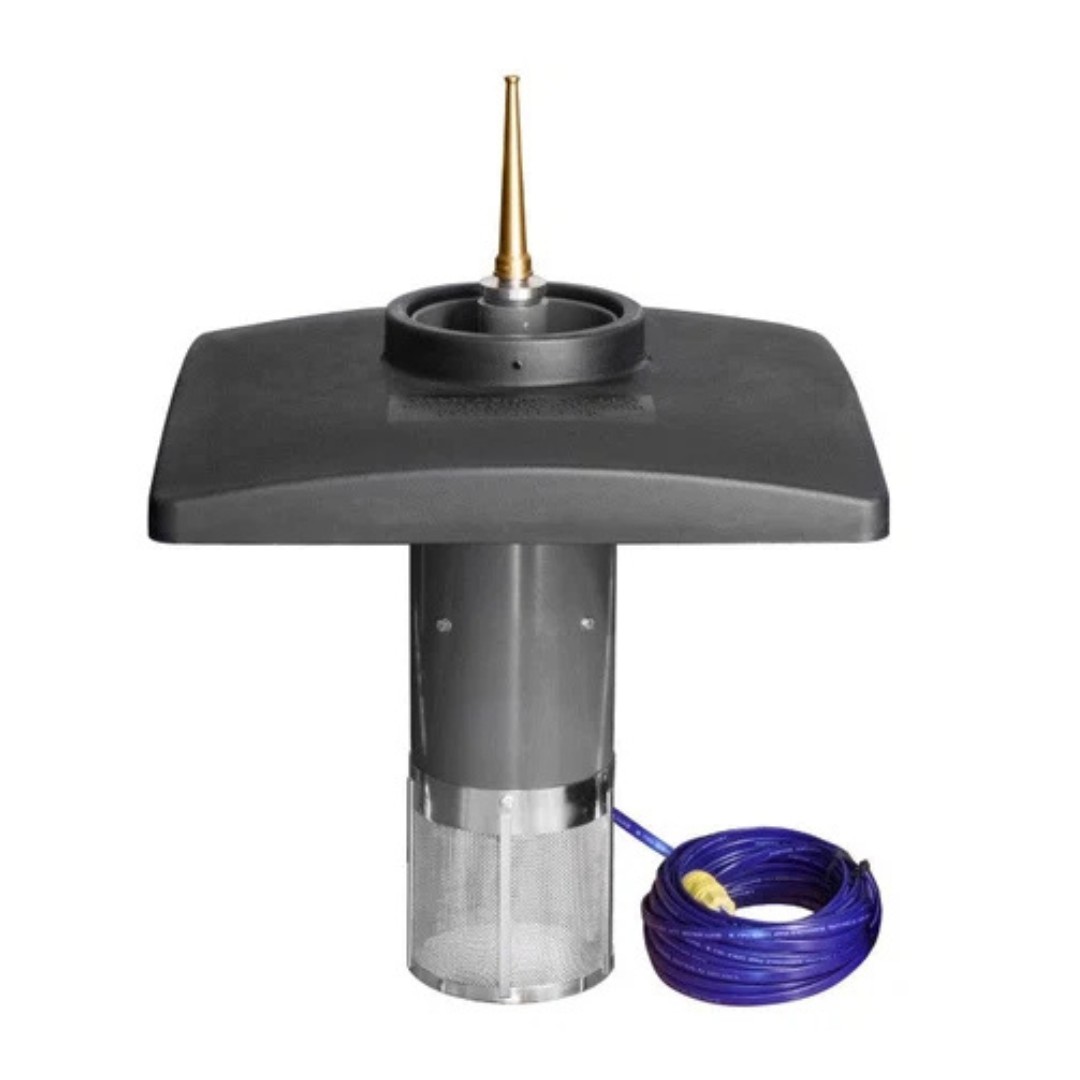

The stainless-steel, oil-free, submersible motor is designed for continuous operation in fresh or salt water. It requires no oil changes, routine maintenance, or separate control box.
Key Features
Cone-Shaped Fountain Display: Produces a broad, cascading cone-shaped spray with a tall center jet.
Adjustable Spray Height: The center spray can be adjusted to suit different pond settings and display preferences.
All-Brass Nozzle: Uses a precision-machined brass nozzle to produce the fountain pattern.
Water Circulation: Circulates water at 50 gallons per minute.
Oxygenation Support: Improves circulation and increases oxygen levels to support a healthier aquatic environment.
Oil-Free Motor: Requires no motor oil or oil changes.
Submersible Construction: Uses a stainless-steel, oil-free, submersible motor.
Low-Maintenance Operation: Requires no routine maintenance or separate control box.
Continuous Operation: Designed for operation 24 hours per day.
Freshwater and Saltwater Use: Designed for use in fresh and salt water.
Easy Installation: Designed for straightforward pond installation.
Optional Lighting: Compatible light kits may be selected during purchase or added later.
Made in the USA: Manufactured in Holland, Michigan.
Specifications
Motor Power: ½ hp
Voltage: 115 V
Frequency: 60 Hz
Phase: Single-phase
Motor Speed: 3,450 rpm
Power Rating: 0.37 kW
Current Draw: 10 amps
Flow Rate: 50 gallons per minute
Spray Pattern: Cone-shaped cascading spray with a tall center jet
Spray Dimensions: Up to 20 feet high × 30 feet wide
Spray Adjustment: Height adjustable
Minimum Pond Depth: 36 inches
Standard Power Cord: 70 feet long, 12-gauge, submersible, with plug
Longer Power Cord Availability: The electric power cord may be ordered in greater lengths.
Alternate Electrical Configurations: Also available in three-phase and/or 50 Hz configurations.
Nozzle Construction: Precision-machined brass
Motor Construction: Stainless-steel, oil-free, and submersible
Water Compatibility: Fresh water and salt water
Operating Capability: Designed for 24-hour-per-day operation
Maintenance Requirement: No maintenance required
Control Box Requirement: No separate control box required
Required Anchoring Weight: Two 25-pound weights or concrete blocks
Required Anchoring Lines: Two nylon ropes
Required Electrical Protection: A Ground Fault Circuit Interrupter is required.
Swimmer Safety: Always disconnect power when swimmers are present.
Testing and Compliance: ARL-tested and compliant with UL standards and the National Electric Code when installed as a complete package.
Size Guide
Maximum Spray Height: 20 feet
Maximum Spray Width: 30 feet
Spray Height Adjustment: Adjustable
Minimum Pond Depth: 36 inches
Compatibility
Compatible With: Small residential freshwater and saltwater ponds.
Electrical Application: The distance from the main breaker to the fountain must not exceed 100 feet when using the 115-volt motor. A 230-volt motor should be selected when the distance exceeds 100 feet.
Compatible Lighting: Color Changing LED and LED “Night Glo” two-light and four-light sets offered through the selectable product options.
Included
Precision-machined, all-brass adjustable nozzle
Submersible 12-gauge electric power cord in the selected available length
Plug with the 115-volt power cord
Not Included
Two 25-pound anchoring weights or concrete blocks
Two nylon anchoring ropes
Light set Not Included
