Key Features
Solar-Powered Aeration: Designed for remote ponds where a conventional electrical power source is unavailable or impractical.
Daytime Operation: Powers up with sunlight, operates at variable speeds, and shuts down after dark.
Variable-Speed Performance: The solar array gradually increases or decreases water flow as available sunlight changes.
Battery-Free Design: Operates without the costly, high-maintenance batteries commonly used with some solar aeration systems.

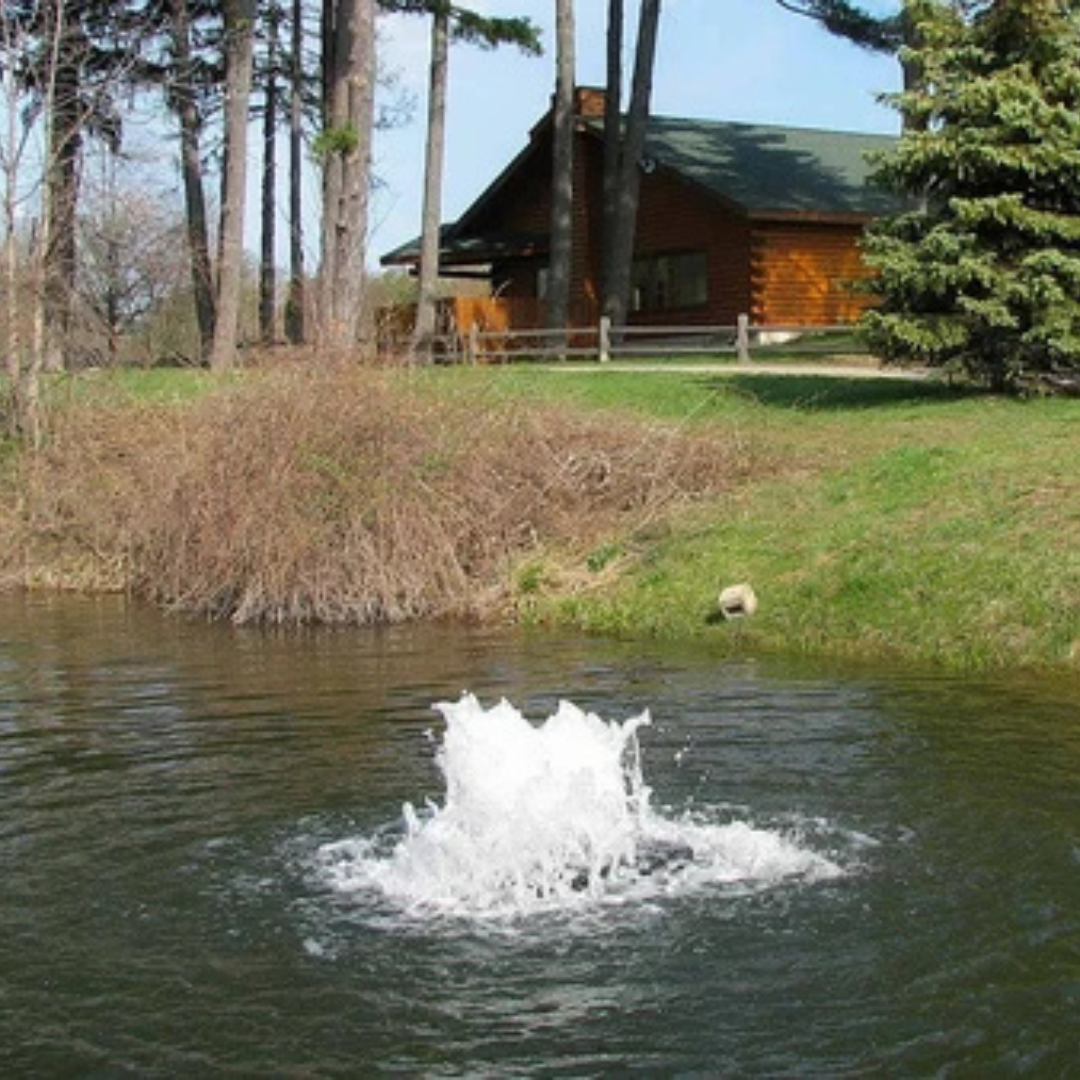

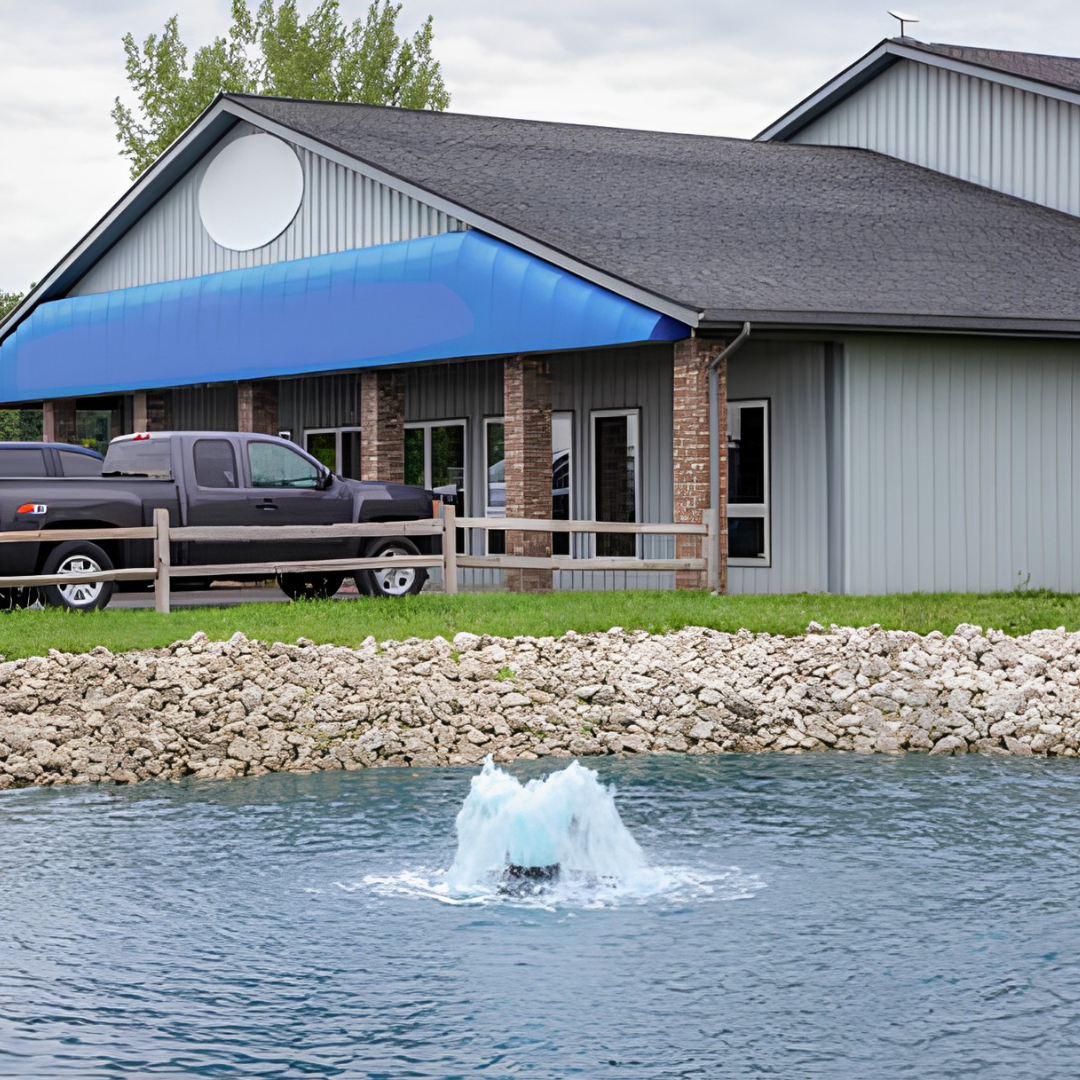

Low-Profile Water Movement: Minimizes the vertical water display while producing high-volume circulation for oxygen transfer.
Pond Oxygenation: Adds oxygen to the water to support fish and promote the breakdown of decaying organic matter.
Muck Reduction Support: Increased oxygen helps break down decaying material that contributes to muck accumulation.
Surface Cleaning: Strong surface currents help remove surface algae and floating debris.
Two System Sizes: Available as a two-panel, ½ hp system and a four-panel, ¾ hp system.
Oil-Free Motor: Uses a stainless-steel, oil-free submersible motor that does not require oil changes.
Freshwater and Saltwater Use: Designed for operation in both fresh water and salt water.
Winter De-Icing Function: Can operate as a pond de-icer during winter conditions.
No Seasonal Removal Required: The aerator may remain in the water with the power turned off during winter and be restarted after the water thaws.
Subzero-Condition Durability: Components are designed to withstand subzero conditions without damage.

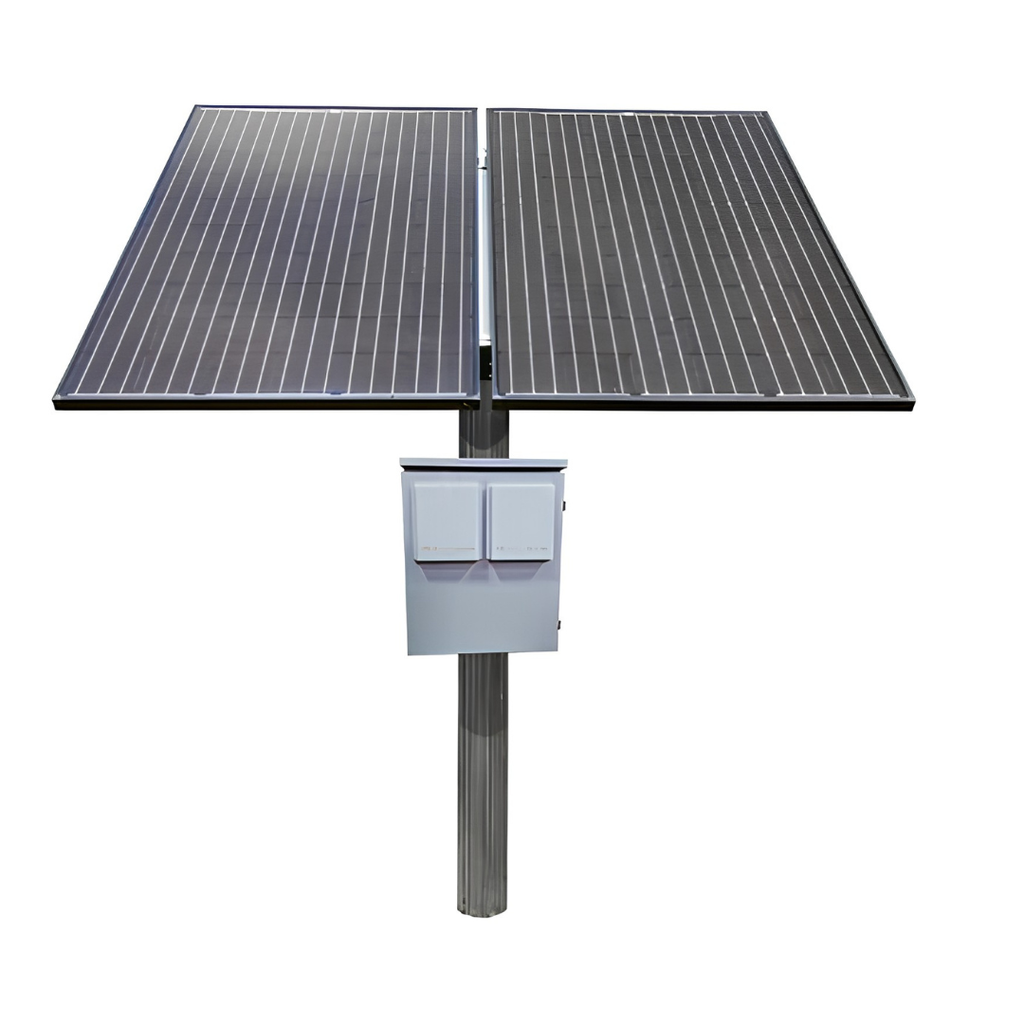

Complete Solar Control System: Includes a disconnect box, Fhoton™ drive solar inverter, and required wiring components.
Made in the USA: Manufactured in Holland, Michigan.
Safety Compliance: ARL-tested and compliant with UL standards and the National Electrical Code when installed as a complete package.
Specifications
Available System Sizes: 2-Panel: ½ hp and 4-Panel: ¾ hp
Operating Method: Direct solar power
Operating Schedule: Daytime operation based on available sunlight
Motor Design: Variable-speed submersible induction motor
Motor Material: Stainless steel
Motor Lubrication: Oil-free
Frequency: 60 Hz
Phase: Three-phase
Motor Speed: 3,450 rpm
Standard Power Cord Length: 70 feet
Power Cord Gauge: 12-gauge
Power Cord Type: Submersible power cord with plug
Extended Cord Availability: The power cord can be ordered in greater lengths.
Solar Panel Type: High-efficiency, 60-cell monocrystalline panels
Individual Solar Panel Rating: 340 watts
Individual Solar Panel Dimensions: 41 inches by 69 inches
Required Anchoring Equipment: Two anchoring ropes with weights or tethers
Required Anchor Weight: Two 30-pound weights or concrete blocks
GFCI Requirement: A Ground Fault Circuit Interrupter is required.
Swimmer Safety: Power must always be disconnected when swimmers are present.
Solar Panel Maintenance: Keep the panels free of obstructions and periodically clean them using water only.
2-Panel System Motor Rating: ½ hp
2-Panel System Motor Voltage: 48 volts
2-Panel System Current Draw: 10.3 amps
2-Panel System Flow Rate: 200 gallons per minute
2-Panel System Solar Panels: Two 340-watt, 60-cell monocrystalline panels
2-Panel System Minimum Pond Depth: 36 inches
2-Panel System Power Cord: 70-foot, 12-gauge submersible cord with plug
4-Panel System Motor Rating: ¾ hp
4-Panel System Motor Voltage: 100 volts
4-Panel System Current Draw: 8.3 amps
4-Panel System Flow Rate: 300 gallons per minute
4-Panel System Solar Panels: Four 340-watt, 60-cell monocrystalline panels
4-Panel System Minimum Pond Depth: 44 inches
4-Panel System Power Cord: 70-foot, 12-gauge submersible cord with plug
Size Guide
2-Panel System Minimum Pond Depth: 36 inches
4-Panel System Minimum Pond Depth: 44 inches
Individual Solar Panel Size: 41 inches wide by 69 inches long
Compatibility
Compatible With: Remote freshwater and saltwater ponds that receive sufficient direct sunlight.
2-Panel System Application: Ponds with a minimum water depth of 36 inches.
4-Panel System Application: Ponds with a minimum water depth of 44 inches.

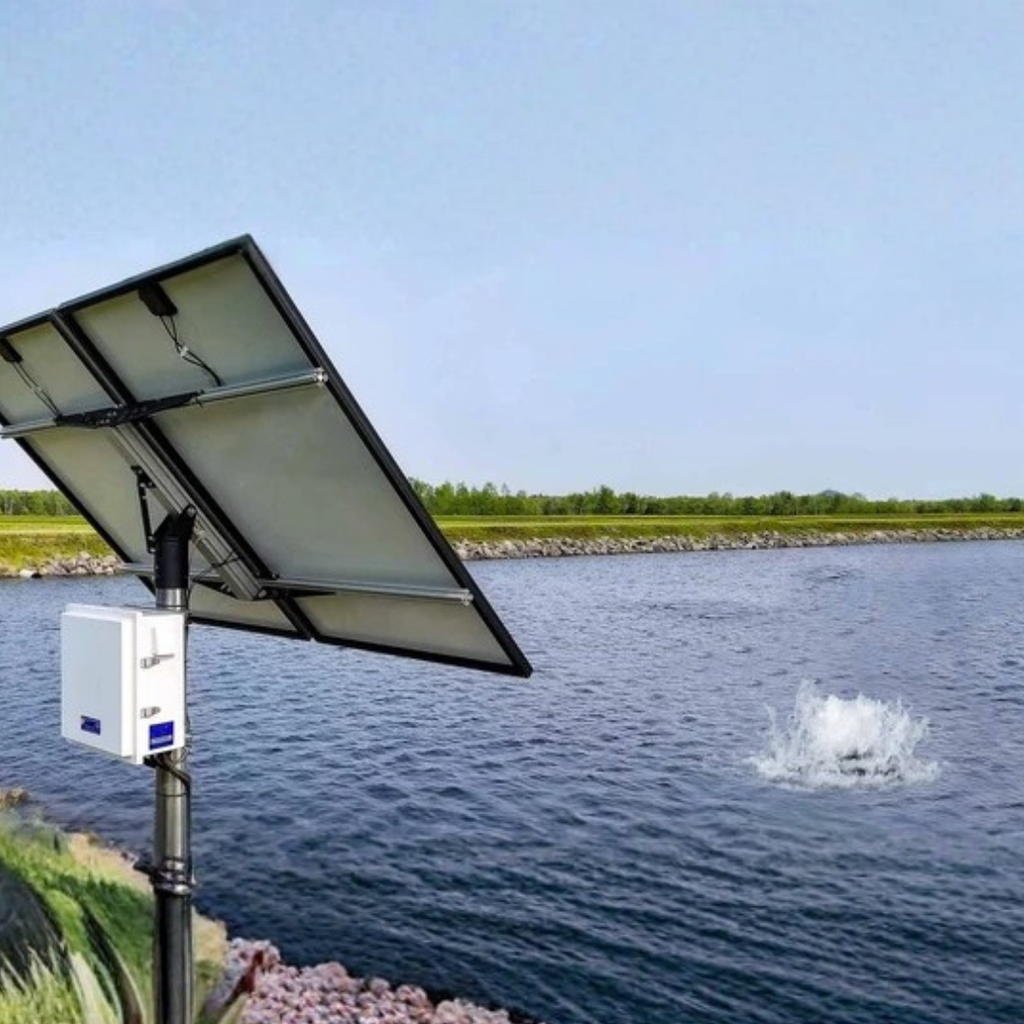

Installation Requirement: The solar panels must be positioned where obstructions will not block direct sunlight.
Included
Boilermaker aerator
Float platform
Motor assembly
Stainless-steel debris shield
Three self-tapping screws
Two solar panels with frame for the two-panel configuration
Four solar panels with frame for the four-panel configuration
Disconnect box
Fhoton™ drive solar inverter
Required wiring components
70-foot, 12-gauge submersible power cord with plug
Not Included
Vertical pole for the solar panels and frame
Concrete footing for the vertical pole
Two aerator anchoring ropes
Two 30-pound anchoring weights, concrete blocks, or tethers
