The Triad Fountain is designed to provide three interchangeable decorative spray patterns from one fountain system. This 1 HP configuration includes Cambridge, Gusher, and Skyward brass nozzles that can be exchanged without tools.
Depending on the installed nozzle, the fountain moves approximately 70–75 gallons of water per minute. The Cambridge display reaches up to 30 feet high and 40 feet wide, the Gusher reaches up to 25 feet high, and the Skyward reaches up to 30 feet high and 32 feet wide.
The fountain uses a stainless-steel, oil-free submersible motor designed for continuous operation in fresh or salt water. It requires no routine maintenance, oil changes, or separate control box.
Key Features
-
Three Interchangeable Nozzles: Includes Cambridge, Gusher, and Skyward brass nozzles.
-
Tool-Free Changes: No tools are required to change the spray pattern.
-

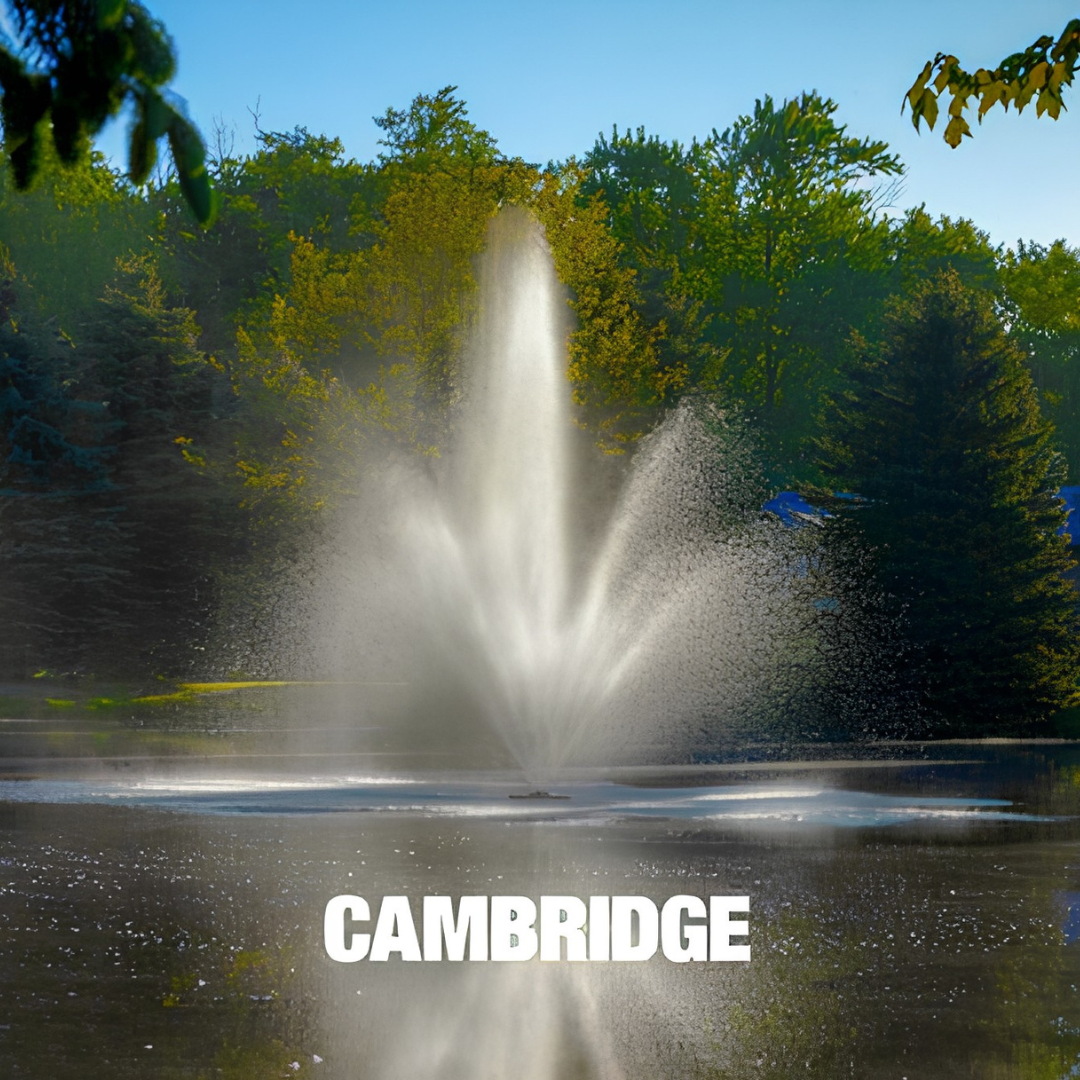

Cambridge Pattern: Reaches up to 30 feet high × 40 feet wide.
-

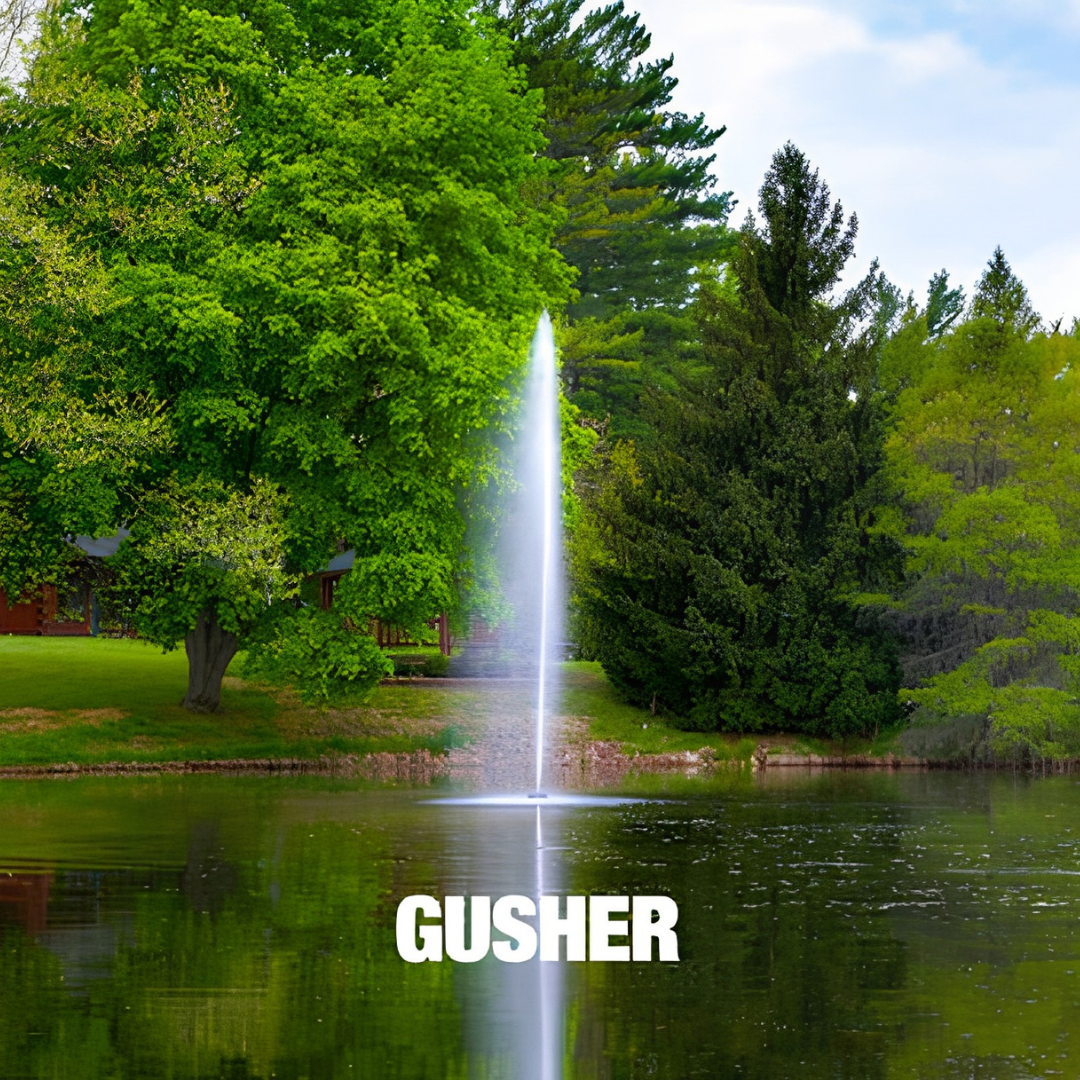

Gusher Pattern: Creates a vertical column up to 25 feet high.
-

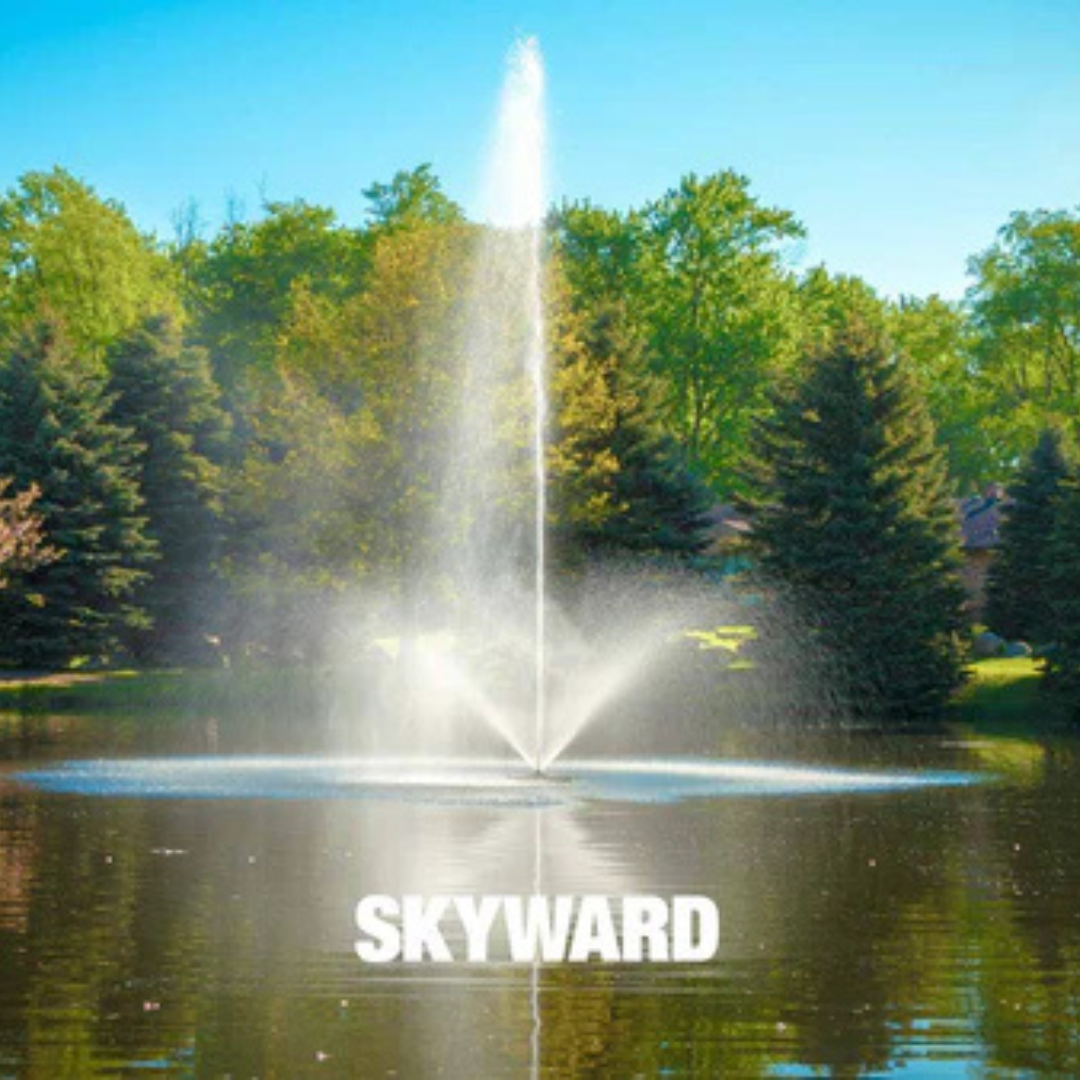

Skyward Pattern: Reaches up to 30 feet high × 32 feet wide.
-
Water Flow: Moves approximately 70–75 gallons per minute, depending on nozzle.
-
Oil-Free Motor: Requires no motor oil or oil changes.
-
Continuous Operation: Designed for 24-hour-per-day use.
-
Freshwater and Saltwater Use: Approved for both fresh and salt water.
-
Low-Maintenance Design: Requires no routine maintenance or separate control box.
-
Optional Light Sets: Lighting can be selected during purchase or installed later.
-
Made in the USA: Manufactured in Holland, Michigan.
Specifications
-
Motor Power: 1 HP
-
Voltage: 115V
-
Motor Construction: Stainless-steel, oil-free, submersible motor
-
Frequency: 60 Hz
-
Phase: Single-phase
-
Motor Speed: 3,450 rpm
-
Power Rating: 0.75 kW
-
Current Draw: 11.5 amps
-
Flow Rate: 70–75 gallons per minute, depending on nozzle
-
Power Cord: 100-foot, 10-gauge submersible cord with plug
-
Minimum Pond Depth: 44 inches
-
Required Anchoring Weight: Two 35-pound weights or concrete blocks
-
Required Anchoring Lines: Two nylon ropes
-
Operating Capability: Designed for 24-hour-per-day operation
-
Water Compatibility: Fresh water and salt water
-
Maintenance Requirement: No routine maintenance required
-
Alternate Electrical Configurations: Three-phase and/or 50 Hz configurations are available by request.
-
Electrical Protection: A GFCI is required.
-
Safety Requirement: Disconnect power whenever swimmers are present.
-
Compliance: ARL-tested and compliant with UL standards and the National Electrical Code when installed as a complete package.
Size Guide
-
Cambridge Spray Pattern: Up to 30 feet high × 40 feet wide
-
Gusher Spray Pattern: Up to 25 feet high
-
Skyward Spray Pattern: Up to 30 feet high × 32 feet wide
-
Minimum Pond Depth: 44 inches
-
Intended Application: Medium residential ponds and lakescapes
Compatibility
-
Compatible Water Types: Fresh water and salt water
-
Compatible Nozzles: Cambridge, Gusher, and Skyward
-
Compatible Lighting: Optional residential fountain light kits
-

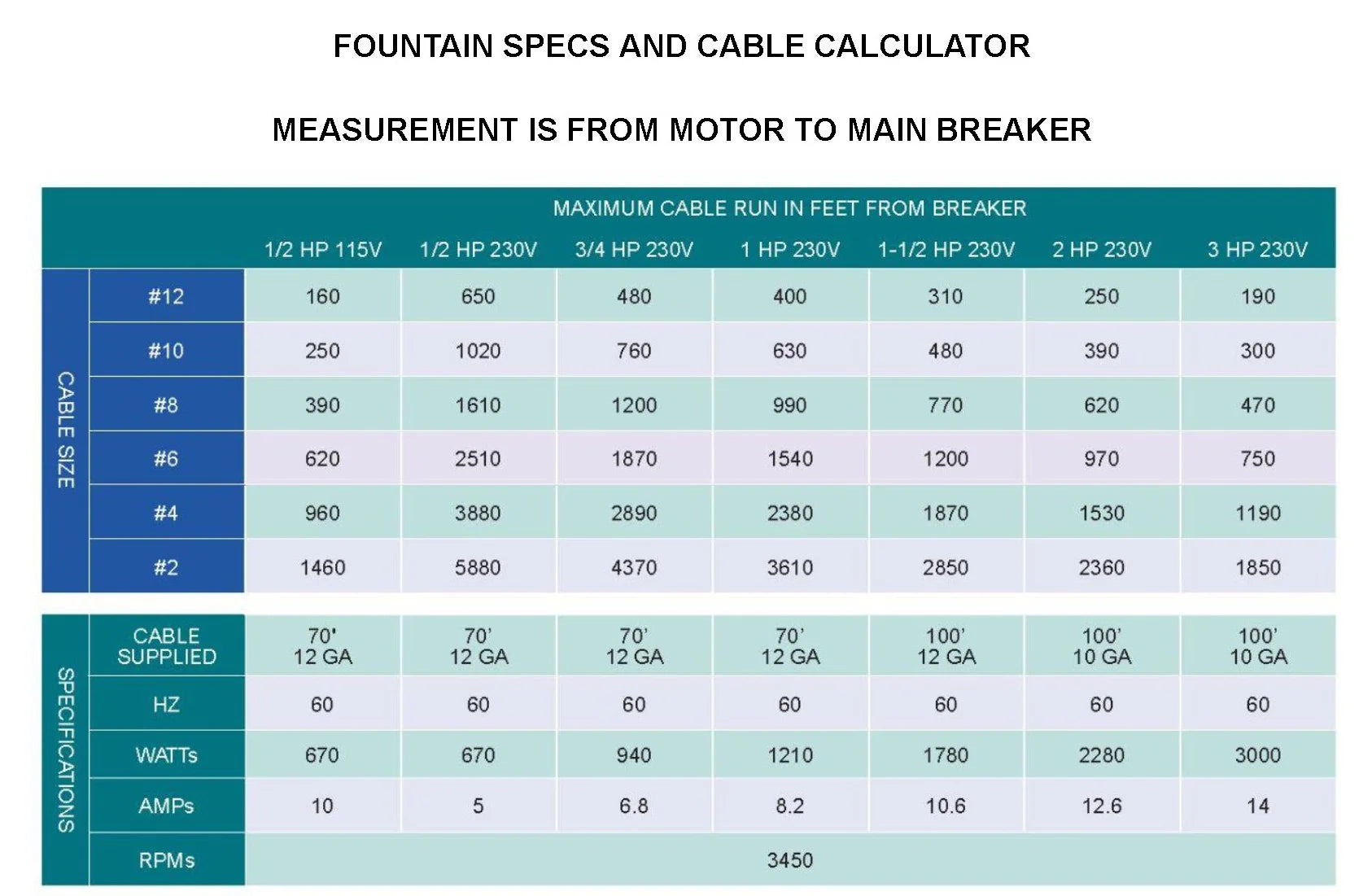

Electrical Limitation: The distance from the main breaker to a 115V fountain must not exceed 100 feet.
Included
- Cambridge brass nozzle
- Gusher brass nozzle
- Skyward brass nozzle
- 100-foot, 10-gauge submersible power cord with plug
Not Included
- Two 35-pound anchoring weights or concrete blocks
- Two nylon anchoring ropes
