The Triad Fountain provides three interchangeable decorative spray patterns for medium residential ponds and lakescapes. The 1½ HP configuration includes Rosewood, Gusher, and Skyward brass nozzles, each of which can be installed without tools.
This configuration moves approximately 90 gallons of water per minute. The Rosewood pattern reaches up to 30 feet high and 40 feet wide, the Gusher creates a vertical column up to 30 feet high, and the Skyward reaches up to 40 feet high and 50 feet wide.
The stainless-steel, oil-free submersible motor is designed for continuous fresh or saltwater operation. It requires no oil changes, routine maintenance, or separate control box.
Key Features
-
Three Interchangeable Nozzles: Includes Rosewood, Gusher, and Skyward brass nozzles.
-
Tool-Free Changes: Each nozzle can be exchanged without tools.
-

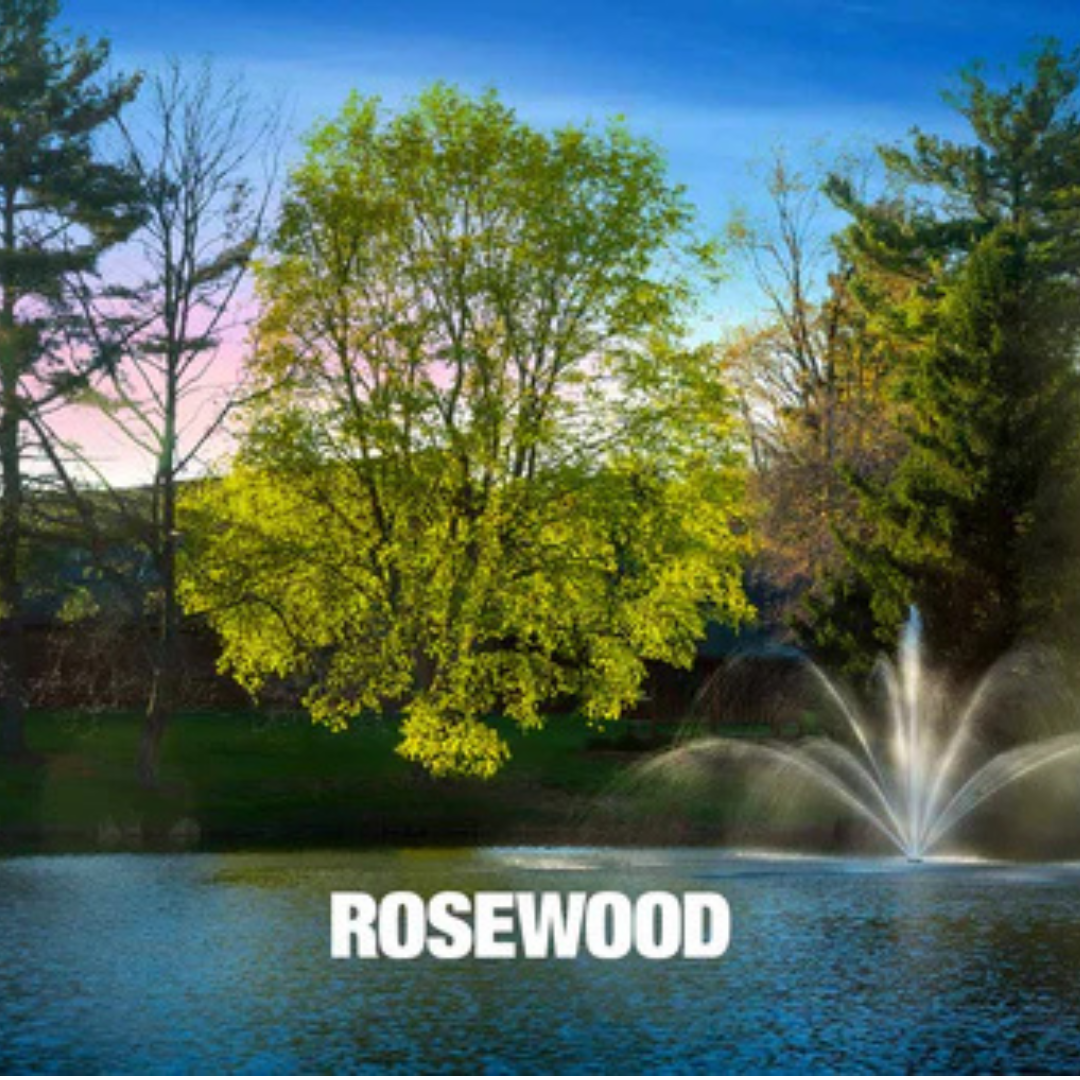

Rosewood Pattern: Produces a multi-tiered display reaching up to 30 feet high × 40 feet wide.
-
Gusher Pattern: Produces a vertical column reaching up to 30 feet high.
-
Skyward Pattern: Reaches up to 40 feet high × 50 feet wide.
-
Water Flow: Moves approximately 90 gallons per minute.
-
Oil-Free Motor: Requires no motor oil or oil changes.
-
Continuous Operation: Designed for 24-hour-per-day use.
-
Freshwater and Saltwater Use: Approved for both fresh and salt water.
-
Low-Maintenance Design: Requires no routine maintenance or separate control box.
-
Optional Lighting: Light kits may be selected during purchase or installed later.
-
Made in the USA: Manufactured in Holland, Michigan.
Specifications
-
Motor Power: 1½ HP
-
Voltage: 230V
-
Motor Construction: Stainless-steel, oil-free, submersible motor
-
Frequency: 60 Hz
-
Phase: Single-phase
-
Motor Speed: 3,450 rpm
-
Power Rating: 1.1 kW
-
Current Draw: 10.6 amps
-
Flow Rate: 90 gallons per minute
-
Standard Power Cord: 100-foot, 12-gauge submersible cord
-
Minimum Pond Depth: 50 inches
-
Required Anchoring Weight: Two 45-pound weights or concrete blocks
-
Required Anchoring Lines: Two nylon ropes
-
Operating Capability: Designed for 24-hour-per-day operation
-
Water Compatibility: Fresh water and salt water
-
Maintenance Requirement: No routine maintenance required
-
Alternate Electrical Configurations: Three-phase and/or 50 Hz configurations are available by request.
-
Electrical Protection: A GFCI is required.
-
Safety Requirement: Disconnect power whenever swimmers are present.
-
Compliance: ARL-tested and compliant with UL standards and the National Electrical Code when installed as a complete package.
Size Guide
-
Rosewood Spray Pattern: Up to 30 feet high × 40 feet wide
-
Gusher Spray Pattern: Up to 30 feet high
-
Skyward Spray Pattern: Up to 40 feet high × 50 feet wide
-
Minimum Pond Depth: 50 inches
-
Intended Application: Medium residential ponds and lakescapes
Compatibility
-
Compatible Water Types: Fresh water and salt water
-
Compatible Nozzles: Rosewood, Gusher, and Skyward
-
Compatible Lighting: Optional residential fountain light kits
Included
- Rosewood brass nozzle
- Gusher brass nozzle
- Skyward brass nozzle
- Submersible electrical power cord configured to the selected length
Not Included
- Two 45-pound anchoring weights or concrete blocks
- Two nylon anchoring ropes
