Arched Trellis System

The Arched Trellis System supports climbing vegetables, flowering vines, and other climbing plants while creating a decorative arch between raised garden beds. Its design encourages vertical growth and helps make better use of your garden space.

Designed to connect 2 parallel garden beds across a 4.5 ft. span, it can frame a garden entrance or form part of a planted tunnel. Choose from 1.5 ft., 3.0 ft., 4.5 ft., 5.5 ft., 6.0 ft., 7.0 ft., and 2.0 ft. trellis lengths to suit a compatible bed configuration. Garden beds are sold separately.

Key Features

Climbing Plant Support: Provides a framework for cucumbers, pole beans, peas, tomatoes, squash, melons, and flowering climbers.

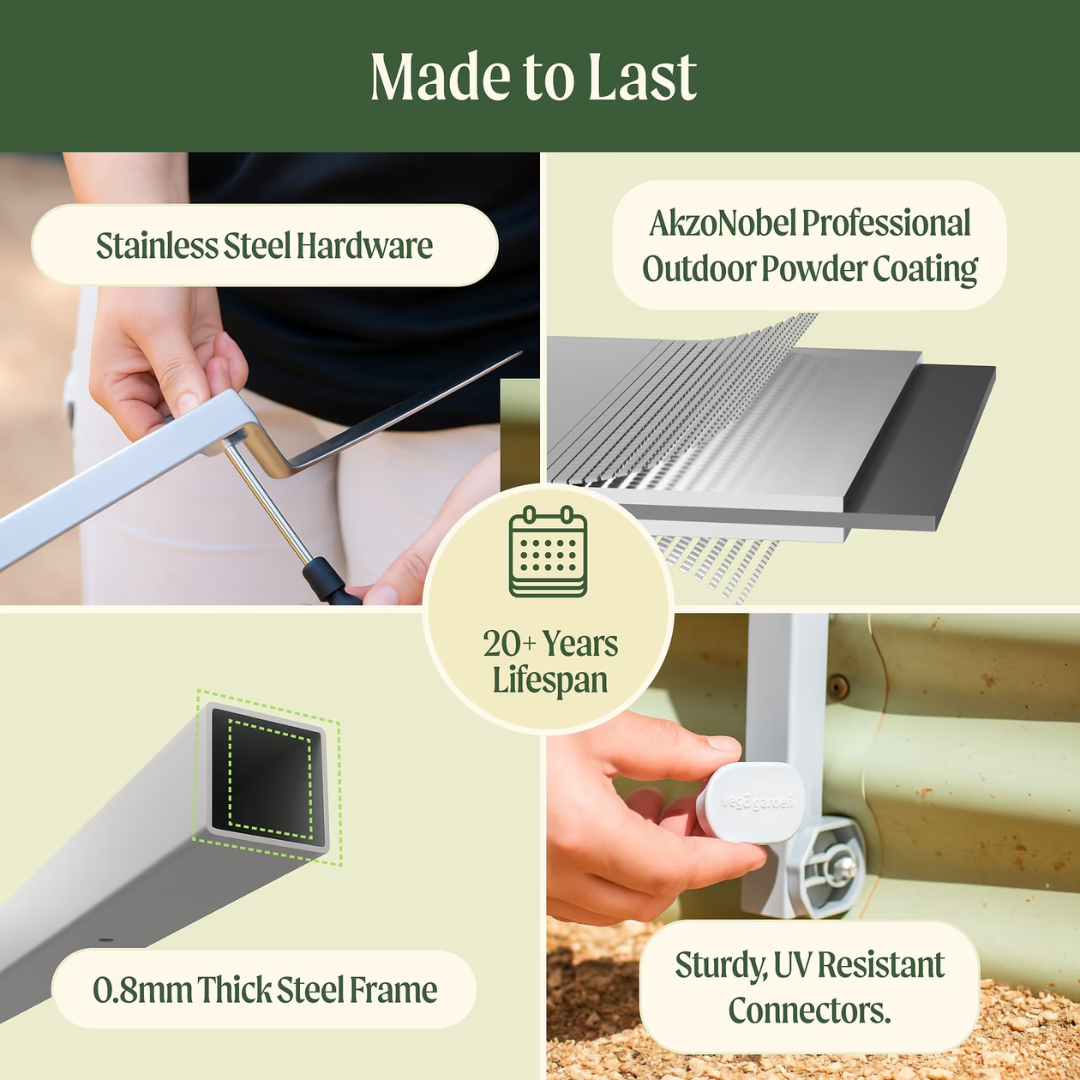

Reinforced Construction: Steel framing and stainless steel hardware provide support for vertical gardening.
Outdoor Protection: A rust-resistant coating protects the frame, while UV-resistant connectors secure it to compatible garden beds.

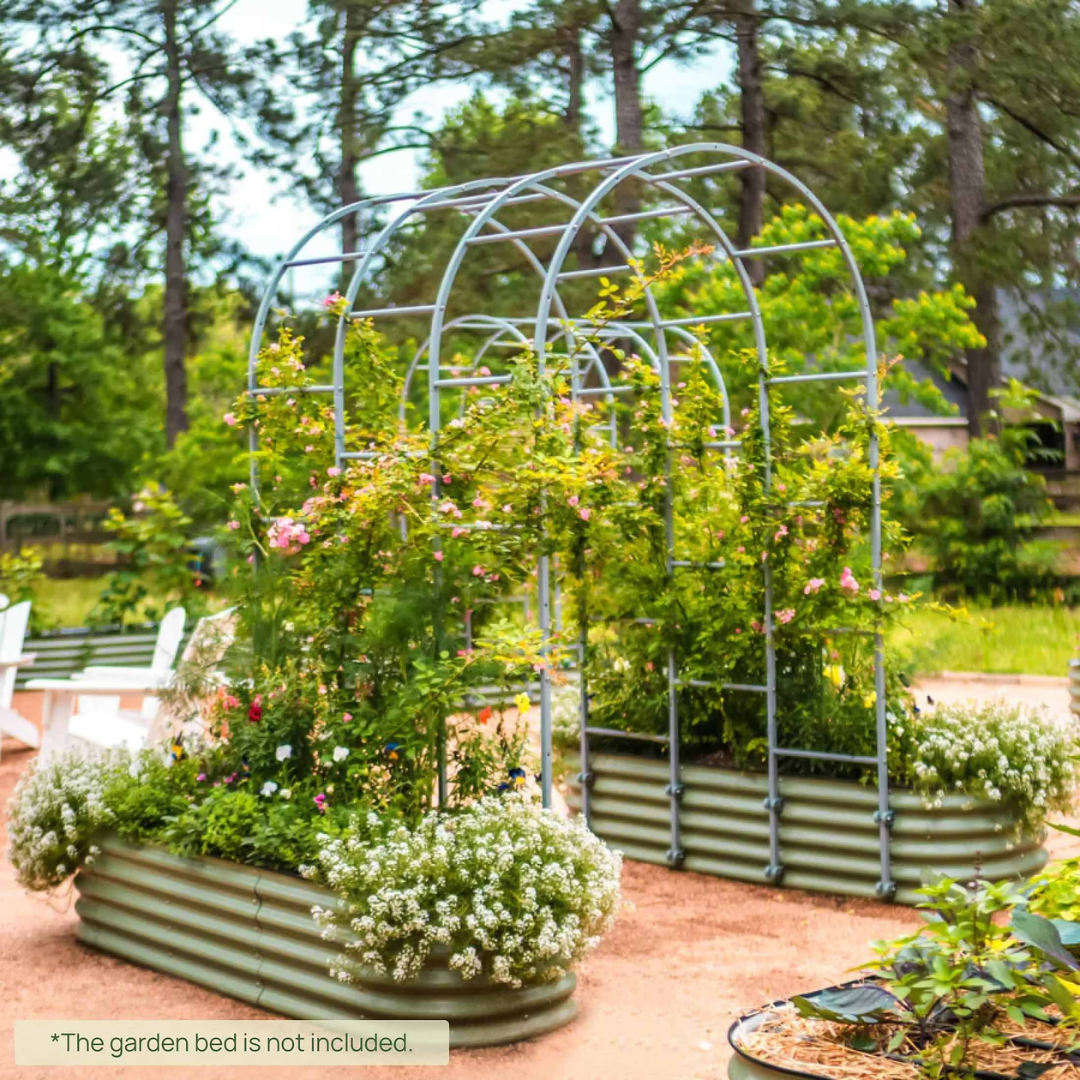

Decorative Arch: The Roman arch design creates an attractive garden entrance or planted walkway.

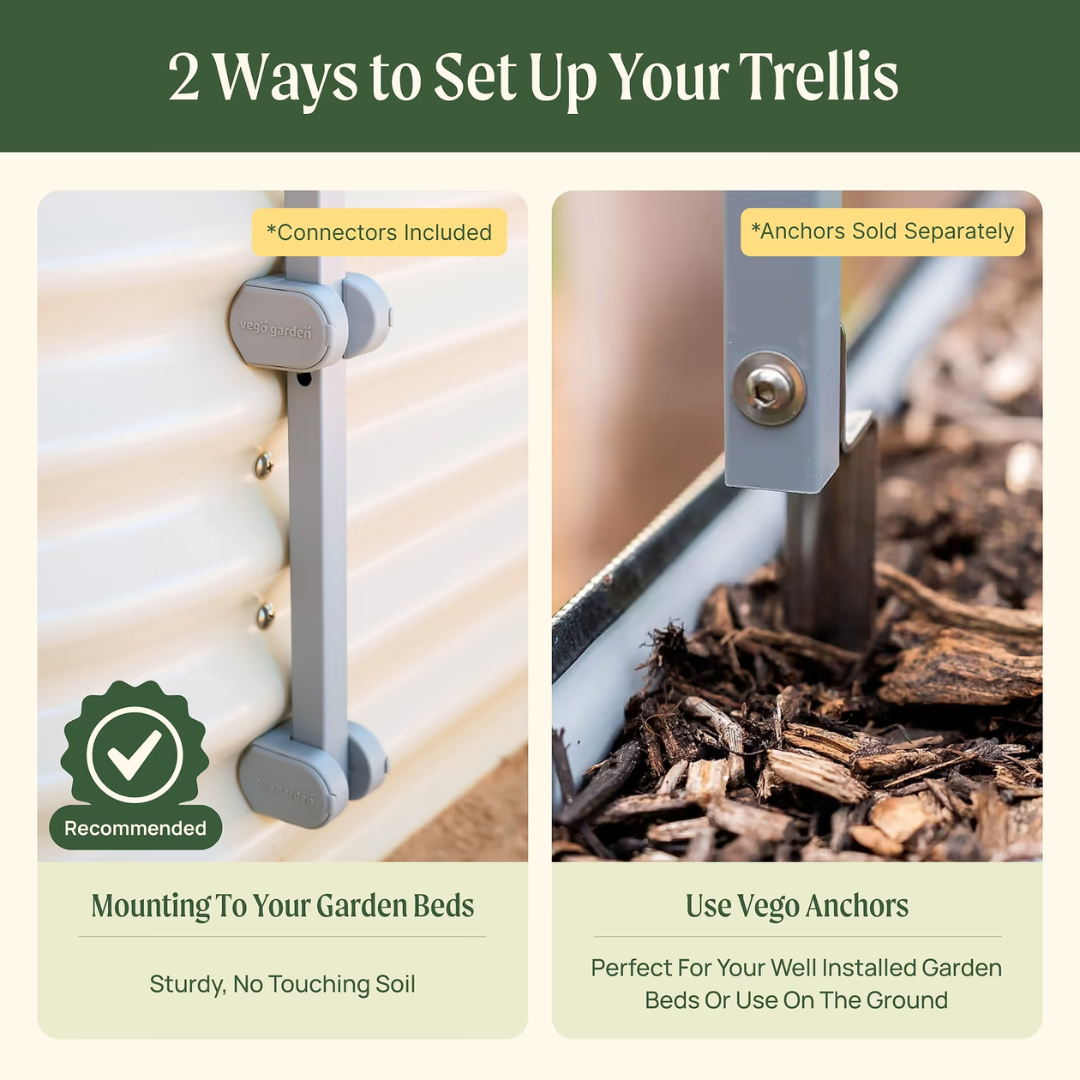

Secure Bed Attachment: Purpose-built connectors fit the corrugated pattern of compatible raised garden beds.
Straightforward Assembly: Connecting pole sections and pre-drilled holes allow installation without power tools.

Specifications

Frame Material: Steel.
Frame Thickness: 0.8 mm.
Frame Coating: Zinc, aluminum, and magnesium coating with professional outdoor powder coating.
Hardware Material: Stainless steel.
Connectors: UV-resistant.
Arch Span: 4.5 ft.
Installation Layout: 2 parallel garden beds positioned 4.5 ft. apart.

Size Guide

Available Trellis Lengths: 1.5 ft., 3.0 ft., 4.5 ft., 5.5 ft., 6.0 ft., 7.0 ft., and 2.0 ft.

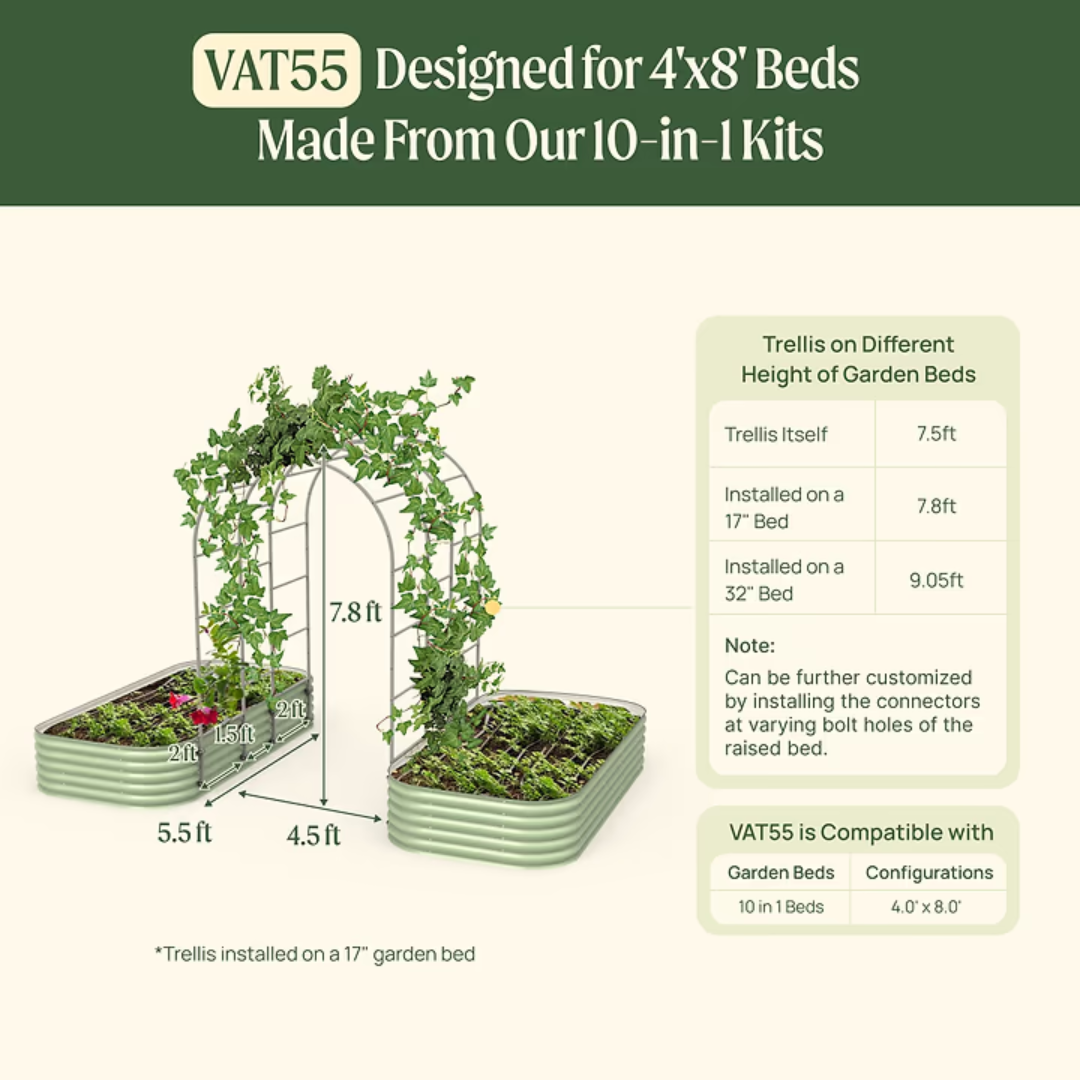

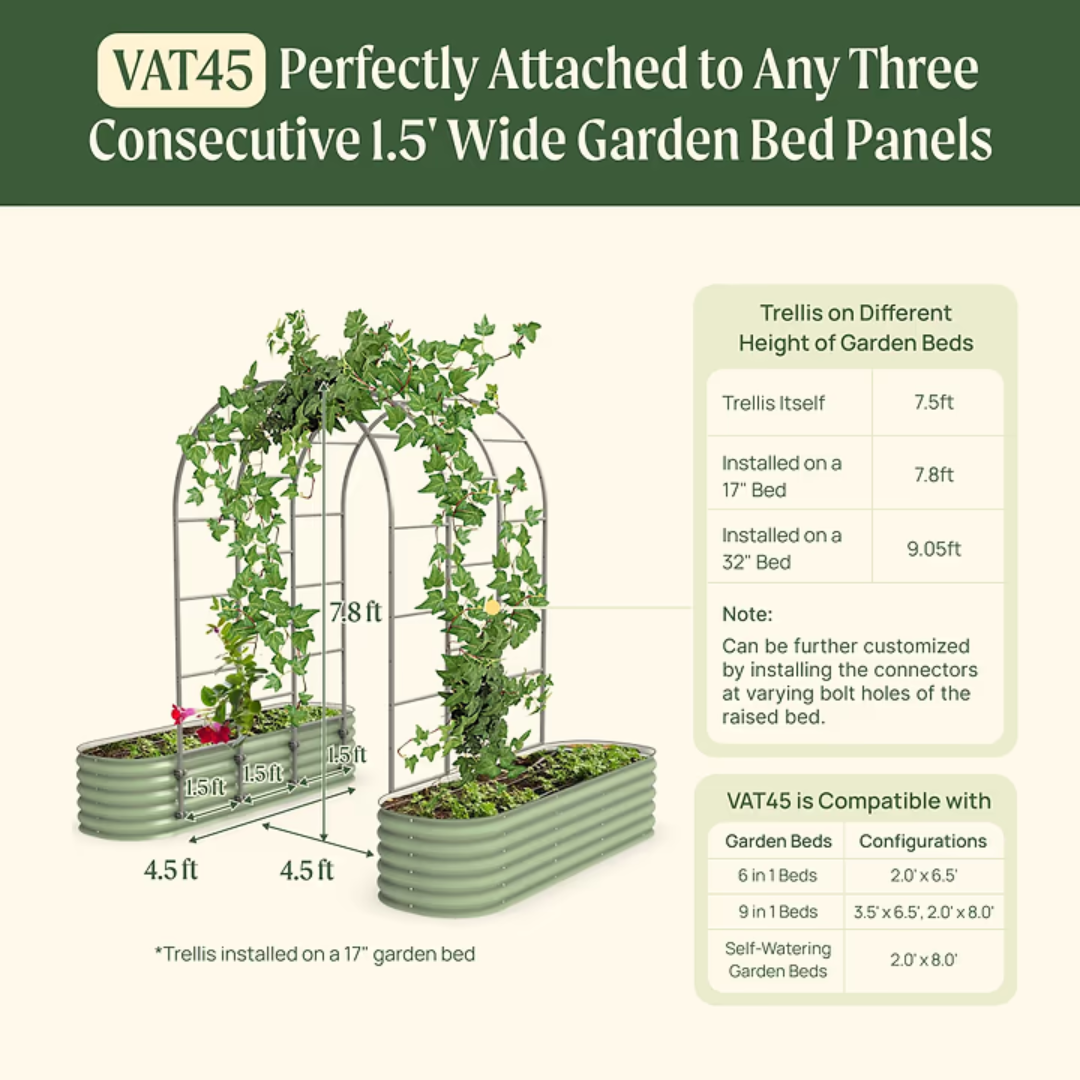

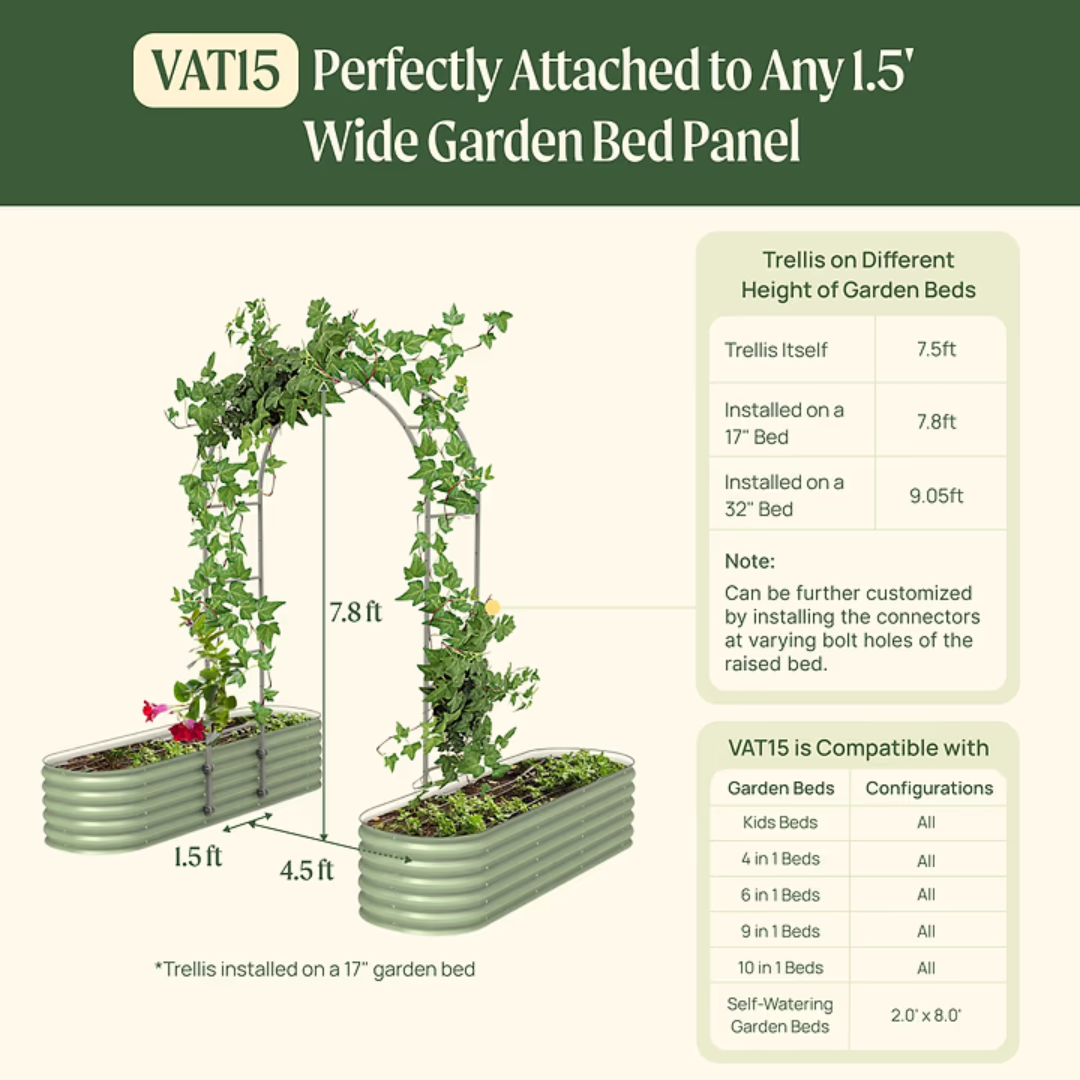

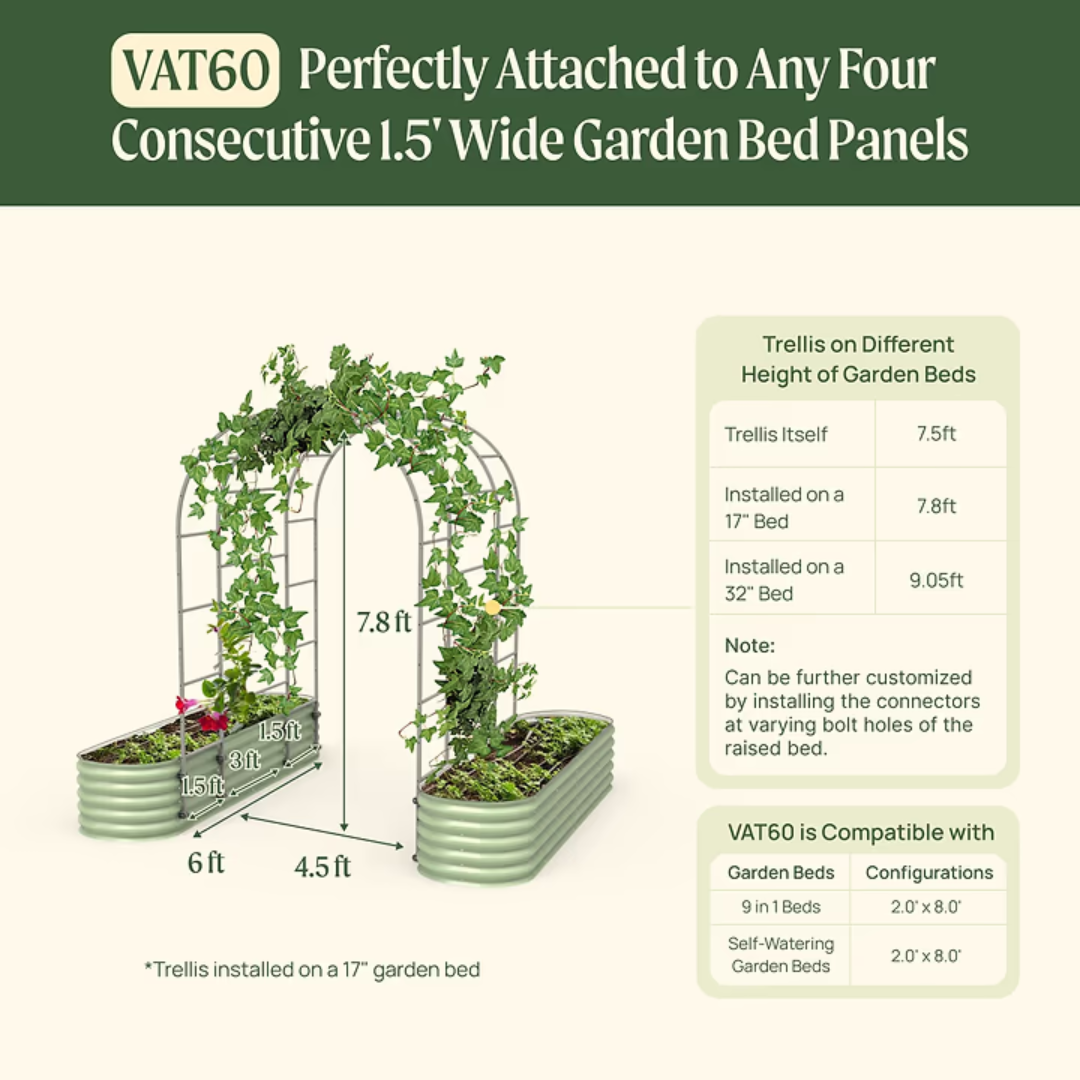

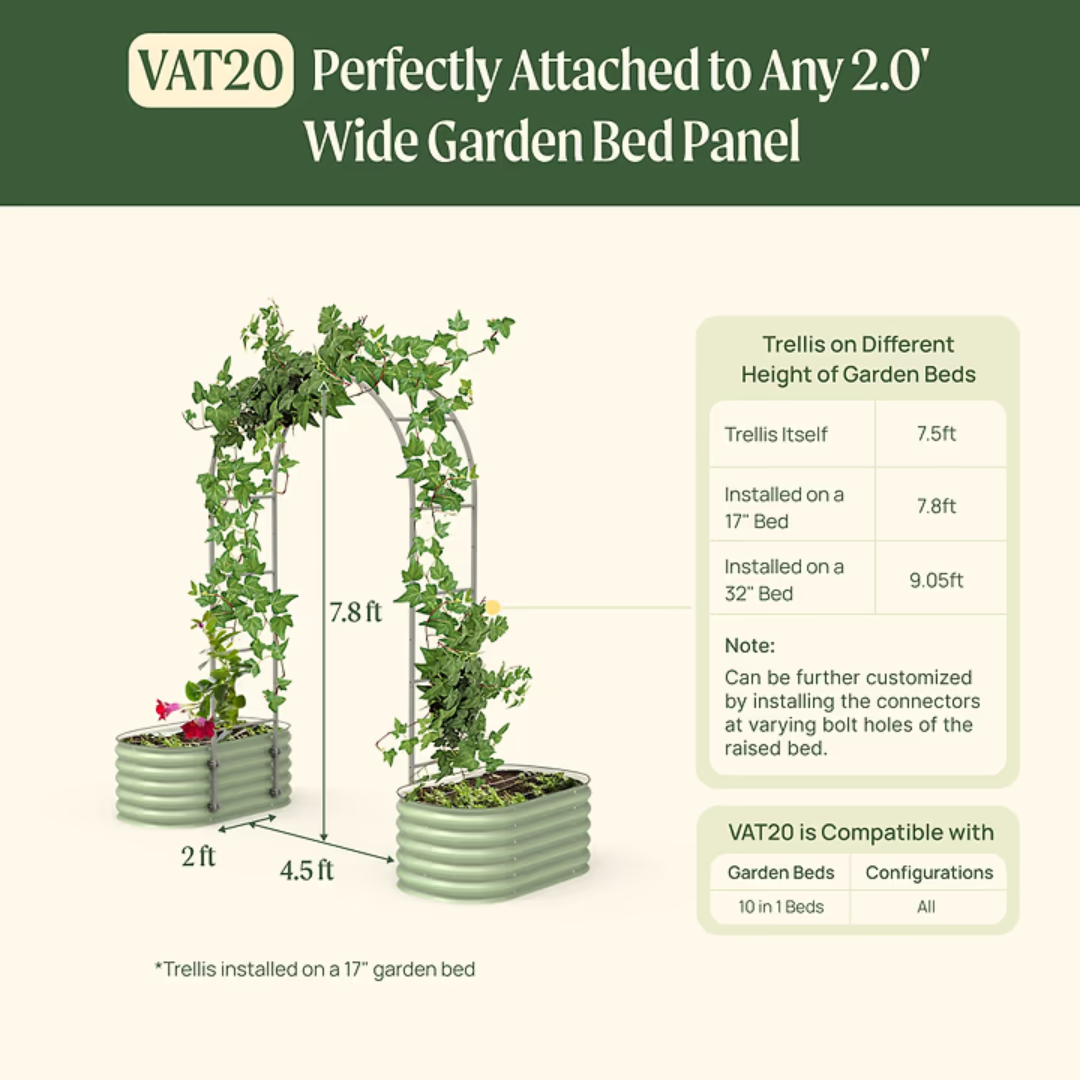

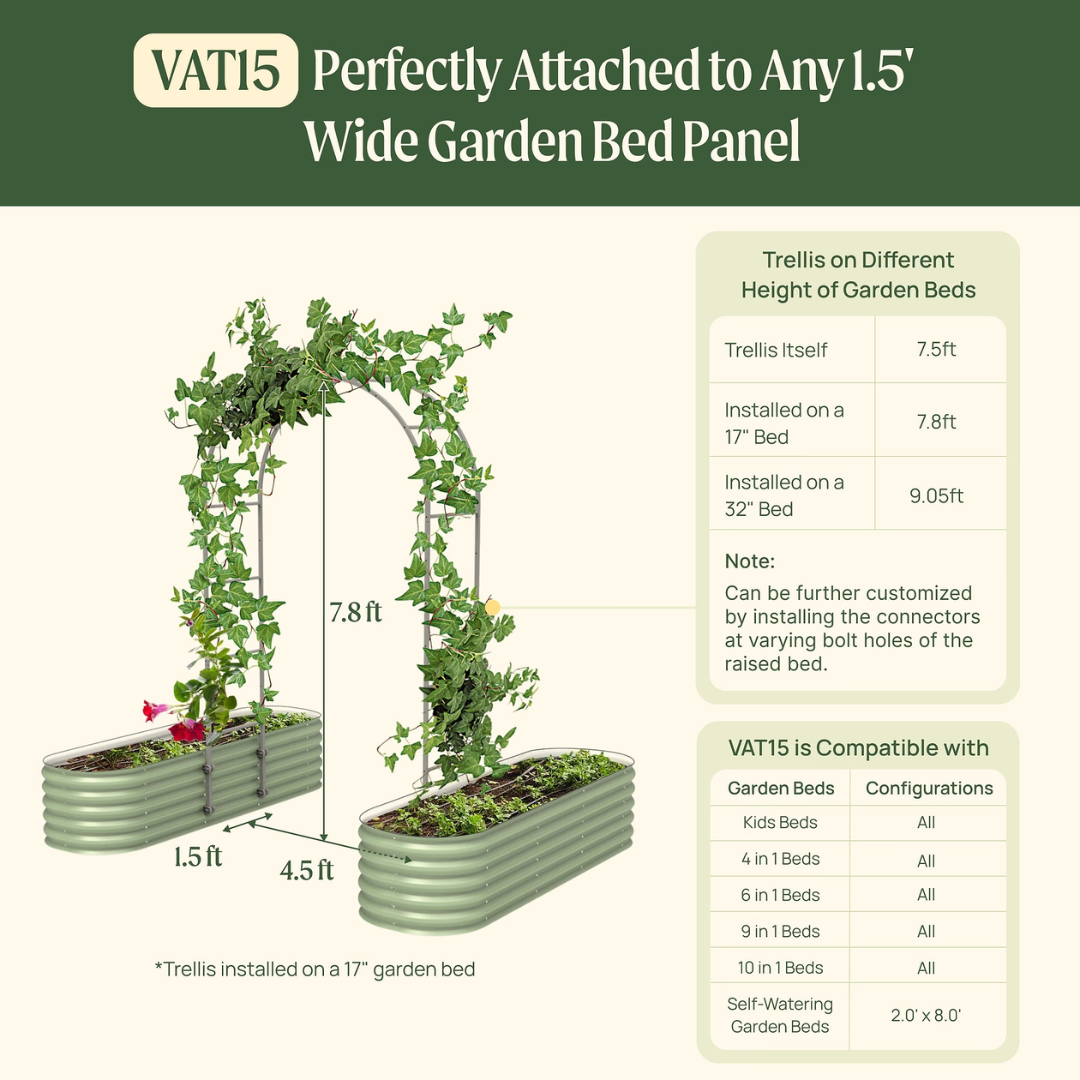

1.5 ft. Version — Trellis Height: 7.5 ft.
1.5 ft. Version — Height Installed on a 17-inch Bed: 7.8 ft.
1.5 ft. Version — Height Installed on a 32-inch Bed: 9.05 ft.

Installed height can be adjusted by positioning the connectors at different garden-bed bolt holes.

Choose the Right Arched Trellis for Your Garden Beds

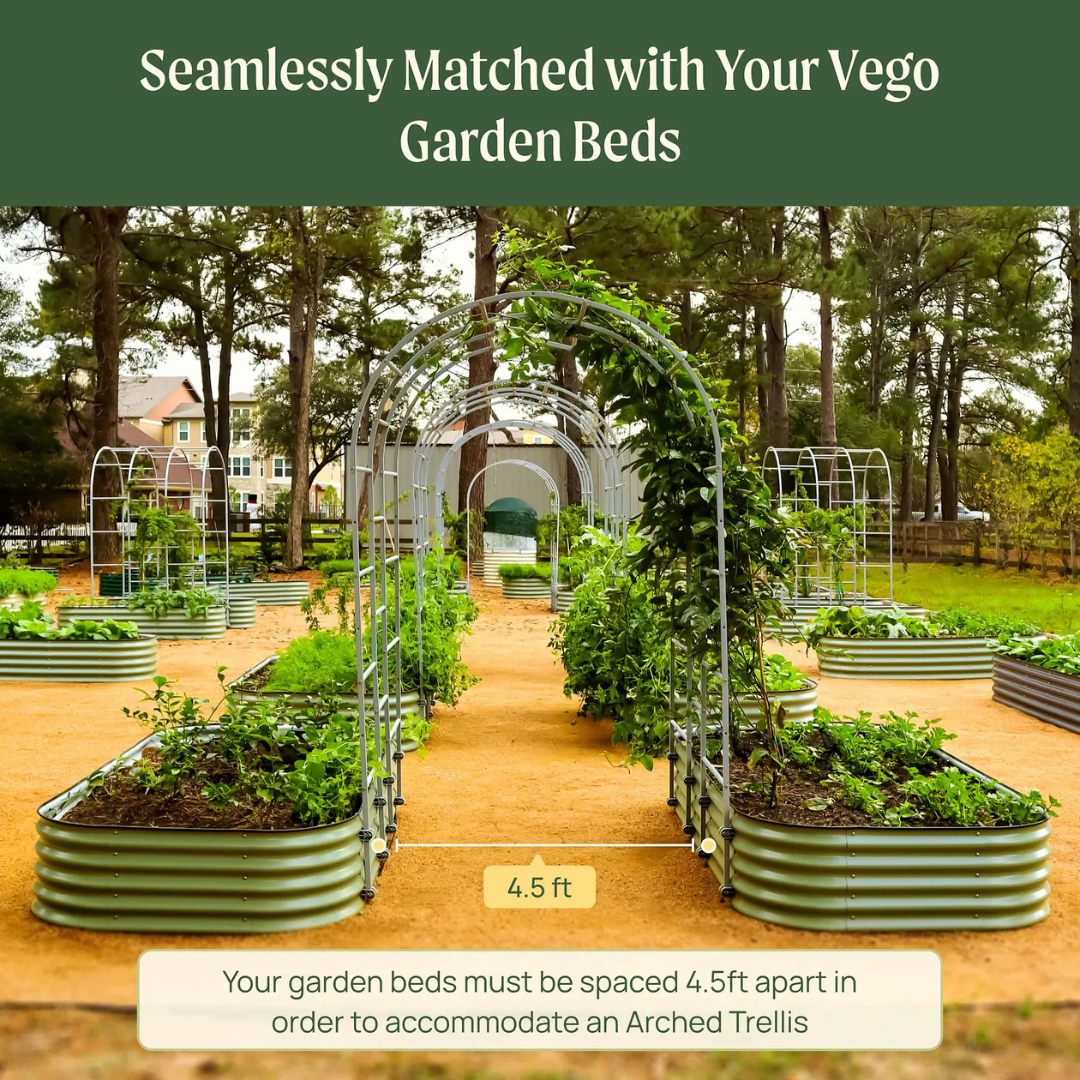

Our Arched Trellis spans 4.5 ft and is designed to connect two parallel garden beds spaced accordingly. Each garden bed size offers a range of compatible trellis lengths.

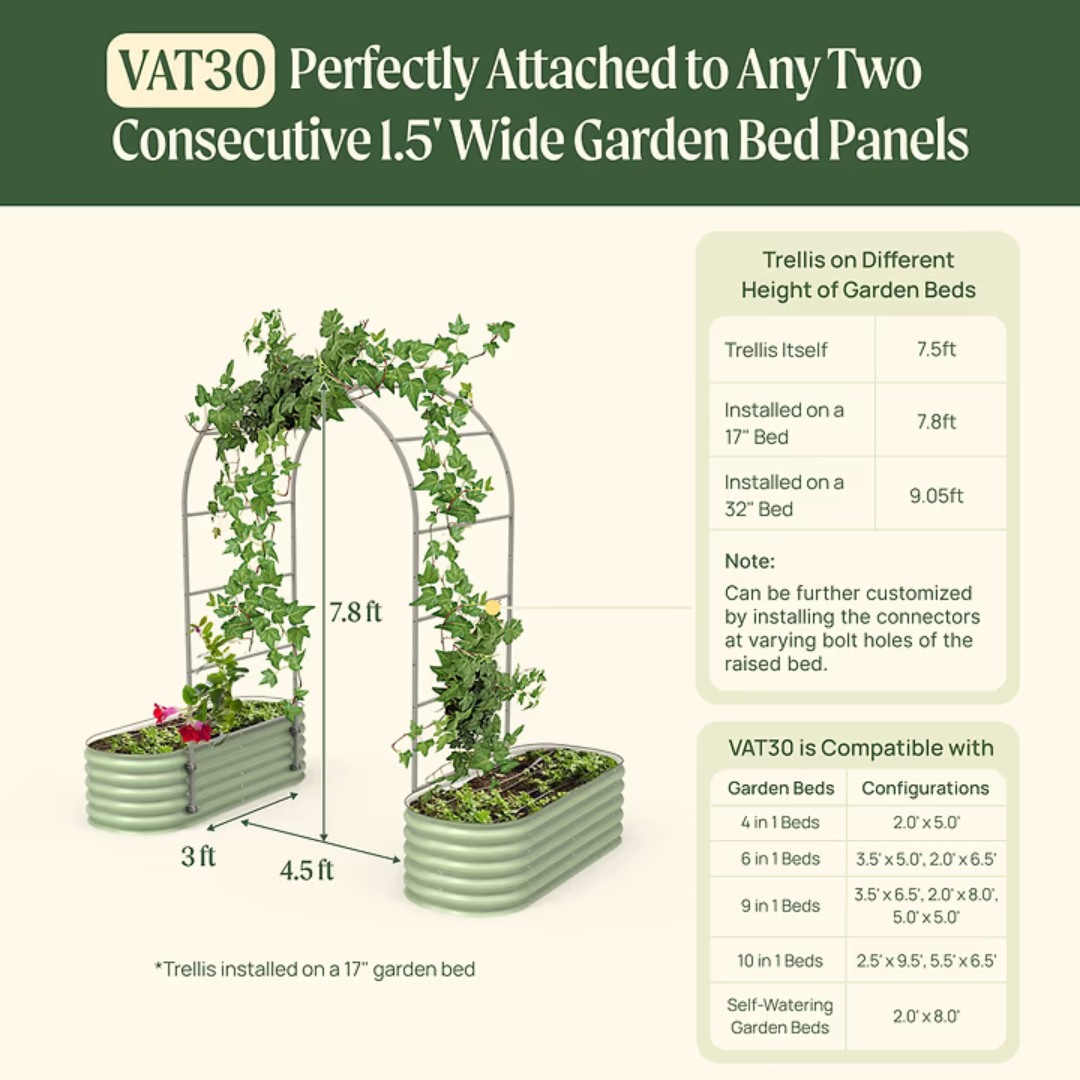

You can use a single arch to create a garden entry, or a triple arch to form a continuous tunnel.

To find the right fit, start by confirming your garden bed size, then choose the trellis length that matches your layout.

User Manual Choose your garden bed size

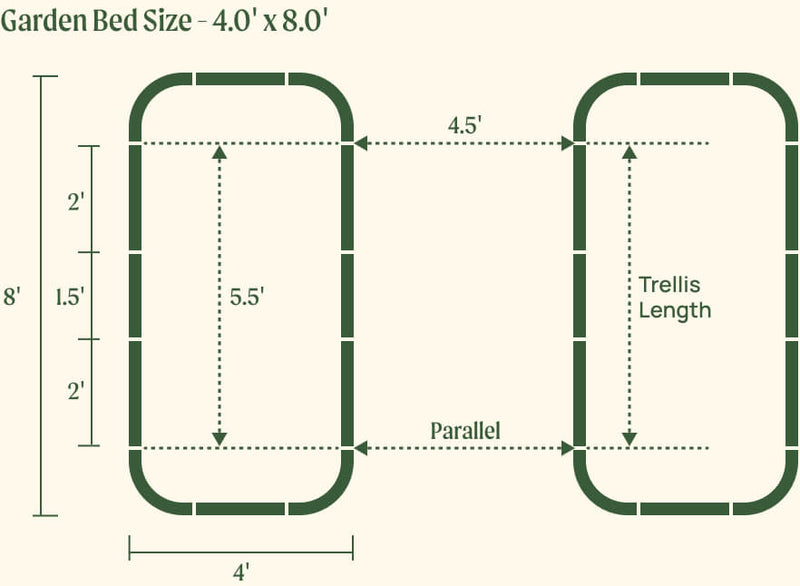

4.0 by 8.0 foot beds with 5.5 foot trellis — 5.5' Length

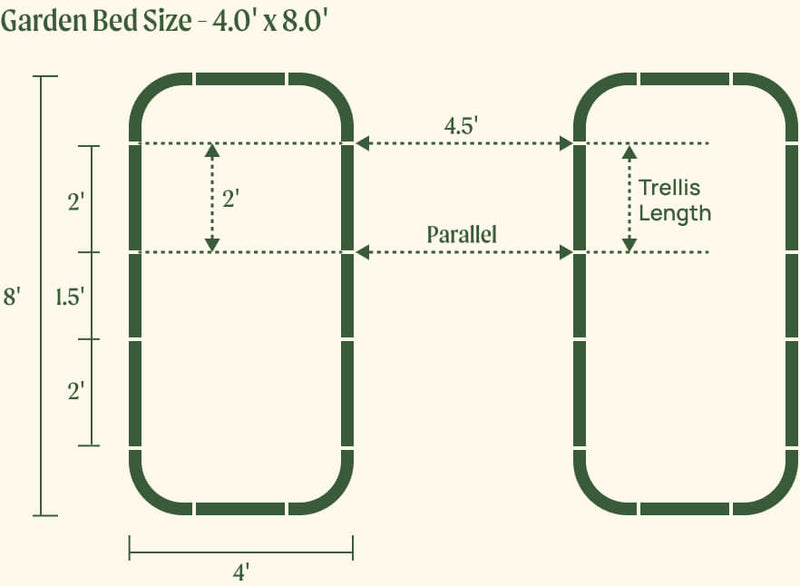

4.0 by 8.0 foot beds with 2.0 foot trellis, parallel layout — 2.0' Length

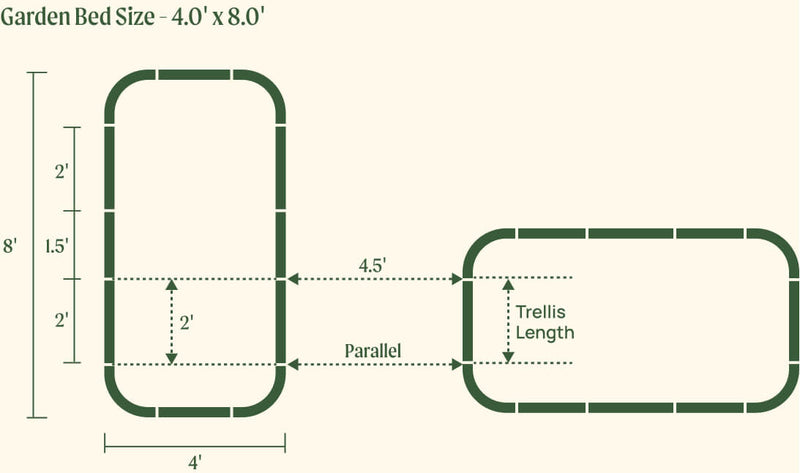

4.0 by 8.0 foot beds with 2.0 foot trellis, alternate layout — 2.0' Length

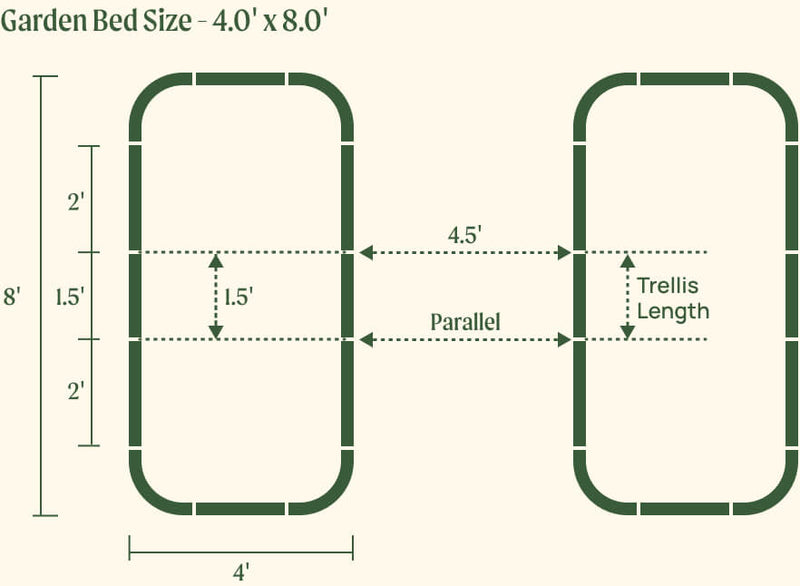

4.0 by 8.0 foot beds with 1.5 foot trellis — 1.5' Length

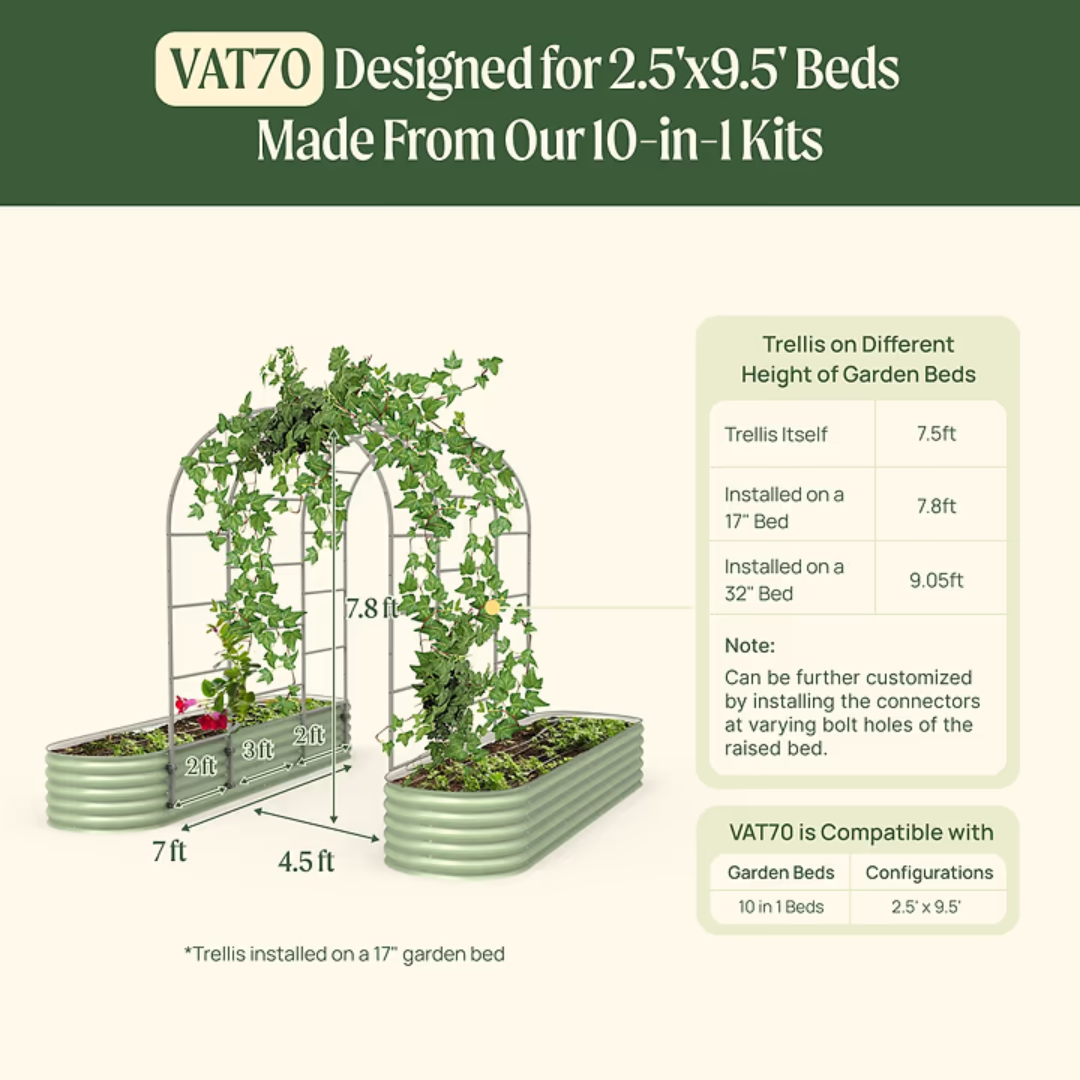

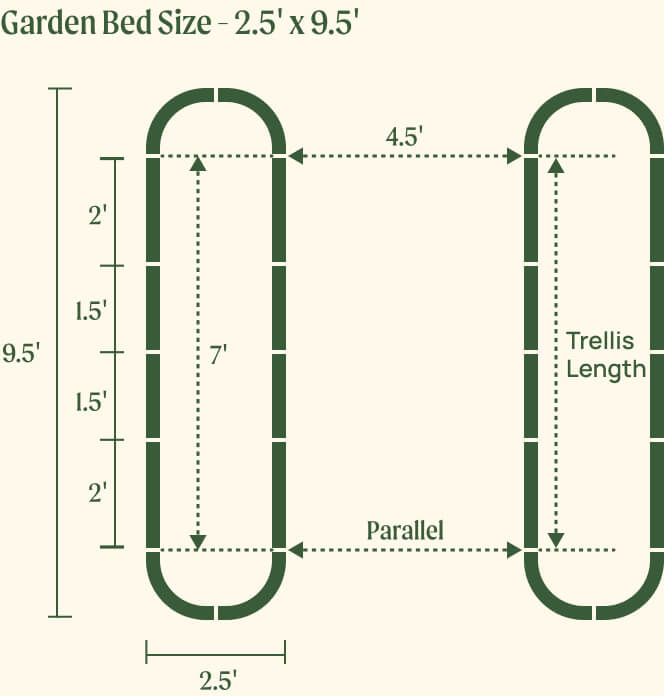

2.5 by 9.5 foot beds with 7.0 foot trellis — 7.0' Length

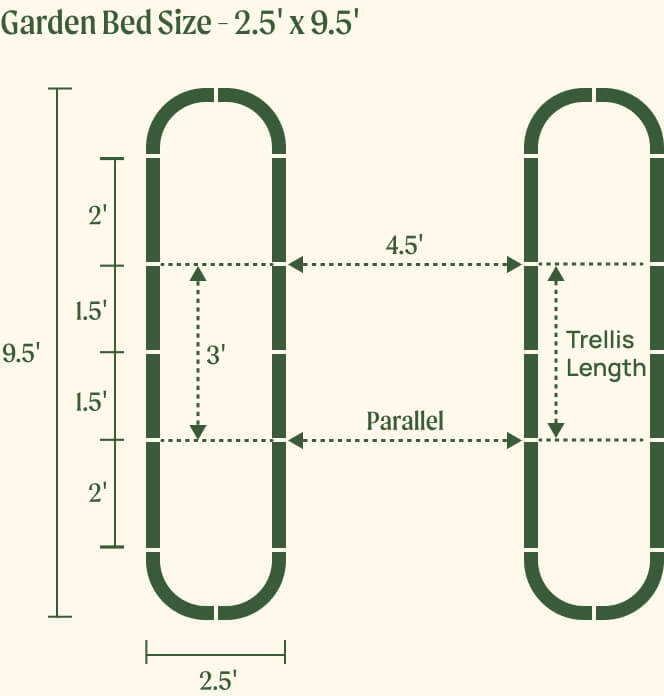

2.5 by 9.5 foot beds with 3.0 foot trellis — 3.0' Length

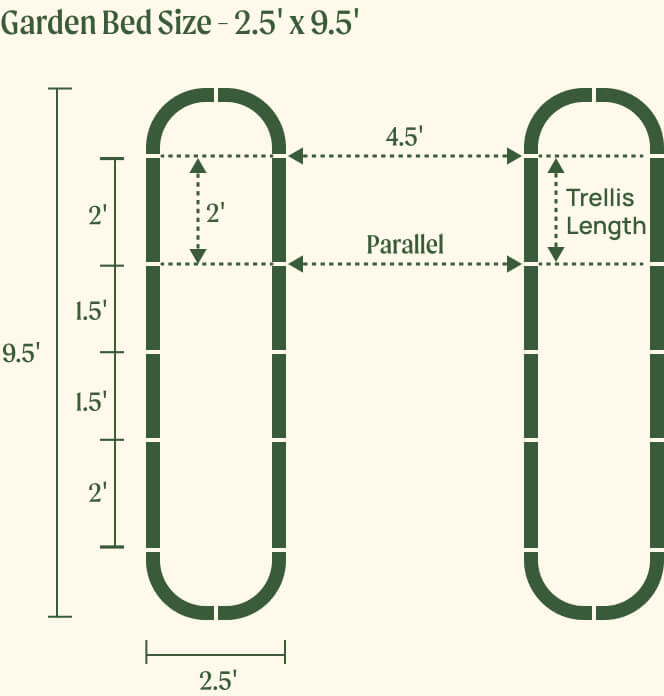

2.5 by 9.5 foot beds with 2.0 foot trellis — 2.0' Length

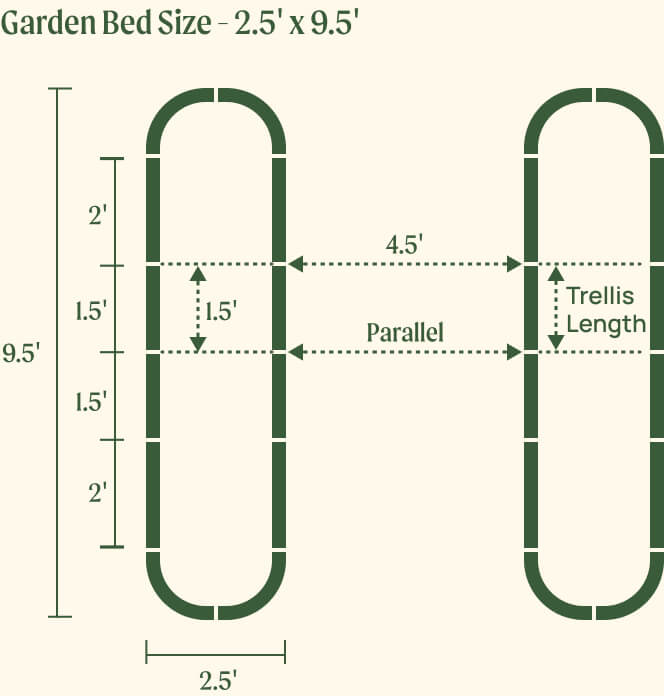

2.5 by 9.5 foot beds with 1.5 foot trellis — 1.5' Length

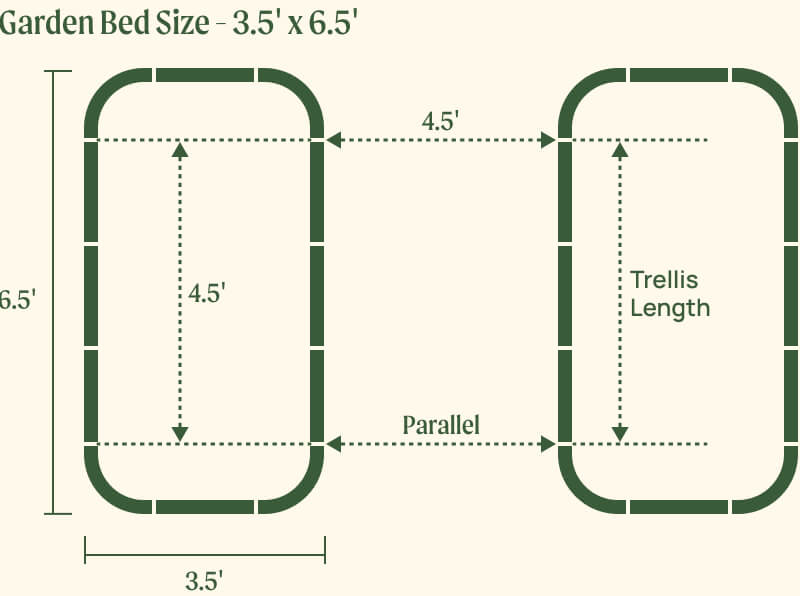

3.5 by 6.5 foot beds with 4.5 foot trellis — 4.5' Length

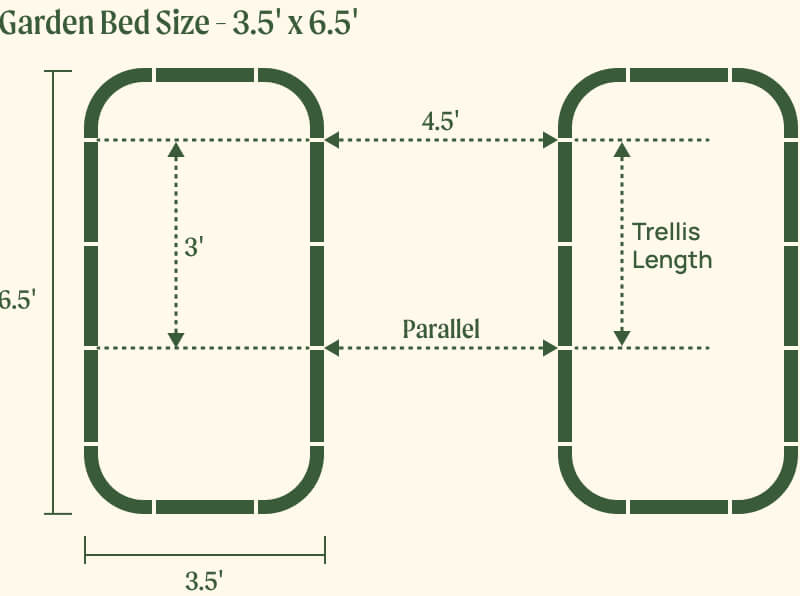

3.5 by 6.5 foot beds with 3.0 foot trellis — 3.0' Length

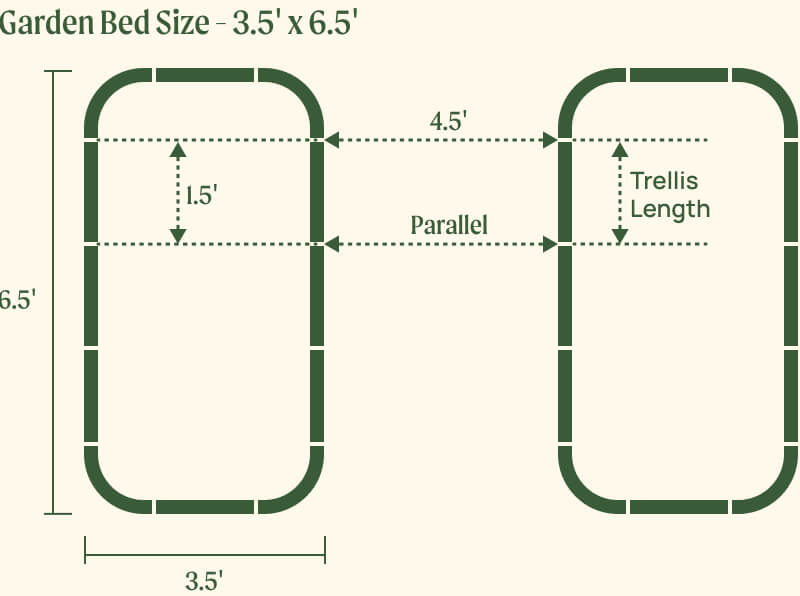

3.5 by 6.5 foot beds with 1.5 foot trellis, first layout — 1.5' Length

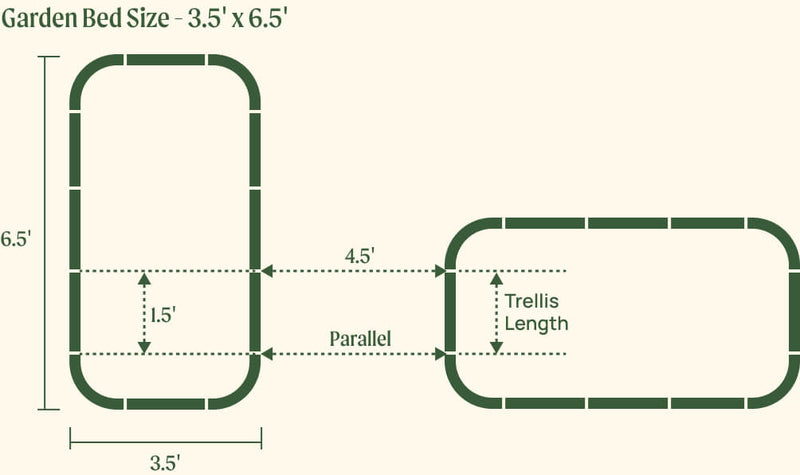

3.5 by 6.5 foot beds with 1.5 foot trellis, alternate layout — 1.5' Length

2.0 by 8.0 foot beds with 6.0 foot trellis — 6.0' Length

2.0 by 8.0 foot beds with 4.5 foot trellis — 4.5' Length

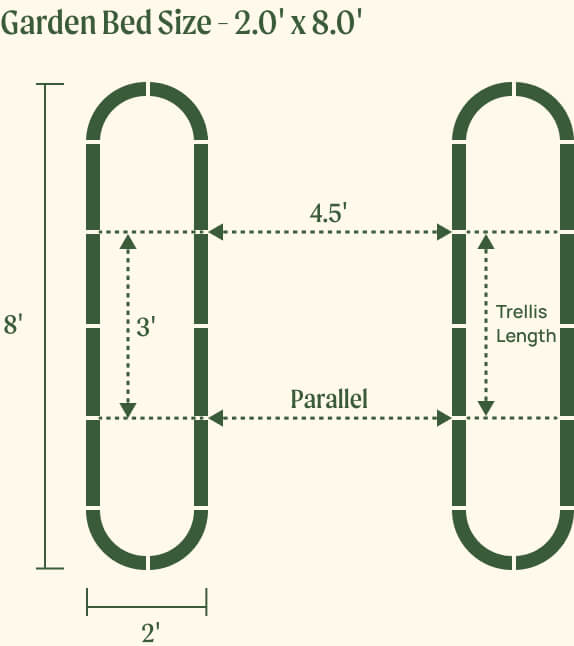

2.0 by 8.0 foot beds with 3.0 foot trellis — 3.0' Length

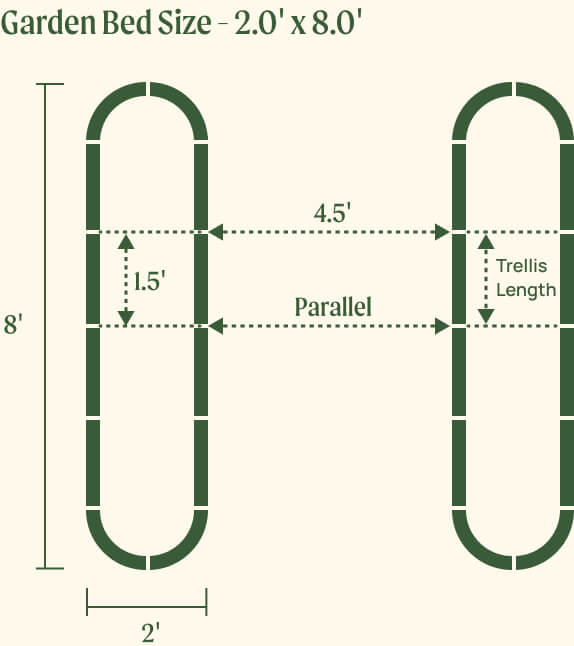

2.0 by 8.0 foot beds with 1.5 foot trellis — 1.5' Length

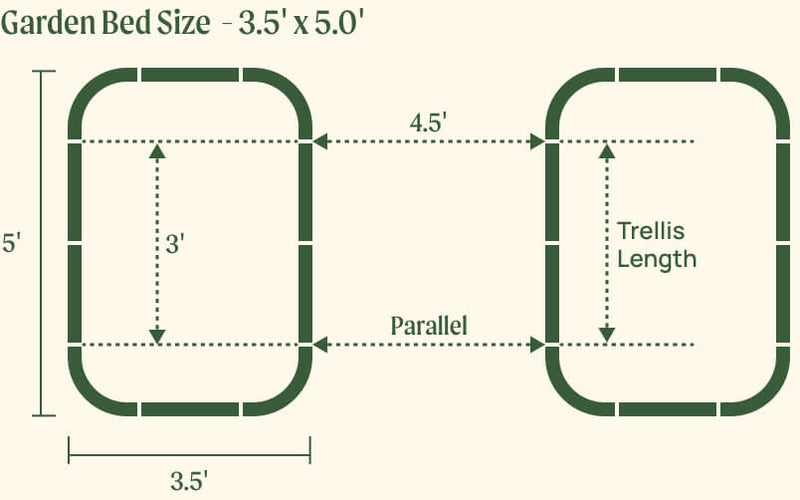

3.5 by 5.0 foot beds with 3.0 foot trellis — 3.0' Length

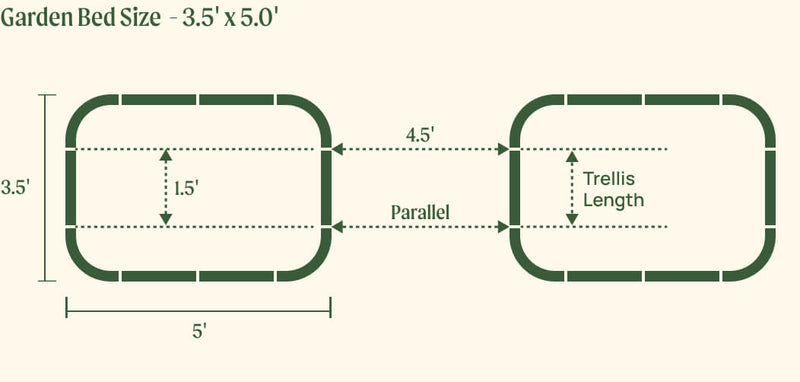

3.5 by 5.0 foot beds with 1.5 foot trellis, first layout — 1.5' Length

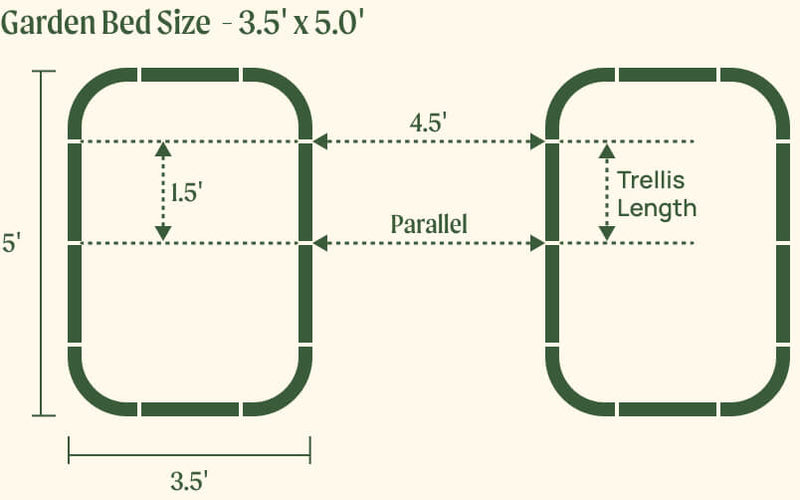

3.5 by 5.0 foot beds with 1.5 foot trellis, alternate layout — 1.5' Length

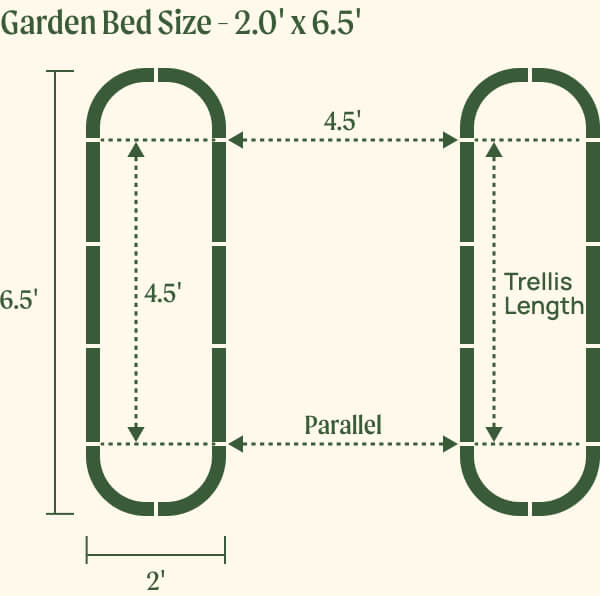

2.0 by 6.5 foot beds with 4.5 foot trellis — 4.5' Length

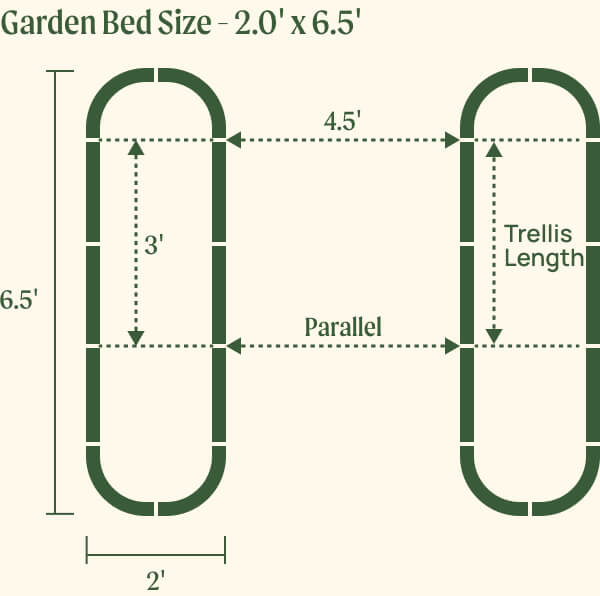

2.0 by 6.5 foot beds with 3.0 foot trellis — 3.0' Length

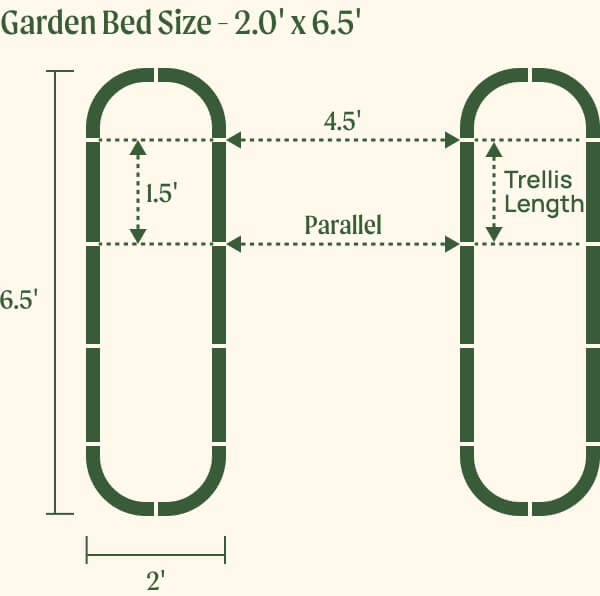

2.0 by 6.5 foot beds with 1.5 foot trellis — 1.5' Length

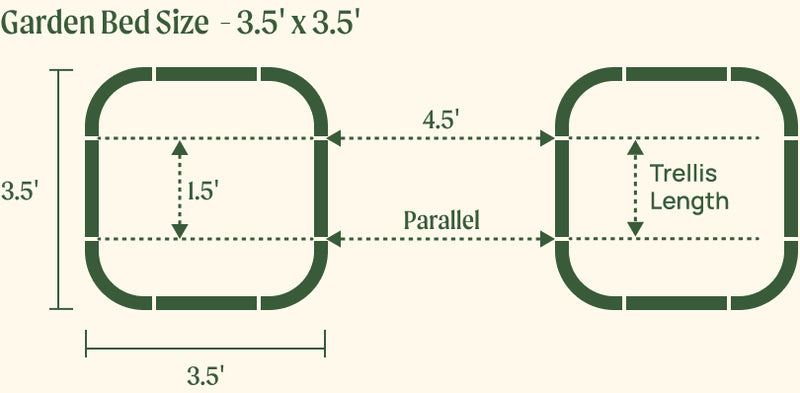

3.5 by 3.5 foot beds with 1.5 foot trellis — 1.5' Length

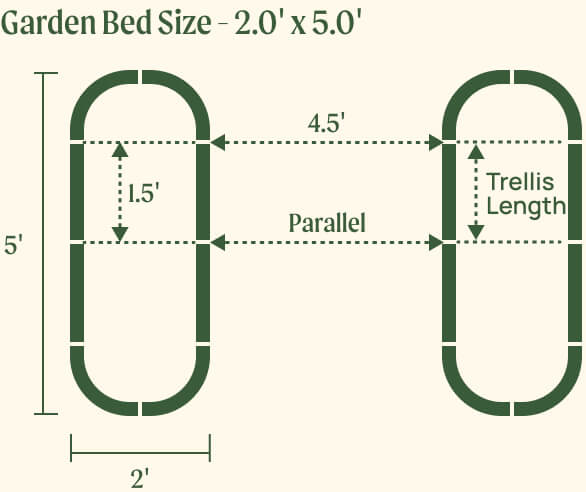

2.0 by 5.0 foot beds with 1.5 foot trellis — 1.5' Length

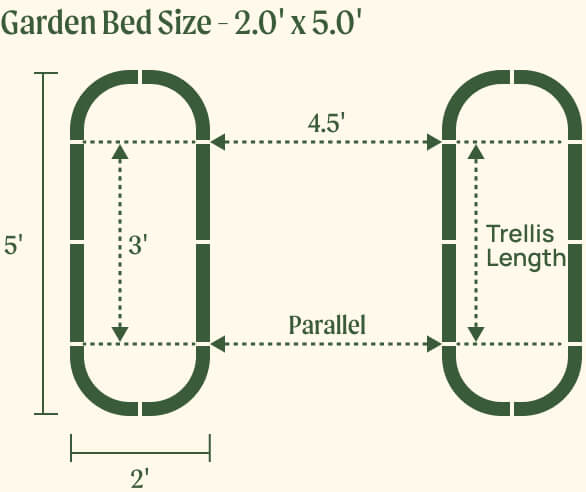

2.0 by 5.0 foot beds with 3.0 foot trellis — 3.0' Length

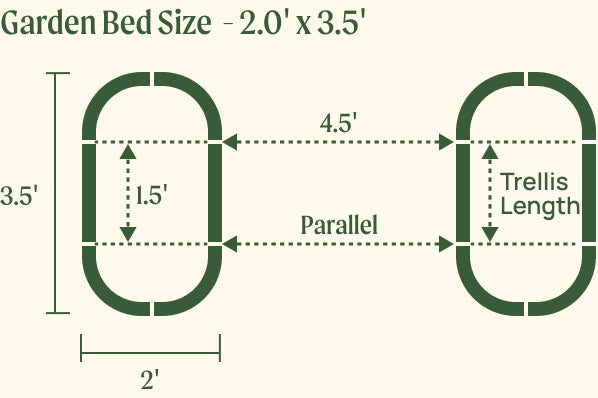

Kids Bed, 2.0 by 3.5 feet, with 1.5 foot trellis — 1.5' Length

Self-Watering Beds with 1.5 foot trellis — 1.5' Length

Self-Watering Beds with 2.0 foot trellis, first layout — 2.0' Length

Self-Watering Beds with 2.0 foot trellis, second layout — 2.0' Length

Self-Watering Beds with 3.0 foot trellis — 3.0' Length

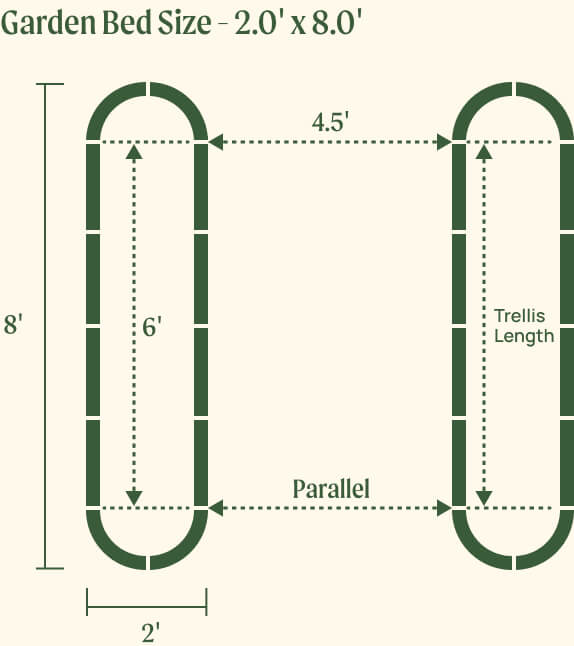

Self-Watering Beds with 6.0 foot trellis — 6.0' Length

Compatibility

Select the garden-bed size first, then choose a compatible trellis length for your intended layout.

10 in 1 Bed Configurations: 4.0 ft. W x 8.0 ft. L; 2.5 ft. W x 9.5 ft. L.
9 in 1 Bed Configurations: 3.5 ft. W x 6.5 ft. L; 2.0 ft. W x 8.0 ft. L.
6 in 1 Bed Configurations: 3.5 ft. W x 5.0 ft. L; 2.0 ft. W x 6.5 ft. L.
4 in 1 Bed Configurations: 3.5 ft. W x 3.5 ft. L; 2.0 ft. W x 5.0 ft. L.
Kids Bed Configuration: 2.0 ft. W x 3.5 ft. L.

Additional Bed Sizes in the Fit Selector: 2.0 ft. W x 4.0 ft. L; 2.0 ft. W x 6.0 ft. L.

Compatible trellis lengths vary by garden-bed size and installation configuration.

Included

Arch poles.
Link poles.
Upper notched connectors.
Lower connectors.
Left and right connector caps.
Assembly bolts and nuts.
Plug inserts.
Wrench.
Hex key.
Instruction manual with an assembly-video QR code.
Parts and quantities vary by selected trellis length. Garden beds and hemp rope are not included.
