Description

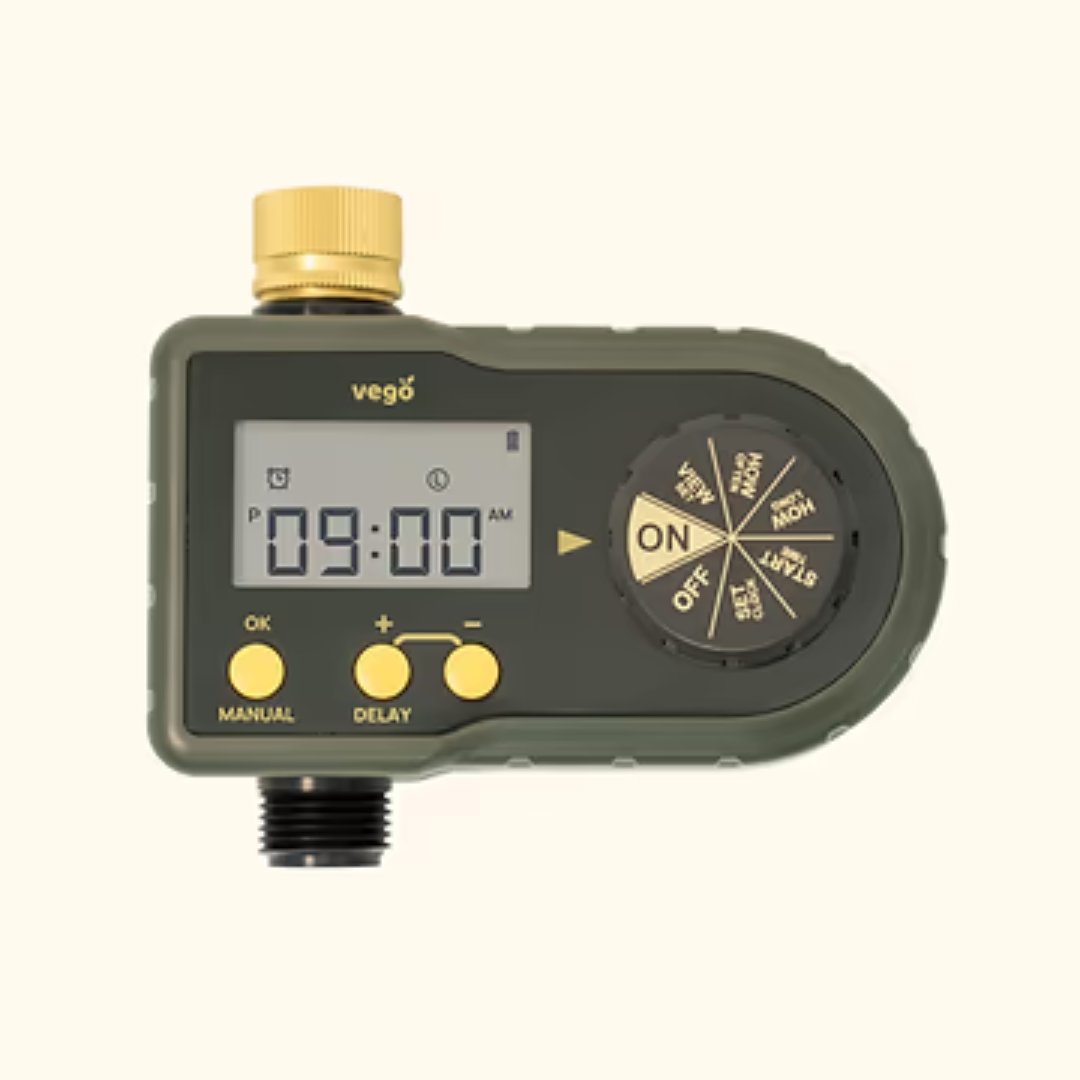

Vego Digital Water Timer -1 Zone
The Vego Digital Water Timer -1 Zone provides automatic watering control for garden beds, lawns, and outdoor irrigation systems. It allows you to schedule watering sessions according to your plants' needs, reducing the need to manually operate your faucet.
Featuring three watering modes—Custom, Garden Bed, and Lawn—the timer offers flexible scheduling options for different watering applications. Its easy-to-use dial, LCD screen, and programmable settings make it simple to manage watering start times, duration, and frequency.
Designed for outdoor use, the timer features brass connectors, an IP54 waterproof rating, and standard 3/4-inch hose connections. Additional functions include manual watering, rain delay, a safety lock, and a low-battery indicator.
Key Features
- Automatic Watering: Automatically operates watering schedules based on programmed start times, durations, and frequencies.

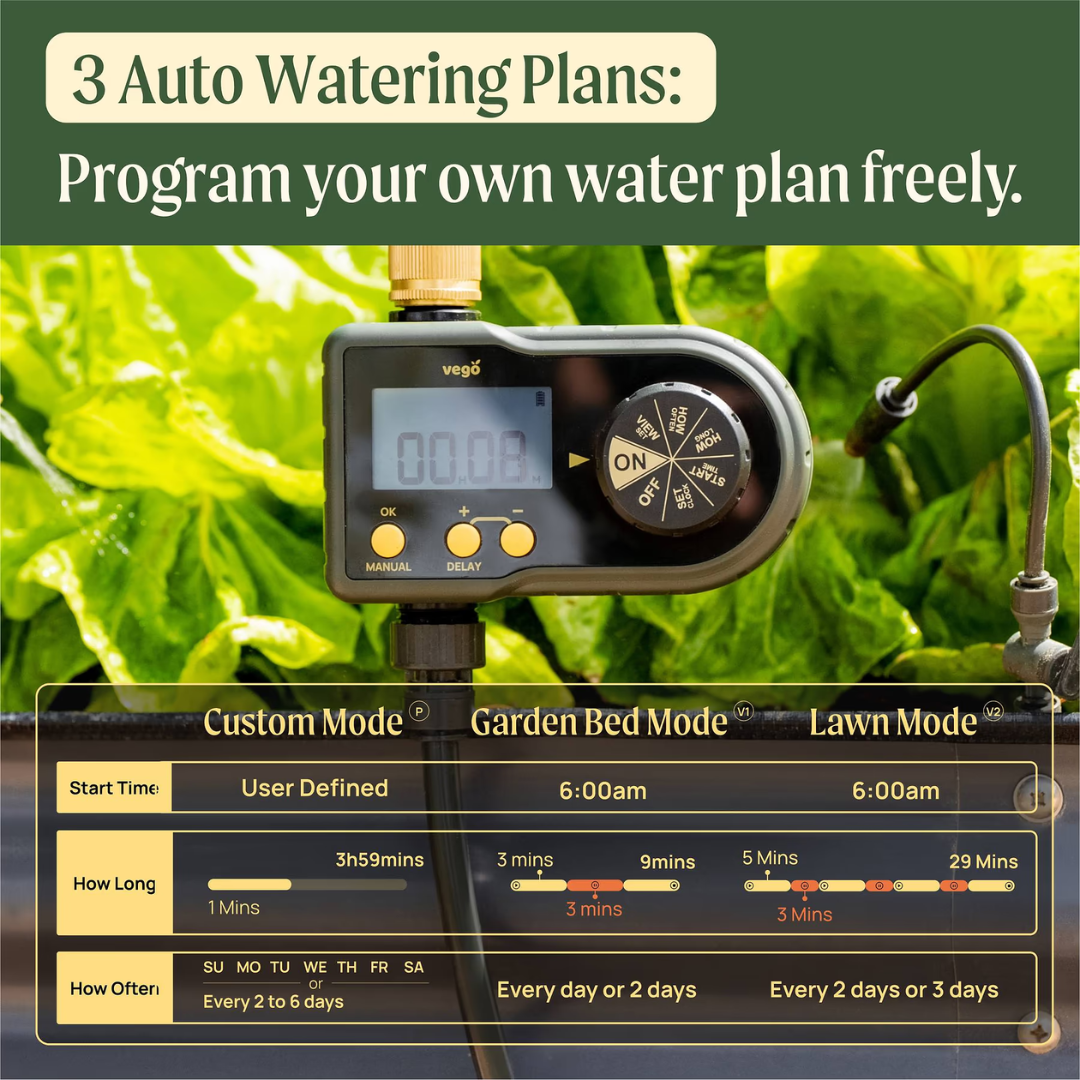

- Three Watering Modes: Choose from Custom (P), Garden Bed (V1), and Lawn (V2) watering programs.
- Custom Watering Schedule: Set watering duration from 1 minute to 3 hours 59 minutes and select specific watering days or intervals of every 2 to 6 days.
- Garden Bed Mode (V1): Provides a preset watering schedule for garden beds, vegetables, flowers, and other plants. The program automatically adjusts watering frequency according to the month.
- Lawn Mode (V2): Provides preset watering cycles designed for lawns, with seasonal adjustments to watering frequency.

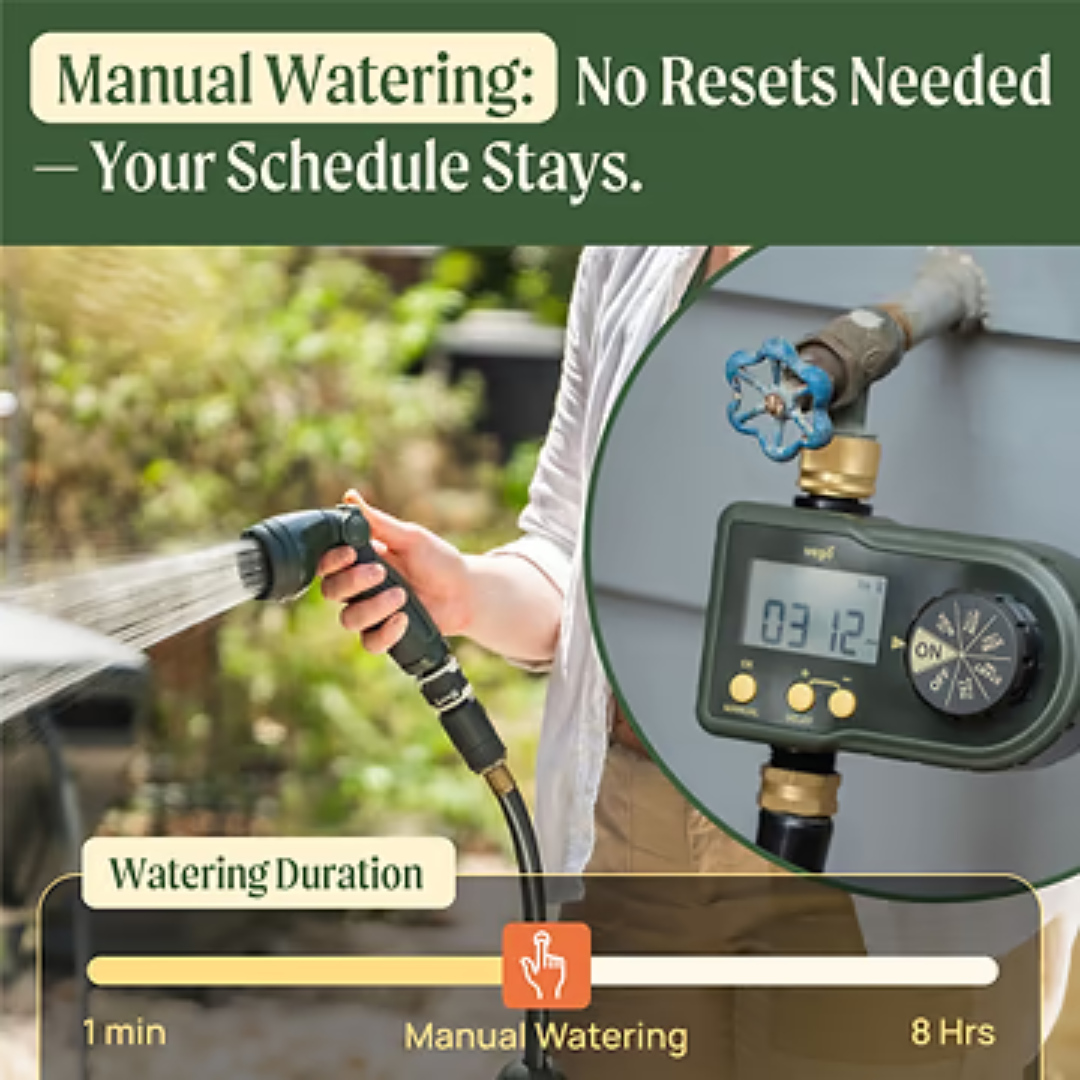

- Manual Watering: Allows watering outside the programmed schedule without changing existing settings.

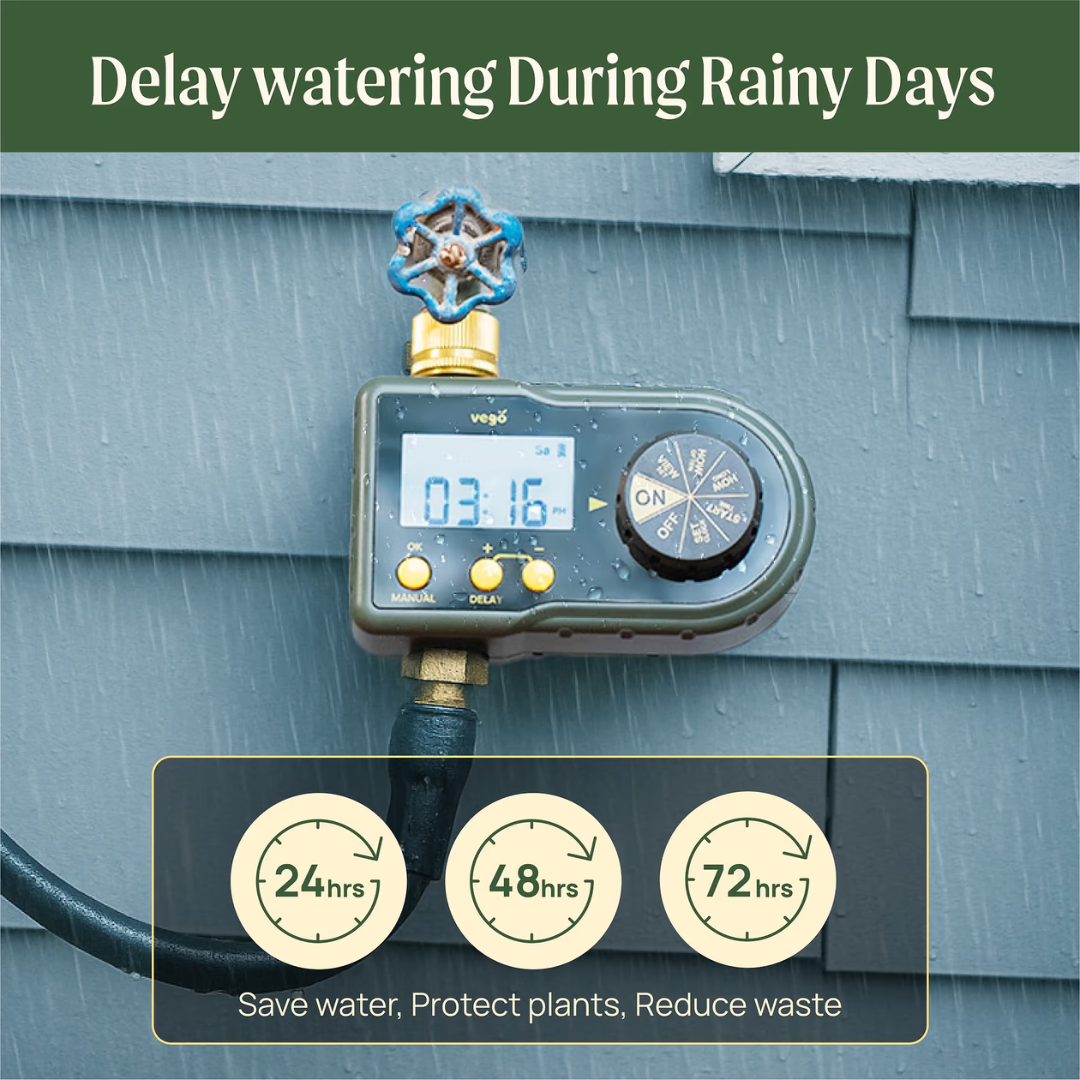

- Rain Delay Function: Temporarily pauses automatic watering for 24, 48, or 72 hours without deleting the programmed schedule.

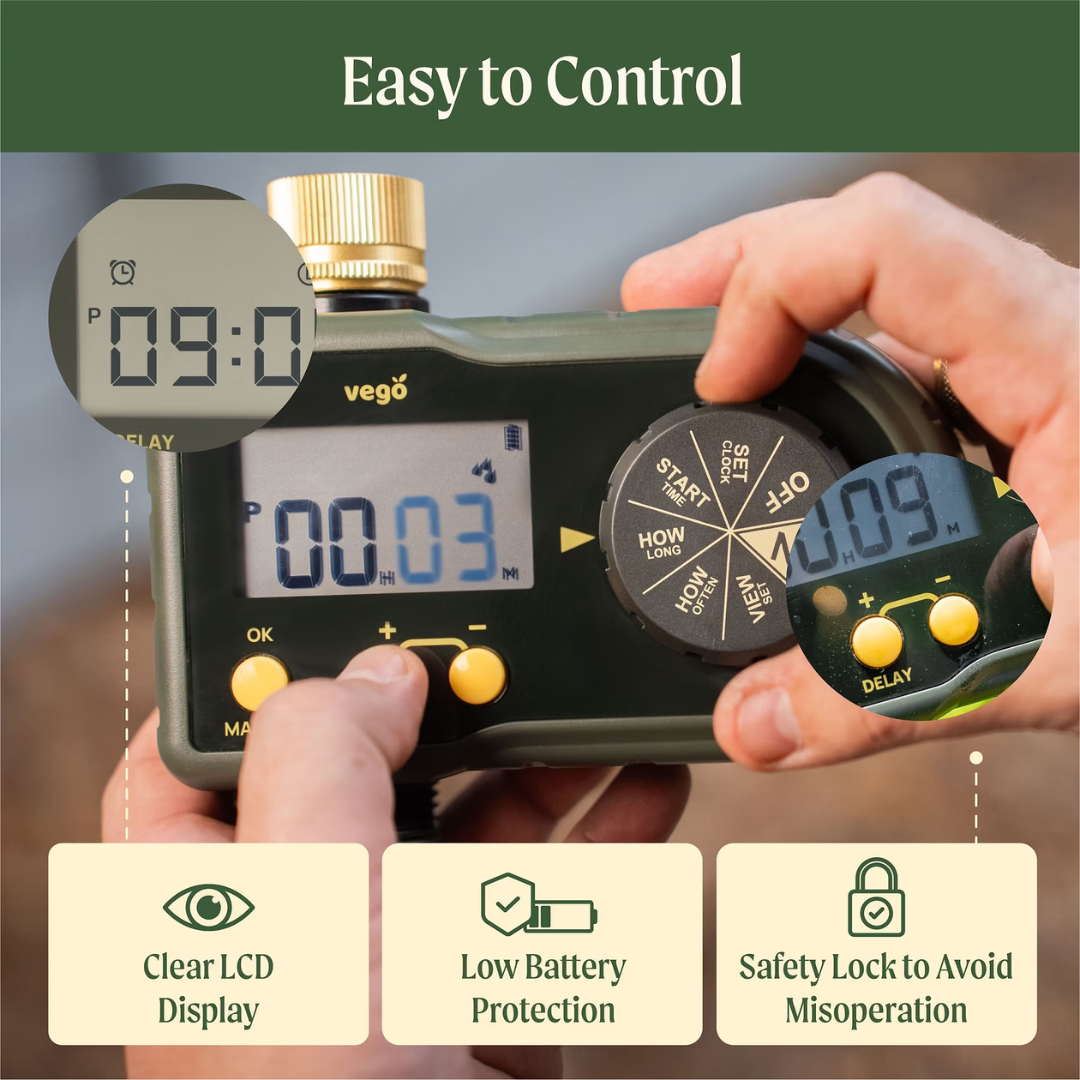

- LCD Display: Shows watering schedules, current time, upcoming watering times, remaining watering duration, and battery status.
- Dial-Based Controls: Features a rotating dial and adjustment buttons for setting watering programs and reviewing saved settings.
- Safety Lock: Helps prevent accidental changes to programmed watering settings.
- Low-Battery Indicator: Displays battery status and automatically closes the valve when battery power is low.
- Durable Construction: Features brass connectors and a leak-resistant design for outdoor watering applications.
- IP54 Waterproof Rating: Provides protection against dust and water splashes.
- Standard Hose Connections: Features 3/4-inch garden hose connections designed to fit most standard garden hoses and faucets.

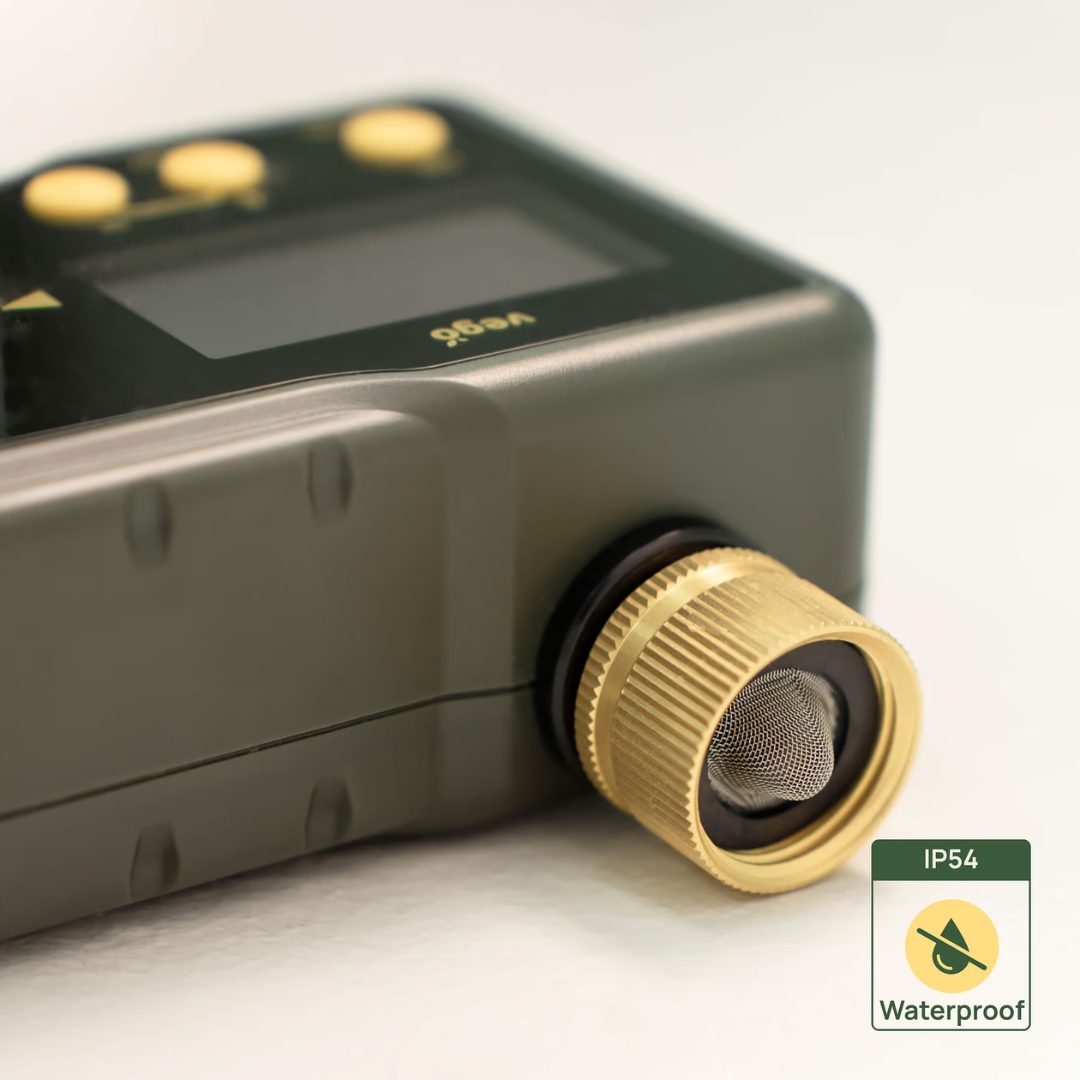

- Removable Filter: Includes a cleanable and replaceable inlet filter to help prevent dirt particles from clogging the timer.
- Battery-Powered Operation: Operates using 2 AA alkaline batteries, eliminating the need for an electrical outlet.
Specifications
- Watering Zones: 1 Zone
- Watering Modes: Custom (P), Garden Bed (V1), Lawn (V2)
- Custom Watering Duration: 1 minute–3 hours 59 minutes
- Custom Watering Frequency: Selected days from Monday through Sunday or every 2 to 6 days
- Garden Bed Mode Start Time: 6:00 AM (preset)
- Garden Bed Mode Frequency: Every 2 days from March to May and November to February; daily from June to October
- Garden Bed Mode Cycle: 3 minutes watering, 3 minutes pause, followed by 3 minutes watering
- Lawn Mode Start Time: 6:00 AM (preset)
- Lawn Mode Frequency: Every 3 days from March to May and November to February; every 2 days from June to October
- Lawn Mode Cycle: Four 5-minute watering periods separated by 3-minute pauses
- Manual Watering Duration: 1 minute–8 hours
- Rain Delay Options: 24, 48, or 72 hours
- Working Water Pressure: 7.25–116 PSI (0.5–8 bar)
- Maximum Flow Rate: 10 Gal/Min (35 L/Min)
- Working Temperature: 37.4°F–122°F (3°C–50°C)
- Water Inlet/Outlet: 3/4-inch NH
- Hose Connection: Standard 3/4-inch GHT
- Connector Material: Brass
- Waterproof Rating: IP54
- Power Supply: 2 AA (1.5V) alkaline batteries (not included)
- Display: LCD Screen
- Controls: Rotating Dial, OK/Manual Button, +/Rain Delay Button, and – Button
- Timer Dimensions: 6.1 in. x 5.5 in. x 2.7 in.
- Installation Orientation: Upright/Vertical
- Recommended Water Type: Clean, cold water
- Application: Outdoor watering

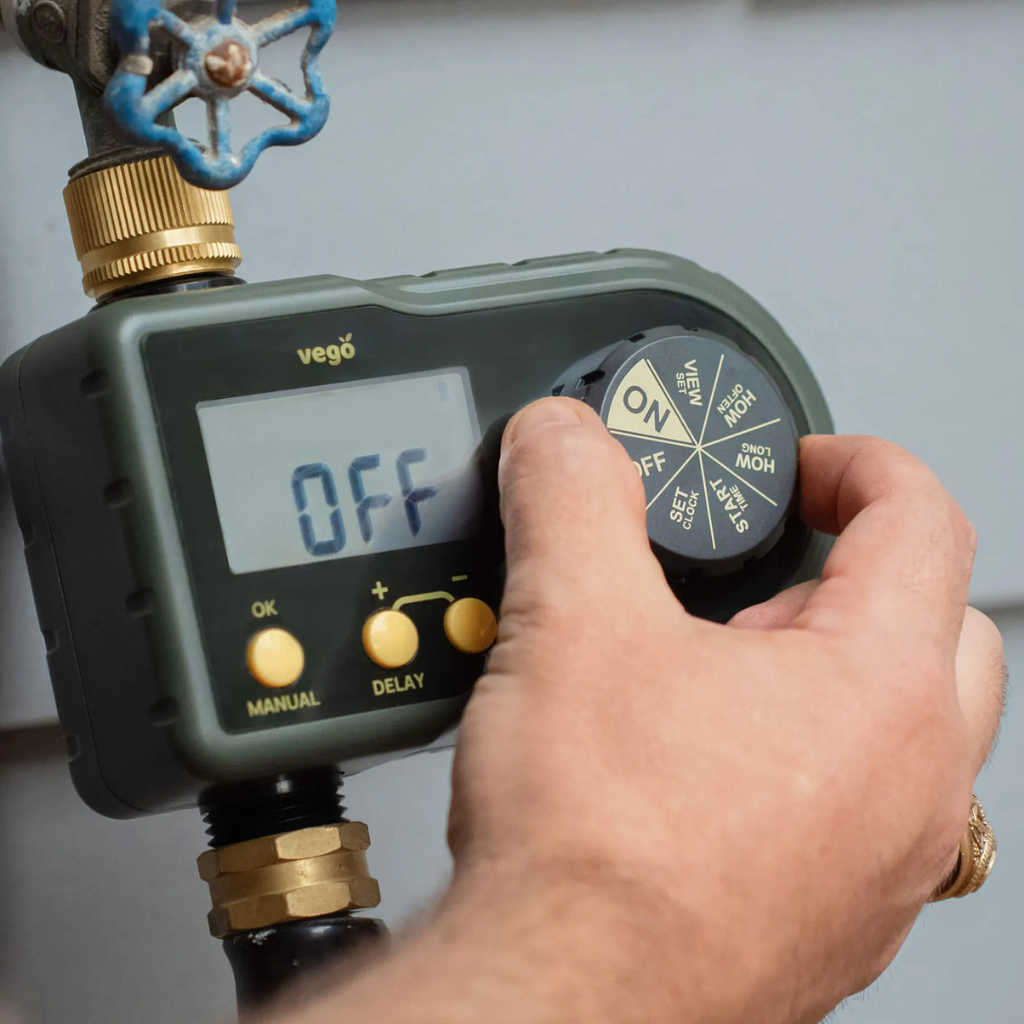

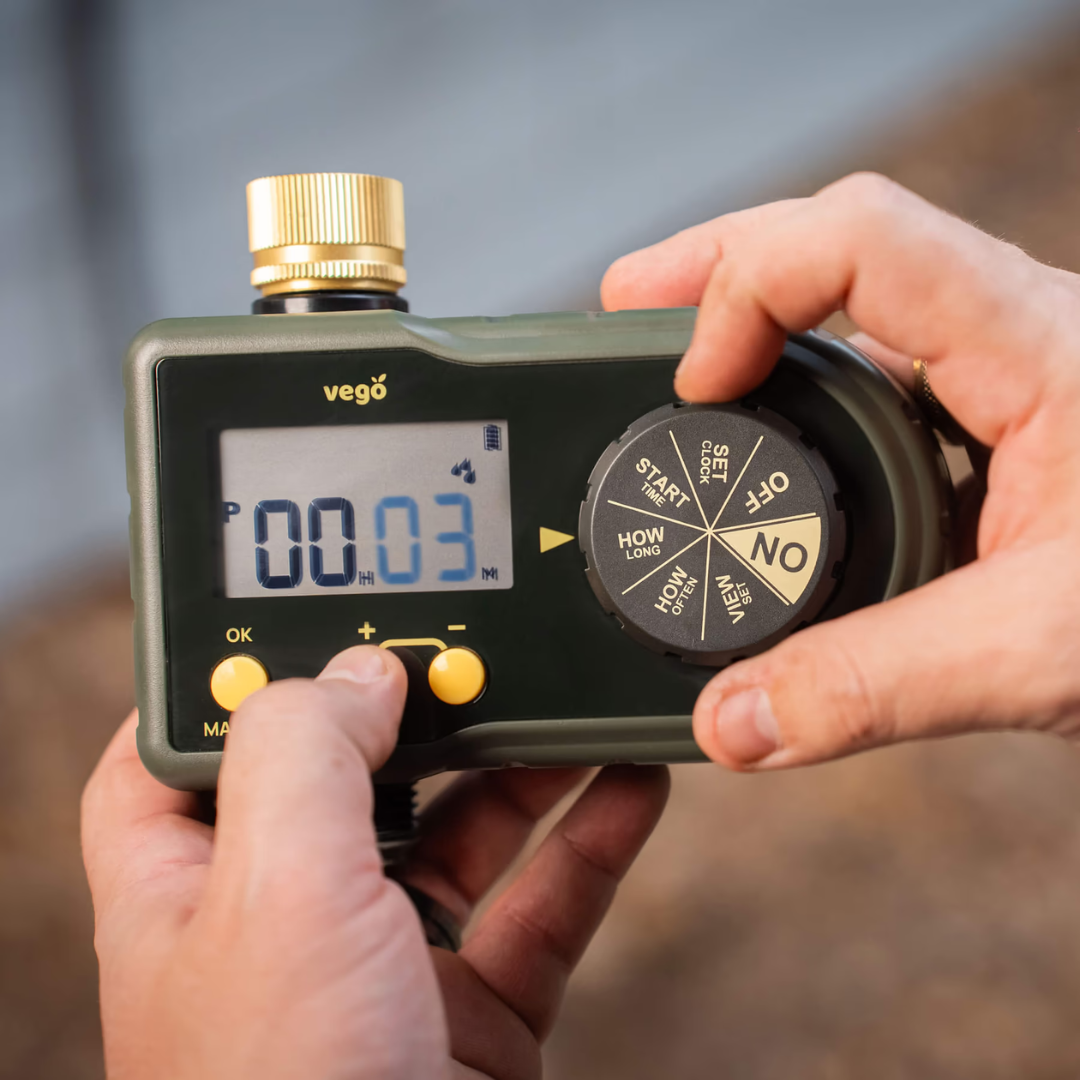

Dial In Your Perfect Schedule
The wheel-guided setup keeps things simple—just turn the dial step by step, following the sequence around the circle. Each section guides you through the process in order, making it easy to set up start times, duration, and frequency without confusion.
Materials & Specifications

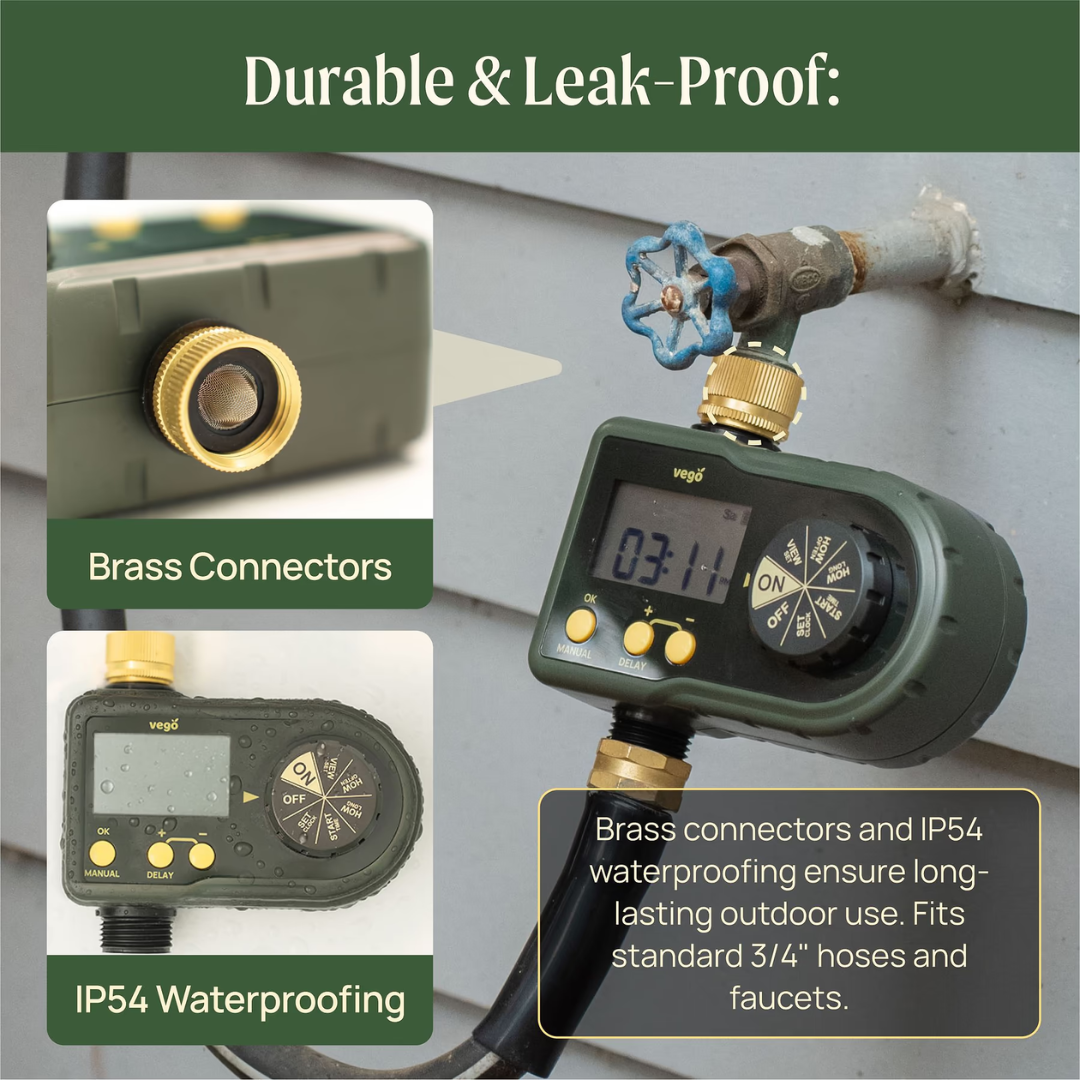

Durable Design:
Built with Durable and Leak Proof design with brass connectors for outdoor longevity.
Standard 3/4" GHT connections fit most hoses and faucets.
IP54 waterproof rating.
Note:
For optimal performance and lifespan, please use new AA alkaline batteries and clean the filter regularly.
Avoid using the timer when temperatures are below 37°F (3°C), and store it indoors during freezing conditions.
Size Guide
- Product Dimensions: 6.1 in. x 5.5 in. x 2.7 in.
- Watering Capacity: 1 Zone
- Connection Size: 3/4 in.
- Available Configurations: 1-Zone and 2-Zone models are offered separately. This listing is specifically for the 1-Zone model.
Compatibility
- Compatible With: Standard 3/4-inch garden hose connections and most standard garden hoses and faucets.

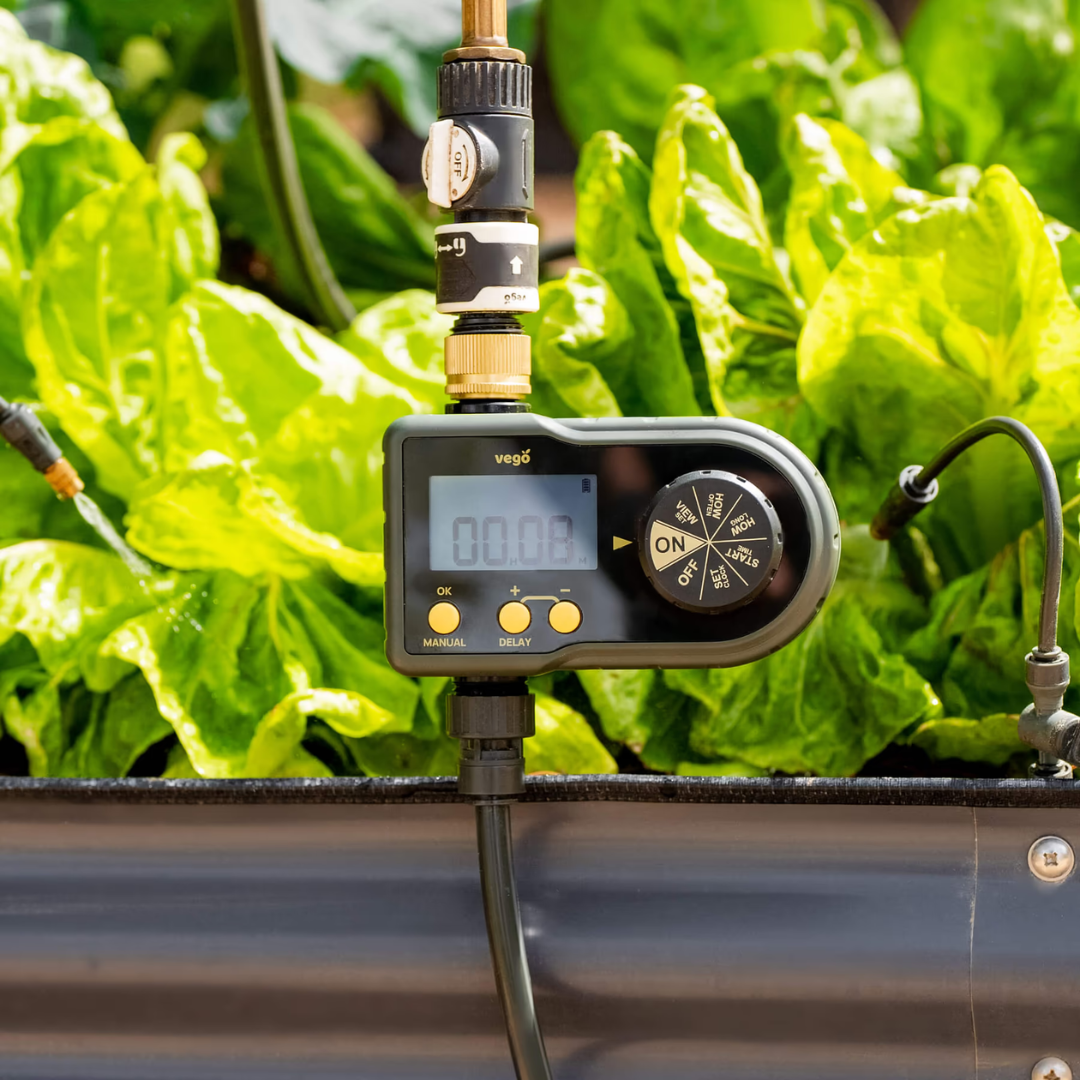

- Supported Watering Applications: Garden beds, lawns, drip irrigation systems, and soaker hoses.
Included
-
1-Zone Digital Water Timer
-
Plumber's Tape
-
Instruction Manual
Batteries: Not included. Requires 2 AA alkaline batteries.
Care and Maintenance
-
Use 2 new AA alkaline batteries.
-
Clean the inlet filter regularly and replace it when worn.
-
Use only clean, cold water.
-

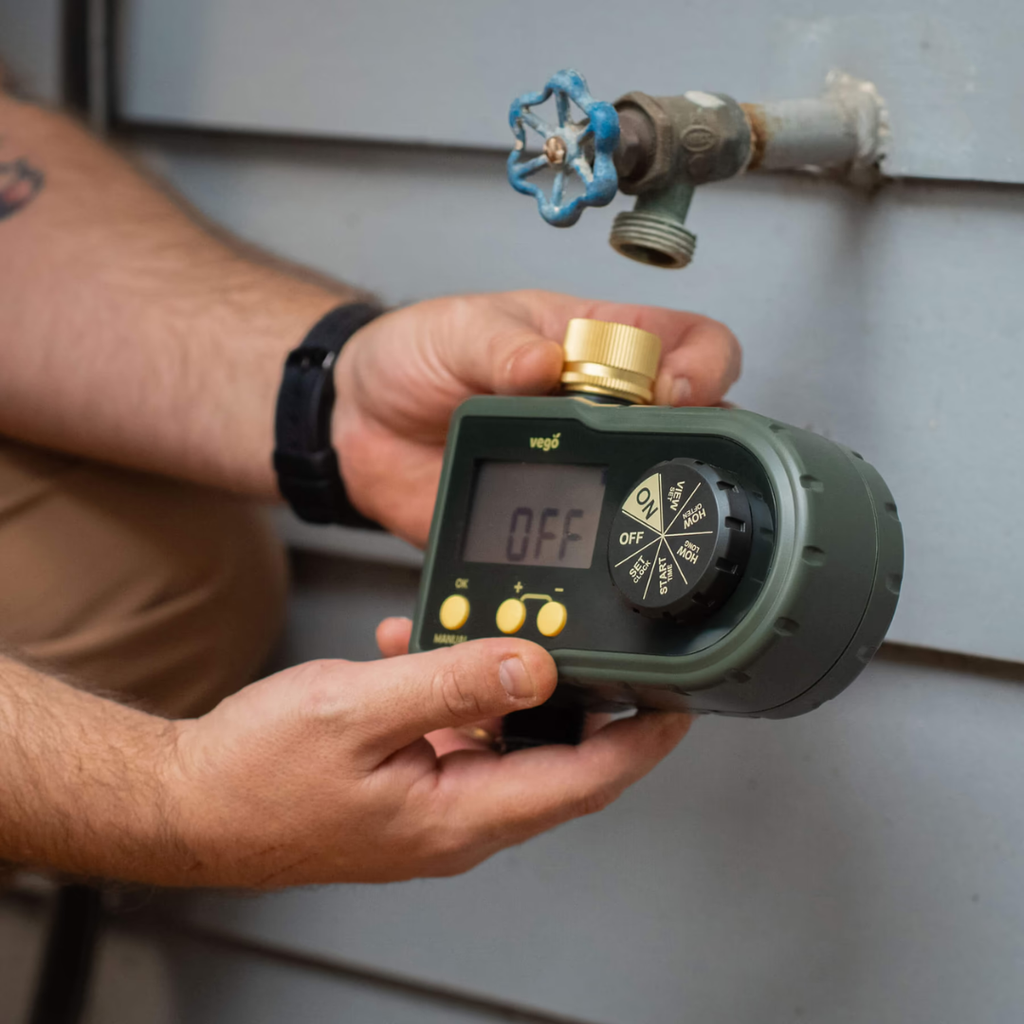

Install the timer vertically with the display facing upright.
-
Hand-tighten connections without using tools.
-
Remove the timer from the faucet and store it indoors during freezing conditions.
-
Remove the batteries when storing the timer for extended periods.
