Description

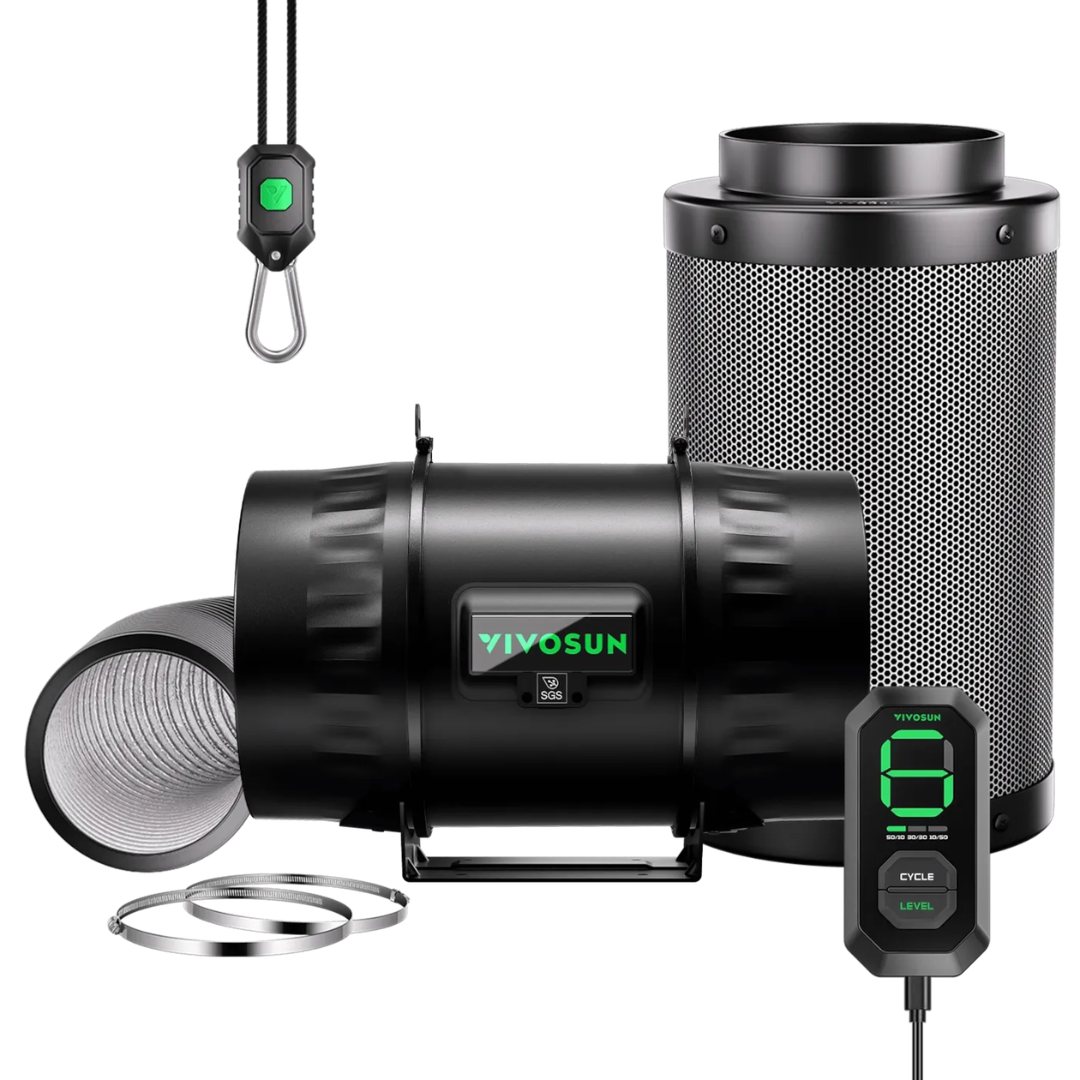

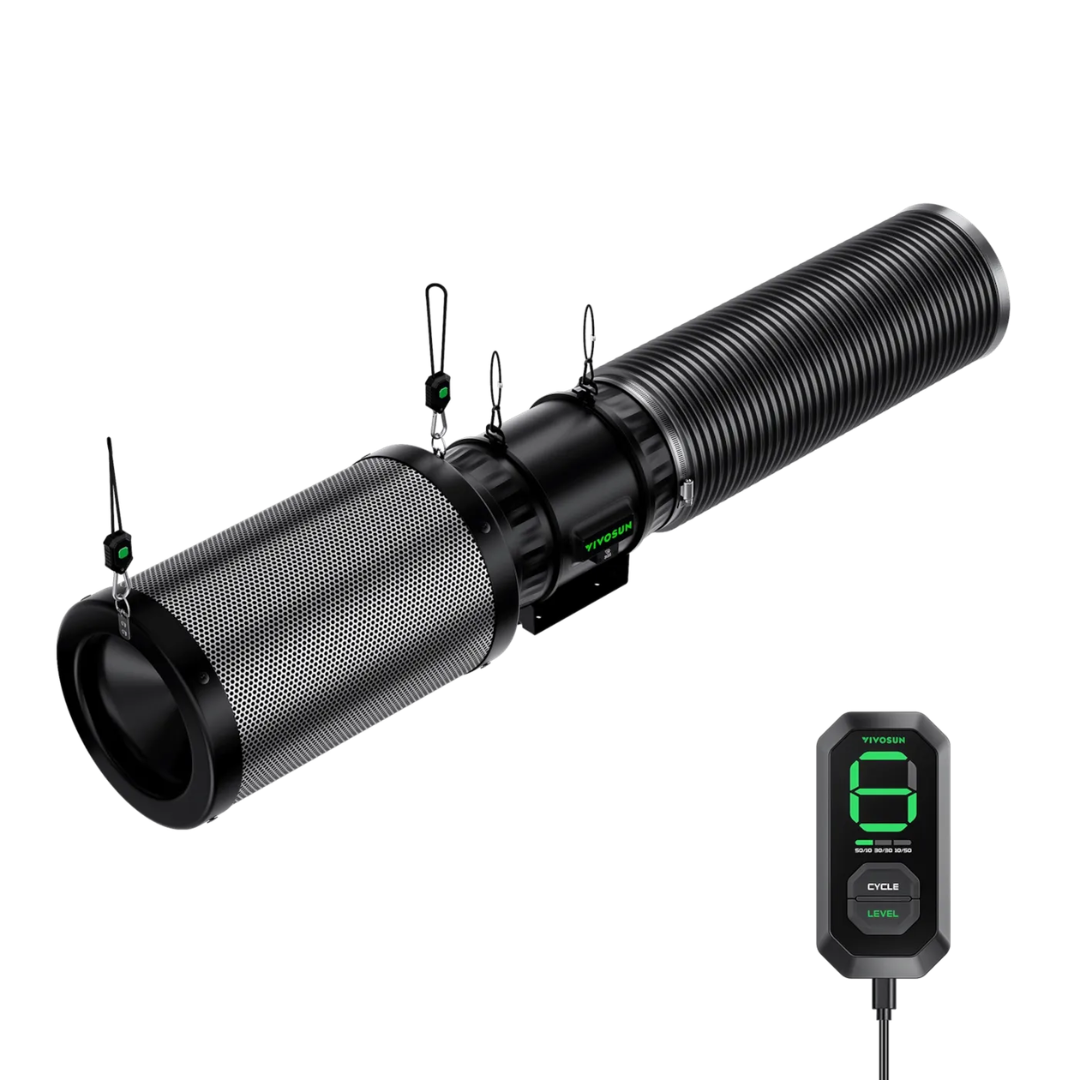

This 8-inch air-filtration kit combines an inline duct fan, speed controller, carbon filter, and ducting for indoor ventilation and odor control. It is suitable for grow tents, indoor gardens, and other listed ventilation applications.
The inline fan delivers up to 832 CFM at 3,250 RPM using a PWM-controlled EC motor and mixed-flow design. Its E12 controller provides ten selectable speeds, memory recall, and three ON/OFF cycle settings.

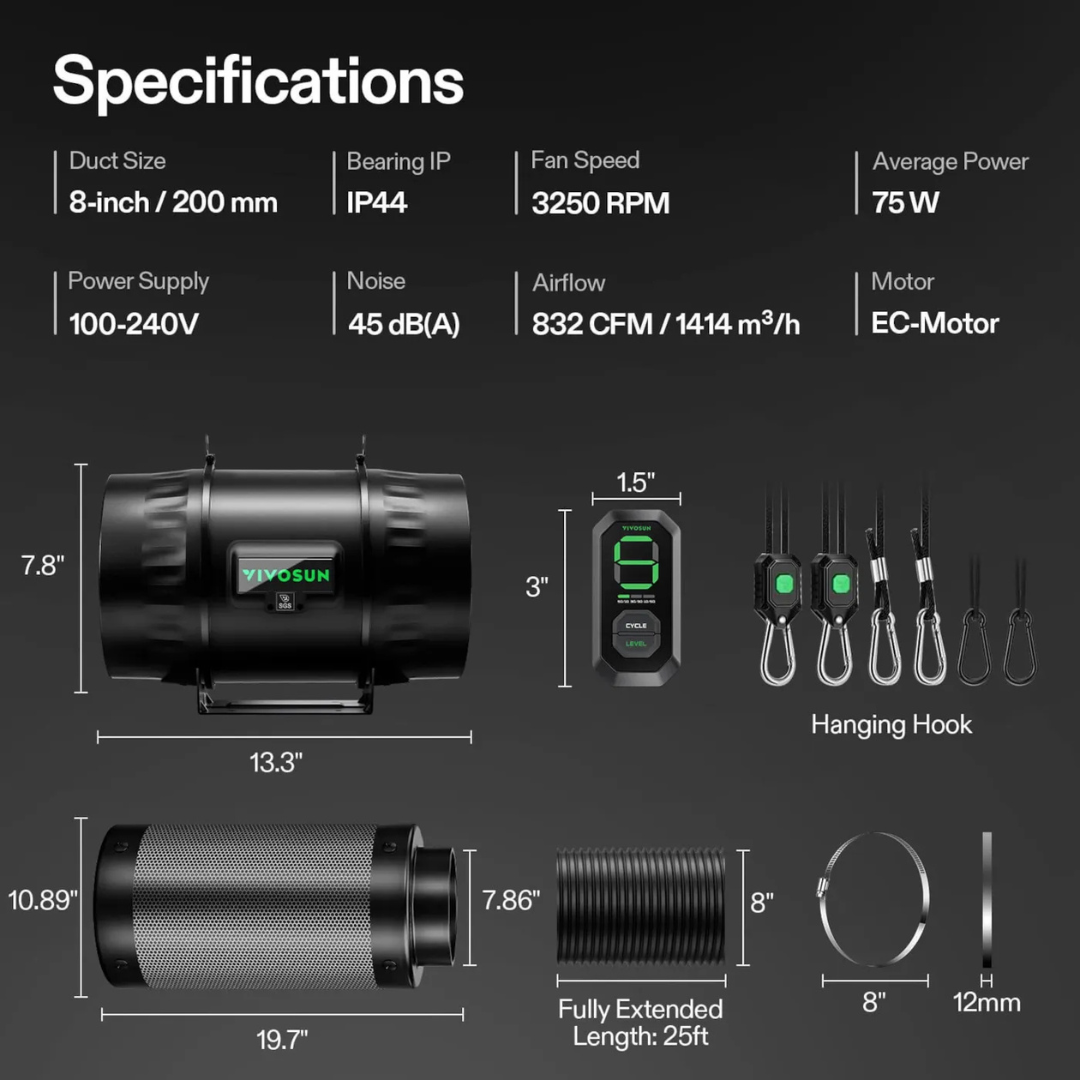

Specifications
- Ventilation Style: 8-inch
- Maximum Airflow: 832 CFM
- Fan Speed: 3,250 RPM
- Noise Level: 45 dBA
- Motor Type: PWM-controlled EC motor
- Airflow Design: Mixed-flow
- Speed Settings: 10
- Cycle Settings: Three ON/OFF cycles
- Speed Memory: Restores the previously selected speed setting
- Controller Type: E12 speed controller
- Inline Fan Size: 11.6 × 8 × 6.7 in.
- Fan Duct Size: 8 in.
- Material: PP and alloy steel
- Power Cord Length: 2 m
- Cord Length to Controller: 3 m
- Input Voltage: 110–240V
- Frequency: 50/60Hz
- Wattage: 75W
- Ingress Protection: IP44

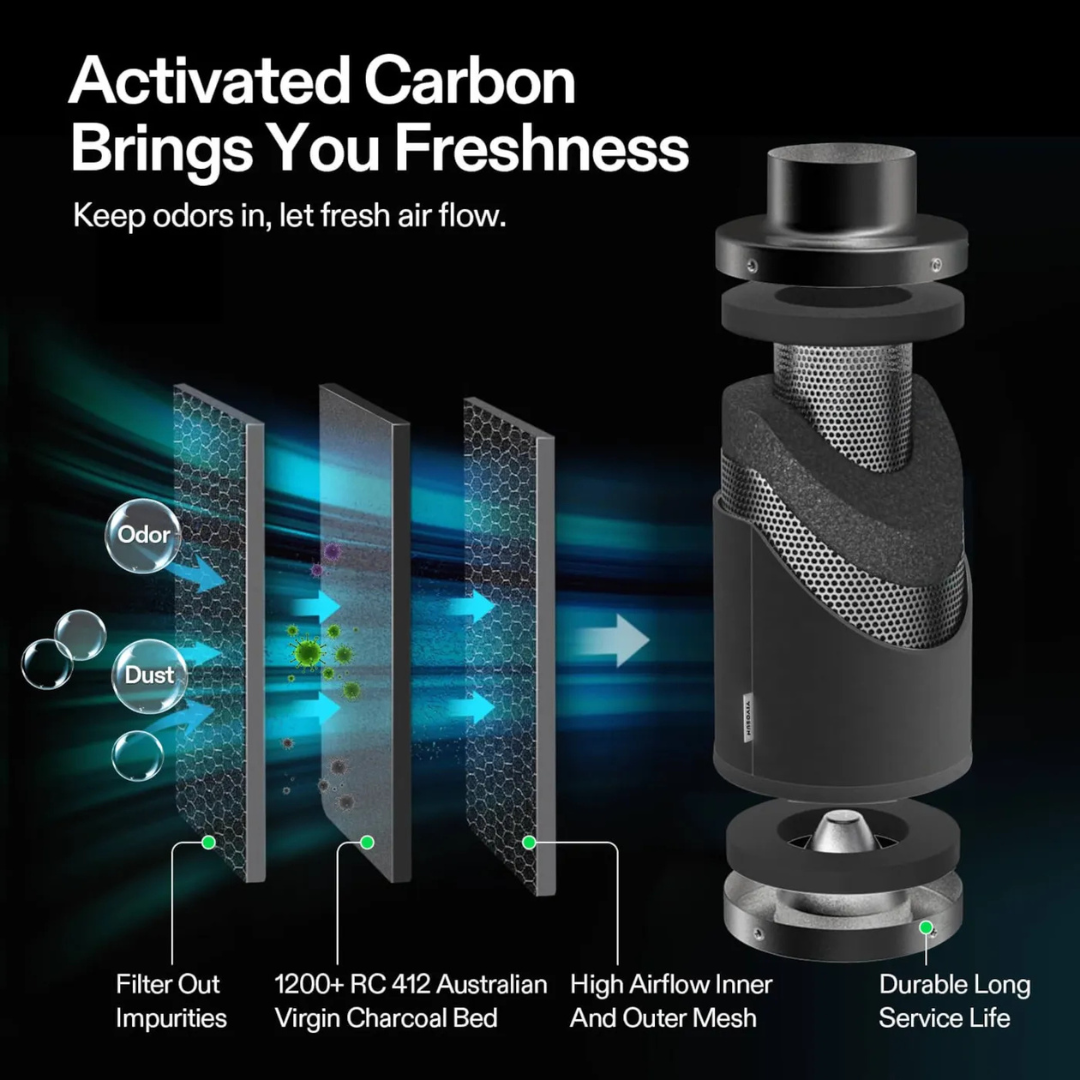

- Carbon Filter Size: 19.7 × 10.9 × 10.9 in.
- Carbon Filter Opening: 8 in.
- Carbon Filter Grade: 1200+ IAV
- Carbon Type: RC 412 Australian Virgin charcoal
- Charcoal Bed Thickness: 38 mm
- Carbon Filter Material: Aluminum
- Ducting Size: 8 in.
- Ducting Length: 25 ft. (7.6 m)
